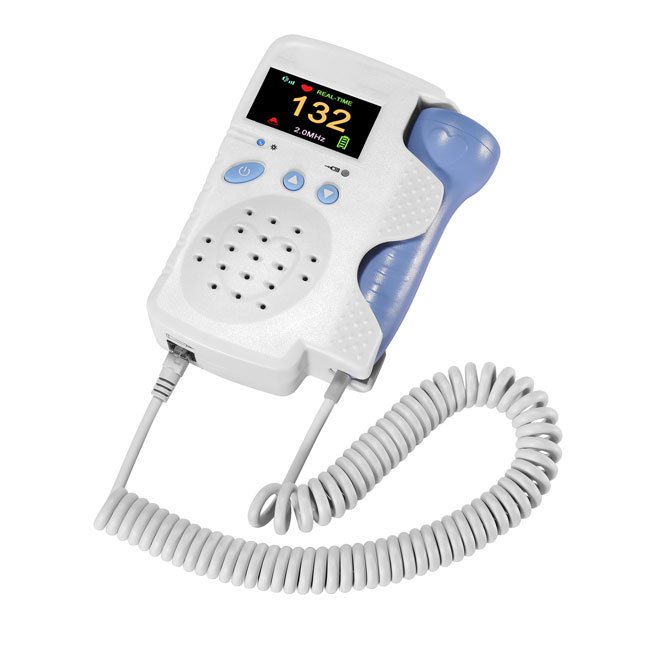

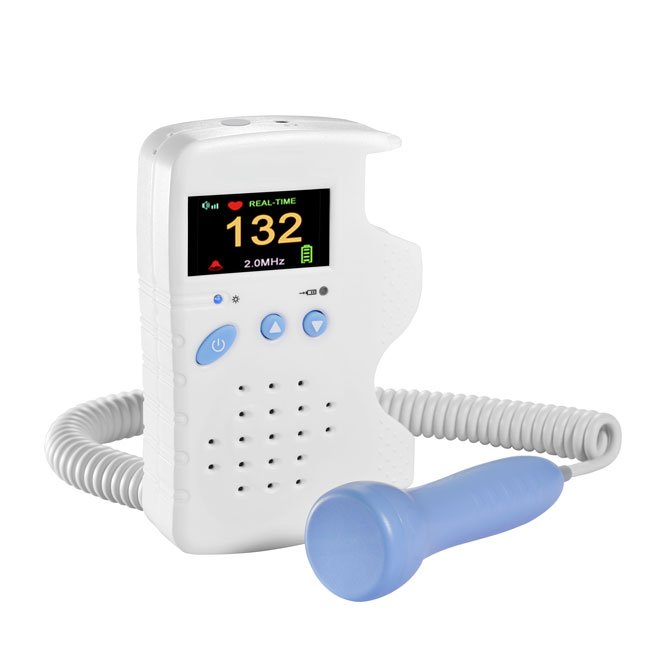

Fetal Doppler NEU200
- High-fidelity ultrasonic fetal doppler for at-home and clinical use
- Easily operable with a crystal clear sound output
- Compatible with earphones and built-in speaker
- High sensitivity probe ensuring accurate measurements
- Safe with low ultrasound dosage (<10mW/cm²)
- Color LCD display for easy monitoring
- Fetal heart rate measuring range: 50~240 bpm
- Compact and lightweight design (500g)
- Powered by alkalinity battery with low power consumption (<1W)
- Optional accessories include earphone, 3MHz probe, and carry bag
- SKU
- NEU200
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Fetal Doppler NEU200
High-fidelity ultrasonic fetal doppler for at-home and clinical use with crystal clear sound output and low ultrasound dosage. Compact, lightweight design with color LCD display and accurate fetal heart rate measurement in the range of 50–240 bpm.
Clinical overview
The Fetal Doppler NEU200 is a portable ultrasonic device designed for safe, non-invasive fetal heart rate monitoring in both clinical and home settings. With an ultrasound frequency of 2 MHz and intensity below 10 mW/cm², the device delivers accurate measurements while maintaining the highest safety standards for mother and fetus. The high-sensitivity doppler probe ensures reliable detection of fetal cardiac activity with minimal operator training required.
Ideal for routine obstetric examinations, prenatal monitoring, and patient self-assessment, the NEU200 combines clinical-grade performance with user-friendly operation. The color LCD display provides real-time fetal heart rate data with ±1 bpm accuracy, while dual audio output (earphone and built-in speaker) accommodates various clinical environments and patient preferences.
Key features & surgeon benefits
Low-Dosage Ultrasound
- Ultrasound intensity <10 mW/cm² for safe fetal exposure
- 2 MHz frequency optimised for fetal cardiac imaging
- High-sensitivity probe for reliable signal detection
Intuitive Operation
- Simple, one-handed probe positioning
- Crystal-clear audio output with earphone and speaker options
- Real-time FHR display with 1 bpm resolution
Compact & Lightweight
- Dimensions: 135 × 95 × 35 mm; weight 500 g
- Alkalinity battery with <1 W power consumption
- Optional carry bag for transport and storage
Configurable Setup
- Standard 2 MHz probe included; optional 3 MHz probe available
- Compatible with earphones for private monitoring
- Customisation options for OEM and institutional requirements
Technical specifications
| Indications | Fetal daily check and routine examination at home, clinic, community, and hospital |
|---|---|
| Ultrasound frequency | 2 MHz |
| Ultrasound intensity | <10 mW/cm² |
| FHR measuring range | 50–240 bpm |
| FHR resolution | 1 bpm |
| FHR accuracy | ±1 bpm |
| Display | 45 mm × 25 mm color LCD |
| Power supply | Alkalinity battery |
| Power consumption | <1 W |
| Dimensions | 135 mm × 95 mm × 35 mm |
| Weight | 500 g |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main body | Fetal Doppler unit with LCD display and controls | 1 |
| 2 MHz probe | Standard ultrasonic doppler probe | 1 |
| Alkalinity battery | Power supply for device operation | 1 |
| 3 MHz probe (optional) | Alternative frequency probe for specific applications | Optional |
| Earphone (optional) | Audio output accessory for private monitoring | Optional |
| Carry bag (optional) | Protective transport and storage case | Optional |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, and customisation options for the Fetal Doppler NEU200. We offer fast delivery and comprehensive support for all clinical and institutional customers.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
