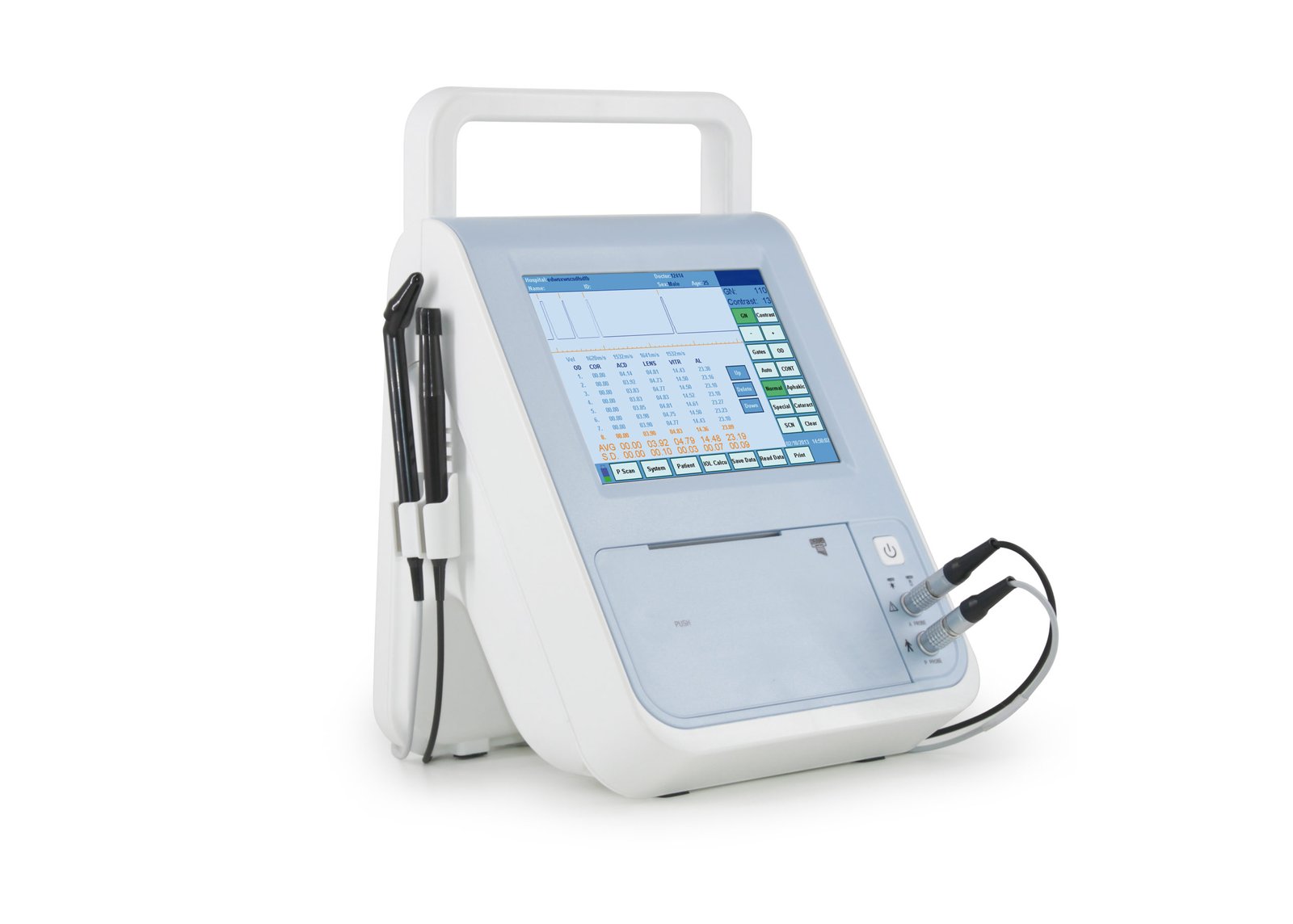

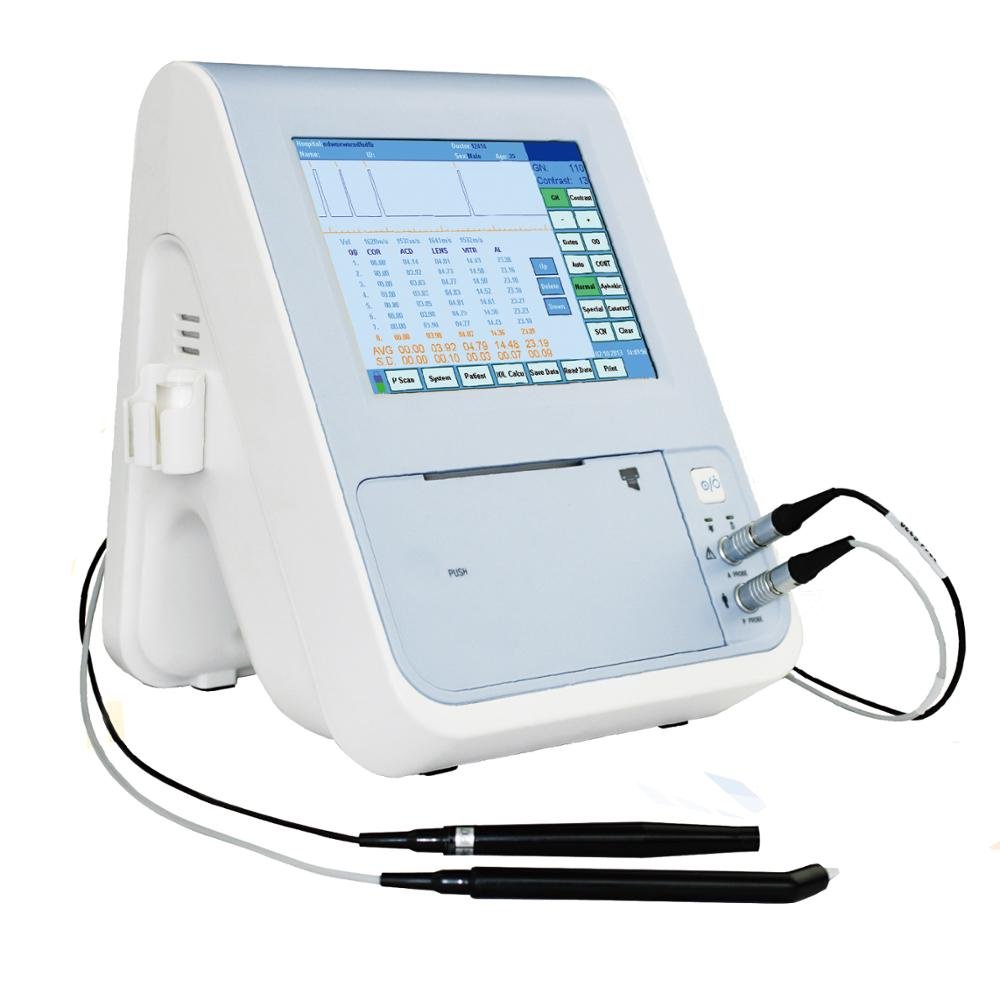

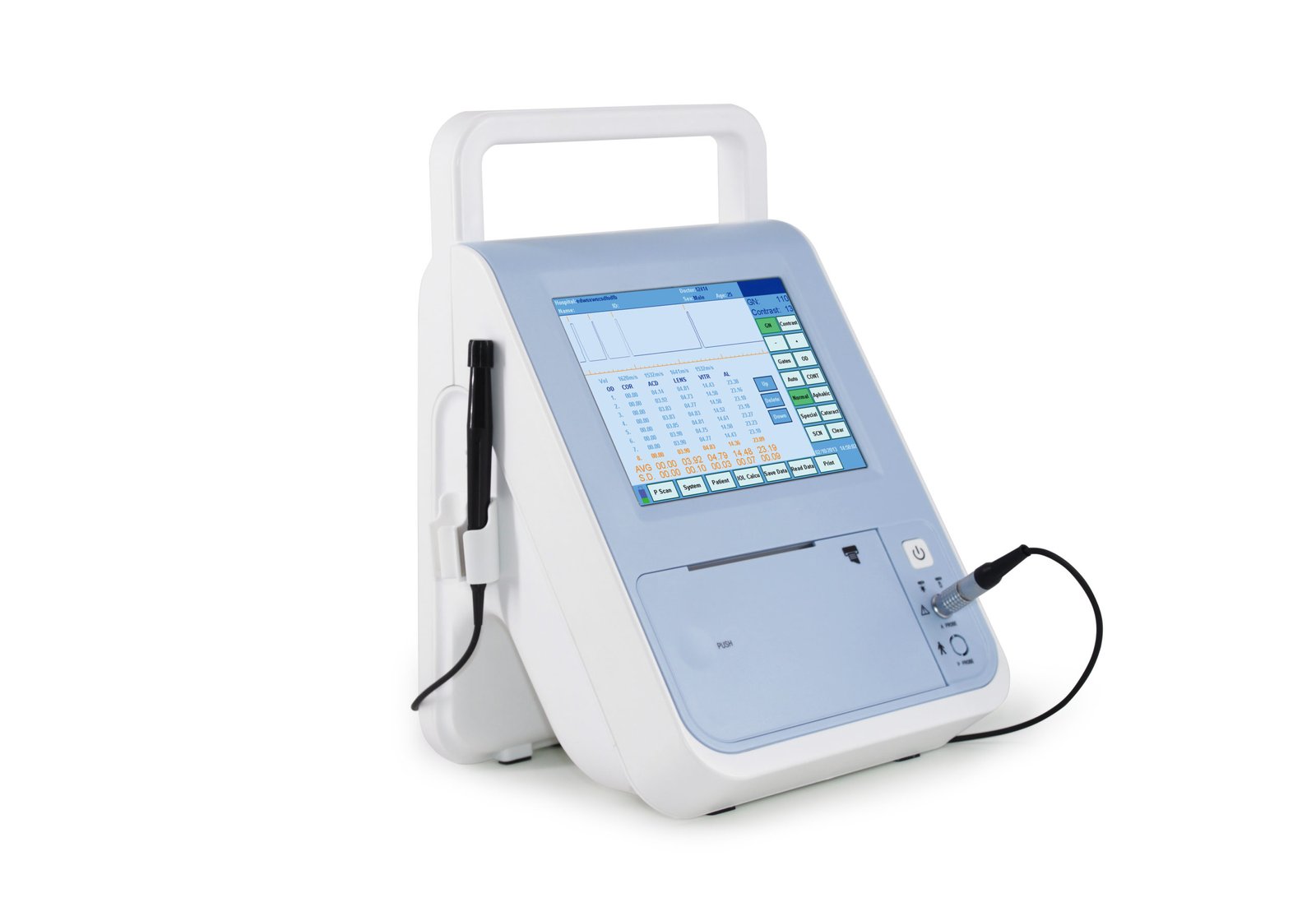

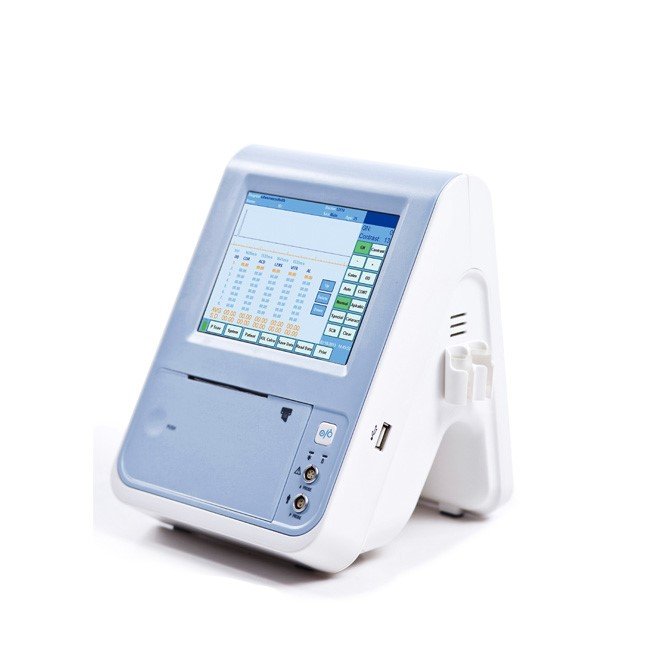

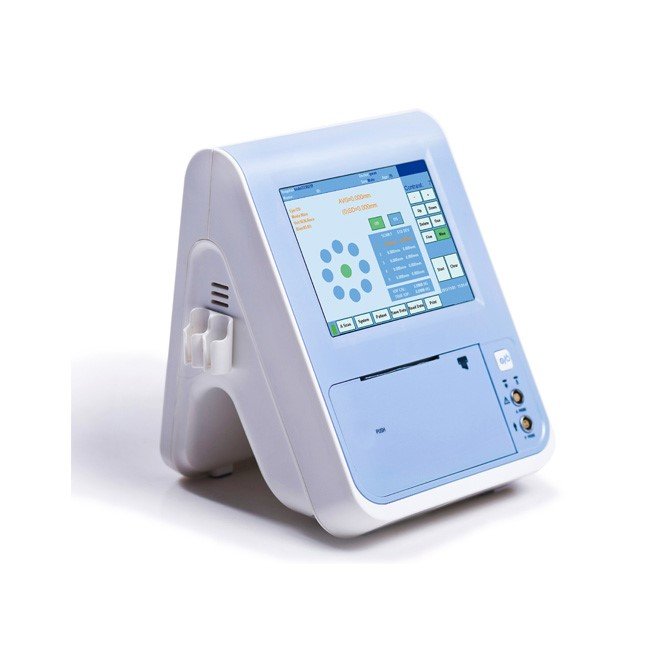

A B Scan Ophthalmic Ultrasound Pachymeter NEUPU21

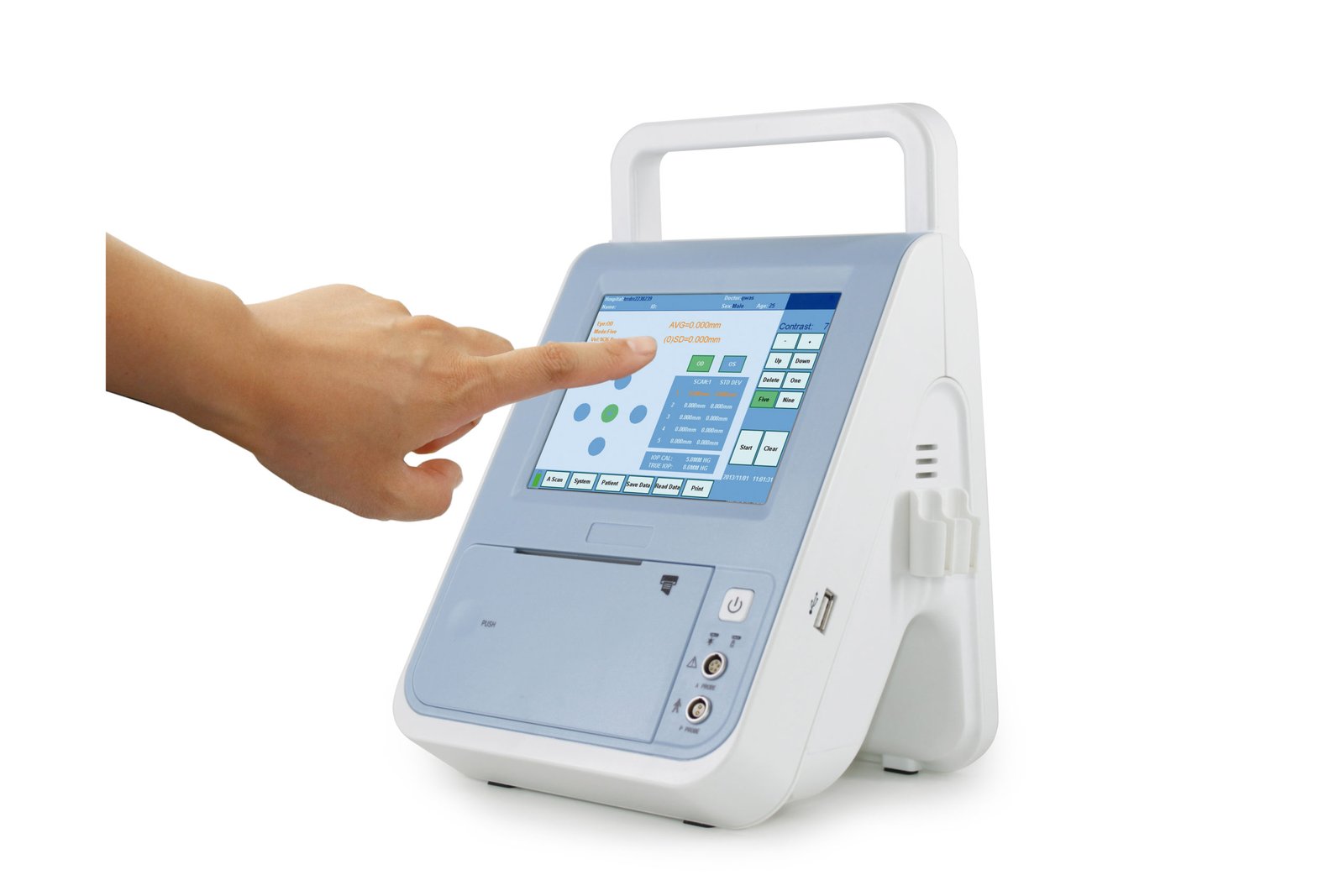

- 5.7 inch color touch LCD screen for easy navigation
- Rechargeable battery lasting up to 10 hours
- Built-in thermal printer with one-key print function
- USB port for direct PC connectivity
- Supports I-station workstation connection
- Lightweight and portable design at 1.7Kg
- Multi-language support: Chinese, English, Russian, French, Spanish, and Portuguese
- High-resolution measurement accuracy of ±0.02mm
- Examination modes include normal, aphakic, pseudophakic, and dense cataract
- Versatile measurement modes: immersion, contact, auto, and manual
- SKU
- NEUPU21
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
A B Scan Ophthalmic Ultrasound Pachymeter NEUPU21
Advanced portable ultrasound pachymeter with 5.7-inch color touch LCD screen, 10-hour rechargeable battery, and built-in thermal printer. Delivers high-resolution measurements (±0.02mm) for comprehensive ocular biometry including ACD, lens thickness, vitreous depth, and axial length across multiple examination modes.
Clinical overview
The NEUPU21 is a compact, portable A/B scan ophthalmic ultrasound pachymeter designed for rapid, accurate ocular biometry in clinical and office-based settings. With a 10 MHz probe frequency and ±0.02 mm measurement accuracy, it delivers reliable data for intraocular lens power calculations, cataract assessment, and comprehensive axial measurements. The device supports multiple examination modes—normal, aphakic, pseudophakic, and dense cataract—enabling clinicians to adapt measurement protocols to diverse patient presentations.
Featuring a 5.7-inch color touch LCD screen, intuitive interface, and built-in thermal printer, the NEUPU21 streamlines workflow and documentation. The 10-hour rechargeable battery and lightweight 1.7 kg design ensure portability across clinic locations. Multi-language support (Chinese, English, Russian, French, Spanish, Portuguese) and direct USB/I-station connectivity facilitate integration into existing practice management and workstation systems.
Key features & surgeon benefits
Comprehensive Ocular Biometry
- Simultaneous A/B scan measurement modes
- ACD, lens thickness, vitreous depth, and axial length in one session
- Six IOL calculation formulas (SRK-II, SRK-T, Binkhorst, Holladay, Hoffer-Q, Haigis)
Rapid, Portable Operation
- 5.7-inch color touch screen with intuitive navigation
- One-key thermal print for instant documentation
- 10-hour battery life; no tethering required
Clinical-Grade Resolution
- ±0.02 mm measurement accuracy
- 0.01 mm resolution with 10 MHz probe frequency
- Adjustable gain (0–120 dB) for optimal signal in all conditions
Seamless System Connectivity
- USB port for direct PC data transfer
- I-station workstation compatibility
- Multi-language interface; OEM customisation available
Technical specifications
| Probe Frequency | 10 MHz |
|---|---|
| Resolution | 0.01 mm |
| Measurement Accuracy | ±0.02 mm |
| Gain Adjustable Range | 0–120 dB |
| Measurement Range | 15–35 mm (velocity 1640 m/s) |
| Measurement Parameters | ACD, Lens thickness, Vitreous depth, Axial length (AXL) |
| Examination Modes | Normal, Aphakic, Pseudophakic, Dense cataract |
| Measurement Modes | Immersion, Contact, Auto, Manual |
| IOL Formulas | SRK-II, SRK-T, Binkhorst, Holladay, Hoffer-Q, Haigis |
| Display | 5.7-inch color touch LCD screen |
| Battery | Rechargeable; 10-hour operating time |
| Printer | Built-in thermal printer with one-key print |
| Connectivity | USB port; I-station workstation support |
| Languages | Chinese, English, Russian, French, Spanish, Portuguese |
| Net Weight | 1.7 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | A/B Scan Ophthalmic Ultrasound Pachymeter with 5.7-inch color touch LCD display | 1 |

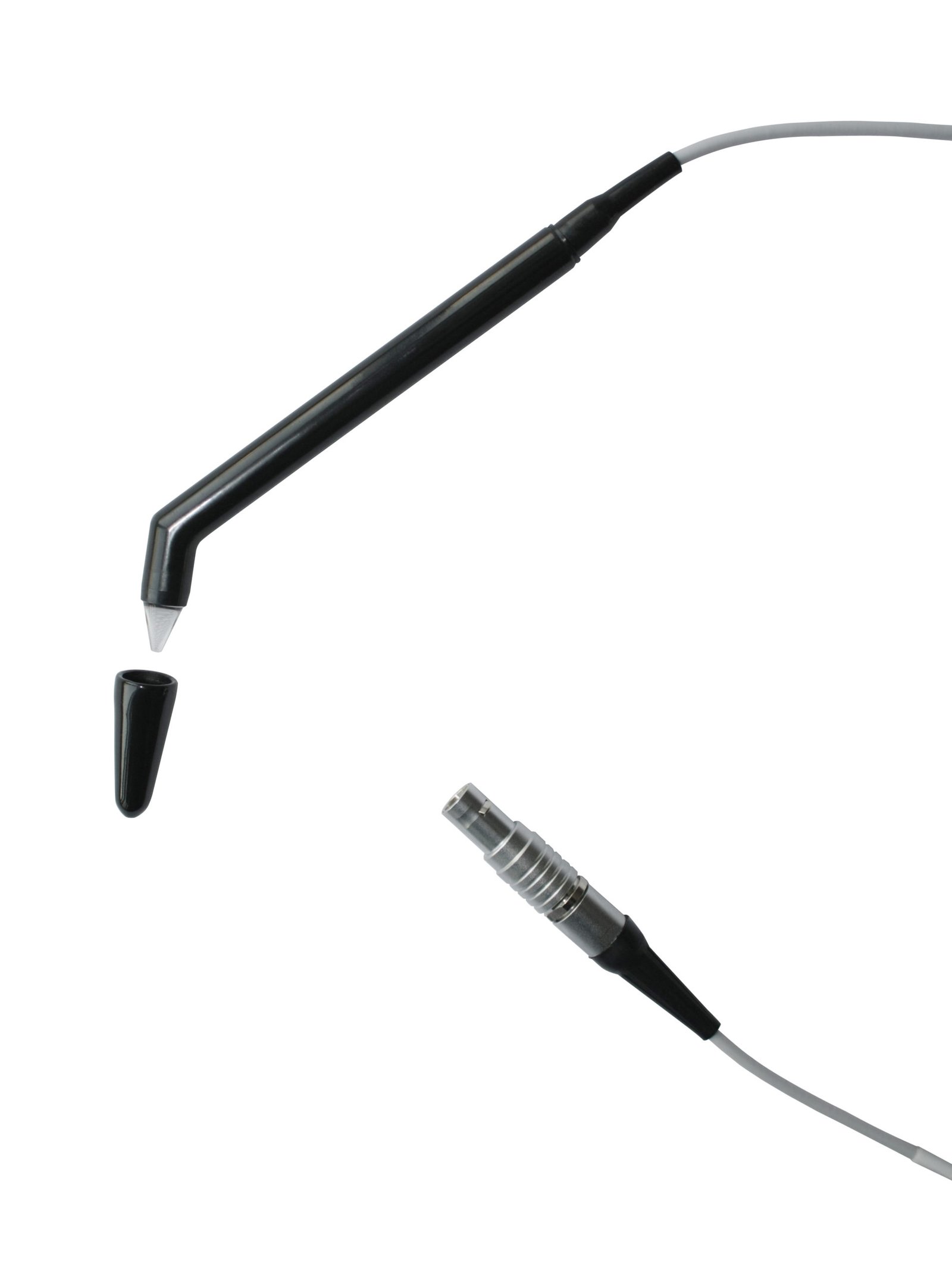

| Probe | 10 MHz ultrasound transducer with cable | 1 |
| Footswitch | Ergonomic control pedal for measurement activation | 1 |
| Power Supply | AC adapter with rechargeable battery module | 1 |
| Thermal Printer | Built-in thermal printer (paper rolls included) | Integrated |
| USB Cable | For PC connectivity and data transfer | 1 |
| Probe Cover / Sheath | Disposable protective covers for hygiene | Pack of 100 |
| Coupling Gel | Ultrasound transmission gel (contact/immersion) | 1 bottle |
| User Manual | Multi-language instruction guide and quick reference | 1 |
| Carrying Case | Protective transport case for portability | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, arrange a product demonstration, or discuss customisation options for your clinic or hospital. We offer flexible delivery, training, and comprehensive after-sales support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Frequently bought together
Related products
See all →

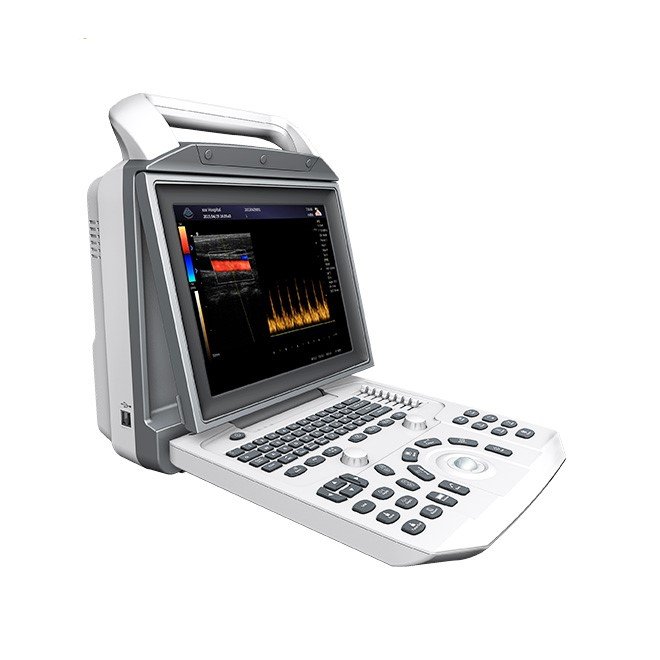

Full Digital Color Doppler Ultrasonic Diagnostic System NEUCU45M
- High-definition 12.1″ LCD monitor with adjustable viewing angle - Dual transducer ports for versatile imaging capabilities - Long-lasting lithium battery for over 2 hours of operation - Advanced imaging technologies including speckle noise removal and tissue harmonic imaging - Comprehensive software packages for various medical uses: Abdomen, Cardiac, Obstetrics, and more - DICOM 3.0 compatibility for seamless data sharing - Multiple data interface options: USB2.0, VGA, and more - Lightweight design: Net weight of 8KG, gross weight of 14KG - Extensive clinical applications across various medical disciplines - Unique puncture guide and automated measurement technologies for enhanced accuracy

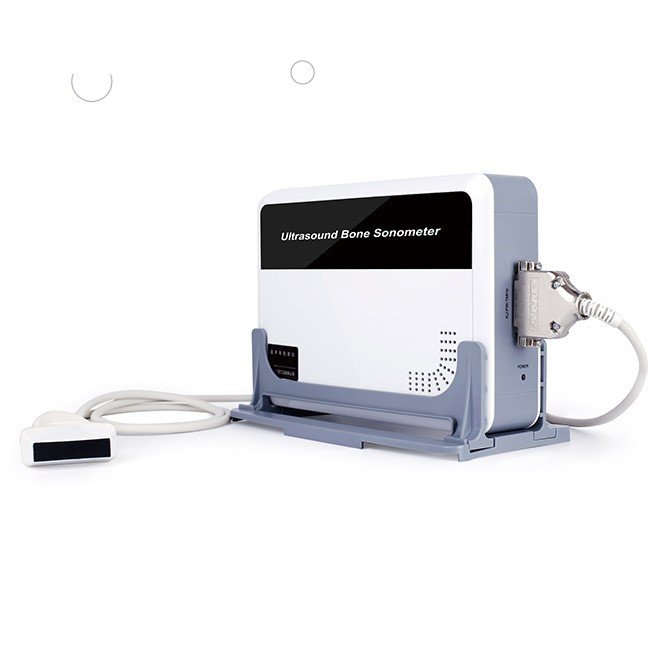

Portable Bone Density Scanner NEUBD10
- Portable and lightweight design for easy transport - Utilizes ultrasound technology for non-invasive bone density measurement - Measures bone density at the radius and tibia, suitable for all ages - Ideal for pregnant women, children, and the elderly - Provides reliable results unaffected by soft tissue thickness or bone size - Quick measurement time: single measurement in ≤ 25 seconds - Compatible with Windows XP and above operating systems - Features a comprehensive database for multi-age data selection - Operating conditions: 5-40℃ and relative humidity ≤ 80% - Easy to connect to desktop computers, laptops, or tablets

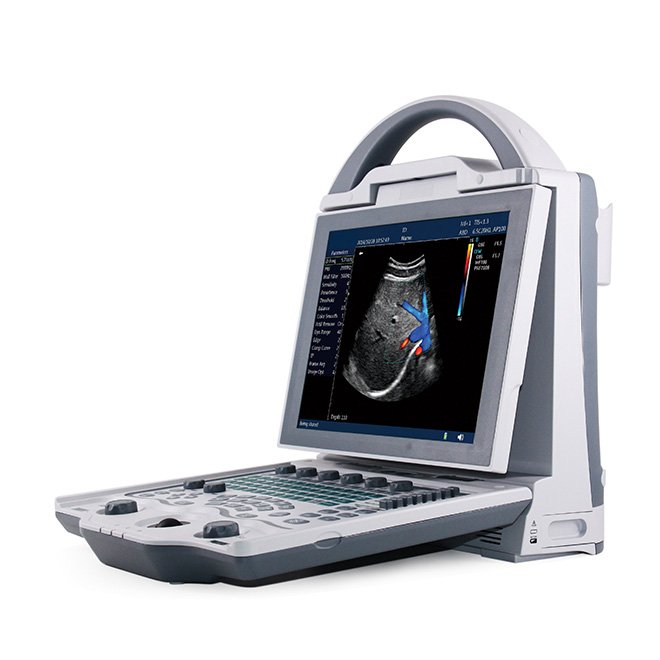

3D Ultrasound Machine NEUCU23
- 10.4" color LCD full screen display with adjustable angle - One-key-light keyboard for use in dark environments - Easy one-button operation for storage, review, and printing of images - Quick access to stored images for enhanced efficiency - Multi-functional knob allowing quick adjustments across modes - Advanced imaging techniques for optimized signal accuracy - Adaptive color artifact removal for clear images - Linear probe with independent angle deflection - Integrated working station for streamlined operation - Abundant measuring software for comprehensive data management

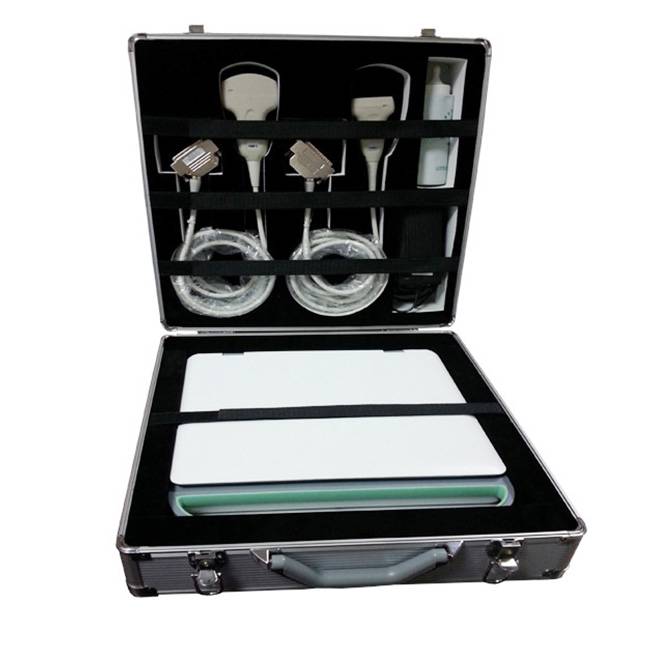

3D Laptop Ultrasound Machine NEUPU34
- 15 inch LCD display for clear imaging - Wide working frequency range: 2.0MHz to 10MHz - Multiple display modes: B, B+B, B+M, M, and 4B - Convex array scanning range of 60° to 150° - Adjustable amplification factor (1.0, 1.2, 1.5, 2.0) - 8 segments TGC and overall gain control - Advanced image processing techniques for enhanced clarity - Supports 512 lines/frame with a 30 fps frame rate - Convenient USB flash disk image storage - Built-in battery allows over 5 hours of operation - Weighs only 4Kg, including battery for portability

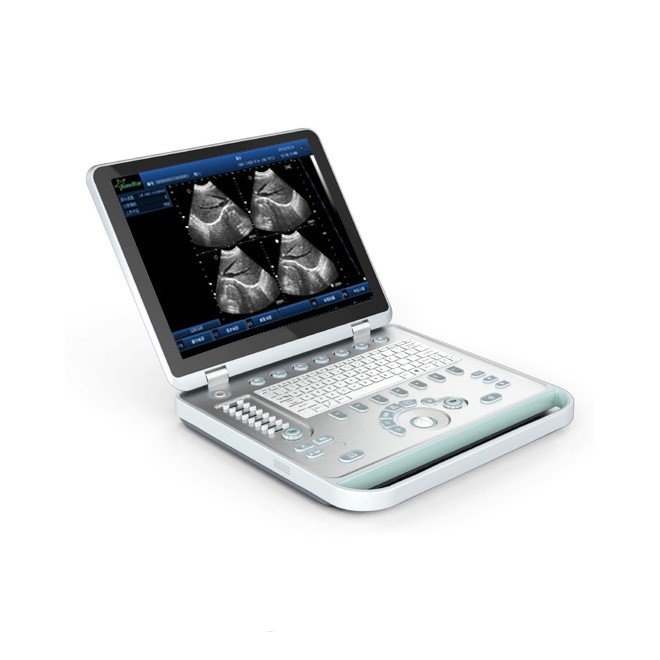

3D Full Digital Laptop Ultrasound Scanner NEUPU25
- High-resolution 15 inch LCD display for clear imaging - Versatile working frequency range of 2.0MHz to 10MHz - Multiple display modes: B, B+B, B+M, M, and 4B - Wide scanning range from 60° to 150° with convex array - Advanced image processing with 8 γ corrections and digital edge enhancement - 512 lines/frame scanning for enhanced detail and clarity - Fast frame rate of 30 frames per second for real-time imaging - USB flash disk support for large volume image storage - Built-in battery allowing over 5 hours of continuous use - Lightweight design at only 4Kg, including battery and standard configurations

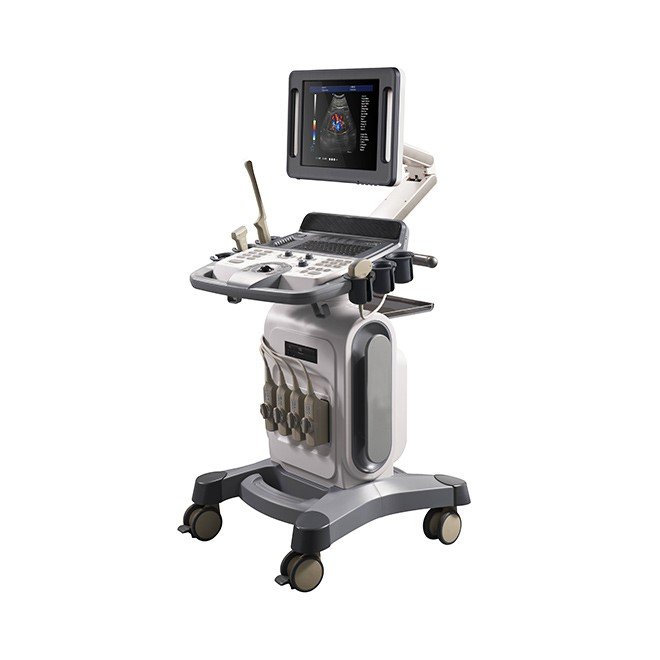

4D Full Digital Trolley Color Doppler Ultrasound NEUCU30
- 4D Full Digital Trolley Color Doppler Ultrasound NEUCU30 - Supports multiple displaying modes: B, M, Doppler, and more - Advanced full-digital signal processing for superior imaging - Intelligent imaging technologies including THI and iBeam TM - Extensive measurement packages for abdomen, OB, gynecological, urology, cardiac, and vascular assessments - Adjustable parameters such as Doppler sound output, wall filter, and sampling frame - High storage capacity with 500G available for images in BMP, JPEG, and PNG formats - Standard configuration includes a 15-inch LED monitor and dual probes - Optional accessories available for expanded functionality, including transvaginal probes and DICOM 3.0 compatibility.

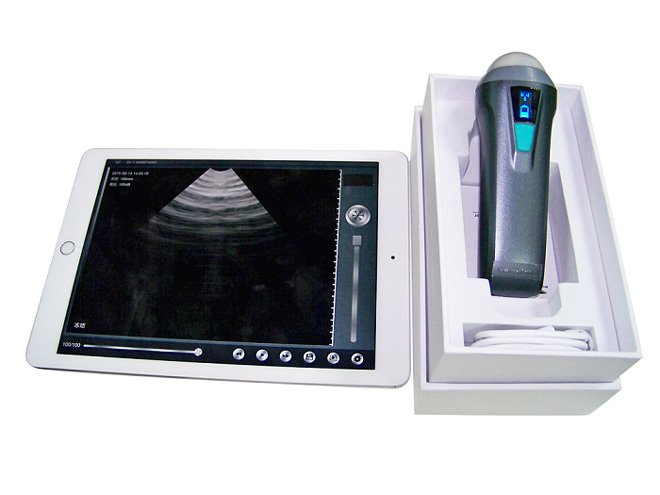

Wireless Veterinary Ultrasound Probe NEUPU36
