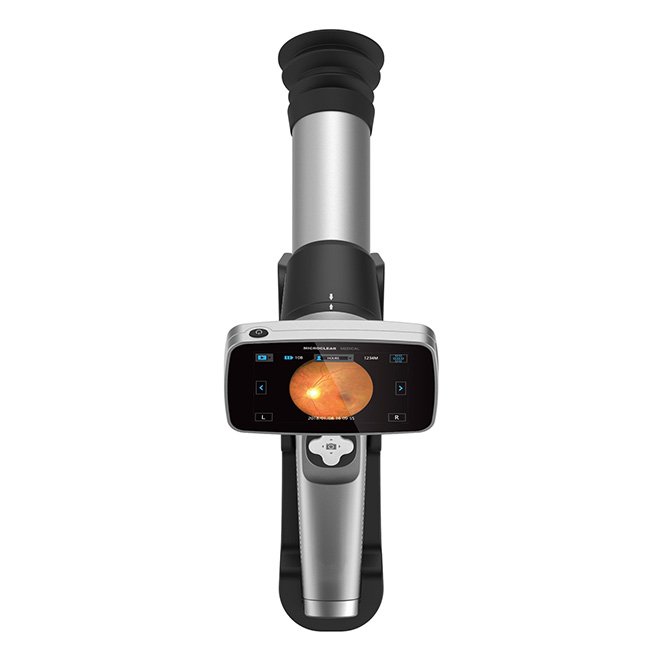

Handheld Digital Imaging Portable Fundus Camera NEUHA06
- Handheld portable fundus camera, model NEUHA06.
- High-resolution imaging with 16MP focus mode.
- 45° field of view and minimum pupil size of 2.5mm.
- Dual shooting types: infrared and white light.
- 3.97-inch multi-target touch screen with 800×480 resolution.
- Internal storage capacity of 16GB, supports USB/Wi-Fi/BT/4G.
- Long-lasting lithium battery with over 24 hours of standby time.
- App compatible with Windows and Android, supports DICOM.
- Includes patient data management software and wireless printing.
- Compact design weighing only 560g for easy portability.
- SKU
- NEUHA06
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Handheld Digital Imaging Portable Fundus Camera NEUHA06
High-resolution portable fundus imaging system with 16MP focus mode, dual infrared and white light shooting, and comprehensive patient data management. Designed for rapid, high-definition retinal imaging in clinical and field settings with intuitive touchscreen interface and multi-platform connectivity.
Clinical overview
The NEUHA06 is a handheld digital fundus camera engineered for rapid, high-resolution retinal imaging in diverse clinical environments. With a 45° field of view and minimum pupil requirement of just 2.5mm, it enables imaging in patients with small pupils or media opacity. The 16MP focus mode delivers exceptional image clarity for detailed assessment of the optic disc, macula, and peripheral retina, supporting early detection of diabetic retinopathy, age-related macular degeneration, and other posterior segment pathology.
Dual imaging modes—infrared and white light—provide complementary diagnostic information. The 3.97-inch multi-touch display with 800×480 resolution offers intuitive real-time image review and patient data entry. Weighing only 560g with a compact ergonomic design, the NEUHA06 is ideal for screening programs, mobile clinics, and resource-limited settings where portability and ease of use are paramount.
Key features & surgeon benefits
High-Resolution Capture
- 16MP focus mode for exceptional image clarity
- Dual infrared and white light shooting modes
- 8-target fixation for precise alignment and reproducibility
- Auto and manual focus options for operator flexibility
Intuitive Operation
- 3.97-inch multi-touch screen with responsive interface
- Rapid image acquisition and instant on-device review
- Integrated patient data management and NFC card reader support
- Wireless printing and cloud service connectivity
Mobile-First Design
- Lightweight at 560g with ergonomic handheld form factor
- Long-lasting lithium battery with 24+ hours standby
- 3.5–4 hour full charge cycle for all-day clinical use
- Compact footprint ideal for screening and field deployment
Multi-Platform Integration
- USB, Wi-Fi, Bluetooth, and 4G transmission options
- 16GB internal storage with JPEG image format
- DICOM-compliant software for EHR integration
- Windows PC and Android app support for flexible deployment
Technical specifications
| Field of View | 45° |
|---|---|
| Minimum Pupil Size | 2.5mm |
| Refractive Range | −20D to +20D |
| Focus Mode | 16MP; auto and manual focus |
| Image Resolution | 8-target fixation |
| Display | 3.97-inch multi-touch screen, 800×480 resolution |
| Shooting Types | Infrared and white light |
| Image Format | JPEG |
| Storage & Transmission | 16GB internal; USB, Wi-Fi, Bluetooth, 4G |
| Weight | 560g |
| Power Supply | Lithium battery, 3.7V, 3400mAh |
| Battery Life | Continuous operation as applicable; standby exceeds 24 hours |
| Charging Time | 3.5–4 hours |
| Operating System | Windows (PC); Android (app) |
| Additional Features | NFC card reader, DICOM support, cloud service, patient data management, wireless printing |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Fundus Camera Unit | Handheld digital imaging device with integrated touchscreen and optical system | 1 |
| Lithium Battery | 3.7V, 3400mAh rechargeable battery | 1 |
| USB Charging Cable | Standard USB charging and data transfer cable | 1 |
| Carrying Case | Protective padded case for transport and storage | 1 |
| Patient Data Management Software | Windows-compatible software for image management and DICOM export | 1 License |
| Android App | Mobile application for image review and wireless connectivity | 1 License |
| Quick Start Guide | Multilingual user manual and setup instructions | 1 |
Get in touch for pricing & availability
Contact our ophthalmic specialists to discuss pricing, volume discounts, and customisation options for the NEUHA06. We provide rapid quotes and flexible delivery schedules to support your clinical and screening programs.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
