Ophthalmoscope and Otoscope NEUEY01
- Comprehensive ophthalmoscope and otoscope combined for efficient diagnostics
- Multiple illumination options: big spot, small spot, red free, and more
- Includes polar filter, red-free filter, and no filter for precise examinations
- Adjustable diopter compensation from -10 to +40 (D) for customized viewing
- Ear speculum sizes available: 2.5mm, 3mm, 4mm, and 5mm
- 3x magnification for enhanced visibility during examinations
- Powered by 1.5V C type batteries for reliable performance
- Durable construction for long-lasting use in clinical settings
- Clear and detailed design for optimal user experience
- Lightweight and portable design for easy handling
- SKU
- NEUEY01
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Ophthalmoscope and Otoscope NEUEY01
A dual-function diagnostic instrument combining comprehensive ophthalmoscopy and otoscopy in one portable device. Features multiple illumination modes, precise diopter compensation, and variable ear speculum sizes for efficient clinical examinations across diverse patient presentations.
Clinical overview
The NEUEY01 combines ophthalmoscope and otoscope functionality in a single, lightweight instrument designed for efficient point-of-care diagnostics. The integrated design reduces equipment burden while maintaining optical precision across both ophthalmic and otologic examinations. Clinicians benefit from a unified workflow without compromising image quality or ease of use.
With adjustable diopter compensation spanning -10 to +40 D and multiple illumination modes, the NEUEY01 accommodates diverse refractive errors and pathology presentations. The 3x magnification provides enhanced visibility for detailed fundal and tympanic membrane assessment, while variable ear speculum sizes ensure patient comfort and diagnostic accuracy across age groups.
Key features & surgeon benefits

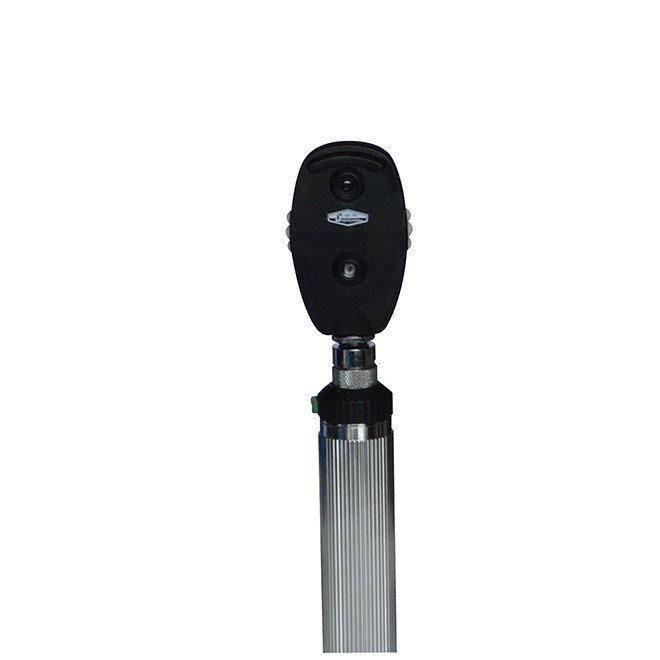

Multi-Mode Illumination
- Big spot, small spot, red-free, central net, slit, and spot modes
- Polar, red-free, and standard filters for targeted examination
- 3x magnification for enhanced detail visibility
Dual-Function Design
- Single instrument for ophthalmoscopy and otoscopy
- Rapid mode switching without equipment changes
- Lightweight and portable for clinic and bedside use
Customizable Diopter Compensation
- Comprehensive range: -10 to +40 D in discrete steps
- Accommodates myopic and hyperopic patients
- Precise focus for detailed fundal and otologic assessment

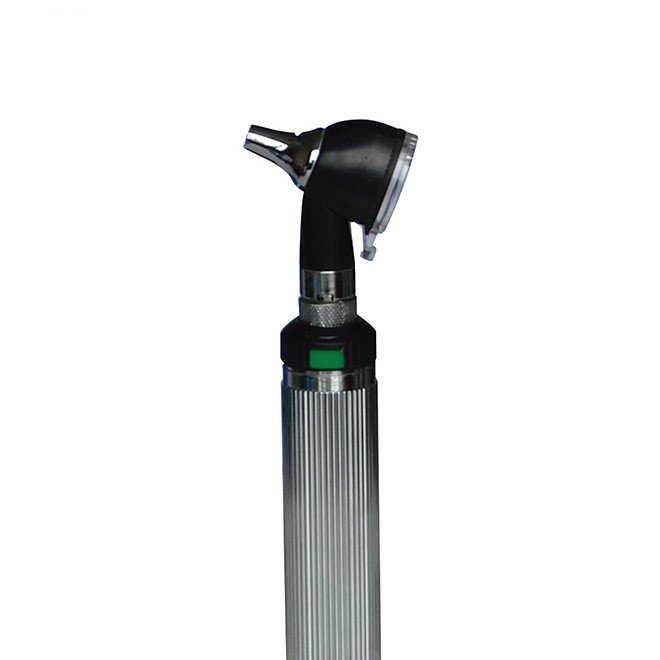

Versatile Speculum Sizing
- Four ear speculum sizes: 2.5mm, 3mm, 4mm, 5mm
- Suitable for pediatric through adult patients
- Ensures comfort and diagnostic access across populations
Technical specifications
| Indications | Fundus examination, anterior segment assessment, otologic inspection |
|---|---|
| Illumination Modes | Big spot, small spot, red-free, central net, slit, spot |
| Compensation Filters | Polar filter, red-free filter, no filter |
| Diopter Compensation | 0, ±1, ±2, ±3, ±4, ±5, ±6, ±8, ±10, ±15, ±20, ±25, +40 (D) |
| Ear Speculum Sizes | 2.5mm, 3mm, 4mm, 5mm |
| Magnification | 3x |
| Power Supply | 1.5V × 2 "C" type batteries |
| Illumination Bulb | 2.5V / 0.45A |
| Material | Durable clinical-grade construction |
| Warranty | 2 Year Manufacturer Warranty |

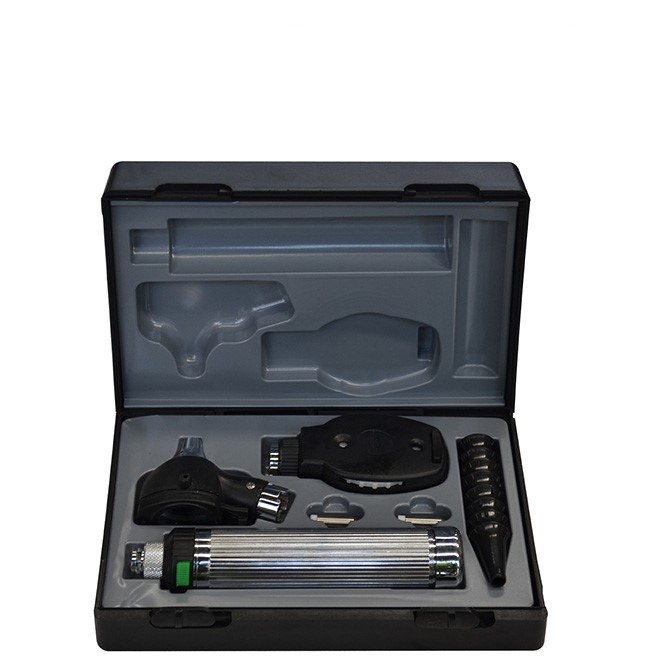

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Instrument | Combined Ophthalmoscope/Otoscope Head | 1 |
| Ear Specula Set | 2.5mm, 3mm, 4mm, 5mm sizes | 4 |
| Illumination Bulb | 2.5V / 0.45A replacement | 1 |
| Batteries | 1.5V "C" type (as applicable) | 2 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, and institutional arrangements. We offer fast delivery and comprehensive support for all NEUEY01 instruments.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
