Ophthalmic Ultrasound Scanner NEUPU23
- High-end laptop-design B/W ultrasound imaging system
- Lightweight and portable at just 2.3kg
- Clear diagnostic images with advanced imaging technologies
- Extensive software package for multiple medical specialties
- 80 element probe with multi-frequency capabilities
- Upgradable system with two USB ports for connectivity
- Compatible with HP laser printers for easy printing
- 10.4" color TFT LCD monitor with 256 gray levels
- 256 frames Cineloop for dynamic imaging
- Includes essential accessories like a probe, ultrasound gel, and user manual
- SKU
- NEUPU23
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

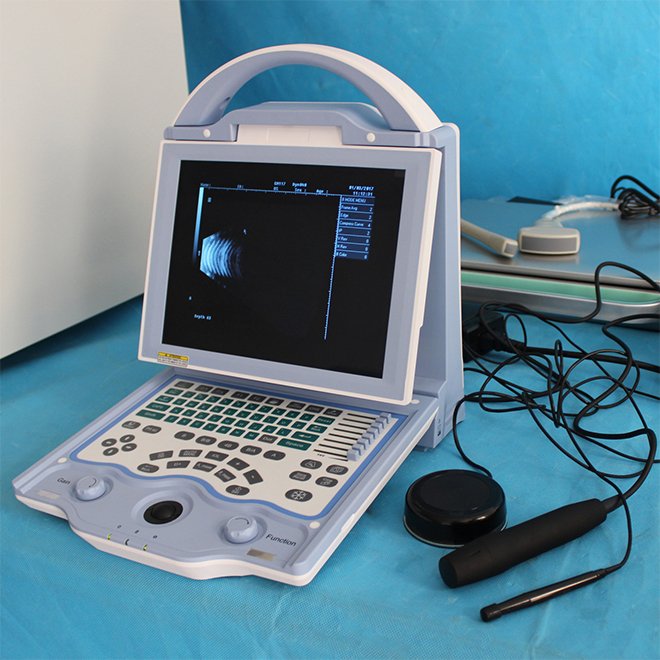

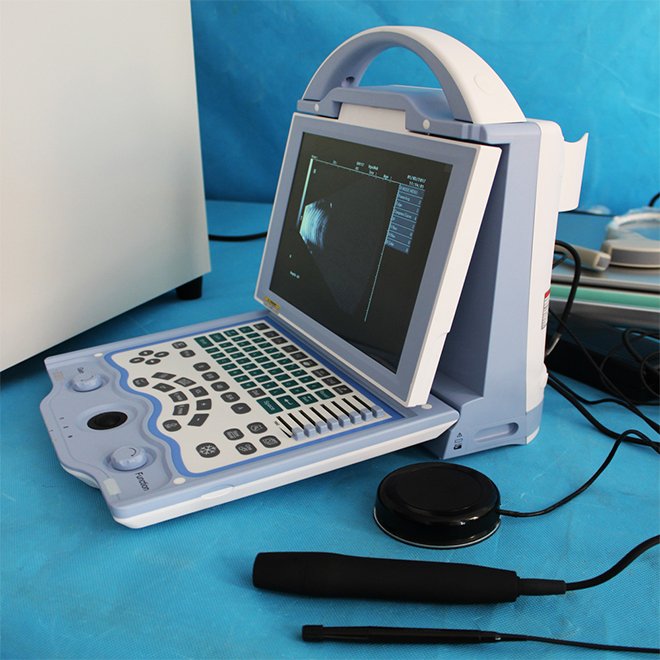

Ophthalmic Ultrasound Scanner NEUPU23
High-end laptop-design B/W ultrasound imaging system with advanced digital imaging technologies. Lightweight at just 2.3kg, delivering clear diagnostic images with powerful functionality typically found in bulky systems. Ideal for hospital exams, outgoing consultations, and fieldwork.
Clinical overview
The NEUPU23 is a high-end, laptop-design B/W ultrasound imaging system that integrates NEUVAR's latest digital imaging technologies and four-frequency probe technology. Despite its compact dimensions and lightweight construction (2.3kg), it delivers clear diagnostic images and powerful functionality typically associated with larger, bulky ultrasound systems. The complete software package supports ultrasound examinations across multiple medical specialties, making it suitable for hospital-based diagnostics, outgoing consultations, and fieldwork applications.
With an 80-element multi-frequency probe, advanced image processing capabilities, and extensive measurement tools, the NEUPU23 provides clinicians with a portable yet comprehensive diagnostic platform. The system features a 10.4" color TFT LCD monitor with 256 gray levels, 256-frame Cineloop for dynamic imaging, and real-time display of patient information, measurements, and anatomical markers.
Key features & surgeon benefits
Compact Laptop Design
- Weighs only 2.3kg for easy transport
- Dimensions comparable to a standard laptop
- Includes protective metal carrying case
- Rechargeable lithium battery for field use
Advanced Diagnostic Capability
- 10.4" color TFT LCD monitor with 256 gray levels
- 80-element multi-frequency probe (2.0–9.0 MHz)
- Dynamic range 27–90 dB with visual adjustment
- 256-frame Cineloop for real-time dynamic imaging
- 8 internal pseudo-color display modes
Multi-Specialty Software
- Abdomen, obstetric, gynecology, urology, cardiology, small parts
- OB measurements: BPD, CRL, GS, FL, HL, LV, TTD, APTD, HC, AC, FT, TAD, THD, TCD, OFD
- General measurements: distance, circumference/area, heart rate, EF rate, gestational age, fetal weight, EDD
- 64 body mark options for anatomical reference
Upgradable & Integrated
- Two USB ports for data transfer and peripherals
- Compatible with HP laser printers for image output
- Permanent storage of 100 frames
- System upgradable for future enhancements
Technical specifications
| Display Modes | B, B+B, 4B, B+M, M |
|---|---|
| Monitor | 10.4" color TFT LCD |
| Gray Scale | 256 levels |
| Gain Range | 0–127 |
| Probe Frequency | 2.0–9.0 MHz (multi-frequency, wide-band) |
| Probe Type | 80-element convex, linear, multi-frequency |
| Dynamic Range | 27–90 dB (visually adjustable) |
| Scan Angle | 30–150° (depending on probe) |
| Scan Depth | 40–240 mm (depending on probe) |
| Cineloop | 256 frames |
| Permanent Storage | 100 frames |
| Pseudo-Color Modes | 8 internal modes |
| Body Marks | 64 anatomical markers |
| Image Processing | Continuous dynamic focus, dynamic aperture, dynamic filter, gamma correction, black/white conversion, left/right conversion, up/down conversion, edge enhancement |
| Puncture Guide | Adjustable angle and position guide lines |
| Weight | 2.3 kg |
| Power | AC adapter with rechargeable lithium battery |
| Connectivity | 2 USB ports; HP laser printer compatible |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | NEUPU23 Ultrasound Scanner | 1 |
| Probe | 80-element multi-frequency probe (2.0–9.0 MHz) | 1 |
| PC Keyboard | Standard USB keyboard for system control | 1 |
| Power Supply | AC adapter and power cable | 1 |
| Rechargeable Battery | Lithium battery for portable operation | 1 |
| Carrying Case | Protective metal case for transport | 1 |
| Ultrasound Gel | Coupling gel for probe contact | 1 |
| User Manual | Complete operation and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, schedule a product demonstration, or discuss customisation options for the NEUPU23 Ophthalmic Ultrasound Scanner.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
