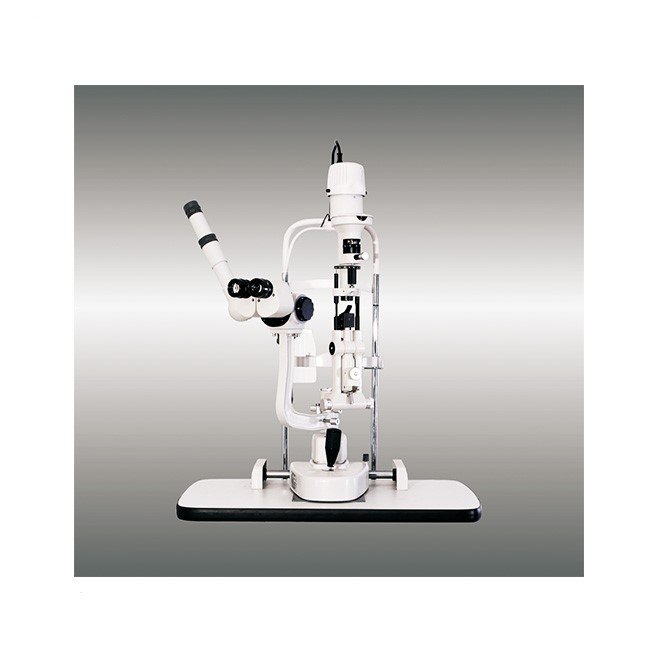

Slit Lamp Eye Examination Instruments NEU2ER-L
- High-quality Slit Lamp Eye Examination Instrument (NEU2ER-L)
- Galileo parallel style microscope with multiple magnification options
- Total magnification range: 10x, 16x, 25x
- Adjustable eyepiece magnification: 12.5x
- Wide field of view: up to 33mm at 6X
- Pupil distance adjustment: 55 mm to 75 mm
- Various illumination angles: 0, 5, 10, 15, 20 degrees
- 12V, 50W halogen bulb with heat absorption filters
- Compact and portable with a gross weight of 25kg
- IEC601-1 certified for electrical safety
- SKU
- NEU2ER-L
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Slit Lamp Eye Examination Instrument NEU2ER-L
Professional-grade slit lamp system with Galileo parallel optics, three magnification settings (10x, 16x, 25x), and comprehensive illumination angles. Designed for precise anterior segment examination with adjustable pupil distance, multiple aperture sizes, and integrated fixation lighting for clinical accuracy.
Clinical overview
The NEU2ER-L slit lamp is a precision diagnostic instrument engineered for comprehensive anterior segment evaluation in clinical and research settings. Its Galileo parallel optical design delivers exceptional image quality across three magnification levels, enabling detailed examination of the cornea, conjunctiva, lens, and anterior chamber. The system combines optical excellence with ergonomic design, supporting extended examination sessions without operator fatigue.
With variable illumination angles (0°, 5°, 10°, 15°, 20°), multiple aperture configurations (0.2mm to 14mm), and integrated red LED fixation, the NEU2ER-L accommodates diverse clinical protocols. The wide field of view at lower magnifications (33mm at 6x) facilitates rapid patient screening, while higher magnifications (25x) enable detailed pathology assessment. Adjustable pupil distance (55–75mm) and eyepiece correction (±8D) ensure comfortable operation across diverse clinician anthropometry.
Key features & surgeon benefits
Multi-Magnification Capability
- Three magnification settings (10x, 16x, 25x) for comprehensive diagnostic coverage
- Wide field of view: 33mm at 6x for rapid screening; 8mm at 25x for detailed pathology
- Galileo parallel optics ensure minimal distortion and superior image contrast
Versatile Lighting Control
- Five illumination angles (0°, 5°, 10°, 15°, 20°) for oblique and direct examination
- Multiple filter options: heat absorption, grey, red-free (green), and cobalt blue
- 12V, 50W halogen bulb with integrated heat absorption for patient comfort
Operator-Centric Design
- Adjustable pupil distance (55–75mm) accommodates diverse clinician interpupillary distances
- Eyepiece correction range (±8D) reduces need for external lenses
- Smooth motorised stage movement (90mm forward/backward, 100mm lateral, 30mm vertical)
Precision Examination Tools
- Six aperture sizes (0.2mm to 14mm) for targeted illumination and contrast control
- Slit width and length adjustable (0–14mm) for fine anatomical detail
- Red LED fixation target for patient alignment and comfort
Technical specifications
| Indications | Anterior segment examination, corneal evaluation, lens assessment, anterior chamber inspection, conjunctival evaluation |
|---|---|
| Microscope Type | Galileo parallel style with three magnification settings |
| Total Magnification | 10x, 16x, 25x |
| Eyepiece | 12.5x with correction range ±8D |
| Field of View | 6x: 33mm; 10x: 20mm; 16x: 13mm; 25x: 8mm; 40x: 5mm |
| Pupil Distance Adjustment | 55–75mm |
| Slit Width | 0–14mm adjustable |
| Slit Length | 1–14mm adjustable |
| Aperture Diameters | φ0.2mm, φ1mm, φ2mm, φ5mm, φ10mm, φ14mm |
| Slit Angle | 0–180° |
| Illumination Angles | 0°, 5°, 10°, 15°, 20° |
| Filters | Heat absorption, grey, red-free (green), cobalt blue |
| Light Source | 12V, 50W halogen bulb |
| Stage Movement | Forward/backward: 90mm; Left/right: 100mm; Up/down: 30mm; Handle: 15mm |
| Jaw Bracket Movement | Up/down: 80mm; Fixation: red LED |
| Input Voltage | 110/110V/220V ±10% |
| Input Frequency | 50/60Hz |
| Input Power | 60VA |
| Output Voltage | Illumination: 4.5V, 9V, 12V; Fixation: 6V |
| Electrical Safety Standard | IEC 601-1, Type I BF Model |
| Gross Weight | 25kg |
| Net Weight | 21kg |
| Packing Dimensions | 720mm × 495mm × 480mm |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Slit Lamp Unit | Complete Galileo parallel microscope assembly with stage and illumination system | 1 |
| Halogen Bulb | 12V, 50W replacement bulb | 1 |
| Power Supply | 110/110V/220V input, multi-voltage output controller | 1 |
| Chin Rest | Adjustable patient positioning support with red LED fixation | 1 |
| Aperture Disc | Six-position disc with apertures: 0.2mm, 1mm, 2mm, 5mm, 10mm, 14mm | 1 |
| Filter Set | Heat absorption, grey, red-free (green), and cobalt blue filters | 1 set |
| Instruction Manual | Multilingual user guide and maintenance documentation | 1 |
Get in touch for pricing & availability
Contact our ophthalmic equipment specialists to discuss system configuration, training, and delivery timelines. We offer flexible purchasing options and comprehensive after-sales support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
