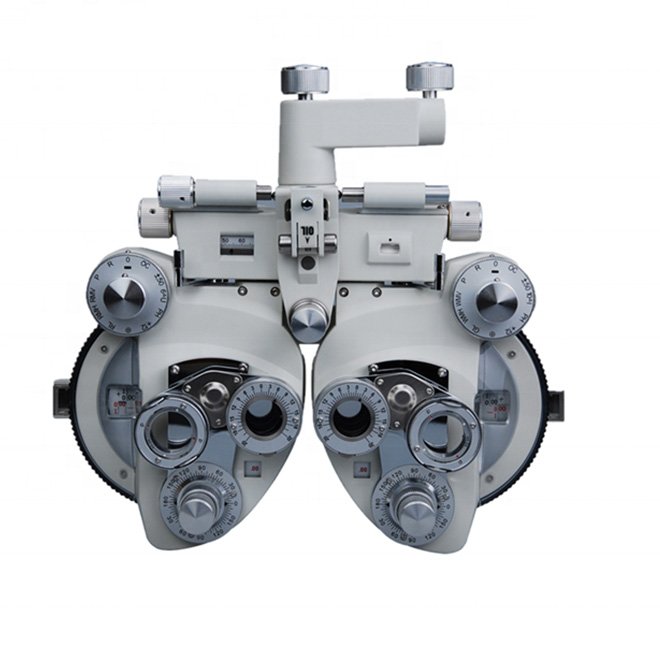

Portable Ophthalmic Phoropter Machine NEUPHP01
$1,890.00$2,350.00 (-20%)
– High-precision Portable Ophthalmic Phoropter Machine NEUPHP01
– Sphere Power Range: +16.75 to -19.00 diopters with 0.25 diopter steps
– Cylinder Power: Concave (-) 0.00 to -6.00, Convex (+) 0.00 to +6.00 diopters
– Adjustable Cylinder Axis from 0° to 180° in 5° increments
– Cross Cylinder Power ±25 diopters for versatile testing
– Lightweight design at approximately 4.5 kg for easy portability
– ISO & CE Certified for quality assurance
– Comes with multiple included accessories for comprehensive assessments
– Available in multiple color options including custom requests
– Compact dimensions: 31.8 cm × 9.6 cm × 29.3 cm for convenient storage
Portable Ophthalmic Phoropter Machine NEUPHP01
High-Precision Vision Testing Device for Professional Eye Care
Optometry practice with the Portable Ophthalmic Phoropter Machine NEUPHP01, a high-precision vision testing device designed for accurate eye examinations. Engineered for efficiency and ease of use, this phoropter ensures optimal performance in clinical and professional settings.
ISO Certified
CE Certified
Fast Shipping
24/7 Support
Introduction to the NEUPHP01 Portable Ophthalmic Phoropter
The Portable Ophthalmic Phoropter Machine NEUPHP01 represents the pinnacle of modern optometric technology, combining precision engineering with user-friendly design to deliver exceptional performance in eye examinations. This advanced phoropter is specifically designed for optometrists, ophthalmologists, and eye care professionals who demand accuracy, reliability, and efficiency in their clinical practice.
With its comprehensive range of optical adjustments, including sphere power from +16.75 to -19.00 diopters, cylinder power from 0.00 to -6.00 diopters (concave) and 0.00 to +6.00 diopters (convex), and precise cylinder axis adjustment from 0° to 180°, the NEUPHP01 provides the versatility needed to assess a wide spectrum of refractive errors. Its lightweight construction at approximately 4.5 kg ensures portability without compromising durability, making it ideal for both fixed clinic settings and mobile eye care services.
Clinical Applications
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | NEUPHP01 |
| Color Options | Black, white, or custom colors upon request |
| Sphere Power Range | +16.75 to -19.00 diopters |
| Sphere Adjustment Step | 0.25 diopters |
| Cylinder Power (Concave) | 0.00 to -6.00 diopters |
| Cylinder Power (Convex) | 0.00 to +6.00 diopters (optional extension: 0.00 to -8.00 diopters with additional -2.00 lens) |
| Cylinder Adjustment Step | 0.25 diopters |
| Cylinder Axis Range | 0° to 180° |
| Cylinder Axis Increment | 5° steps |
| Cross Cylinder Power | ±0.25 diopters |
| Rotary Prisms Range | 0 to 20 |
| Rotary Prisms Adjustment | 1-step increments |
| Pupillary Distance (P.D.) Range | 50mm to 75mm |
| P.D. Adjustment Step | 1mm increments |
| Standard Accessory Lenses | Two 0.12D and -2.00D cylinder lenses; Two plano lenses for front opening seal |
| Weight | Approximately 4.5 kg |
| Dimensions | 31.8 cm × 9.6 cm × 29.3 cm |
| Certification | ISO & CE Certified |
| Included Accessories | Near-point card with holder and reading rod, protective dust cover, comfortable face shield, accessory storage case for lenses |
Key Features
Comprehensive Sphere Power Range
The NEUPHP01 offers an exceptional sphere power range from +16.75 to -19.00 diopters with precise 0.25 diopter incremental adjustments, accommodating patients with both extreme hyperopia and high myopia for accurate prescription determination.
Versatile Cylinder Power Options
Equipped with concave cylinder power from 0.00 to -6.00 diopters and convex cylinder power from 0.00 to +6.00 diopters, with optional extension to -8.00 diopters using an additional -2.00 lens for complex astigmatism correction.
Precise Cylinder Axis Adjustment
Features cylinder axis rotation from 0° to 180° in 5° incremental steps, enabling accurate astigmatism axis determination and ensuring precise alignment for optimal cylindrical correction.
Advanced Cross Cylinder Testing
Integrated cross cylinder with ±0.25 diopter power facilitates refined astigmatism assessment using the Jackson cross cylinder technique for accurate axis and power verification.
Adjustable Rotary Prisms
Built-in rotary prisms ranging from 0 to 20 prism diopters with 1-step incremental adjustments allow for comprehensive evaluation of binocular vision, phoria testing, and fusion reserve assessment.
Customizable Pupillary Distance
Pupillary distance adjustment from 50mm to 75mm in 1mm increments ensures proper optical centering for patients of all ages and facial anatomies, optimizing visual comfort and accuracy.
Lightweight Portable Design
Weighing approximately 4.5 kg, the NEUPHP01 combines portability with durability, making it ideal for mobile eye care services, satellite clinics, and practices requiring equipment relocation flexibility.
Customizable Color Options
Available in professional black, clean white, or custom colors upon request, allowing practitioners to match their clinic aesthetics and brand identity while maintaining professional appearance.
International Quality Certification
ISO and CE certified to meet international quality standards and regulatory requirements, ensuring reliability, safety, and compliance for global distribution and clinical use.
Complete Accessory Package
Includes near-point card with holder and reading rod for near vision testing, protective dust cover for equipment preservation, comfortable face shield for patient comfort, and dedicated storage case for accessory lenses.
Standard Lens Accessories
Comes with two 0.12D and -2.00D cylinder lenses for extended testing capabilities, plus two plano lenses for front opening seal to maintain optical integrity during examinations.
Compact Space-Efficient Dimensions
Measuring 31.8 cm × 9.6 cm × 29.3 cm, the phoropter’s compact footprint maximizes workspace efficiency while providing full professional functionality for comprehensive eye examinations.
Why Choose the NEUPHP01 Phoropter
High-Precision Optical Testing: The NEUPHP01 delivers exceptional accuracy with its comprehensive range of sphere power (+16.75 to -19.00 diopters), cylinder power (0.00 to -6.00/-8.00 diopters concave, 0.00 to +6.00 diopters convex), and precise 0.25 diopter incremental adjustments. This level of precision ensures that optometrists and ophthalmologists can determine the most accurate prescriptions for their patients, leading to improved visual outcomes and higher patient satisfaction. The instrument’s advanced optical system maintains clarity and consistency throughout the entire testing process.
Customizable and Durable Construction: Built with professional-grade materials and available in multiple color options including black, white, and custom colors upon request, the NEUPHP01 combines aesthetic appeal with robust durability. The ergonomic design ensures comfortable operation during extended examination sessions, while the protective dust cover and included storage case safeguard the equipment and accessories. The comfortable face shield enhances patient comfort during examinations, and the lightweight yet sturdy construction at 4.5 kg ensures long-term reliability in demanding clinical environments.
Portable and Efficient Operation: Designed for modern optometric practice, the NEUPHP01’s compact dimensions (31.8 cm × 9.6 cm × 29.3 cm) and lightweight design make it ideal for both fixed clinic installations and mobile eye care services. The efficient workflow enabled by smooth adjustment mechanisms, clear markings, and intuitive controls reduces examination time while maintaining accuracy. The adjustable pupillary distance (50-75mm) and comprehensive accessory package including near-point card with holder and reading rod ensure the phoropter can adapt to diverse patient populations and testing requirements.
Comprehensive Professional Support: Backed by ISO and CE certifications, the NEUPHP01 meets rigorous international quality standards for medical equipment. Neuvar Inc. provides dedicated customer support, technical assistance, and reliable service to ensure optimal performance throughout the equipment’s lifespan. The standard accessory lenses, rotary prisms (0-20 in 1-step increments), and cross cylinder (±0.25 diopters) provide all the tools needed for comprehensive refractive examinations, making the NEUPHP01 a complete solution for professional eye care practices.
Frequently Asked Questions
What is the sphere power range of the NEUPHP01 phoropter?
The NEUPHP01 offers a comprehensive sphere power range from +16.75 to -19.00 diopters with precise 0.25 diopter adjustment steps. This extensive range accommodates patients with extreme hyperopia to high myopia, ensuring accurate prescription determination for virtually all refractive errors encountered in clinical practice.
What cylinder power options are available on this phoropter?
The NEUPHP01 features concave cylinder power from 0.00 to -6.00 diopters and convex cylinder power from 0.00 to +6.00 diopters, both adjustable in 0.25 diopter steps. An optional extension to -8.00 diopters is available using the included additional -2.00 lens for patients requiring higher cylinder corrections.
How portable is the NEUPHP01 phoropter machine?
The NEUPHP01 is designed for maximum portability, weighing approximately 4.5 kg with compact dimensions of 31.8 cm × 9.6 cm × 29.3 cm. This lightweight construction makes it ideal for mobile eye care services, satellite clinics, and practices requiring equipment flexibility while maintaining professional-grade durability and performance.
What accessories are included with the NEUPHP01?
The NEUPHP01 comes complete with a near-point card with holder and reading rod for near vision testing, a protective dust cover to preserve equipment quality, a comfortable face shield for patient comfort during examinations, and an accessory storage case for lenses. Standard accessory lenses include two 0.12D and -2.00D cylinder lenses, plus two plano lenses for front opening seal.
What certifications does the NEUPHP01 phoropter have?
The NEUPHP01 is both ISO and CE certified, meeting rigorous international quality standards and regulatory requirements for medical devices. These certifications ensure the phoropter’s reliability, safety, and compliance with global healthcare standards, providing confidence for practitioners and patients alike.
Can the pupillary distance be adjusted on this phoropter?
Yes, the NEUPHP01 features adjustable pupillary distance (P.D.) ranging from 50mm to 75mm with precise 1mm step adjustments. This comprehensive adjustment range ensures proper optical centering for patients of all ages and facial anatomies, optimizing visual comfort and measurement accuracy during examinations.
What clinical applications is the NEUPHP01 suitable for?
The NEUPHP01 is suitable for comprehensive refractive error assessment, eyeglass and contact lens prescription refinement, optometry clinics, ophthalmology departments, mobile eye care services, optometry education and training, pre-surgical screening for vision correction procedures, and pediatric vision testing. Its versatility makes it an essential tool for diverse clinical settings.
Are custom color options available for the NEUPHP01?
Yes, the NEUPHP01 is available in professional black, clean white, or custom colors upon request. This customization option allows practitioners to match their clinic aesthetics and brand identity while maintaining the professional appearance and full functionality of this high-precision optometric instrument.
