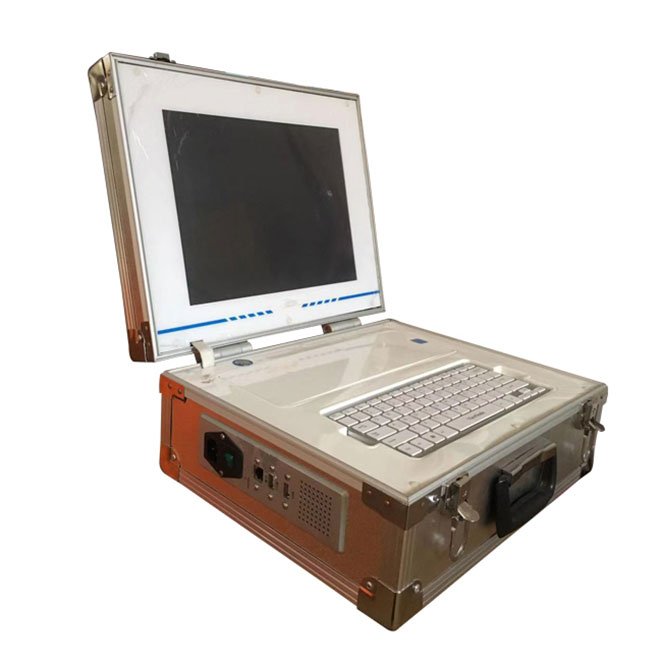

Portable Automatic Ultrasound Analyzer Bone Densitometer Machine NEUBD13
- Advanced portable design for easy transport
- Non-invasive ultrasound testing with no radiation exposure
- High precision with an accuracy of RMS CV = 0.35 ± 0.05
- Fast testing capability: a single test takes approximately 40 seconds
- User-friendly interface featuring mouse and keyboard controls
- LCD flat panel monitor for clear display of results
- Meets safety standards GB9706.1, GB9706.9, and GB9706.15
- Operates in a wide temperature range: +5 to +40°C
- Lightweight design, weighing only 11.5kg
- External printer compatibility for result documentation
- SKU
- NEUBD13
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Portable Automatic Ultrasound Analyzer Bone Densitometer Machine NEUBD13
Advanced portable bone densitometry system delivering non-invasive ultrasound analysis with zero radiation exposure. Precision-engineered for rapid assessment in clinical and field settings, with intuitive controls and comprehensive result documentation capabilities.
Clinical overview
The NEUBD13 is a fully portable, automated ultrasound bone densitometer engineered for rapid, non-invasive assessment of bone mineral density in clinical, screening, and field-based settings. Operating at 0.5 MHz with ultrasonic sound speed (SOS) measurement technology, the system delivers precision diagnostics without ionising radiation exposure—a critical advantage for paediatric, pregnant, and high-frequency screening populations.
With a single test cycle of 40 seconds and RMS accuracy of 0.35 ± 0.05, the NEUBD13 combines clinical-grade precision with operational efficiency. The lightweight design (11.5 kg) and integrated LCD display enable point-of-care deployment across primary care, orthopaedic, endocrinology, and occupational health settings. Full compliance with GB9706.1, GB9706.9, and GB9706.15 safety standards ensures regulatory alignment across multiple markets.
Key features & surgeon benefits
Zero-Radiation Diagnostics
- Non-invasive ultrasound technology eliminates radiation exposure
- Lightweight 11.5 kg design for mobile clinic and field deployment
- IP*7 splash-resistant probe for robust clinical environments
Rapid Assessment Protocol
- Single test cycle: 40 seconds ± 2 seconds per patient
- Intuitive mouse and keyboard interface for minimal training
- LCD flat-panel display with real-time result visualisation
Clinical-Grade Accuracy
- RMS CV = 0.35 ± 0.05 human body test accuracy
- Probe precision ≤ 0.25% for reproducible measurements
- Continuous operation capability for high-throughput screening
Seamless Result Management
- External printer compatibility for immediate result documentation
- Class I BF type safety classification for patient-contact applications
- OEM customisation available for multi-site network deployment
Technical specifications
| Indications | Bone mineral density assessment, osteoporosis screening, skeletal health monitoring |
|---|---|
| Measurement principle | Ultrasonic sound speed (SOS), non-invasive, zero radiation |
| Probe frequency | 0.5 MHz main working frequency |
| Accuracy | RMS CV = 0.35 ± 0.05 (human body test) |
| Probe precision | ≤ 0.25% |
| Test time | 40 seconds ± 2 seconds per single test |
| Display | LCD flat-panel monitor |
| Interface | Mouse and keyboard controls |
| Power supply | AC 220 ± 22V, 50/60Hz ± 1 Hz |
| Input power | 180 VA |
| Operating temperature | +5 to +40°C |
| Operating humidity | 30% to 85% non-condensing |
| Storage temperature | -25 to +50°C |
| Storage humidity | ≤ 90% |
| Dimensions (L × W × H) | 425 mm × 365 mm × 180 mm |
| Weight | ≤ 11.5 kg |
| Probe protection | IP*7 splash-resistant |
| Disinfection method | Routine surface disinfection within 5 mm of probe contact area |
| Printing | External printer compatible |
| Safety standards | GB9706.1, GB9706.9, GB9706.15 |
| Safety classification | Class I BF type |
| Operation mode | Continuous operation |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main unit | Portable ultrasound bone densitometer with integrated LCD display and control panel | 1 |
| Ultrasound probe | 0.5 MHz transducer with IP*7 splash protection | 1 |
| Keyboard | Standard input device for system control | 1 |
| Mouse | Standard pointing device for interface navigation | 1 |
| Power cable | AC 110V/220V mains connection (regional plug variant) | 1 |
| User manual | Multilingual technical and operational documentation | 1 |
