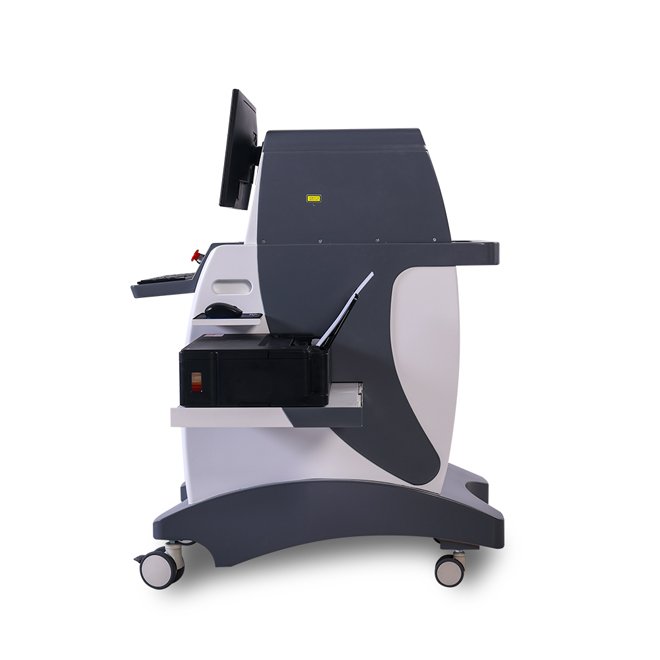

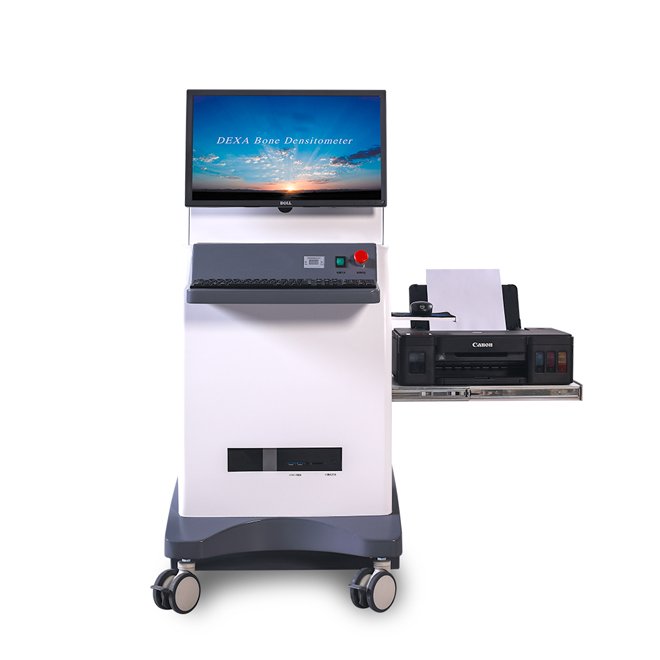

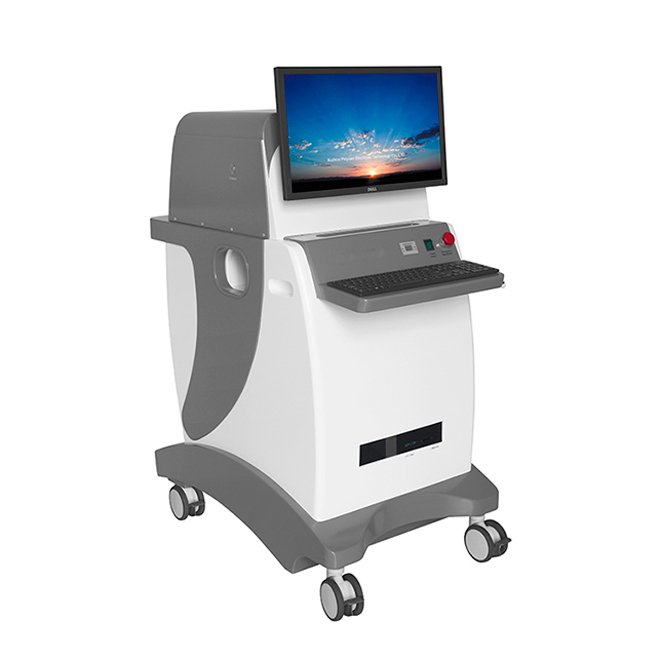

Ultrasound Dexa Bone Densitometer NEUBD12
- High sensitivity digital camera for precise imaging
- Cone-beam and surface imaging technology for enhanced accuracy
- Dual Energy X-ray Absorptiometry for comprehensive bone density assessment
- Fast measurement with imaging time of ≤ 5 seconds
- Unique algorithms ensure reliable measurement results
- Laser beam positioning for improved measurement accuracy
- Integrated structure design for easy operation and safety
- Large scale integrated circuit for optimized performance
- Measures Bone Density Score and calculates T-Score, Z-Score
- Suitable for diverse patient demographics with tailored analysis systems
- SKU
- NEUBD12
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Ultrasound Dexa Bone Densitometer NEUBD12
Advanced dual-energy X-ray absorptiometry system for comprehensive bone density assessment. Delivers precise measurements in ≤5 seconds with high-sensitivity digital imaging, cone-beam and surface imaging technology, and laser-guided positioning for optimal clinical accuracy.
Clinical overview
The NEUBD12 is a state-of-the-art dual-energy X-ray absorptiometry (DXA) system engineered for rapid, accurate bone density measurement across diverse patient populations. Utilizing imported high-sensitivity digital camera technology combined with advanced cone-beam and surface imaging, the system delivers measurement results in ≤5 seconds with accuracy and repeatability both ≤1%. The integrated laser beam positioning technique ensures precise measurement location, while unique algorithms optimize result reliability across different demographic groups and regional analysis standards.
The fully enclosed lead-protective measurement window minimizes radiation exposure to both patient and operator, with indirect contact design for enhanced safety. The integrated structure design simplifies operation and maintenance, making it suitable for high-volume diagnostic centers, orthopedic clinics, and research institutions requiring rapid, reliable bone density assessment.
Key features & surgeon benefits
Dual-Energy X-ray with Advanced Optics
- High (85 kV) and low (55 kV) energy pulse dual-energy X-ray
- Imported high-sensitivity digital camera detector
- Cone-beam and surface imaging for enhanced accuracy
Rapid Measurement & Easy Operation
- Measurement time ≤5 seconds per scan
- Laser beam positioning for precise anatomical alignment
- Integrated structure design for intuitive operation
Reliable Clinical Results
- Measurement accuracy ≤1%
- Repeatability error ≤1%
- Unique algorithms for consistent, reproducible outcomes
Protected Measurement & Flexible Analysis
- Full closed lead-protective window design
- Indirect patient contact for maximum safety
- Analysis systems tailored to different countries and demographics
Technical specifications
| Indications | Bone density assessment, osteoporosis screening, fracture risk evaluation |
|---|---|
| X-ray Source | Stationary anode X-ray tube with high frequency and small focus |
| X-ray Detector | Imported high-sensitivity digital camera |
| Dual Energy | High energy 85 kV, Low energy 55 kV |
| Imaging Technology | Cone-beam and surface imaging with laser beam positioning |
| Imaging Time | ≤5 seconds |
| Accuracy | ≤1% |
| Repeatability | ≤1% |
| Measurement Parameters | Bone Density Score |
| Calculated Parameters | T-Score, Z-Score |
| Operating System | Brand computer, CPU ≥3.2 GHz, Memory ≥4 GB, HDD ≥500 GB |
| Power Supply | 110V/220V ±10%, 50/60Hz |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Ultrasound Dexa Bone Densitometer NEUBD12 with integrated X-ray source, detector, and imaging system | 1 |
| Control Computer | Brand computer with analysis software pre-installed | 1 |
| Patient Positioning Arm | Adjustable arm rest with laser alignment guide | 1 |
| Lead Protective Window | Full closed protective enclosure for measurement area | 1 |
| Calibration Phantom | Reference standard for system calibration and quality assurance | 1 |
| Power Cable & Accessories | Standard power supply and connection cables | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system specifications, pricing, installation, and training options for the NEUBD12. We provide comprehensive support and customization to meet your diagnostic center's requirements.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
