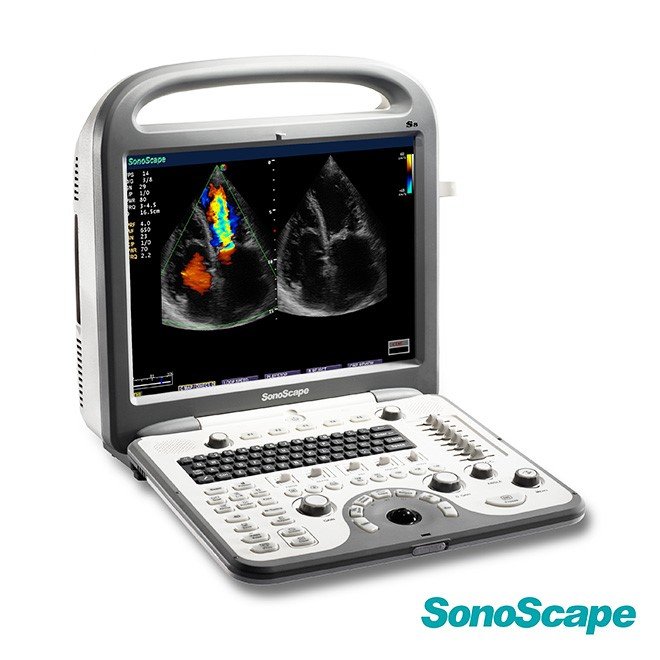

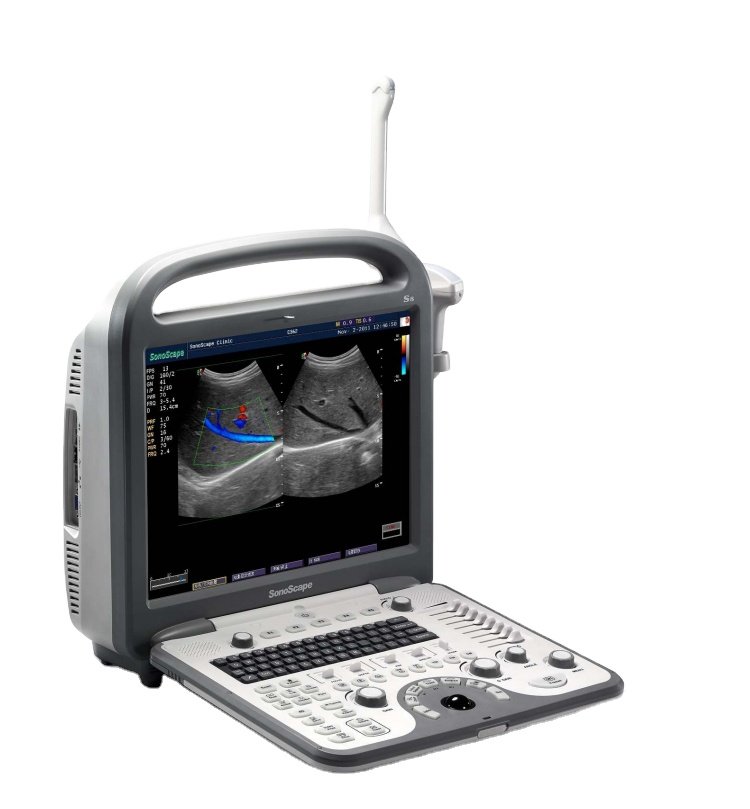

4D Cardiac Stress Color Doppler Ultrasound SonoScape S8
- High-resolution 15" portable monitor
- Multi-beam technology for superior imaging
- Equipped with five sensors for versatile diagnostics
- 500GB hard drive with USB connector and DICOM 3.0 support
- Built-in battery for mobility and convenience
- Extensive imaging modes including 4D, Doppler, and Triplex
- Optimized performance with M-Tuning and μScan features
- Lightweight design (7.5 kg) for easy transport
- Includes ECG module and pedals for enhanced functionality
- SKU
- S8
- Brand
- SonoScape
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

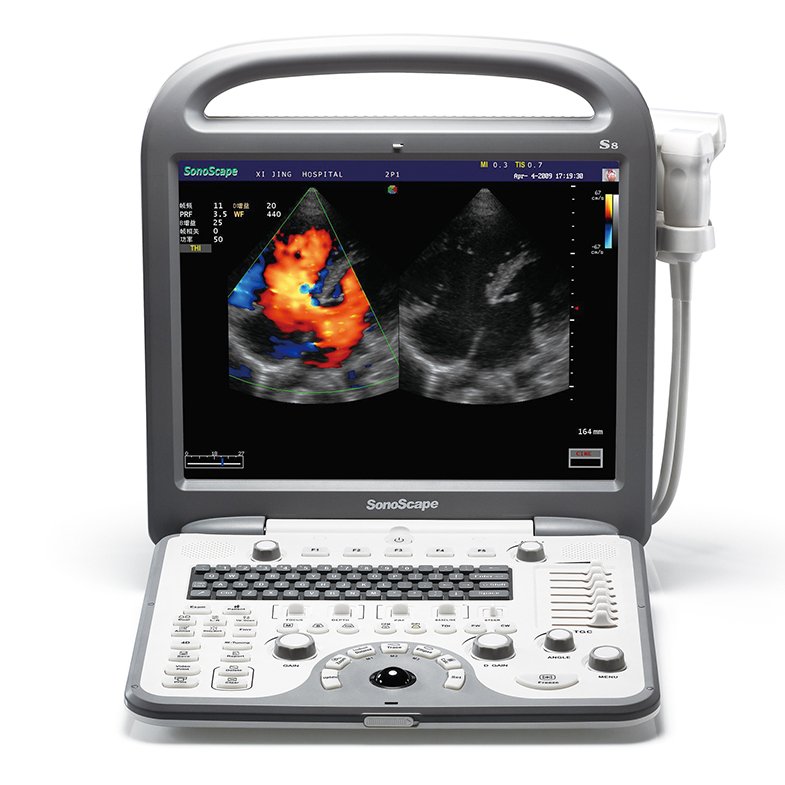

4D Cardiac Stress Color Doppler Ultrasound SonoScape S8
Advanced portable ultrasound system with 15-inch high-resolution monitor, multi-beam technology, and comprehensive 4D imaging capabilities. Equipped with five versatile sensors and extensive Doppler modes for cardiac, vascular, obstetric, and abdominal diagnostics. Lightweight 7.5 kg design with built-in battery and ECG integration for maximum clinical flexibility.
Clinical overview
The SonoScape S8 is a comprehensive portable ultrasound diagnostic system designed for multi-specialty clinical environments. Its 15-inch high-resolution monitor delivers exceptional image clarity, while advanced multi-beam technology and μScan optimization ensure superior diagnostic confidence across cardiac, vascular, obstetric, and abdominal applications. The system integrates five interchangeable sensors covering frequency ranges from 3.0 to 18 MHz, enabling seamless transitions between adult and pediatric protocols.
With extensive imaging modes including 4D, Color Flow Mapping (CFM), Continuous Wave (CW) Doppler, Tissue Doppler Imaging (TDI), and Triplex capabilities, clinicians gain comprehensive hemodynamic and morphological assessment. The built-in ECG module, integrated pedal controls, and 500GB DICOM 3.0-compliant storage support efficient workflow integration. At 7.5 kg with internal battery power, the S8 delivers enterprise-grade diagnostic performance in a truly portable form factor.
Key features & surgeon benefits
Comprehensive Multi-Specialty Capability
- Five dedicated sensors for cardiac, vascular, obstetric, and abdominal imaging
- Linear, phased, micro-convex, and convex transducer options
- Frequency range 3.0–18 MHz for adult and pediatric protocols
Optimized Clinical Integration
- M-Tuning one-click optimization for rapid image quality enhancement
- Integrated ECG module and foot pedal controls for hands-free operation
- 500GB storage with DICOM 3.0 support for seamless EMR integration
Portable Enterprise Performance
- Lightweight 7.5 kg design reduces operator fatigue and transport burden
- Built-in battery enables point-of-care diagnostics without AC dependency
- Single system replaces multiple specialty ultrasound units
4D & Doppler Excellence

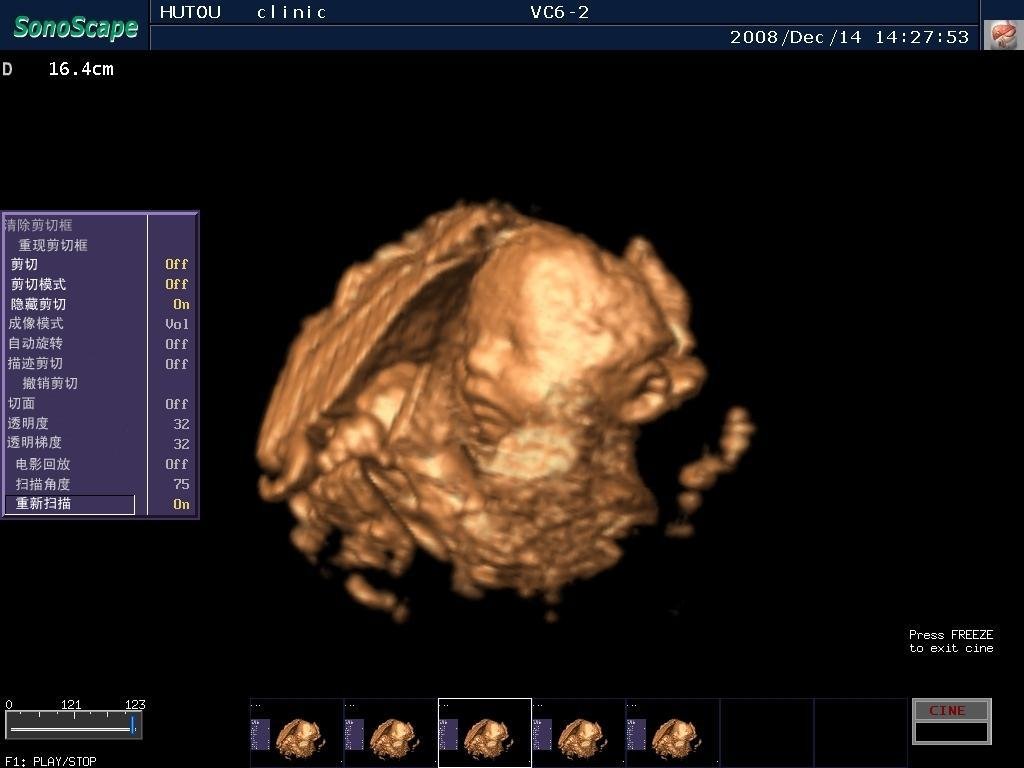

- 4D volumetric imaging with real-time rendering and 3D reconstruction
- Multi-mode Doppler: CFM, CW, PW, TDI, and Color M-Mode
- Compound imaging, Keystone correction, and cardiovascular IMT measurement
Technical specifications
| Display | 15-inch high-resolution portable monitor |
|---|---|

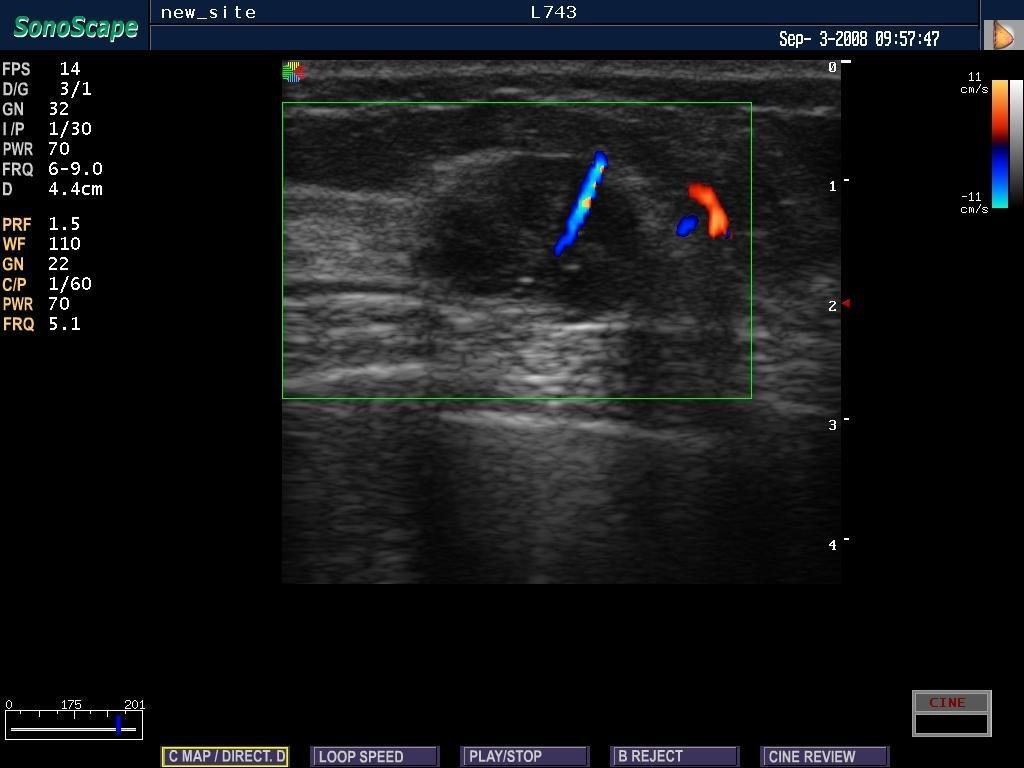

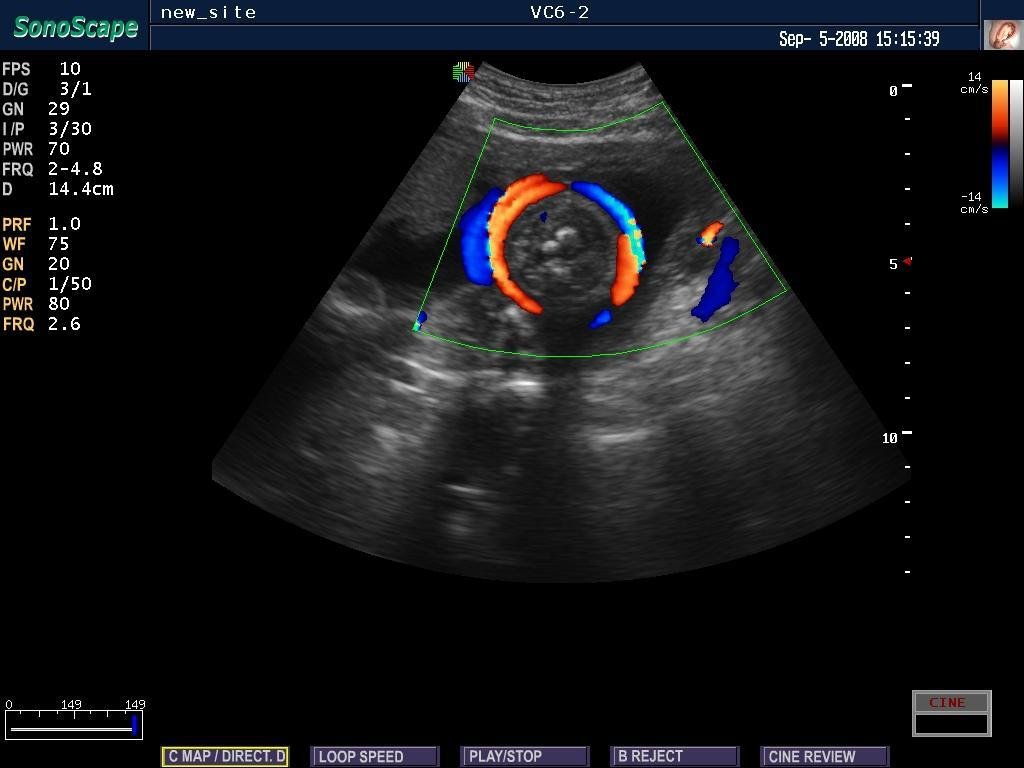

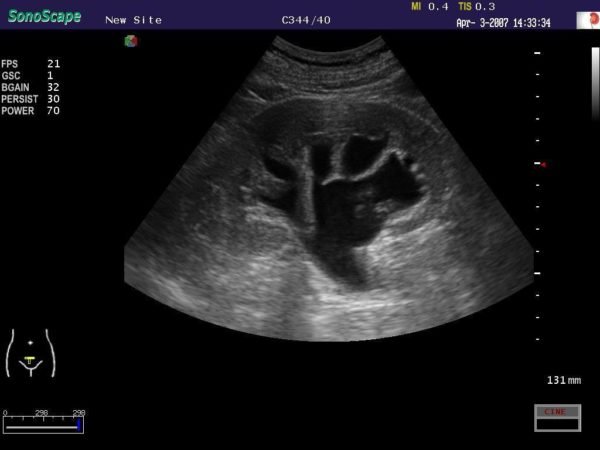

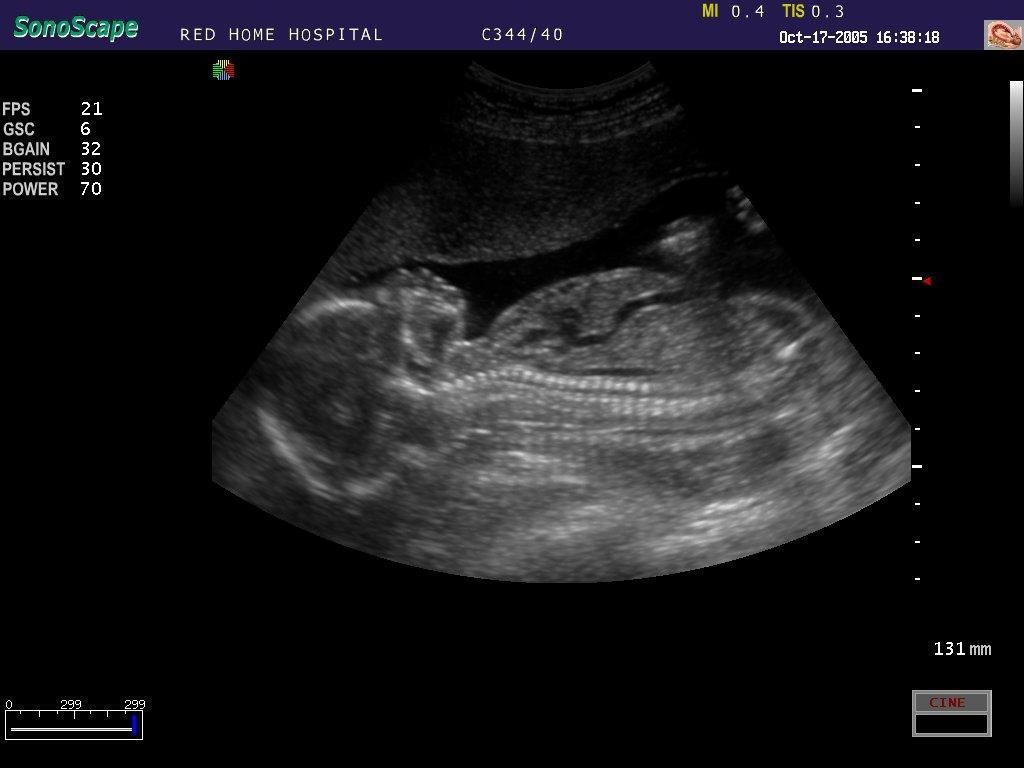

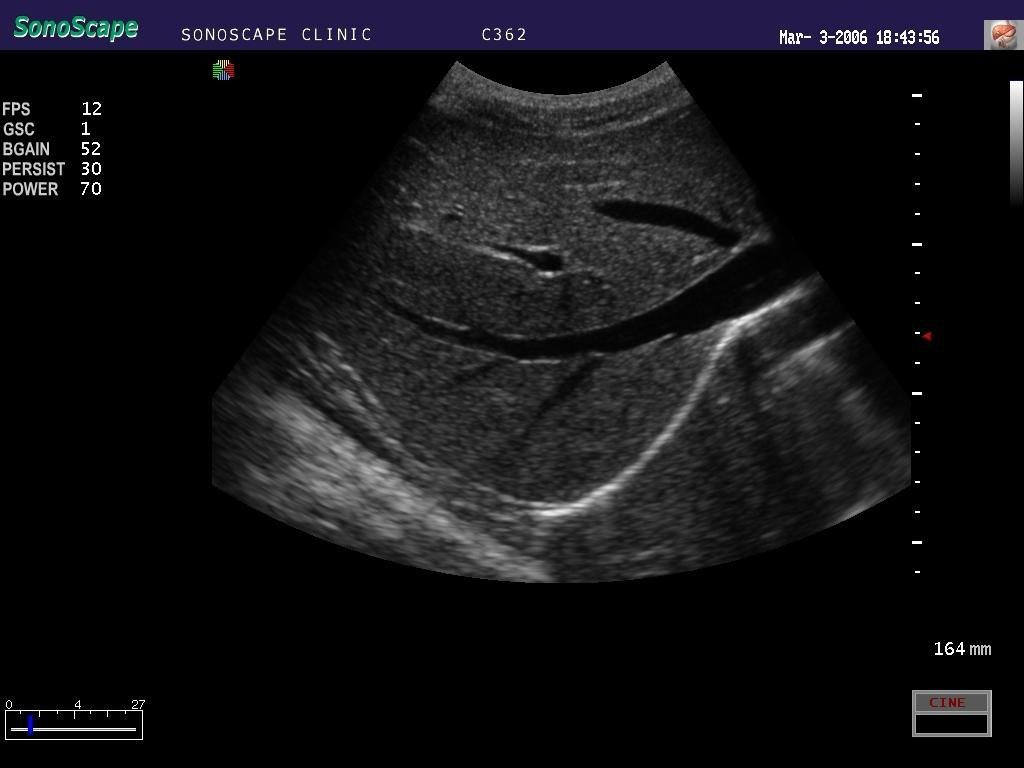

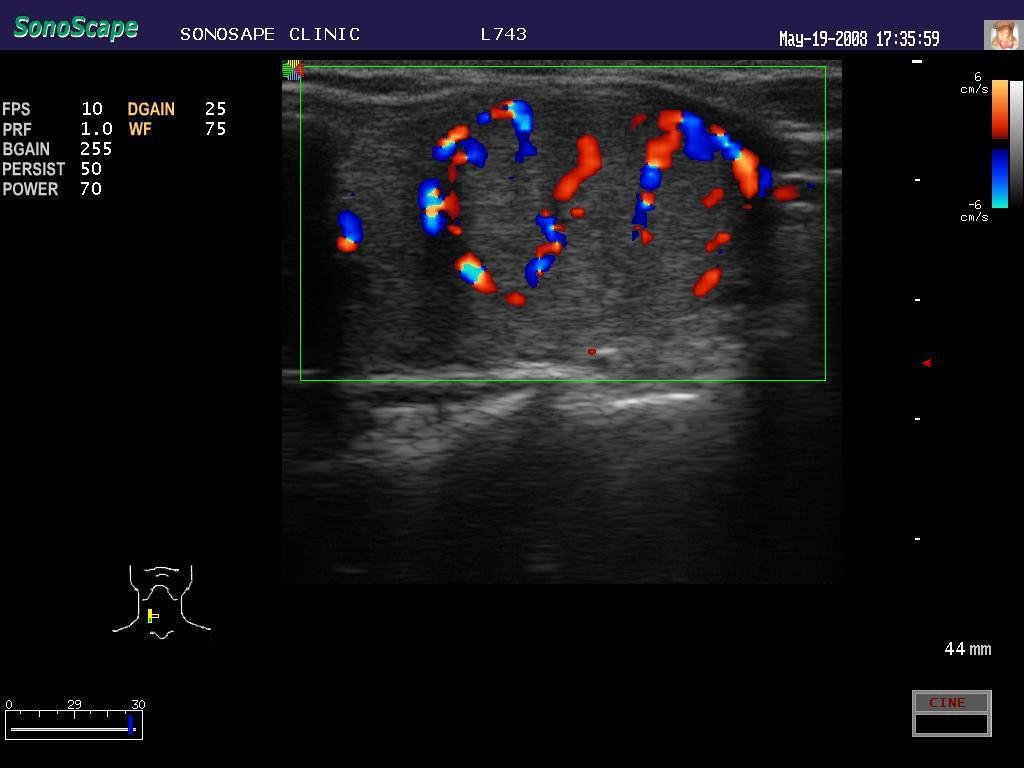

| Indications | Cardiac stress imaging, vascular assessment, obstetric evaluation, abdominal diagnostics, thyroid and breast imaging |
| Sensor count | Five (5) interchangeable transducers |
| Frequency range | 3.0–18 MHz depending on sensor type |
| Storage | 500GB hard drive with USB connector and DICOM 3.0 support |
| Power | Built-in rechargeable battery with AC adapter option |
| Weight | 7.5 kg (console only, without sensors) |
| Accessories | ECG module, foot pedal controls, biopsy needle bracket (linear sensor), factory trolley with wheels and brakes, carrying case |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Console | 15-inch portable ultrasound system with integrated ECG and battery | 1 |
| Linear Transducer | 192 elements, 4–18 MHz, 38 mm head with biopsy bracket | 1 |
| Phased Cardiac (Adult) | 128 elements, 3.0 MHz for adult cardiac imaging | 1 |
| Phased Cardiac (Pediatric) | 128 elements, 6.0 MHz for pediatric cardiac imaging | 1 |
| Micro-Convex (Pediatric) | 128 elements, 5.0 MHz, R20 mm head for pediatric applications | 1 |
| Convex Transducer | 128 elements, 3.5 MHz, R50 mm head for abdominal imaging | 1 |
| Foot Pedal Control | Hands-free image capture and navigation | 1 |
| Factory Trolley | Wheeled stand with brakes for mobile deployment | 1 |
| Carrying Case | Protective transport case for console and sensors | 1 |
