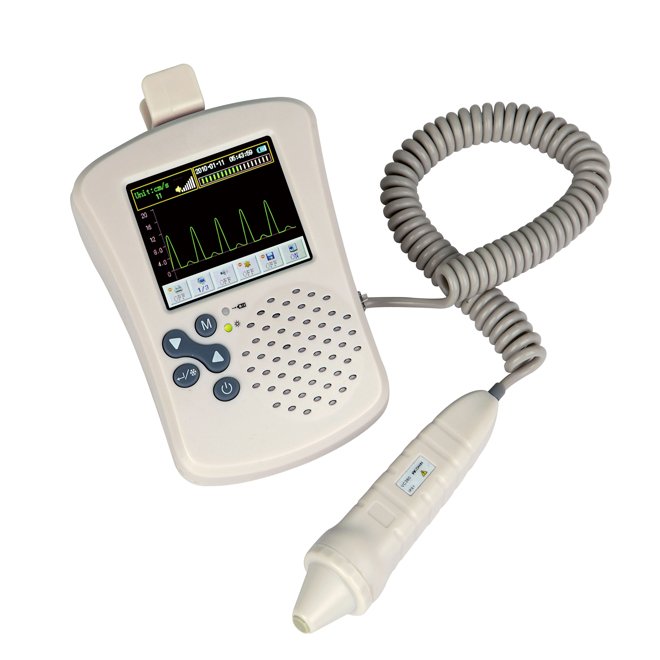

Advanced Portable Color Vascular Doppler NEUVD320 with 8MHz Probe / Handheld Vascular Doppler
- Advanced Portable Color Vascular Doppler NEUVD320 with 8MHz Probe
- Sensitive special purpose probe for accurate vascular assessments
- Display strength cursor for easy interpretation of results
- Operates on both AC and DC battery for versatile usage
- Auto power-off feature to enhance battery life
- LCD display freeze function to hold important data
- USB connectivity for seamless data transmission to computers
- Output with loudspeaker and earphone for clear audio feedback
- Compact dimensions: 135mm x 100mm x 55mm for portability
- Designed for professional and clinical use in vascular evaluations
- SKU
- NEUVD320
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Advanced Portable Color Vascular Doppler NEUVD320
Compact, clinically accurate handheld vascular Doppler system with 8MHz probe for real-time hemodynamic assessment. Dual power supply, freeze-frame display, and USB data export enable seamless integration into vascular labs and point-of-care settings.
Clinical overview
The NEUVD320 is a portable, battery-powered vascular Doppler system designed for rapid, non-invasive assessment of peripheral arterial and venous hemodynamics. The 8MHz probe delivers high-resolution spectral and color flow imaging, enabling clinicians to detect stenosis, occlusion, and flow abnormalities in real time. Ideal for bedside evaluation, outpatient vascular labs, and emergency departments where rapid diagnostic confirmation is critical.
Dual power supply (rechargeable NI-MH battery and AC mains) ensures continuous operation in diverse clinical environments. Integrated loudspeaker and earphone output provide immediate audio feedback, while the freeze-frame LCD display allows detailed analysis of captured waveforms. USB connectivity facilitates seamless data export for electronic medical records integration and longitudinal patient monitoring.
Key features & surgeon benefits
Sensitive 8MHz Probe
- High-frequency ultrasound for superior vessel visualization
- Spectral and color Doppler modes for comprehensive hemodynamic assessment
- Display strength cursor for precise waveform interpretation
Portable & Intuitive Operation
- Compact dimensions (135mm × 100mm × 55mm) for point-of-care deployment
- Freeze-frame LCD display to capture and review critical findings
- Integrated loudspeaker and earphone for immediate audio feedback
Flexible Power & Data Management
- Dual power supply: rechargeable NI-MH battery and AC 110V/220V (50/60Hz)
- Auto power-off feature extends battery life and reduces operational cost
- USB connectivity for seamless data export and EMR integration
Clinical-Grade Design
- Ultrasound intensity <10 mW/cm² for safe prolonged examination
- Medical-grade materials and construction for durability
- Designed for professional and clinical use in vascular evaluations
Technical specifications
| Indications | Vascular assessment, arterial and venous hemodynamic evaluation, stenosis and occlusion detection |
|---|---|
| Ultrasound frequency | 8 MHz |
| Ultrasound intensity | <10 mW/cm² |
| Display | 65mm × 50mm LCD with freeze-frame function |
| Dimensions | 135mm × 100mm × 55mm |
| Power supply | DC NI-MH rechargeable battery; AC 110V/220V 50/60Hz |
| Output | Loudspeaker and earphone |
| Connectivity | USB for data transmission to computer |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main unit | Portable vascular Doppler console with LCD display and controls | 1 |
| 8MHz probe | Sensitive special-purpose ultrasound transducer | 1 |
| Rechargeable battery | NI-MH battery pack with charging cradle | 1 |
| AC power adapter | 110V/220V 50/60Hz mains adapter | 1 |
| USB cable | Data transmission cable for computer connectivity | 1 |
| Earphone | Audio output accessory | 1 |
| Probe cover | Protective sheath for transducer | 1 |
| User manual | Clinical and technical documentation | 1 |
Get in touch for pricing & availability
Contact our clinical sales team to discuss vascular Doppler specifications, customisation options, and volume pricing. We provide comprehensive technical support and clinical training for all users.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
