Auto-Chemistry Analyzers CS-400
- Fully automatic, discrete operation with STAT priority
- High throughput: 400 tests/hour for photometry, 600 tests/hour for ISE
- Advanced optical system with a wavelength range of 340nm to 800nm
- 115 sample positions including routine, STAT, calibration, and QC
- Versatile reagent probe with liquid level detection and collision protection
- User-defined batch input for efficient data handling
- Supports multiple analysis methods: colorimetry, turbidimetry, and ISE
- Automatic quality control and real-time alarming for out-of-control samples
- Compact design with dimensions of 1060mm x 790mm x 1150mm and weight of 300kg
- Compatible with Windows XP and features graphical operating software
- SKU
- CS-400
- Brand
- Neuvar
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

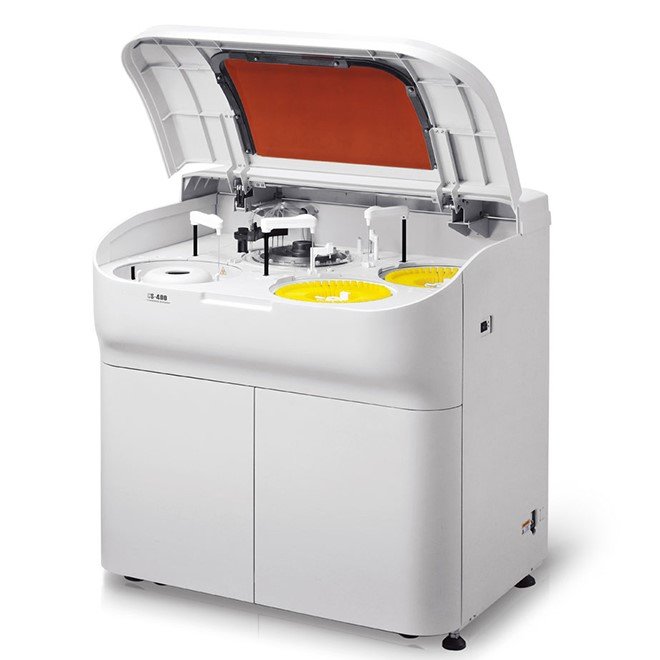

Auto-Chemistry Analyzers CS-400
Advanced Fully Automatic Clinical Chemistry Analysis System
The CS-400 is a state-of-the-art fully automatic chemistry analyzer delivering exceptional performance with 400 tests per hour for photometry and 600 tests per hour for ISE. Featuring advanced optical systems with wavelength range 340nm–800nm, versatile sample handling with 115 positions, and comprehensive quality control, this analyzer is engineered for high-volume clinical laboratories requiring precision, efficiency, and reliability in routine and STAT testing.
Clinical Overview
The CS-400 Auto-Chemistry Analyzer represents a breakthrough in clinical chemistry diagnostics, combining cutting-edge technology with user-friendly operation. This fully automatic, discrete analyzer features rear spectrophotometry with a holographic concave flat field grating and cluster-optical path design, enabling supermicro volume detection of reaction solutions. With its sophisticated optical system spanning wavelengths from 340nm to 800nm, the CS-400 delivers exceptional accuracy and reliability for a comprehensive range of biochemical assays.
Engineered for high-volume clinical laboratories, the CS-400 offers unparalleled versatility with 115 sample positions accommodating routine, STAT, calibration, and quality control samples. The innovative reagent disk design minimizes reagent consumption while maximizing the number of available test items. Advanced features including automatic digital liquid level detection, collision protection, and LIS interface connectivity ensure seamless integration into modern laboratory workflows. The system's graphical operating software and user-defined batch input capabilities make it ideal for hospitals, blood stations, and physical examination centers requiring efficient, reliable, and precise clinical chemistry analysis.
Key Features & Surgeon Benefits
High-Performance Testing
- 400 tests/hour for photometry; 600 tests/hour for ISE
- 115 sample positions with simultaneous routine and STAT processing
- STAT priority ensures emergency samples processed immediately
Advanced Spectrophotometry
- Rear spectrophotometry with holographic concave flat field grating
- Wavelength range 340nm–800nm for comprehensive assay coverage
- Photodiode LED array detector with supermicro volume capability
Quality Control Integration
- Real-time, daily, and monthly QC with automatic alarming
- Multiple calibration methods (1-point, 2-point, multi-point, non-linear)
- Automatic K-value trend tracking and lost control documentation
Laboratory Connectivity
- LIS interface with TCP/IP and RS-232C connectivity
- User-defined batch input for efficient data management
- Remote maintenance and customizable reporting formats
Technical Specifications
| Specification | Details |
|---|---|
| Equipment Type | Fully automatic, discrete, STAT priority |
| Throughput | 400 tests/hour (photometry); 600 tests/hour (ISE) |
| Test Principles | Colorimetry, turbidimetry, ISE |
| Analysis Methods | End-point, kinetics, fixed-time; single/double wavelength; 1–2 multiple reagent; linear and non-linear calibration |
| Sample Positions | 115 total: 50 routine, 20 STAT, 34 calibration, 8 QC, 3 detergent |
| Sample Volume | 2–35μL (0.1μL stepping) |
| Reagent Volume | 20–350μL (1μL stepping) |
| Reaction Cuvettes | 120 positions, optical plastic cups |
| Reaction Temperature | 37°C with circulating water heating |
| Total Reaction Volume | 150–450μL |
| Light Source | 20W/12V halogen lamp (2000-hour lifespan) |
| Monochromator | Grating photometry with holographic concave flat field grating |
| Wavelength Range | 340–800nm |
| Detector | Photodiode LED array |
| Calibration Methods | 1-point linear, 2-point linear, multi-point linear, non-linear |
| QC Methods | Real-time QC, daily QC, monthly QC with automatic alarming |
| Operating System | Windows XP with graphical English software |
| Connectivity | TCP/IP network, RS-232C, LIS interface |
| Dimensions | 1060mm × 790mm × 1150mm |
| Weight | 300 kg |
| Power Supply | AC 110V/220V ±22V, 50/60Hz, 2 kVA |
| Warranty | 2 Year Manufacturer Warranty |
Standard Instrument Composition
| Item | Description | Qty |
|---|---|---|

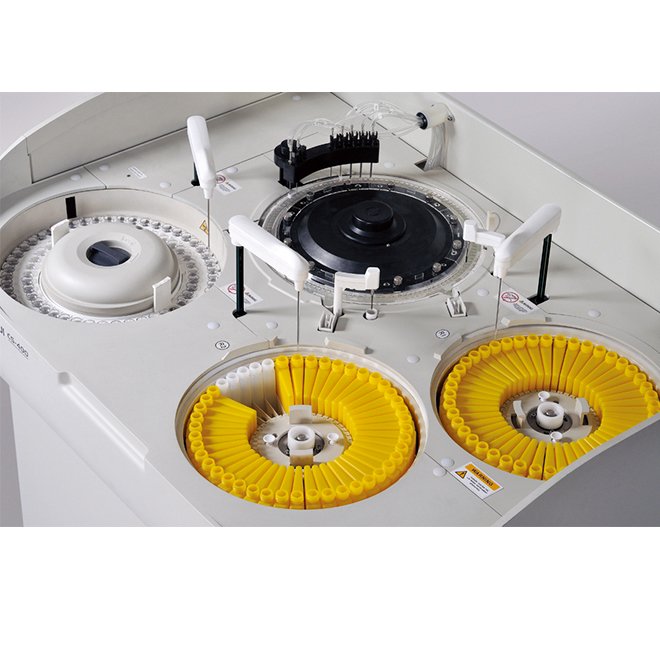

| CS-400 Analyzer Unit | Main analyzer with optical system, sample carousel, reagent disk, and reaction cuvette carousel | 1 |
| Sample Probe | 60nm polished probe with automatic digital liquid level detection and collision protection | 1 |
| Reagent Probes | Dual reagent probes with liquid level detection and collision protection | 2 |
| Reaction Cuvettes | Optical plastic cups for reaction chamber (120 positions) | 120 |
| Waste Container | Concentrated waste liquid collection with level alarming | 1 |
| Water Circulation System | Heating system for 37°C reaction temperature maintenance | 1 |
| Computer Interface | Windows XP graphical software with LIS connectivity | 1 |
| Power Supply Unit | AC 110V/220V ±22V, 50/60Hz, 2 kVA | 1 |
| Documentation | User manual, technical specifications, maintenance guide, QC protocols | 1 set |
Get in Touch for Pricing & Availability
Contact our sales team to discuss the CS-400 Auto-Chemistry Analyzer specifications, pricing, delivery timelines, and integration requirements for your laboratory.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
