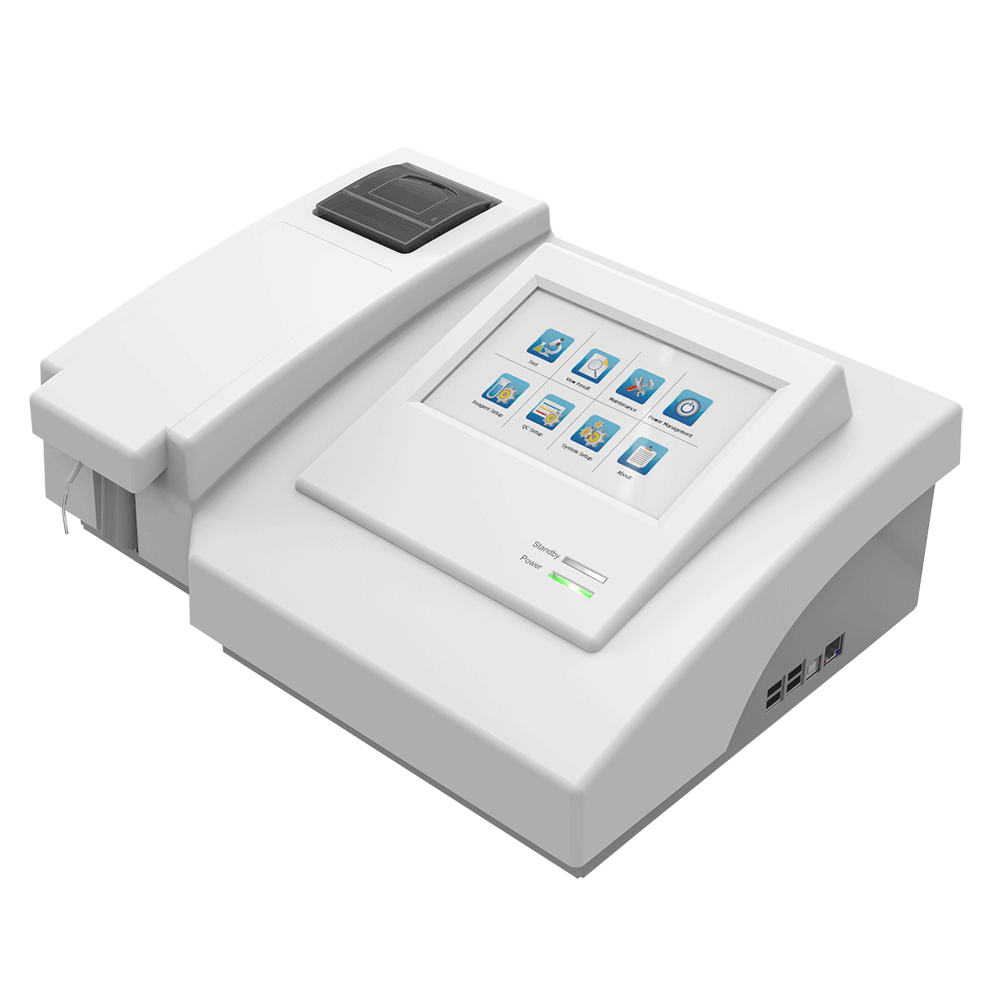

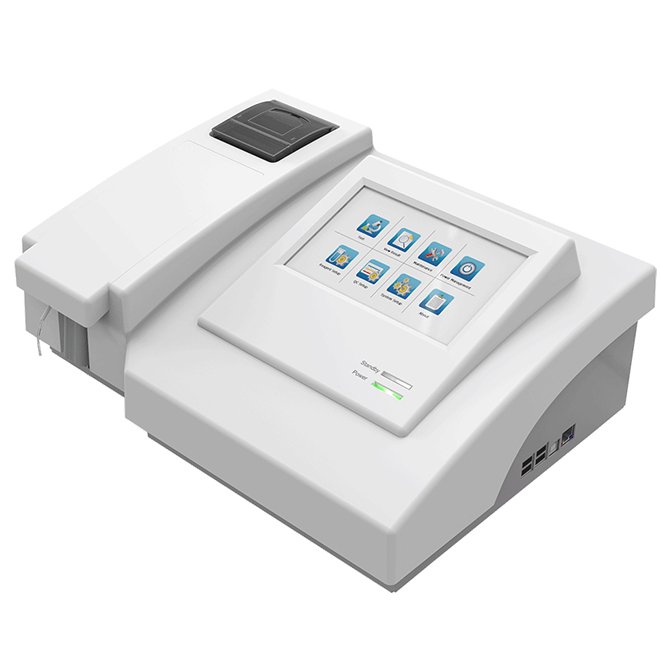

Semi-auto Chemistry Analyzer NEUES100P
- Compact semi-automatic biochemistry analyzer
- 7-inch true color touch screen (800x480 pixels)
- High storage capacity: Over 300 programs and 200,000 results
- Supports both flow cell and cuvette testing modes
- Built-in thermal printer with 57mm printer paper
- Multiple USB ports (5 total) for easy connectivity
- ARM Cortex-A8 CPU with 720MHz processing speed
- Optical filters ranging from 340nm to 630nm
- Operational environment range: 10℃ to 30℃, humidity 30% to 80%
- Wide power supply compatibility: AC100-240V, 50/60Hz
- SKU
- NEUES100P
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Semi-Auto Chemistry Analyzer NEUES100P
Compact semi-automatic biochemistry analyzer with 7-inch true color touch screen, dual testing modes (flow cell and cuvette), and extensive program storage. Ideal for clinical laboratories requiring reliable, efficient sample analysis with intuitive operation and broad connectivity options.
Clinical overview
The NEUES100P is a compact, semi-automatic biochemistry analyzer designed for clinical laboratories requiring high-throughput sample processing with minimal operator intervention. Its dual testing capability—supporting both flow cell and cuvette modes—provides flexibility across diverse assay protocols. The 7-inch true color touch screen with intuitive Windows-embedded interface enables rapid method selection and result review, while the built-in thermal printer delivers immediate documentation for patient records and quality assurance.
With storage capacity for over 300 test programs and 200,000 sample results, the NEUES100P accommodates expanding laboratory workloads without requiring external data management systems. The ARM Cortex-A8 processor (720 MHz) ensures responsive performance, and multiple USB ports plus Ethernet connectivity facilitate seamless integration with laboratory information systems (LIS) and external peripherals such as barcode readers and printers.
Key features & surgeon benefits
Comprehensive Wavelength Coverage
- 7 standard interference filters spanning 340–630 nm
- Optional additional filters for extended assay menu
- 0.0001 Abs resolution with 0.0000–4.0000 Abs photometric range
Intuitive Operation & Rapid Turnaround

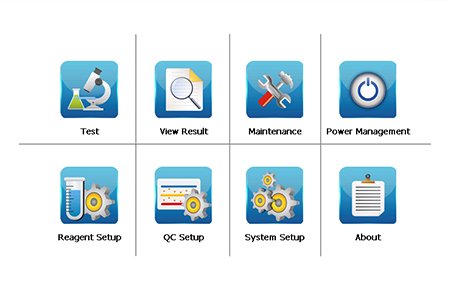

- 7-inch touch screen with Windows-embedded smart OS
- Dual testing modes (flow cell 32 µL, 10 mm path; cuvette mode)
- Built-in 57 mm thermal printer for immediate result documentation
Extensive Storage & Connectivity
- Over 300 programs and 200,000 result records storable on-device

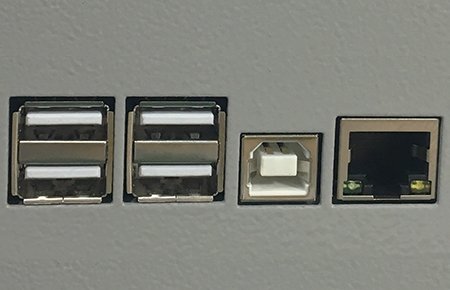

- 4 USB host ports, 1 USB slave, 1 Ethernet for LIS integration
- Barcode reader, external printer, and keyboard support
Precise Thermal Management
- Peltier-based temperature control: 25, 30, 37 °C, and room temperature
- Stable optical performance across operational range (10–30 °C ambient)
- Long-life tungsten halogen lamp with auto-sleep function
Technical specifications
| Test Method | 1-point end, 2-point end (sample blank), kinetics, fixed-time, coagulation (optional) |
|---|---|
| Optics | 7 standard filters: 340 nm, 405 nm, 450 nm, 505 nm, 546 nm, 578 nm, 630 nm; 2 additional optional |
| Lamp House | Long-life tungsten halogen lamp (6V/10W) with auto-sleep function |
| Display | 7.0" TFT LCD touch screen, 800×480 pixels, true color |
| Printer | Built-in thermal printer, 57 mm paper width |
| Temperature Control | 25, 30, 37 °C and room temperature via Peltier elements |
| Flow Cell Capacity & Optical Path | 32 µL capacity, 10 mm optical path |
| Resolution | 0.0001 Abs |
| Photometric Range | 0.0000–4.0000 Abs |
| CPU | ARM Cortex-A8, 720 MHz; DDR2 SDRAM 1 GB; Flash 256 MB |
| Memory | Over 300 programs; 200,000 result records storable |
| Interface | 4 USB host ports, 1 USB slave, 1 Ethernet port; supports keyboard, mouse, printer, U disk, barcode reader |
| Operational Environment | Temperature 10–30 °C; humidity 30–80% |
| Power Supply | AC 100–110V/240V, 50/60 Hz |
| Dimensions | 400 × 300 × 160 mm (L × W × H) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NEUES100P Analyzer | Semi-automatic chemistry analyzer with 7" touch screen, dual-mode testing, thermal printer, and full connectivity suite | 1 |
| Power Cable | AC power cord (100–110V/240V, 50/60 Hz compatible) | 1 |
| USB Cables | USB host and slave cables for peripheral and PC connectivity | 2 |
| Thermal Printer Paper | 57 mm width thermal paper roll (starter pack) | 2 |
| Quick Start Guide | Multi-language operation and maintenance manual | 1 |
| Warranty Card | 2-year manufacturer warranty documentation | 1 |
