Semi-auto Chemistry Analyzer NEUBA22
- Advanced semi-automatic chemistry analyzer for precise testing.
- Supports multiple analytical modes: kinetic, fixed time, end-point, and absorbance.
- 7 standard filters (340-630nm) with one optional filter for versatile testing.
- Full open reagent system with unlimited programming options for test items.
- User-friendly interface featuring voice prompts and Windows operation support.
- Real-time graph display and printing capabilities for easy result interpretation.
- Energy-efficient lamp saving feature extends light source life beyond 2000 hours.
- Large data storage capacity, capable of storing up to 1,000,000 results.
- PELTIER temperature control system for consistent testing at various temperatures.
- CE certified for quality assurance and compliance in medical settings.
- SKU
- NEUBA22
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Semi-Auto Chemistry Analyzer NEUBA22
Advanced semi-automatic chemistry analyzer delivering precise, reliable testing across multiple analytical modes. Features an open reagent system, intuitive Windows interface, and real-time result visualization for streamlined laboratory workflows.
Clinical overview
The NEUBA22 is a versatile semi-automatic chemistry analyzer engineered for high-throughput clinical laboratories and point-of-care settings. It supports four analytical modes—kinetic, fixed time, endpoint, and absorbance—enabling comprehensive testing across a wide range of analytes. The instrument's open reagent architecture eliminates vendor lock-in, allowing laboratories to select reagents based on clinical needs and cost considerations.
With precise PELTIER temperature control (±1°C accuracy) and seven standard optical filters spanning 340–630 nm, the NEUBA22 delivers consistent, reproducible results. The intuitive Windows-based interface, voice prompts, and real-time graphical display reduce operator error and streamline result interpretation. Large data storage capacity (up to 1,000,000 results) and comprehensive quality control features make it ideal for busy clinical environments requiring reliability and compliance.
Key features & surgeon benefits
Multi-Mode Testing
- Four analytical modes: kinetic, fixed time, endpoint, absorbance
- Seven standard filters (340–630 nm) plus one optional filter
- Double wavelength and multiple standard support for advanced assays
User-Centric Design
- Windows XP interface with intuitive figure button and mouse control
- Voice prompts guide operators through each step
- Real-time graph display and A4 report printing for immediate interpretation
Precision & Stability
- Absorbance repeatability ±0.001; linearity ±1%
- PELTIER temperature control at 25°C, 30°C, 37°C (±1°C accuracy)
- Permanent quartz flow cell with minimal 32 µL volume; disposable option available
Open System Architecture
- Full open reagent system with unlimited test item programming
- RS-232 serial port for LIS integration
- Pressure auto-releasing pumps ensure sampling accuracy (≤1% carry-over)
Technical specifications
| Analytical Modes | Kinetic, fixed time, endpoint, absorbance, two-point, double wavelength, coefficient, multiple standards, blank reagent, blank sample, Q.C., Q.C. graph, turbidity |
|---|---|
| Wavelengths | 7 standard filters: 340, 405, 492, 510, 546, 578, 630 nm; 1 optional filter |
| Optical Precision | ±2 nm; FWHM ≤10 nm; stray light ≤0.5% (absorbance ≥2.5) |
| Absorbance Range | −0.214 to 3.000 |
| Absorbance Linearity | ±1% |
| Absorbance Repeatability | ±0.001 |
| Precision | ≤1% |
| Carry-Over | ≤1% |
| Temperature Control | PELTIER system: 25°C, 30°C, 37°C; accuracy ±1°C |
| Light Source | 6V, 10W halogen lamp; lifespan >2000 hours |
| Flow Cell | Permanent quartz (minimal volume 32 µL); disposable option available |
| Sample Volume | 10–50 µL |
| Absorption Volume | 200–3000 µL |
| Resolution | 1 mAbs |
| Absorbance Stability | ≤3 mAbs/h |
| Data Storage | Up to 1,000,000 results |
| Operating System | Windows XP; 1 GB memory |
| Display | 10.1" LCD |
| Print Output | Standard A4 test report |
| Interface | RS-232 serial port (LIS integration) |
| Operating Conditions | Temperature: 10–30°C; relative humidity: 20–80% |
| Power Supply | AC 85–264 V (auto-adaptive); ≤100 W consumption |
| Sterilisation & Compliance | CE certified |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | Semi-automatic chemistry analyzer with integrated temperature control and optical system | 1 |
| Quartz Flow Cell | Permanent quartz flow cell (32 µL minimal volume) | 1 |
| Optical Filters | 7 standard filters (340, 405, 492, 510, 546, 578, 630 nm) | 1 set |
| Sampling Pump | Pressure auto-releasing pump system | 1 |
| Halogen Lamp | 6V, 10W light source (>2000 hours lifespan) | 1 |
| Temperature Control Module | PELTIER temperature control component | 1 |
| LCD Display | 10.1" LCD touchscreen interface | 1 |
| Thermal Printer | A4 report printing capability | 1 |
| Power Supply | AC 85–264 V auto-adaptive power unit | 1 |
| RS-232 Interface Cable | Serial port for LIS integration | 1 |
| User Manual & Software | Windows XP compatible software and comprehensive documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your laboratory's analytical requirements, request a detailed quotation, or arrange a product demonstration of the NEUBA22 analyzer.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →
Biochemistry Analyser NEUBA07
- Advanced Biochemistry Analyzer NEUBA07 for accurate diagnostic testing. - High-resolution 5.7” touch screen LCD display for user-friendly operation. - Supports keyboard and mouse through USB interfaces for enhanced functionality. - Micro dimensions flow cell with precise temperature control ensures reliable results. - Real-time reaction curve monitoring for timely detection of abnormal conditions. - Capable of storing up to 20,000 sample results with result correction features. - Multiple output formats including comprehensive patient reports available. - Integrated quality control functionality with data statistics and searching capabilities. - RS-232 intercommunication and optional Lead-Workstation biochemistry analyzing software for enhanced performance. - Compact design (430x330x140mm) and lightweight (7.0kg) for easy integration into laboratory settings.
Semi-auto Chemistry Analyzer RT-1904C
- User-friendly Windows operating system with mouse control - Large 7" color LCD display for easy reading - Flexible reagent open system supporting both flow cell and cuvette modes - Multiple analytical modes: kinetic, fixed time, dichromatic end point - Real-time curve monitoring for enhanced result reliability - Memory capacity for up to 200 test protocols and 3000 test results - Robust quality control features including West guard Multi-rule - Auto power-on self-check to ensure operational readiness - Easy maintenance; no service engineers needed for lamp or tube changes - Compact design with a weight of 8kg and dimensions of 460x330x190 mm
Semi-auto Chemistry Analyzer RT-9000
- User-friendly Windows operating system with built-in mouse and large color LCD - Versatile reagent system supporting flow cell and cuvette modes - Multiple analytical modes including kinetic and fixed time - Real-time curve monitoring for enhanced test result reliability - Large memory for up to 200 test protocols and 3000 test results - Comprehensive QC functions including Westguard Multi-rule and Levey Jennings plot - Auto power on self-check for convenient operation - Compact design allows for easy user maintenance - Multi-language software and customizable OEM options available - Various result output formats including patient comprehensive reports
Auto-Chemistry Analyzers CS-300
- Fully automatic and discrete Auto-Chemistry Analyzer CS-300 - Throughput of 300T/H for photometry tests and 450T/H for ISE tests - Supports colorimetry and turbidimetry with various analysis methods - 115 sample positions including routine, STAT, calibration, and QC positions - Automatic liquid level detection and collision protection for sample probes - Innovative reagent disk design for reduced consumption and expanded test items - Compatible with standard cups, blood tubes, and multi-specification tubes - PC operating system with graphical analysis control software - Real-time, daily, and monthly quality control tracking available - Compact dimensions of 1060mm x 790mm x 1150mm and weight of 230kg
Auto-Chemistry Analyzers CS-400
- Fully automatic, discrete operation with STAT priority - High throughput: 400 tests/hour for photometry, 600 tests/hour for ISE - Advanced optical system with a wavelength range of 340nm to 800nm - 115 sample positions including routine, STAT, calibration, and QC - Versatile reagent probe with liquid level detection and collision protection - User-defined batch input for efficient data handling - Supports multiple analysis methods: colorimetry, turbidimetry, and ISE - Automatic quality control and real-time alarming for out-of-control samples - Compact design with dimensions of 1060mm x 790mm x 1150mm and weight of 300kg - Compatible with Windows XP and features graphical operating software
Auto-Chemistry Analyzers CS-1200
- Advanced post position semi-conductor for efficient heat management - Automatic liquid level detection for optimal probe depth - 8 stops and 12 stops rinsing with warm water for thorough cleaning - Long-life halogen light source with minimal signal attenuation - Random access, fully automatic, discrete system design - High throughput rates: 800 tests/hour for colorimetric, 400 tests/hour for ISE - Multiple analysis methods: end-point, kinetics, and fixed-time - Dual independent mixers for sufficient reaction mixing - Comprehensive temperature control with precise incubation at 37°C - Up to 140 sample positions and support for multiple sample tubes and cups

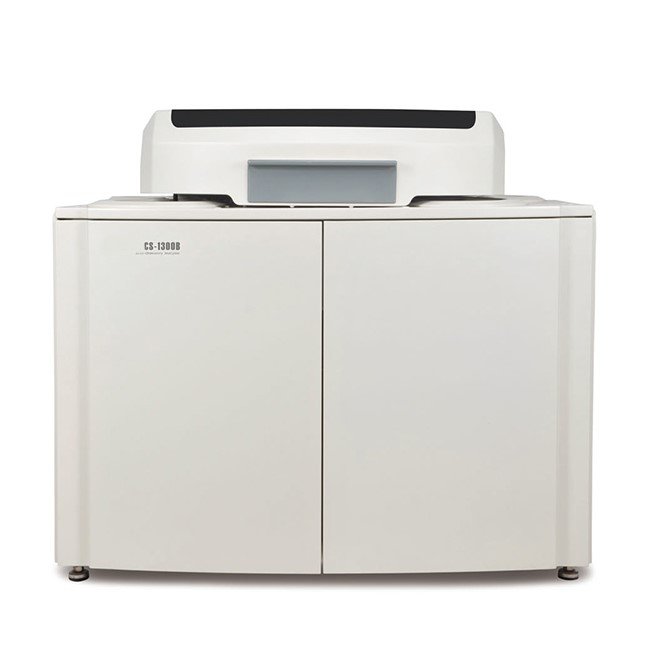

Auto-Chemistry Analyzer CS-1300
