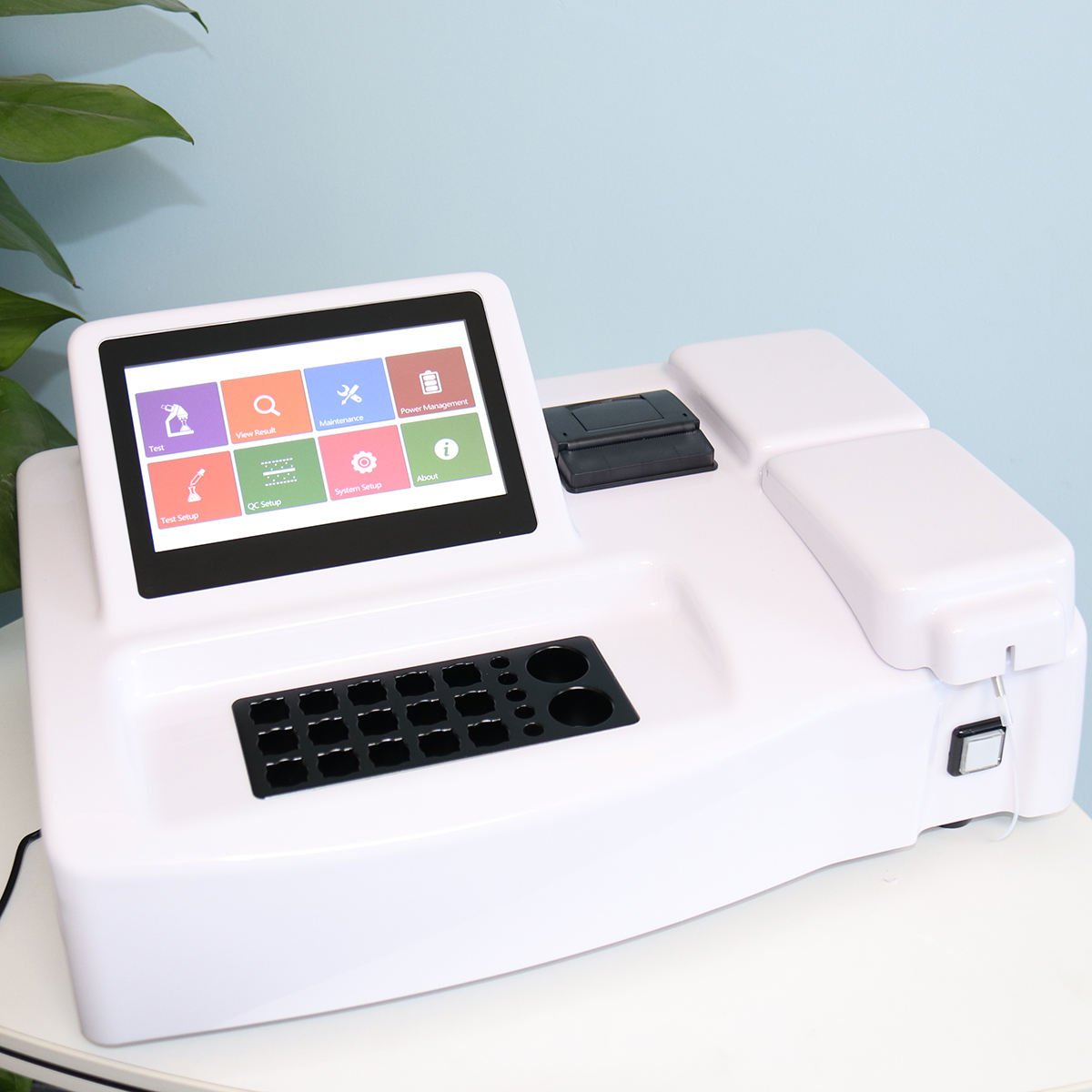

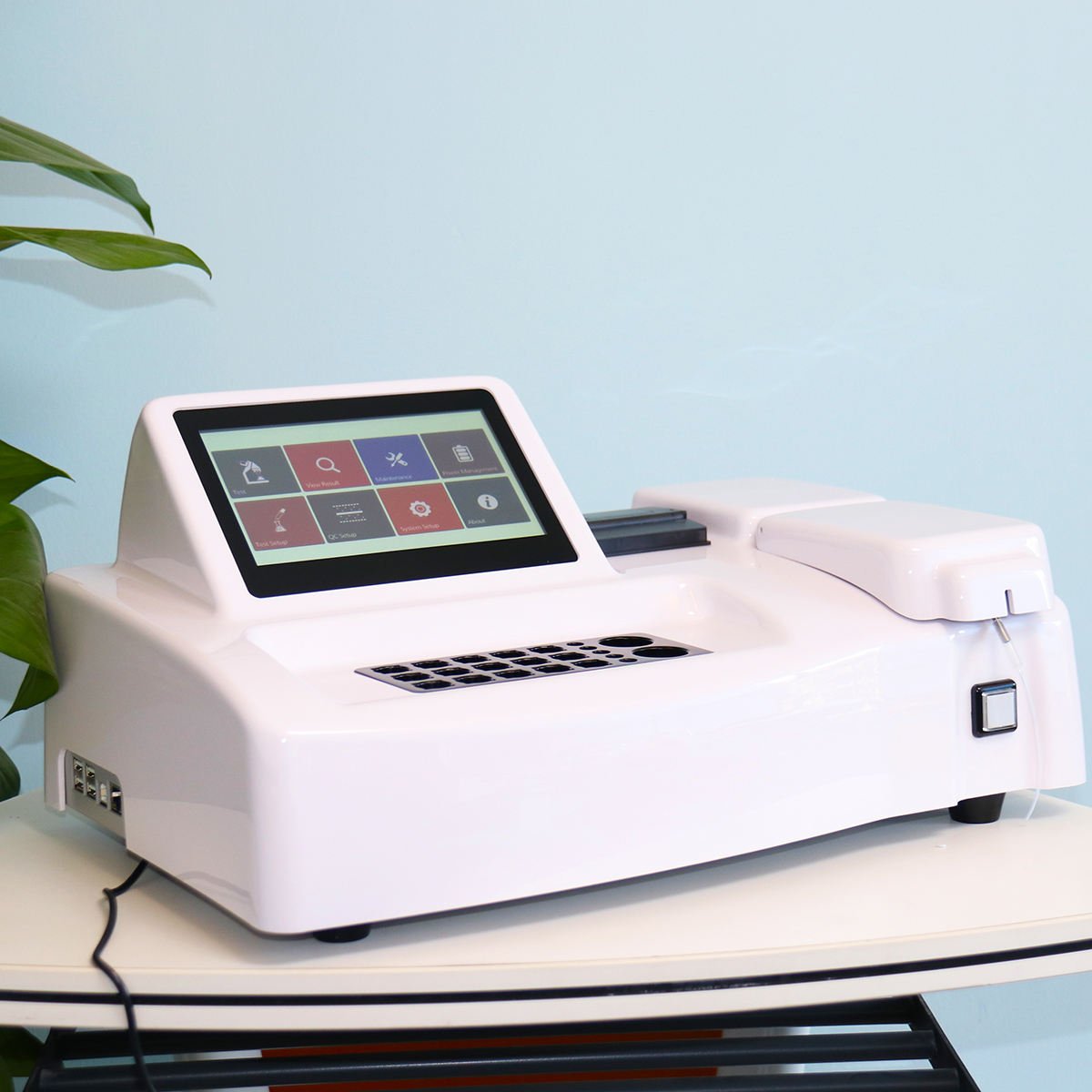

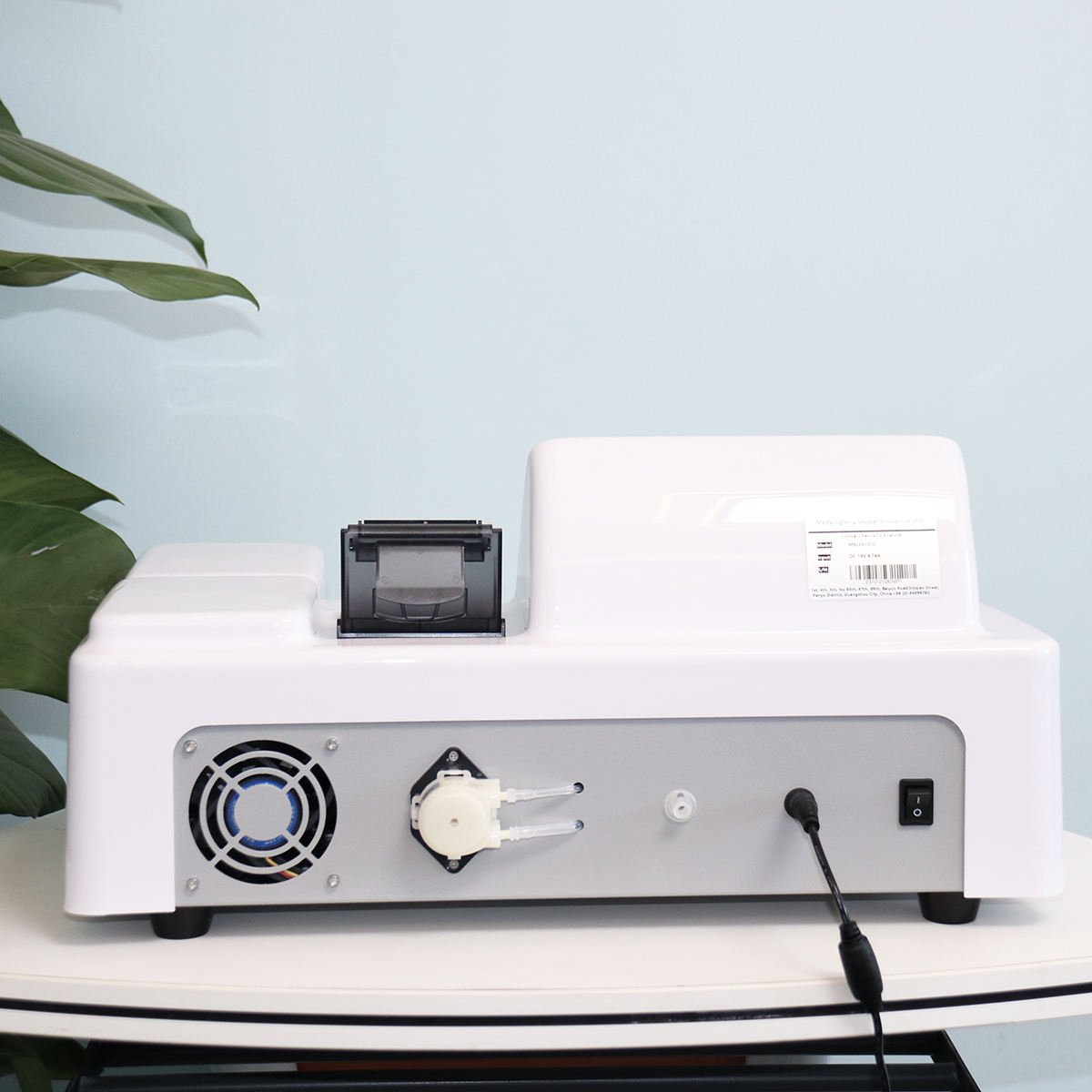

Semi-auto Chemistry Analyzer NEUES101C
- Semi-auto Chemistry Analyzer model NEUES101C
- Test methods: 1 point end, 2 point end, Kinetics, Fixed-time, with optional Coagulation
- 7 standard optical filters: 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm
- Long-life tungsten halogen lamp with auto-sleep function
- 7” touch screen display (800 x 480 pixels)
- Built-in thermal printer for 57mm printer paper
- High memory capacity: DDR2 SDRAM: 1G bit; Flash: 256 MB
- Supports over 300 programs and stores up to 200,000 results
- Versatile USB ports for keyboards, printers, and PC connections
- Operates in a temperature range of 10℃ to 30℃ and humidity of 30% to 80%
- SKU
- NEUES101C
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

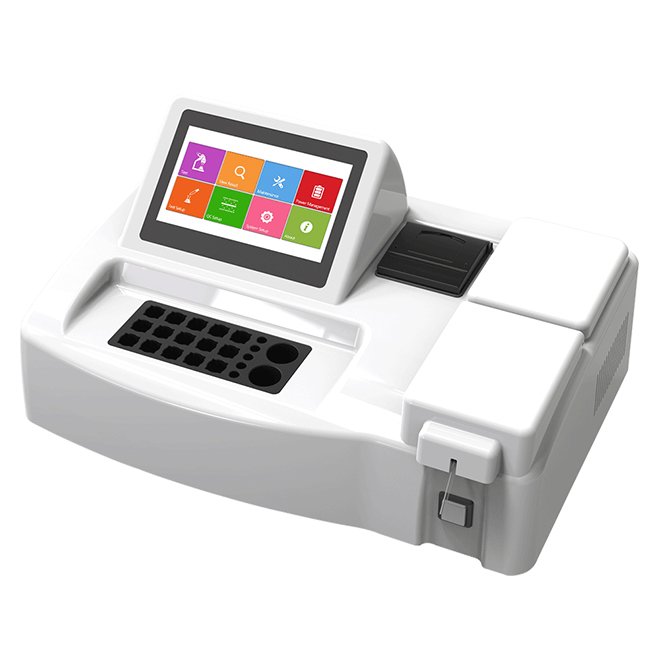

Semi-auto Chemistry Analyzer NEUES101C
Compact, versatile semi-automated chemistry analyzer with multi-method capability, 7-wavelength optical system, and integrated thermal printing. Ideal for clinical laboratories requiring flexible test protocols with high sample throughput and reliable results.
Clinical overview
The NEUES101C is a semi-automated chemistry analyzer designed for mid-to-high-volume clinical laboratories. It combines flexible test methodology with robust optical performance, supporting 1-point end, 2-point end, kinetics, fixed-time, and optional coagulation assays. The 7-wavelength filter system (340–630 nm) accommodates a broad range of analytes, while the long-life tungsten halogen lamp with auto-sleep function ensures consistent performance and extended lamp life.
With integrated thermal printing, large touchscreen display, and comprehensive data storage (200,000 results), the NEUES101C streamlines workflow and reduces manual documentation. USB connectivity enables seamless integration with laboratory information systems, keyboards, barcode readers, and external printers, making it a practical choice for laboratories seeking reliability and operational flexibility.
Key features & surgeon benefits
Multi-wavelength flexibility
- 7 standard interference filters (340, 405, 450, 505, 546, 578, 630 nm)
- 2 additional filter slots for custom wavelengths

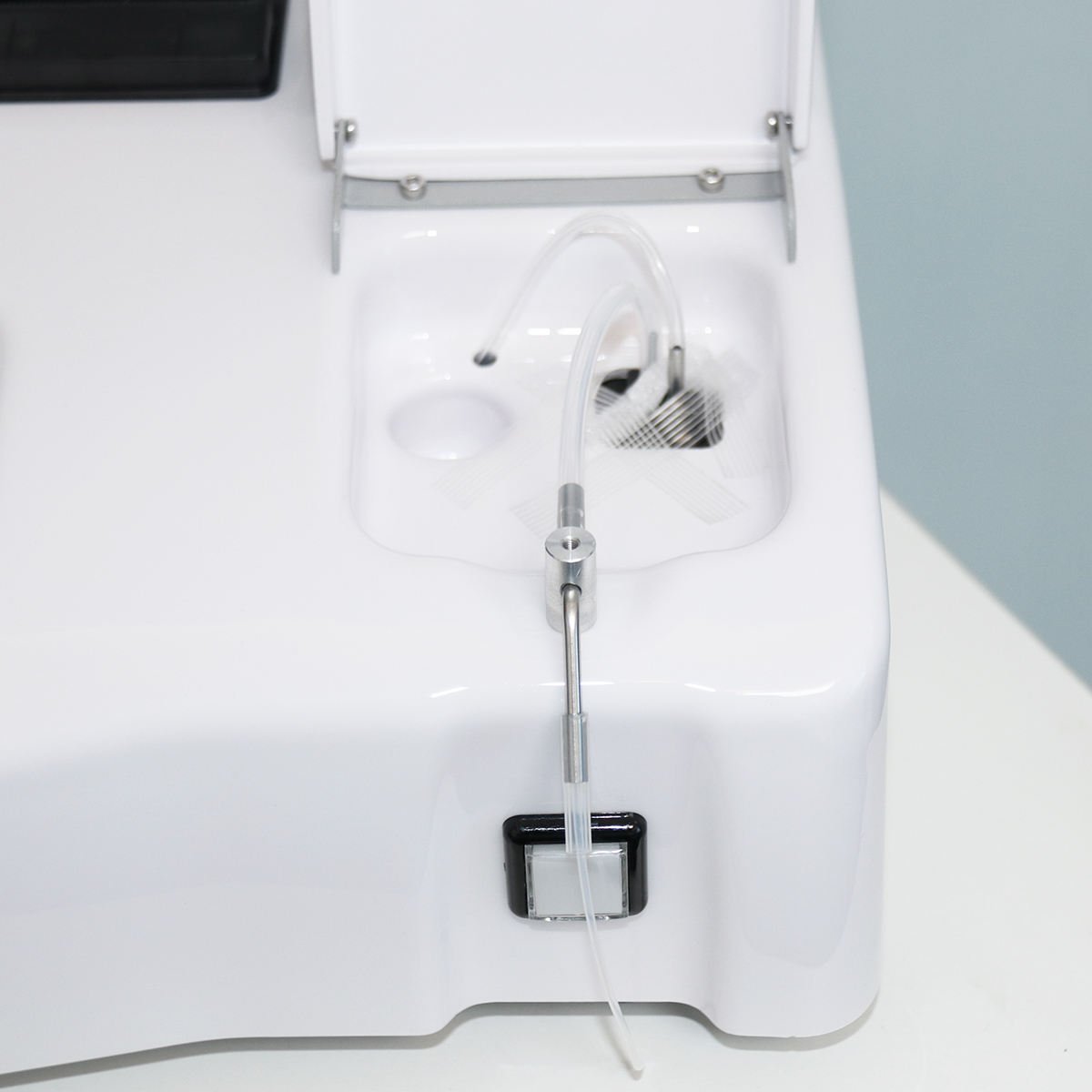

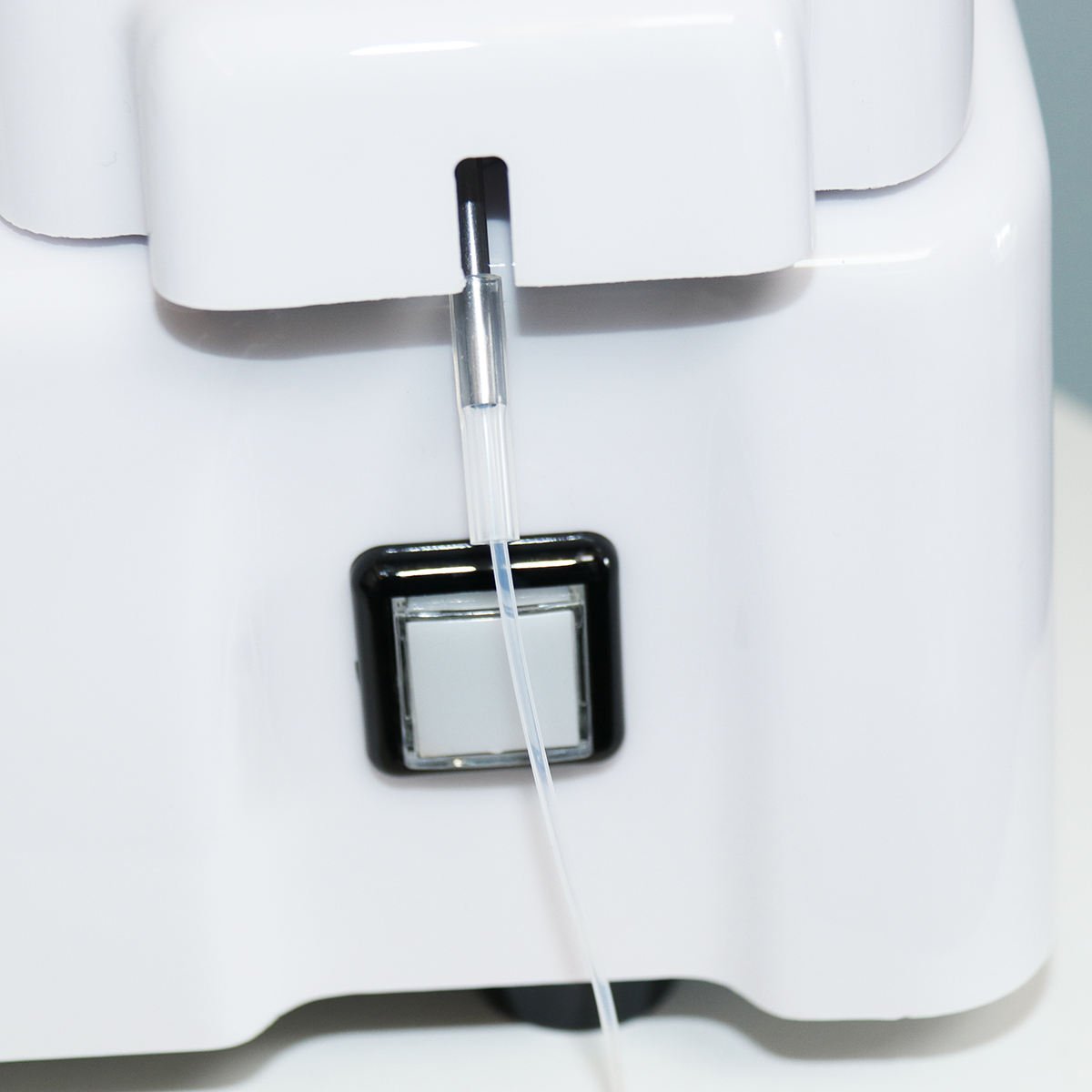

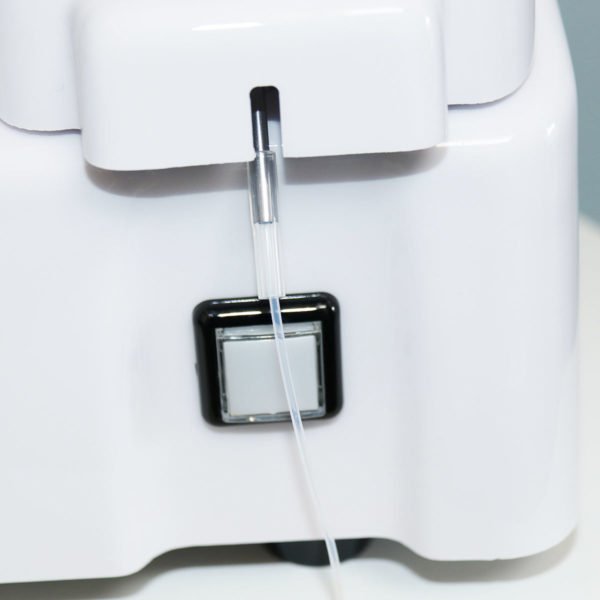

- 10 mm optical path with 32 µL flow cell capacity
- 0.0001 Abs resolution; 0.0000–4.0000 Abs range
Integrated automation & reporting
- 7" colour touchscreen (800 × 480 pixels) for intuitive operation

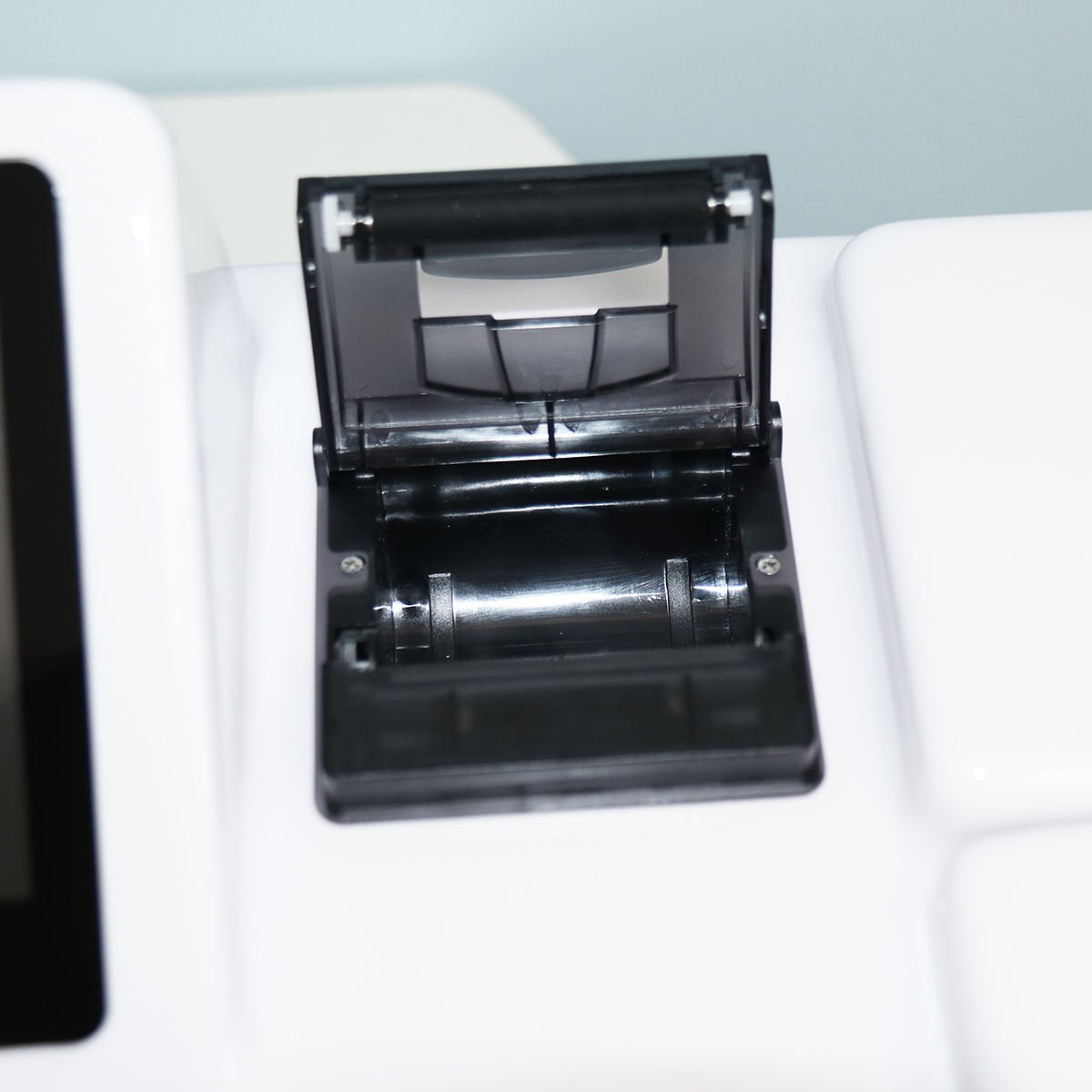

- Built-in 57 mm thermal printer for immediate result documentation
- Support for over 300 assay programs with flexible test methods
- USB host ports for keyboard, mouse, barcode reader, and external devices
Robust storage & connectivity
- DDR2 SDRAM (1 Gbit) and Flash (256 MB) for rapid data access
- Stores up to 200,000 results with full audit trail
- USB slave and Ethernet ports for PC software control and LIS integration
- ARM Cortex-A8 processor (720 MHz) ensures fast calculation and reporting
Long-life optics & temperature control
- Long-life tungsten halogen lamp (6/10 W) with auto-sleep function
- Peltier-based temperature control (25, 30, 37 °C, or room temperature)
- Compact footprint (400 × 300 × 160 mm) fits standard benchtop layouts
- Wide AC power input (100–110V/240V, 50/60 Hz) for global deployment
Technical specifications
| Test Methods | 1-point end, 2-point end (sample blank), kinetics, fixed-time, coagulation (optional) |
|---|---|
| Optical Filters | 7 standard: 340, 405, 450, 505, 546, 578, 630 nm; 2 additional slots available |
| Lamp House | Long-life tungsten halogen (6/10 W) with auto-sleep function |
| Display | 7.0" TFT LCD touchscreen, 800 × 480 pixels |
| Printer | Built-in thermal printer, 57 mm paper |
| Temperature Control | 25, 30, 37 °C and room temperature via Peltier elements |
| Flow Cell | 32 µL capacity; 10 mm optical path |
| Photometric Resolution | 0.0001 Abs |
| Photometric Range | 0.0000–4.0000 Abs |
| Processor | ARM Cortex-A8, 720 MHz |
| Memory | DDR2 SDRAM: 1 Gbit; Flash: 256 MB |
| Assay Programs | Over 300 programs; stores up to 200,000 results |
| Interfaces | 4 USB hosts, 1 USB slave, 1 Ethernet port |
| Operational Environment | Temperature: 10–30 °C; Humidity: 30–80% |
| Power Supply | AC 100–110V/240V, 50/60 Hz |
| Dimensions | 400 × 300 × 160 mm (L × W × H) |
| Warranty | 2 Year Manufacturer Warranty |

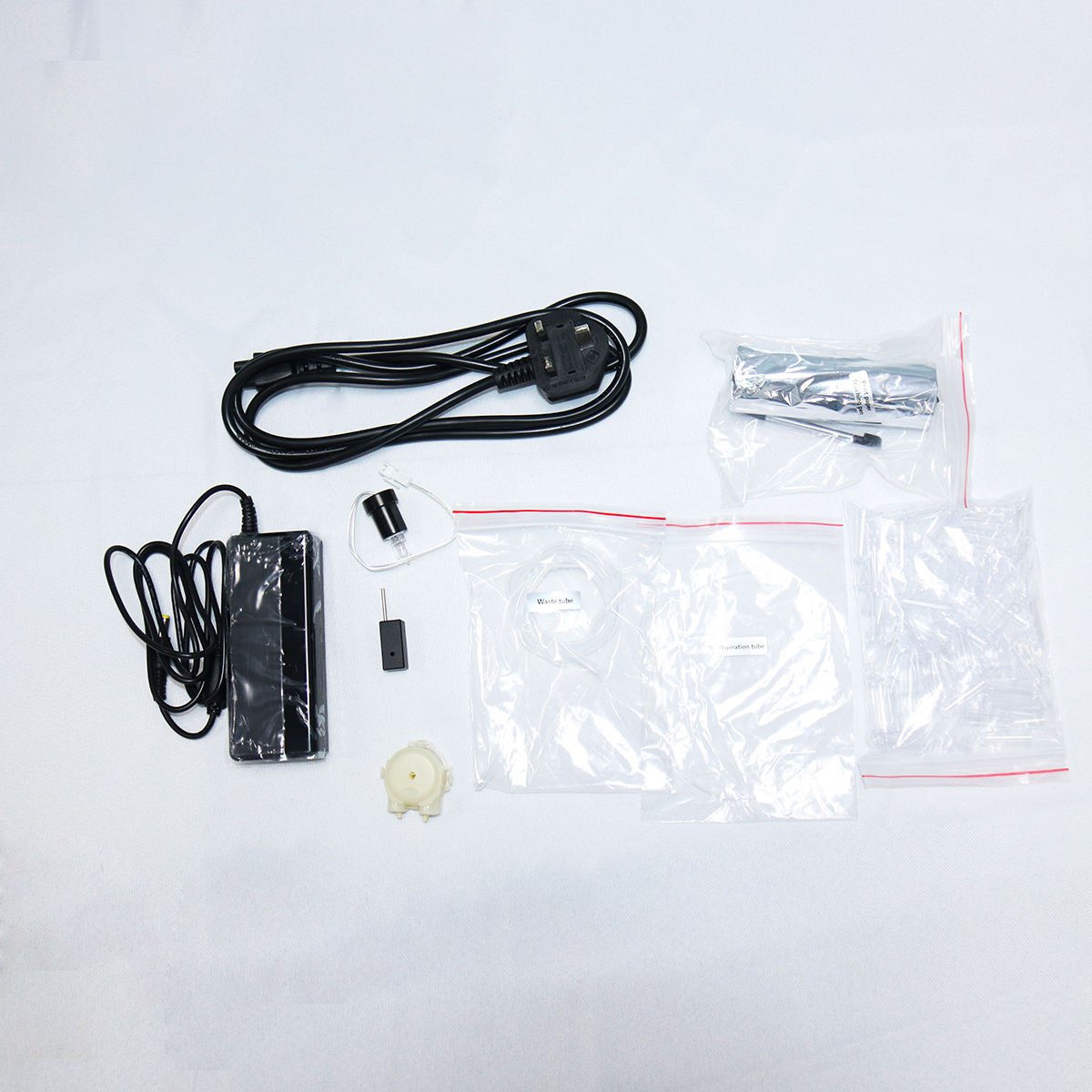

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | NEUES101C Semi-auto Chemistry Analyzer with integrated thermal printer and touchscreen display | 1 |
| Optical Filter Set | 7 standard interference filters (340, 405, 450, 505, 546, 578, 630 nm) | 1 set |
| Flow Cell | 32 µL capacity cuvette with 10 mm optical path | 1 |
| Thermal Printer Paper | 57 mm thermal paper roll (starter pack) | 1 roll |
| USB Cables | USB-A to USB-B for PC connection and peripheral connectivity | 2 |
| Power Cable | AC power cord with universal voltage support (100–110V/240V) | 1 |
| User Manual | Complete operation, maintenance, and troubleshooting guide | 1 |
| Quick Reference Card | Laminated operational quick-start guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your laboratory's chemistry analyzer requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery and comprehensive support to ensure seamless integration into your workflow.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
