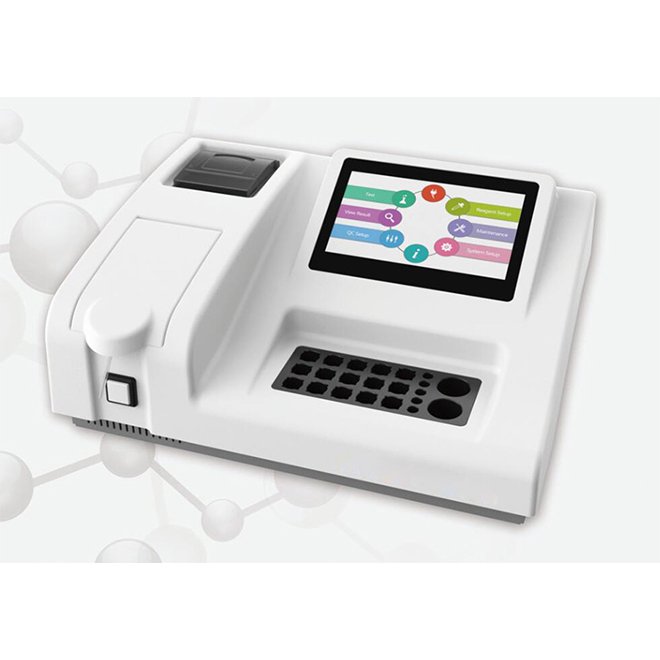

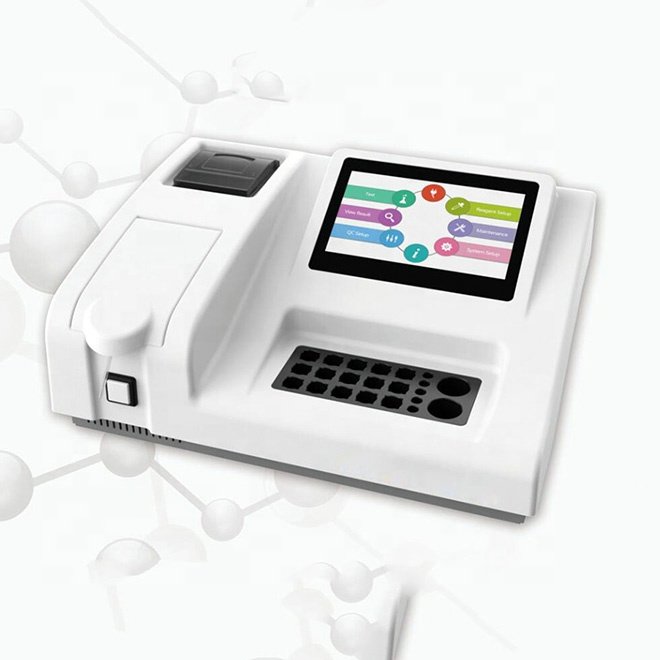

Semi-auto Chemistry Analyzer NEUES100C
- Compact design with dimensions of 400x300x160 mm
- 7-inch true color touch screen with a resolution of 800x480 pixels
- Features both flow cell and cuvette testing modes
- Multifunctional incubator with blood coagulation capabilities
- High storage capacity of over 300 programs and 200,000 sample results
- Equipped with 5 USB ports and 1 Ethernet port for connectivity
- Built-in thermal printer with 57mm printer paper support
- High-performance CPU: ARM Cortex-A8 at 720M Hz
- Interference filters for multiple wavelengths (340-630 nm)
- Supports PC software control via USB connection
- SKU
- NEUES100C
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

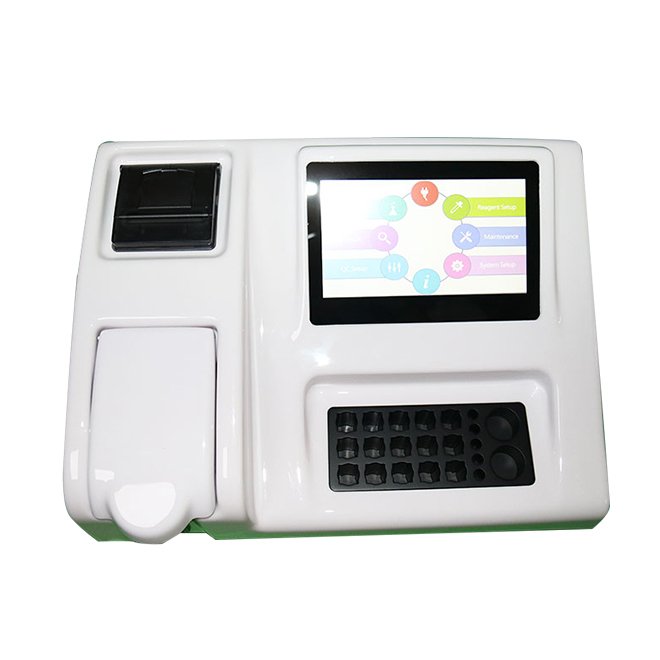

Semi-auto Chemistry Analyzer NEUES100C
A compact, intelligent semi-automatic biochemistry analyzer designed for clinical laboratories and point-of-care settings. The NEUES100C combines intuitive touchscreen operation with dual testing modes (flow cell and cuvette), multifunctional incubation, and extensive data storage—delivering reliable chemistry analysis with minimal operator training.
Clinical overview
The NEUES100C is a semi-automatic biochemistry analyzer engineered for high-throughput clinical laboratories and smaller healthcare facilities requiring reliable, cost-effective chemistry testing. Its dual testing modes (flow cell and cuvette) accommodate a wide range of assay protocols, while the integrated multifunctional incubator with blood coagulation capability expands diagnostic scope. The 7-inch true color touchscreen with intuitive Windows-embedded interface minimizes training time and operator error, enabling consistent, reproducible results across shifts and personnel.
With storage capacity for over 300 programs and 200,000 sample results, the NEUES100C supports comprehensive laboratory workflows. Five USB ports and Ethernet connectivity enable seamless integration with laboratory information systems (LIS), barcode readers, and external printers. The built-in thermal printer with 57 mm paper support provides immediate on-board result documentation, while PC software control via USB connection allows remote monitoring and data management from a central workstation.
Key features & surgeon benefits
Multi-wavelength Detection
- Seven interference filters spanning 340–630 nm for comprehensive assay coverage
- Dual reading modes: flow cell and cuvette for method flexibility
- High-precision optical path ensures accurate, reproducible measurements
Intuitive Operation & Connectivity
- 7-inch true color touchscreen (800 × 480 pixels) with Windows-embedded OS
- Five USB host ports for keyboard, mouse, barcode reader, and external printer integration
- Ethernet and USB slave ports enable LIS connectivity and remote PC control
Extensive Storage & Reporting
- Over 300 stored programs and 200,000 sample result capacity
- Built-in thermal printer (57 mm paper) for immediate on-board documentation
- DDR2 SDRAM (1 GB) and Flash (256 MB) for rapid data access and archival
Multifunctional Temperature Control
- Integrated multifunctional incubator for sample and reagent temperature management
- Blood coagulation testing capability for PT/INR and aPTT assays
- Precise thermal regulation ensures assay stability and reproducibility
Technical specifications
| Indications | Clinical biochemistry, coagulation studies, routine chemistry testing |
|---|---|
| Dimensions | 400 × 300 × 160 mm (compact benchtop form factor) |
| Display | 7-inch true color touchscreen, 800 × 480 pixels, Windows-embedded OS |
| Reading Modes | Flow cell and cuvette testing |
| Optical Filters | Seven wavelengths: 340, 405, 450, 505, 546, 578, 630 nm |
| Processor | ARM Cortex-A8, 720 MHz |
| Memory | DDR2 SDRAM: 1 GB; Flash: 256 MB |
| Storage Capacity | Over 300 programs; 200,000 sample results |
| Connectivity | 5 USB host ports, 1 USB slave port (PC control), 1 Ethernet port |
| Printer | Built-in thermal printer, 57 mm paper support |
| Incubation | Multifunctional incubator with blood coagulation capability |
| Packaging | As applicable |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NEUES100C Analyzer | Semi-automatic chemistry analyzer with touchscreen, dual-mode optical system, and integrated incubator | 1 |
| Thermal Printer Module | Built-in 57 mm thermal printer for on-board result documentation | 1 |
| USB Connectivity Kit | Cables and adapters for host and slave USB connections, barcode reader, and external peripherals | 1 |
| Ethernet Cable | Network connectivity for LIS integration and remote monitoring | 1 |
| PC Software License | Windows-compatible control and data management software with USB interface | 1 |
| Quick Start Guide | Operator manual and safety documentation | 1 |
