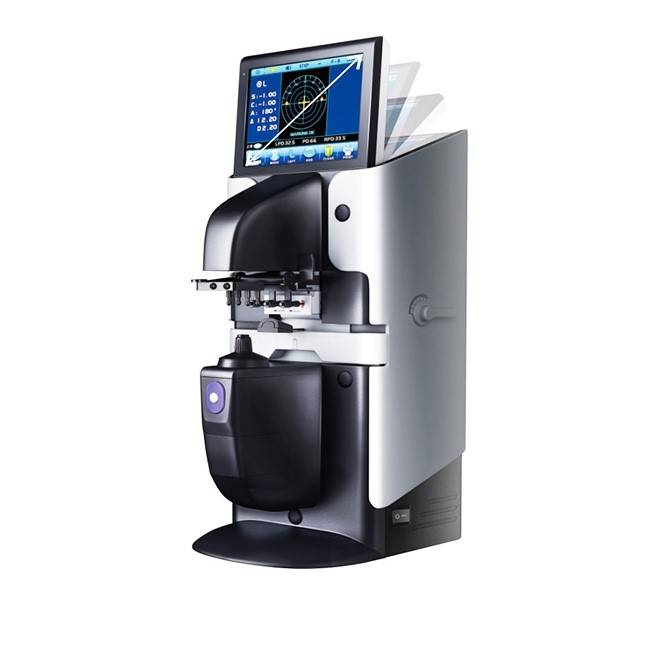

Auto Lensmeter with Tilt Color Screen NEUJD26A
- Advanced Auto Lensmeter with Tilt Color Screen for easy readability
- Measurement range: Sphere 0 to ±25D, Cylinder 0 to ±9.99D
- Accurate axis measurement from 0° to 180° in 1° steps
- Fast measurement speed of just 0.1 seconds
- Compatible with various lens types: soft, hard, single, progressive
- Equipped with a thermal printer for instant results
- Large display options: 7” TFT LCD (MSLJD26A) or 5.6” TFT LCD (MSLJD26B)
- Adjustable PD measurement range: 40 to 90mm in 0.5mm steps
- Compact design with a weight of approximately 5.5KG
- Versatile power supply: 100–240V, 50–60Hz
- SKU
- NEUJD26A
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Auto Lensmeter with Tilt Color Screen NEUJD26A
Advanced automated lensmeter with large tilt color display for precise lens measurement. Fast 0.1-second measurement speed with thermal printer output, compatible with soft, hard, single, and progressive lenses. Ideal for optical laboratories and dispensing practices.
Clinical overview
The Auto Lensmeter NEUJD26A is a fully automated optical measurement system designed for high-throughput lens analysis in professional optical environments. With measurement speeds of just 0.1 seconds and a comprehensive measurement range covering sphere, cylinder, axis, add power, and prism values, this device streamlines lens verification and quality control workflows. The large tilt color display (available in 7" or 5.6" formats) ensures operator comfort and readability during extended use, while the integrated thermal printer provides instant hard-copy documentation of all measurements.
The system supports multiple lens types—soft contact lenses, hard contact lenses, single-vision, and progressive lenses—with automatic recognition capability. Adjustable PD measurement (40–90mm in 0.5mm increments) and flexible cylinder/prism measurement modes accommodate diverse clinical and retail requirements. Compact design and universal power supply (100–110V/240V, 50–60Hz) make installation straightforward in any optical facility.
Key features & surgeon benefits
Comprehensive optical parameters
- Sphere: 0 to ±25D in 0.01/0.12/0.25D steps
- Cylinder: 0 to ±9.99D with flexible step selection
- Axis: 0° to 180° in 1° increments
- Add power and prism measurement included
Fast, automated measurement
- 0.1-second measurement speed for rapid throughput
- Automatic lens type recognition (soft/hard/single/progressive)
- Thermal printer for instant result documentation
- Flexible cylinder and prism measurement modes
Operator-friendly design

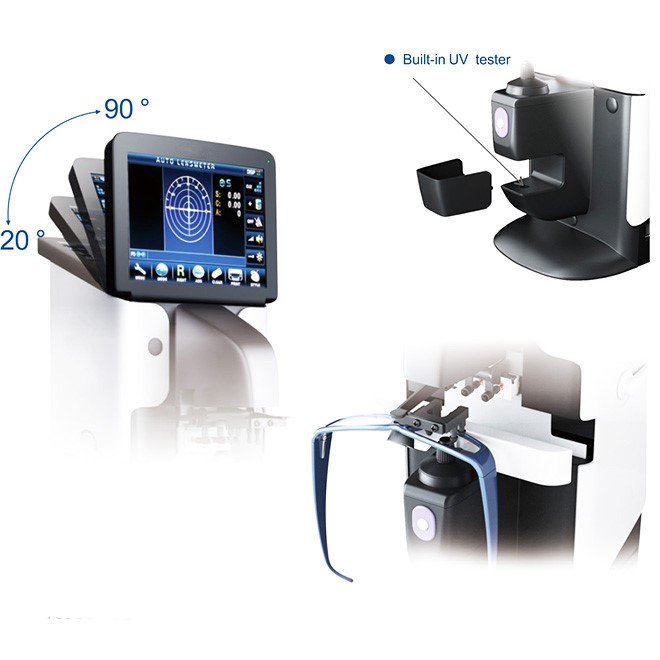

- Large tilt color display (7" or 5.6" TFT LCD options)
- Compact footprint: 222(D) × 161(W) × 372(H) mm
- Lightweight at ~5.5 kg for flexible placement
- Universal power supply (100–110V/240V, 50–60Hz)
Multi-lens compatibility
- Supports soft and hard contact lenses
- Single-vision and progressive lens measurement
- Lens diameter range: Φ20–108mm
- PD adjustment: 40–90mm in 0.5mm steps
Technical specifications
| Indications | Lens power measurement, axis determination, prism measurement, progressive lens analysis, contact lens verification |
|---|---|
| Measurement range — Sphere | 0 to ±25D (0.01/0.12/0.25D step) |
| Measurement range — Cylinder | 0 to ±9.99D (0.01/0.12/0.25D step) |
| Measurement range — Axis | 0° to 180° (1° step) |
| Measurement range — Add | 0 to ±9.99D (0.01/0.12/0.25D step) |
| Measurement range — Prism | 0 to 15△ (0.01/0.12/0.25D step) |
| Lens diameter | Φ20–108mm |
| PD measurement | 40–90mm (0.5mm step) |
| Measurement speed | 0.1 seconds |
| Display options | 7" TFT LCD (MSLJD26A) or 5.6" TFT LCD (MSLJD26B) |
| Printer | Thermal printer |
| Cylinder measurement mode | +, +/−, − |
| Prism measurement mode | X-Y, P-B |
| Contact lens mode | Soft / Hard |
| Measuring mode | Single / Progressive / Automatic recognition |
| Dimensions | 222(D) × 161(W) × 372(H) mm |
| Package dimensions | 515(H) × 320(W) × 390(D) mm |
| Weight | ~5.5 kg |
| Power supply | 100–110V/240V, 50–60Hz |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Auto Lensmeter | Main unit with tilt color display and thermal printer | 1 |
| Power cable | Universal AC power supply cable (100–110V/240V, 50–60Hz) | 1 |
| Thermal paper roll | Replacement thermal paper for printer | 1 |
| User manual | Operating instructions and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss display size options, customisation, and delivery timelines. We offer flexible configuration and rapid deployment support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
