Auto Refractometer and Auto Kerato-refractometer NEUFA61
- Advanced Auto Refractometer and Auto Kerato-refractometer NEUFA61
- Vertex distance options: 0mm, 12mm, 13.75mm
- Sphere range: -20 to +20D with 0.12/0.25D step
- Cylinder range: -8 to +8D available
- Axis measurement from 0° to 180° in 1° increments
- Minimum pupil size detected: 2.0mm
- Corneal power from 33.75 to 67.50D with selectable increments
- Memory capacity: stores 10 measurement values for each eye
- 5.7” or 5.6” color LCD display models
- Compact design with a weight of approx. 15.5kg
- SKU
- NEUFA61
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

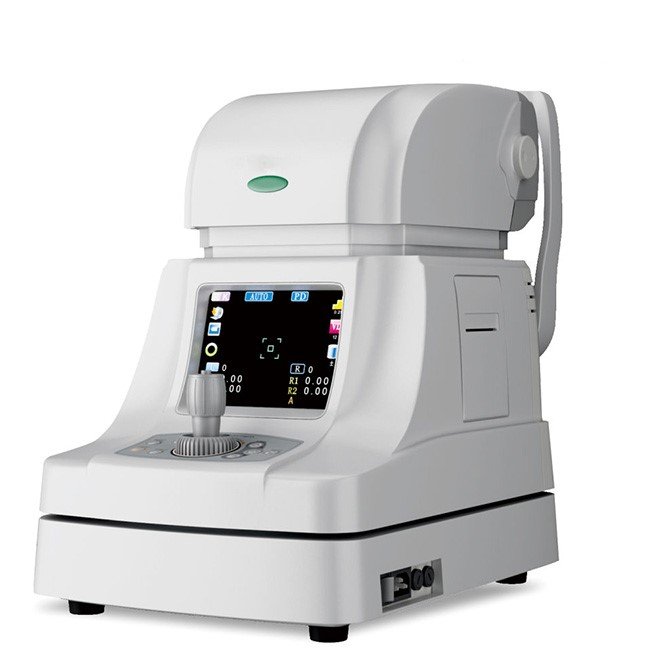

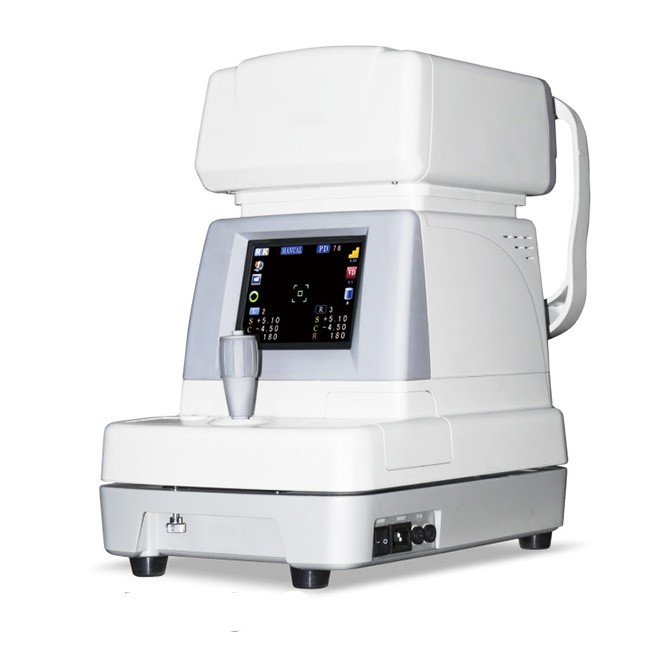

Auto Refractometer and Auto Kerato-refractometer NEUFA61
Advanced automated refraction and keratometry system combining precise refractive measurement with corneal power analysis. The NEUFA61 delivers rapid, accurate results with selectable vertex distances and comprehensive data storage for efficient patient management in clinical and retail optical settings.
Clinical overview
The NEUFA61 is a fully automated refractometer and kerato-refractometer designed for rapid, objective measurement of refractive error and corneal parameters. Combining advanced optical technology with an intuitive user interface, it delivers consistent, high-precision results across a comprehensive measurement range. The system supports multiple vertex distance configurations (0mm, 12mm, 13.75mm) to accommodate diverse clinical protocols and patient populations.
With integrated memory capacity for 10 measurement values per eye, thermal printing capability, and an auto-fog chart feature, the NEUFA61 streamlines workflow in busy optical practices, hospitals, and refractive surgery centres. The compact design and dual display options (5.7" or 5.6" color LCD) provide flexibility for various clinical environments while maintaining diagnostic accuracy and ease of operation.
Key features & surgeon benefits
Comprehensive Refractive Coverage
- Sphere range −20 to +20D with 0.12/0.25D step resolution
- Cylinder range −8 to +8D for astigmatism measurement
- Axis measurement 0–180° in 1° increments
- Corneal power 33.75–67.50D with selectable increments
Automated Operation & Data Management
- Auto-fog chart for objective measurement without subjective input
- Memory storage: 10 measurement values for each eye
- Thermal printer for immediate patient reports
- Minimum pupil size detection at 2.0mm for diverse patient populations
Selectable Vertex Distance Options
- Three vertex distance configurations: 0mm, 12mm, 13.75mm
- Adjustable vertex distance 45–88mm in 1mm steps
- Dual display options: 5.7" or 5.6" color LCD models
- Compact footprint suitable for various clinical settings
Advanced Corneal Analysis
- Radius of curvature measurement 5.0–10mm (0.01mm increment)
- Corneal astigmatism 0.0–8.00D with selectable increments
- Corneal diameter measurement 2.0–14.1mm (0.1mm increment)
- Axis measurement 1–180° for precise corneal mapping
Technical specifications
| Indications | Objective refraction measurement, keratometry, corneal power analysis, refractive error assessment |
|---|---|
| Sphere range | −20 to +20D (VD=12mm) with 0.12/0.25D step |
| Cylinder range | −8 to +8D with 0.12/0.25D step |
| Axis measurement | 0–180° in 1° increments |
| Vertex distance options | 0mm, 12mm, 13.75mm; adjustable 45–88mm in 1mm steps |
| Minimum pupil size | 2.0mm |
| Corneal power range | 33.75–67.50D (corneal equivalent refractive index 1.337); selectable 0.12/0.25D increments |
| Corneal astigmatism | 0.0–8.00D with selectable 0.12/0.25D increments |
| Radius of curvature | 5.0–10mm (0.01mm increment) |
| Corneal diameter | 2.0–14.1mm (0.1mm increment) |
| Memory capacity | 10 measurement values for each right and left eye |
| Display | 5.7" color LCD (MSLFA61 & MSLFA61A) or 5.6" color LCD (MSLFA60A) |
| Chart | Auto fog |
| Printer | Thermal printer |
| Power supply | 100–110V/240V, 50/60Hz |
| Dimensions | MSLFA61: 469×308×522mm; MSLFA60A & MSLFA61A: 280×492×462mm |
| Weight | Approximately 15.5kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Auto Refractometer & Kerato-refractometer | Complete optical and electronic assembly with integrated display and printer | 1 |
| Color LCD Display | 5.7" or 5.6" touchscreen interface (model dependent) | 1 |
| Thermal Printer Module | Integrated thermal printer for patient reports | 1 |
| Power Cable | 100–110V/240V universal input | 1 |
| User Manual & Documentation | Comprehensive operating and maintenance guides | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the NEUFA61 system, request detailed specifications, arrange a demonstration, or obtain a formal quotation. We provide comprehensive support and flexible delivery options.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
