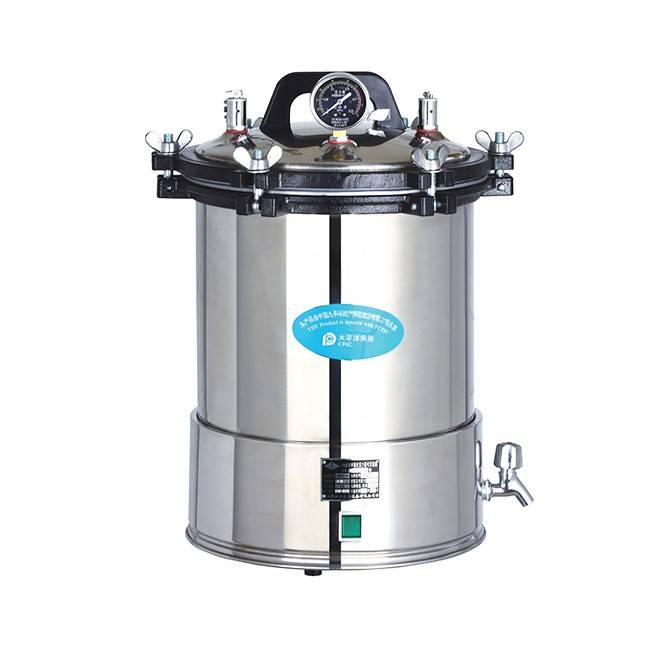

Autoclave Sterilizer NEUPS16
Compact, reliable steam sterilization for clinical and laboratory environments. The NEUPS16 delivers consistent 126°C sterilization with dual capacity options (18L or 24L) and precision temperature control. Engineered for dependable performance in high-demand settings.
Clinical overview
The NEUPS16 is a compact, bench-top autoclave designed for surgical centers, dental practices, veterinary clinics, and laboratory facilities requiring reliable steam sterilization. With dual chamber options (18L and 24L), it accommodates varying instrument loads while maintaining consistent 126°C sterilization cycles. The fixed temperature protocol ensures reproducible results and simplifies operator training.
Engineered with precision temperature control (±1°C accuracy) and safety-rated pressure management (0.165 MPa maximum), the NEUPS16 meets clinical sterilization standards. Its compact footprint (410×410×520 mm or 410×410×630 mm) fits seamlessly into space-constrained environments without compromising capacity or performance.
Key features & surgeon benefits
Dual chamber options
- 18L chamber (280×260 mm) for smaller loads
- 24L chamber (280×390 mm) for higher throughput
- Choose configuration based on facility workflow
Simplified operation
- Fixed 126°C sterilization temperature—no adjustment needed
- Consistent cycle times reduce scheduling complexity
- Compact footprint fits standard bench or cabinet installation
Reliable sterilization
- Heat accuracy ±1°C ensures uniform sterilization
- Working pressure 0.14–0.16 MPa with 0.165 MPa safety limit
- Validated steam penetration for all instrument types
Cost-effective operation
- 2 kW power consumption—efficient energy use
- Low maintenance design reduces downtime
- Competitive pricing with 2-year manufacturer warranty
Technical specifications
| Sterilizing volume | 18L (280×260 mm) or 24L (280×390 mm) |
|---|---|
| Working pressure | 0.14–0.16 MPa |
| Working temperature | 126°C |
| Temperature adjust range | Fixed at 126°C |
| Max. safety pressure | 0.165 MPa |
| Heat average accuracy | ≤±1°C |
| Power / consumption | AC 110V/220V, 50/60Hz / 2 kW |
| Dimensions (18L) | 410×410×520 mm |
| Dimensions (24L) | 410×410×630 mm |
| Gross weight / Net weight (18L) | 18 kg / 16 kg |
| Gross weight / Net weight (24L) | 19 kg / 17 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Autoclave unit | Complete NEUPS16 sterilizer with stainless steel chamber | 1 |
| Power cord | AC 110V/220V, 50/60Hz rated | 1 |
| User manual | Operation and maintenance guide | 1 |
| Warranty certificate | 2-year manufacturer coverage | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss chamber size selection, delivery timelines, and volume pricing for the NEUPS16 autoclave sterilizer.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
