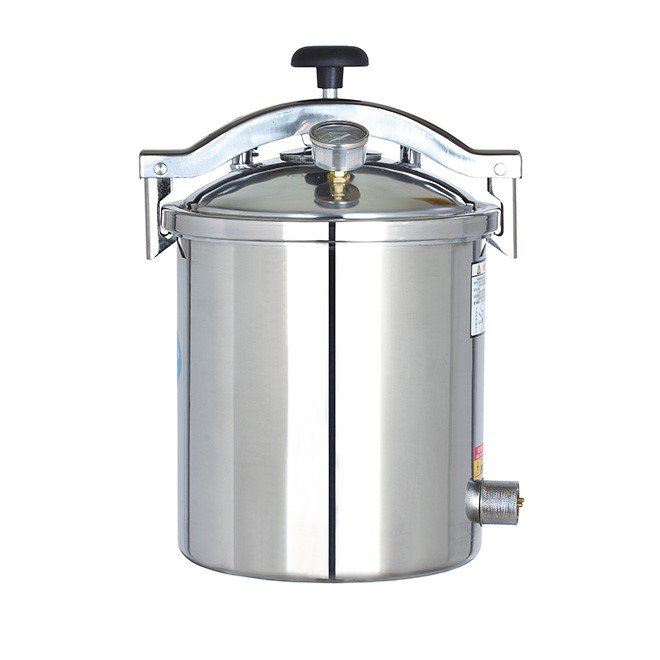

Small Autoclave NEUPS14
- Compact Small Autoclave NEUPS14 designed for efficient sterilization
- Available in three sizes: 12L, 18L, and 24L sterilizing volumes
- Operating pressure range: 0.14-0.16 MPa for optimal performance
- Consistent working temperature of 126°C for effective sterilization
- Maximum safety pressure: 0.165 MPa to ensure user safety
- Power consumption: AC220V, 50Hz / 2KW for energy efficiency
- Dimensions vary per model (12L: 360×360×520 mm; 18L: 410×410×550 mm; 24L: 420×420×650 mm)
- Weights: G.W and N.W from 12/10 KG (12L) to 16/14 KG (24L)
- Ideal for medical and laboratory use, offering reliable sterilization results
- User-friendly design and robust construction for long-lasting performance
- SKU
- NEUPS14
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Small Autoclave NEUPS14
Compact, efficient steam sterilization system designed for medical and laboratory environments. Available in three sterilizing volumes (12L, 18L, 24L) with consistent 126°C operating temperature and reliable pressure control for dependable sterilization results.
Clinical overview
The NEUPS14 Small Autoclave is a compact, user-friendly sterilization system engineered for medical clinics, dental practices, and laboratory facilities requiring reliable steam sterilization. With three capacity options (12L, 18L, 24L), it accommodates varying workload demands while maintaining consistent 126°C operating temperature and precise pressure control (0.14–0.16 MPa). The robust stainless steel construction ensures durability and long service life, while energy-efficient AC110V/220V/50/60Hz operation (2KW) minimizes operational costs.
Designed for ease of use and safety, the NEUPS14 features maximum safety pressure monitoring (0.165 MPa) and straightforward controls suitable for busy clinical environments. Whether sterilizing surgical instruments, dental burs, or laboratory equipment, this autoclave delivers consistent, effective sterilization results with minimal training required.
Key features & surgeon benefits
Three Sterilizing Volumes
- 12L chamber (240×200 mm) for compact spaces
- 18L chamber (280×265 mm) for standard workflows
- 24L chamber (280×390 mm) for high-volume facilities
Reliable Sterilization
- Consistent 126°C working temperature
- Precise pressure control: 0.14–0.16 MPa
- Maximum safety pressure: 0.165 MPa for operator protection
Cost-Effective Operation
- Energy-efficient 2KW power consumption
- AC110V/220V, 50/60Hz standard electrical supply
- Compact footprint reduces facility space requirements
Robust & User-Friendly
- Durable stainless steel construction
- Intuitive controls for minimal training
- Lightweight design (10–14 kg net weight)
Technical specifications
| Indications | Medical and laboratory sterilization |
|---|---|
| Sterilizing volumes | 12L (240×200 mm), 18L (280×265 mm), 24L (280×390 mm) |
| Working pressure | 0.14–0.16 MPa |
| Working temperature | 126°C |
| Maximum safety pressure | 0.165 MPa |
| Power supply | AC110V/220V, 50/60Hz / 2KW |
| Dimensions (12L / 18L / 24L) | 360×360×520 mm / 410×410×550 mm / 420×420×650 mm |
| Weight (G.W. / N.W.) | 12/10 kg (12L), 13/11 kg (18L), 16/14 kg (24L) |
| Material | Stainless steel chamber |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Autoclave unit | Complete sterilization chamber with controls and safety features | 1 |
| Power cord | AC110V/220V, 50/60Hz connection cable | 1 |
| User manual | Operating instructions and maintenance guidelines | 1 |
