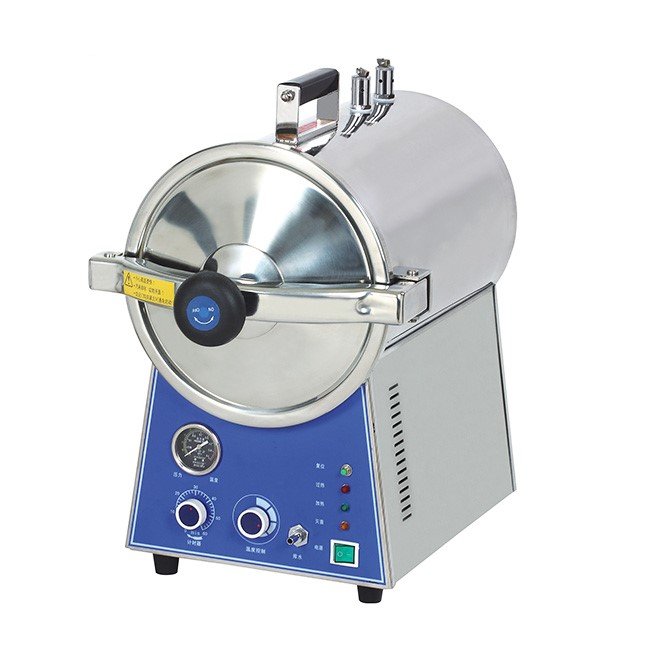

Benchtop Autoclave NEUPS19
- SKU
- NEUPS19
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Benchtop Autoclave NEUPS19
Compact, reliable benchtop sterilization for laboratory and clinical environments. The NEUPS19 delivers consistent steam sterilization with precise temperature control and a 24-liter chamber capacity, ideal for instruments, media, and laboratory supplies.
Clinical overview
The NEUPS19 benchtop autoclave is engineered for reliable steam sterilization in laboratory and clinical settings. With a 24-liter chamber and adjustable temperature range (105–134°C), it accommodates diverse sterilization requirements while maintaining precise thermal control (±1°C). The unit features three removable sterilizing plates and a programmable timer (0–60 minutes), making it suitable for instruments, laboratory media, and consumables.
Compact footprint (560×350×500 mm) and low power consumption (1.5 kW at 110V/220V, 50/60Hz) make the NEUPS19 ideal for space-constrained facilities. Working pressure of 0.22 MPa ensures efficient steam penetration while maintaining safety standards. The autoclave is designed for straightforward operation and minimal maintenance, supporting consistent sterilization cycles in high-throughput environments.
Key features & surgeon benefits
Versatile Chamber Design
- 24-liter sterilizing chamber (φ270×410 mm)
- Three removable sterilizing plates for flexible load configurations
- Accommodates instruments, media bottles, and laboratory supplies
Precise Temperature Control
- Adjustable temperature range: 105–134°C
- Programmable timer: 0–60 minutes
- Heat uniformity ±1°C for consistent sterilization results
Compact & Efficient
- Benchtop footprint: 560×350×500 mm
- Low power requirement: 1.5 kW at 110V/220V, 50/60Hz
- Reduced operational costs and minimal facility footprint
Adaptable Solutions
- OEM integration and protocol customization available
- Compatible with existing laboratory workflows
- Support for bulk orders and facility-wide deployments
Technical specifications
| Model | MSLPS19 |
|---|---|
| Sterilizing Chamber Volume | 24L (φ270×410 mm) |
| Working Pressure | 0.22 MPa |
| Working Temperature | 134°C (adjustable 105–134°C) |
| Timer Range | 0–60 minutes |
| Heat Uniformity | ±1°C |
| Power Requirement | 1.5 kW / AC 110V/220V, 50/60Hz |
| Sterilizing Plate Size | 340×200×30 mm (3 pieces) |
| Dimensions | 560×350×500 mm |
| Package Dimensions | 620×410×570 mm |
| Gross / Net Weight | 20 kg / 18 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Autoclave Unit | NEUPS19 benchtop autoclave with control panel | 1 |
| Sterilizing Plates | Removable stainless steel sterilizing plates (340×200×30 mm) | 3 |
| Power Cable | AC 110V/220V, 50/60Hz connection cable | 1 |
| User Manual | Operation and maintenance documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your sterilization requirements, request a detailed quote, or schedule a product demonstration. We provide comprehensive support for laboratory and clinical facility deployments.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

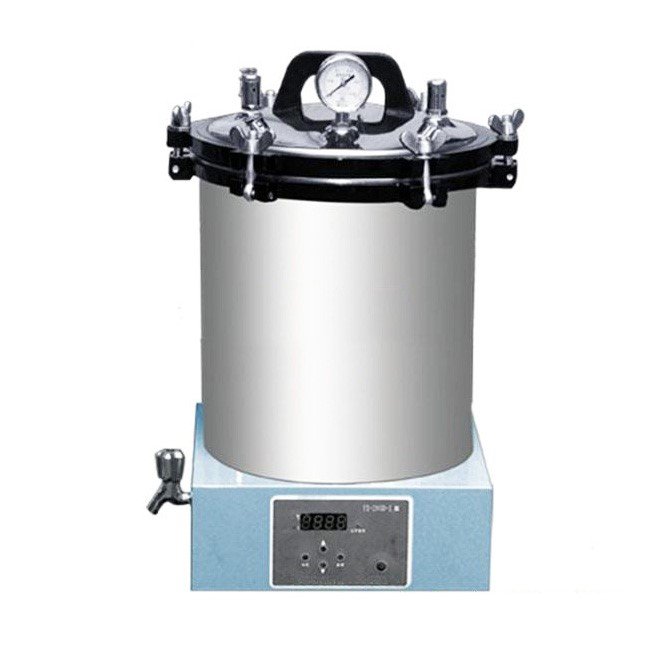

Portable Digital Sterilizer NEUPS01
- Portable Digital Sterilizer NEUPS01 with customizable volume options (18L/24L) - Operates at 220V with a power rating of 2.0KW - Constructed from high-quality SUS304 stainless steel for durability - Features overpressure auto-discharging mechanism for safety - Capable of reaching a maximum working temperature of 126°C-129°C - Dual scale numerical pressure gauge displays both temperature and pressure - User-friendly operation with security and reliability - Electric heating system for efficient sterilization - Adjustable timer range from 0 to 60 minutes for precise control - LCD screen provides clear indication of working state and status

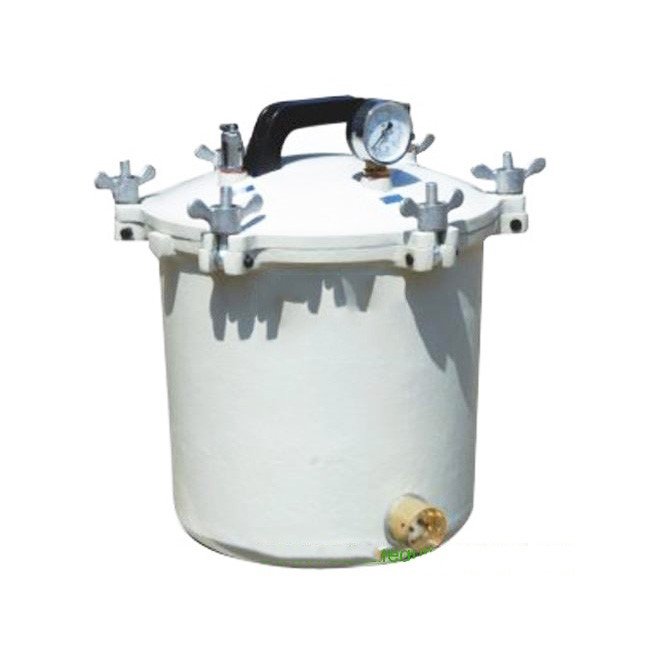

Portable Pressure Steam Sterilizer with Aluminum NEUPS04
- Portable pressure steam sterilizer designed for easy use - Durable aluminum construction for enhanced longevity - Overpressure discharge settings between 0.145-0.165Mpa - Maximum working temperature of 126℃-128℃ - Dual-dial second reading pressure gauge for accurate monitoring - Features an auto expansion seal for added safety - Dual coal and heating mode for versatile operation - Weighs only 11Kg for easy portability - Compact package size of 400×400×420mm - Ideal for medical and laboratory applications

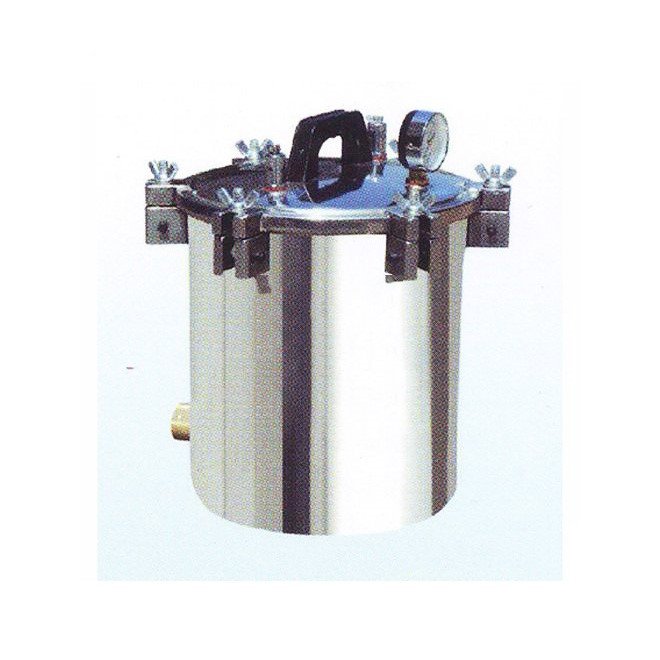

Portable Stainless Steel Autoclave NEUPS05
- Portable design for easy transportation and use - Durable stainless steel construction for longevity - Overpressure discharge range of 0.145-0.165Mpa - Achieves maximum working temperature of 126℃-128℃ - Dual-dial second reading pressure gauge for accuracy - Features an auto expansion seal for enhanced safety - Equipped with coal and heating mode options - User-friendly interface for simple operation - Weighs only 7Kg for lightweight convenience - Compact package size of 320×320×320mm for storage

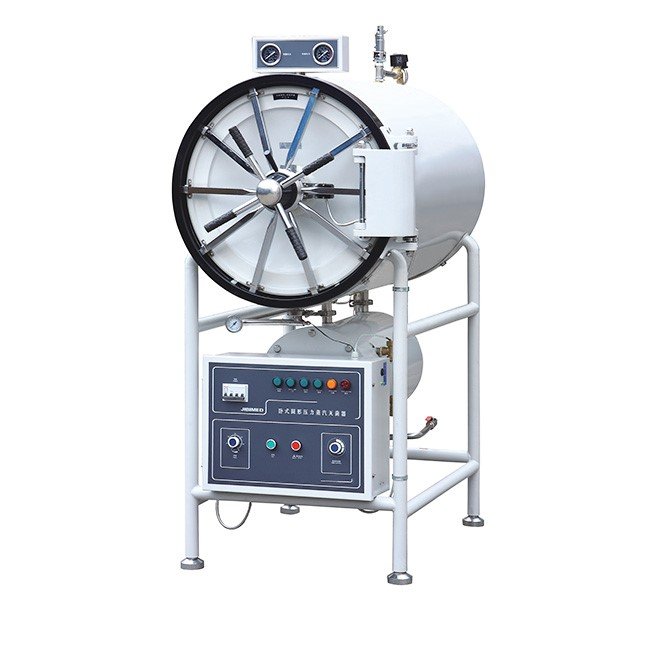

Large Autoclave Horizontal NEUPS23
- Large Autoclave Horizontal NEUPS23 available in five sizes: 150L, 200L, 280L, 400L, and 500L. - Operating pressure of 0.22MPa ensures effective sterilization. - High working temperature of 134℃ for optimal sterilization performance. - Sterilization cycle time adjustable between 0-60 minutes. - Drying time also adjustable from 0-60 minutes, ensuring thorough results. - Heat average maintained at ≤±1℃ for consistent performance. - Power options ranging from 9KW to 18KW depending on size. - Compact dimensions: available sizes from 1400×600×1300 mm to 1800×900×1820 mm. - Robust construction with weights ranging from 240 kg to 580 kg. - Ideal for medical, laboratory, and industrial sterilization applications.

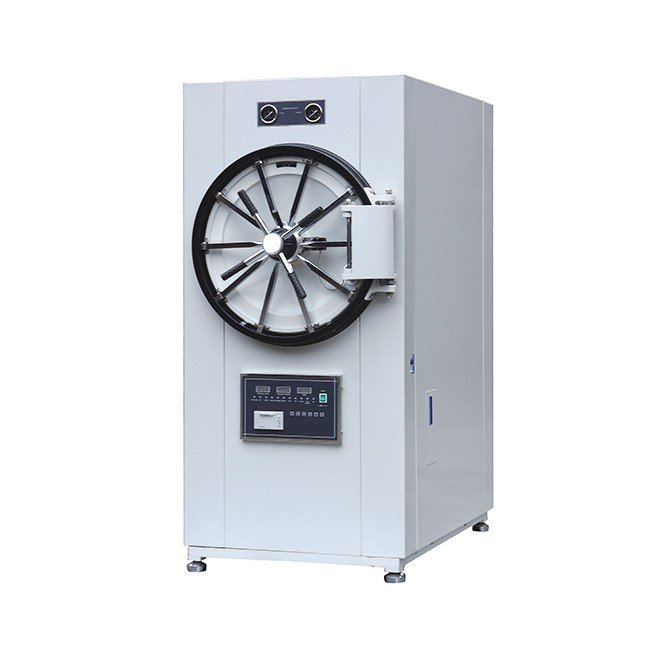

Large Rectangular Autoclave Horizontal NEUPS24
- Large rectangular autoclave with horizontal design - Available in sterilizing chamber volumes: 150L, 200L, and 280L - Maximum working pressure of 0.22 MPa - Operating temperature range from 40℃ to 134℃ - Sterilization time adjustable from 0 to 99 minutes - Drying time adjustable from 0 to 99 minutes - Maintains a heat average of ≤± 2℃ - Power options: 9KW/380V 50Hz or 12KW/380V 50Hz - Compact dimensions suitable for various laboratory settings - Net weight ranges from 340 KG to 462 KG depending on model

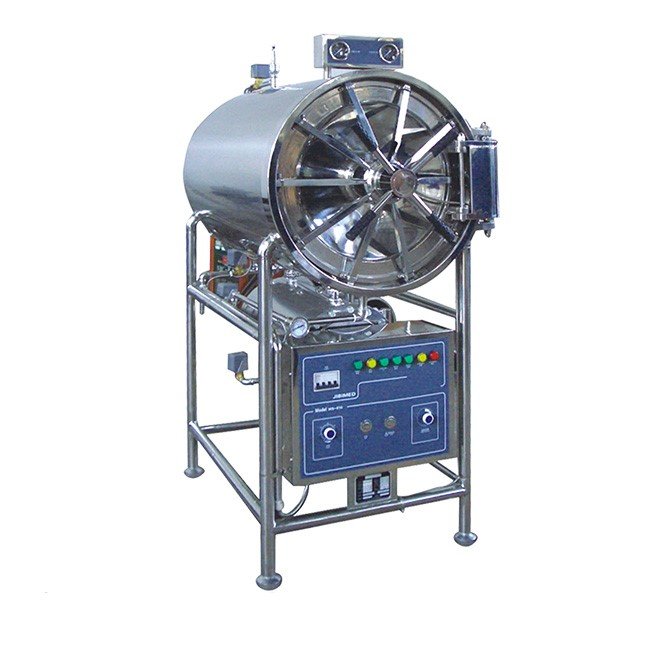

Autoclave Sterilizer NEUPS34
- High-capacity autoclave sterilizer with a variety of chamber volumes (150L, 200L, 280L, and 400L). - Operates at a maximum working pressure of 0.22MPa. - Adjustable working temperature range from 40℃ to 134℃. - Quick sterilization time adjustable from 0 to 99 minutes. - Efficient drying time also adjustable from 0 to 99 minutes. - Precision heating with a heat average accuracy of ≤±2℃. - Available power options: 9KW, 12KW, and 18KW at 380V 50Hz. - Compact design with transport dimensions ranging from 1550mm to 1680mm. - Robust weight capacity for industrial use: G.W/N.W ranges from 240KG to 530KG. - Ideal for hospitals, laboratories, and dental clinics that require reliable sterilization solutions.

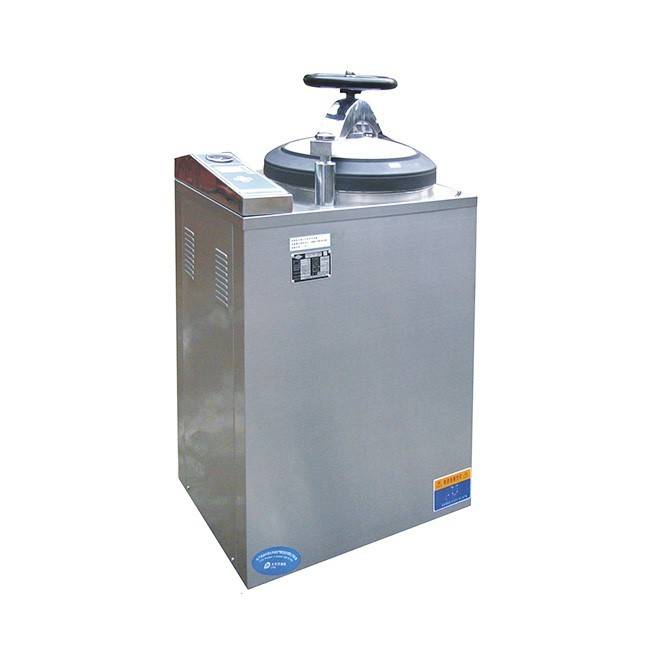

Autoclave Vertical : Steam Autoclave NEUPS06
