Autoclave Vertical : Steam Autoclave NEUPS06
- Efficient steam sterilization with the Autoclave Vertical NEUPS06
- Available in four chamber volumes: 35L, 50L, 75L, and 100L
- Operates at a working pressure of 0.22MPa for optimal performance
- Maintains a consistent working temperature of 134℃
- Features a precise heat average of ≤±1℃
- Programmable timer ranging from 0 to 99 minutes
- Adjustable temperature settings from 105 to 134℃
- Power options: 2.5KW to 4.5KW depending on model
- Compact design for easy transport with overall dimensions varying by model
- Weighs between 77kg and 140kg depending on capacity
- SKU
- NEUPS06
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Autoclave Vertical NEUPS06
Efficient steam sterilization with four chamber volume options (35L, 50L, 75L, 100L). Operates at 0.22MPa working pressure with precise temperature control at 134℃ and heat uniformity of ≤±1℃. Programmable timer and adjustable temperature settings from 105–134℃ for versatile sterilization protocols.
Clinical overview
The Autoclave Vertical NEUPS06 delivers reliable steam sterilization for medical facilities, surgical centers, and laboratory environments. With four chamber volume options ranging from 35L to 100L, this autoclave accommodates diverse sterilization loads while maintaining consistent performance across all models. The system operates at a working pressure of 0.22MPa and maintains a precise working temperature of 134℃ with exceptional heat uniformity of ≤±1℃, ensuring thorough sterilization of instruments and equipment.
Featuring a programmable timer (0–99 minutes) and adjustable temperature settings (105–134℃), the NEUPS06 provides flexibility for various sterilization protocols. Power consumption ranges from 2.5KW to 4.5KW depending on chamber size, with compact dimensions and manageable weight (77–140kg) facilitating installation and transport in clinical and laboratory settings.
Key features & surgeon benefits
Four Chamber Volumes
- 35L, 50L, 75L, and 100L options
- Scalable for small clinics to large hospitals
- Optimized chamber geometry for efficient steam penetration
Precision Temperature Control
- Consistent 134℃ working temperature
- Heat uniformity ≤±1℃ across chamber
- 0.22MPa working pressure for reliable sterilization
Programmable Operation
- Adjustable timer from 0–99 minutes
- Temperature range 105–134℃ for protocol flexibility
- Intuitive controls for rapid cycle initiation
Compact & Portable Design
- Weights range 77–140kg by model
- Dimensions optimized for facility integration
- Power options 2.5KW–4.5KW (AC110V/220V, 50/60Hz)
Technical specifications
| Indications | Medical instrument and equipment sterilization |
|---|---|
| Chamber volumes | 35L, 50L, 75L, 100L |
| Working pressure | 0.22MPa |
| Working temperature | 134℃ |
| Heat uniformity | ≤±1℃ |
| Timer range | 0–99 minutes |
| Temperature adjustment | 105–134℃ |
| Power supply | 2.5KW–4.5KW (AC110V/220V, 50/60Hz) |
| Sterilisation method | Steam sterilization |
| Warranty | 2 Year Manufacturer Warranty |
Model specifications by chamber volume
| Model | Chamber Volume | Power | Overall Dimensions | Net Weight |
|---|---|---|---|---|
| 35L | 35L (φ318×450mm) | 2.5KW / AC110V/220V, 50/60Hz | 600×410×1030mm | 77kg |
| 50L | 50L (φ340×650mm) | 3KW / AC110V/220V, 50/60Hz | 690×470×1140mm | 100kg |
| 75L | 75L (φ400×600mm) | 4.5KW / AC110V/220V, 50/60Hz | 730×510×1270mm | 118kg |
| 100L | 100L (φ440×650mm) | 4.5KW / AC110V/220V, 50/60Hz | 730×510×1270mm | 110kg |
Get in touch for pricing & availability
Contact our sales team to discuss chamber volume selection, installation requirements, and pricing for the NEUPS06 autoclave. We provide comprehensive support from specification to commissioning.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →
Portable Digital Sterilizer NEUPS01
- Portable Digital Sterilizer NEUPS01 with customizable volume options (18L/24L) - Operates at 220V with a power rating of 2.0KW - Constructed from high-quality SUS304 stainless steel for durability - Features overpressure auto-discharging mechanism for safety - Capable of reaching a maximum working temperature of 126°C-129°C - Dual scale numerical pressure gauge displays both temperature and pressure - User-friendly operation with security and reliability - Electric heating system for efficient sterilization - Adjustable timer range from 0 to 60 minutes for precise control - LCD screen provides clear indication of working state and status
Portable Pressure Steam Sterilizer with Aluminum NEUPS04
- Portable pressure steam sterilizer designed for easy use - Durable aluminum construction for enhanced longevity - Overpressure discharge settings between 0.145-0.165Mpa - Maximum working temperature of 126℃-128℃ - Dual-dial second reading pressure gauge for accurate monitoring - Features an auto expansion seal for added safety - Dual coal and heating mode for versatile operation - Weighs only 11Kg for easy portability - Compact package size of 400×400×420mm - Ideal for medical and laboratory applications
Portable Stainless Steel Autoclave NEUPS05
- Portable design for easy transportation and use - Durable stainless steel construction for longevity - Overpressure discharge range of 0.145-0.165Mpa - Achieves maximum working temperature of 126℃-128℃ - Dual-dial second reading pressure gauge for accuracy - Features an auto expansion seal for enhanced safety - Equipped with coal and heating mode options - User-friendly interface for simple operation - Weighs only 7Kg for lightweight convenience - Compact package size of 320×320×320mm for storage
Large Autoclave Horizontal NEUPS23
- Large Autoclave Horizontal NEUPS23 available in five sizes: 150L, 200L, 280L, 400L, and 500L. - Operating pressure of 0.22MPa ensures effective sterilization. - High working temperature of 134℃ for optimal sterilization performance. - Sterilization cycle time adjustable between 0-60 minutes. - Drying time also adjustable from 0-60 minutes, ensuring thorough results. - Heat average maintained at ≤±1℃ for consistent performance. - Power options ranging from 9KW to 18KW depending on size. - Compact dimensions: available sizes from 1400×600×1300 mm to 1800×900×1820 mm. - Robust construction with weights ranging from 240 kg to 580 kg. - Ideal for medical, laboratory, and industrial sterilization applications.
Large Rectangular Autoclave Horizontal NEUPS24
- Large rectangular autoclave with horizontal design - Available in sterilizing chamber volumes: 150L, 200L, and 280L - Maximum working pressure of 0.22 MPa - Operating temperature range from 40℃ to 134℃ - Sterilization time adjustable from 0 to 99 minutes - Drying time adjustable from 0 to 99 minutes - Maintains a heat average of ≤± 2℃ - Power options: 9KW/380V 50Hz or 12KW/380V 50Hz - Compact dimensions suitable for various laboratory settings - Net weight ranges from 340 KG to 462 KG depending on model
Autoclave Sterilizer NEUPS34
- High-capacity autoclave sterilizer with a variety of chamber volumes (150L, 200L, 280L, and 400L). - Operates at a maximum working pressure of 0.22MPa. - Adjustable working temperature range from 40℃ to 134℃. - Quick sterilization time adjustable from 0 to 99 minutes. - Efficient drying time also adjustable from 0 to 99 minutes. - Precision heating with a heat average accuracy of ≤±2℃. - Available power options: 9KW, 12KW, and 18KW at 380V 50Hz. - Compact design with transport dimensions ranging from 1550mm to 1680mm. - Robust weight capacity for industrial use: G.W/N.W ranges from 240KG to 530KG. - Ideal for hospitals, laboratories, and dental clinics that require reliable sterilization solutions.

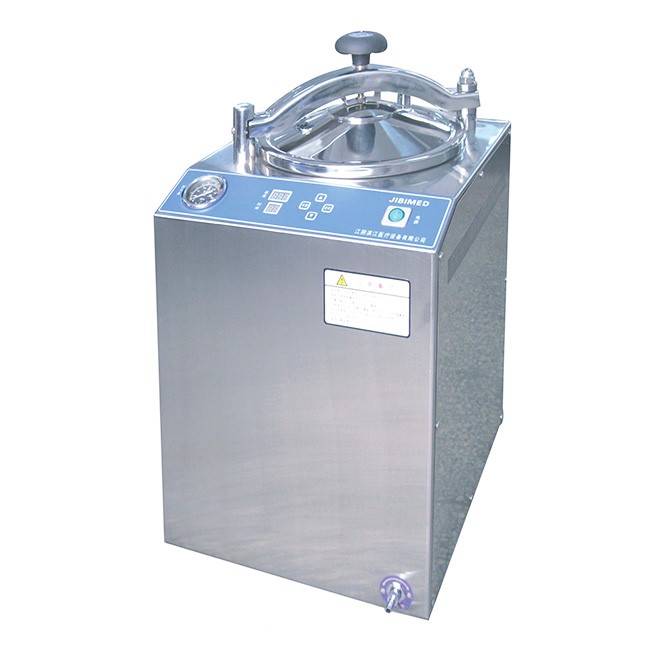

Vertical Autoclave : Steam Sterilizer Autoclave NEUPS07
