Large Autoclave Horizontal NEUPS23
- Large Autoclave Horizontal NEUPS23 available in five sizes: 150L, 200L, 280L, 400L, and 500L.
- Operating pressure of 0.22MPa ensures effective sterilization.
- High working temperature of 134℃ for optimal sterilization performance.
- Sterilization cycle time adjustable between 0-60 minutes.
- Drying time also adjustable from 0-60 minutes, ensuring thorough results.
- Heat average maintained at ≤±1℃ for consistent performance.
- Power options ranging from 9KW to 18KW depending on size.
- Compact dimensions: available sizes from 1400×600×1300 mm to 1800×900×1820 mm.
- Robust construction with weights ranging from 240 kg to 580 kg.
- Ideal for medical, laboratory, and industrial sterilization applications.
- SKU
- NEUPS23
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

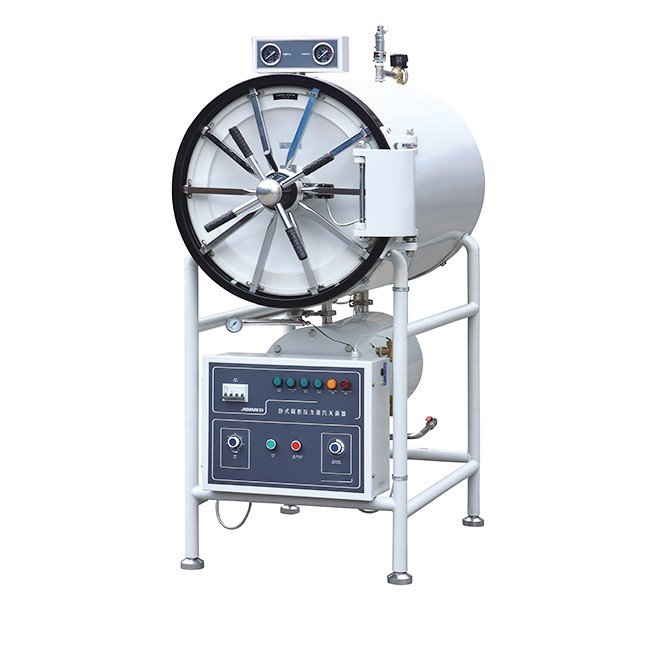

Large Autoclave Horizontal NEUPS23
The NEUPS23 is a robust, large-capacity horizontal autoclave designed for medical, laboratory, and industrial sterilization. Available in five sizes from 150L to 500L, it delivers consistent high-temperature sterilization at 134°C with adjustable cycle and drying times. Engineered for reliability and precision in demanding healthcare and research environments.
Clinical overview
The NEUPS23 large horizontal autoclave is engineered for high-volume sterilization in medical facilities, research laboratories, and industrial settings. With chamber capacities ranging from 150L to 500L, it accommodates diverse load sizes while maintaining precise temperature control and uniform steam penetration. The unit operates at 134°C with a working pressure of 0.22 MPa, ensuring effective sterilization of wrapped instruments, wrapped trays, and bulk materials.
Adjustable sterilization and drying cycles (0–60 minutes each) allow operators to optimize protocols for specific load types and material compositions. Heat uniformity maintained within ±1°C ensures consistent results across all chamber zones, critical for validating sterilization efficacy and meeting regulatory compliance in GMP and ISO 13135 environments.
Key features & surgeon benefits
Five Scalable Sizes
- 150L to 500L chamber options for flexible facility requirements
- Horizontal design optimizes space utilization and load accessibility
- Accommodates wrapped instruments, trays, and bulk materials
Programmable Sterilization
- Adjustable sterilization time: 0–60 minutes
- Adjustable drying time: 0–60 minutes
- Precise temperature control at 134°C with ±1°C uniformity
Robust Engineering
- Operating pressure: 0.22 MPa for consistent steam penetration
- Power range: 9–18 KW depending on size
- Stainless steel construction for durability and corrosion resistance
OEM & Integration Options
- Custom chamber configurations available
- Integration with facility management systems
- Volume pricing and bespoke specifications on request
Technical specifications
| Indications | Medical instruments, surgical supplies, laboratory equipment, industrial components |
|---|---|
| Sizes / range | 150L, 200L, 280L, 400L, 500L |
| Material | Stainless steel chamber and exterior |
| Sterilisation | Steam at 134°C, 0.22 MPa operating pressure |
| Packaging | Standard export packaging; custom crating available |
| Warranty | 2 Year Manufacturer Warranty |
Technical data by capacity
| Parameter | 150L | 200L | 280L | 400L | 500L |
|---|---|---|---|---|---|
| Working Pressure | 0.22 MPa | ||||
| Working Temperature | 134°C | ||||
| Sterilization Time | 0–60 min (adjustable) | ||||
| Drying Time | 0–60 min (adjustable) | ||||
| Heat Uniformity | ≤±1°C | ||||
| Power | 9 KW / 380V 50Hz | 9 KW / 380V 50Hz | 12 KW / 380V 50Hz | 18 KW / 380V 50Hz | 18 KW / 380V 50Hz |
| Dimensions (mm) | 1400×600×1300 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 |
| Transport Dimensions (mm) | 1550×750×1850 | 1560×820×1850 | 1680×920×2100 | 1800×1050×2100 | 1850×1050×2100 |
| Weight (G.W. / N.W. kg) | 320 / 240 | 350 / 260 | 465 / 365 | 530 / 430 | 580 / 470 |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Autoclave Unit | Complete horizontal chamber with control panel and safety systems | 1 |
| Power Cable | 380V 50Hz electrical connection (length as applicable) | 1 |
| Water Connection Kit | Inlet and drain hose assemblies | 1 |
| User Manual | Operation and maintenance documentation | 1 |
| Warranty Certificate | 2-year manufacturer coverage | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your sterilization requirements, obtain detailed specifications for your chosen capacity, and arrange installation support. We offer flexible delivery options and comprehensive training for your facility staff.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
