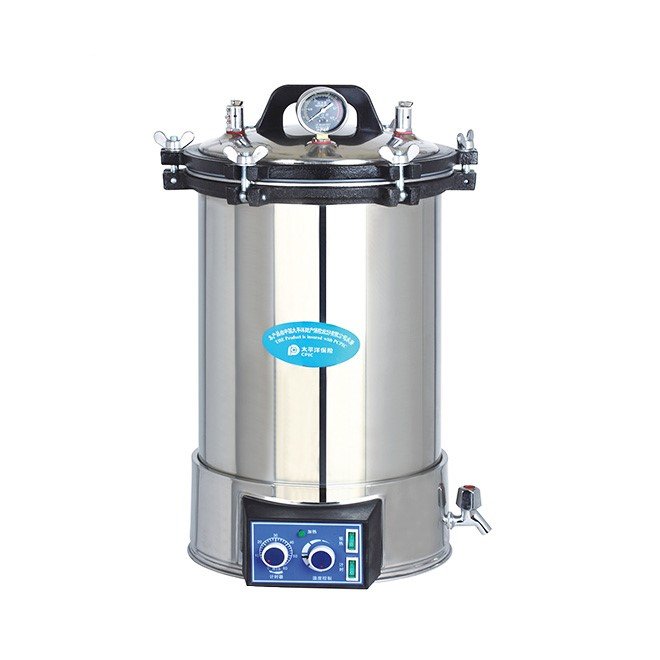

Mini Autoclave NEUPS15
- Compact Mini Autoclave NEUPS15 designed for efficient sterilization
- Two sterilizing volume options: 18L and 24L
- Adjustable working temperature range from 105℃ to 126℃
- Reliable working pressure between 0.14-0.16MPa
- Timer range extends from 0 to 60 minutes for customizable cycles
- Maximum safety pressure of 0.165Mpa for secure operation
- Heat average stays within ±1℃ for consistent results
- Power requirement: AC220V, 50Hz, 2KW
- Dimensions: Available in two sizes for versatile placement
- Lightweight design with a total weight of 18kg (18L model) or 20kg (24L model)
- SKU
- NEUPS15
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Mini Autoclave NEUPS15
Compact, efficient sterilization solution for clinical and laboratory environments. The NEUPS15 delivers consistent high-temperature steam sterilization with dual capacity options (18L and 24L) and precise temperature control from 105°C to 126°C, ensuring reliable instrument sterilization with minimal footprint.
Clinical overview
The Mini Autoclave NEUPS15 is engineered for compact, high-efficiency sterilization in clinical, surgical, and laboratory settings. With dual capacity options (18L and 24L), this unit accommodates varying instrument loads while maintaining a minimal footprint—ideal for space-constrained facilities. The autoclave operates at a working pressure of 0.14–0.16 MPa with a maximum safety pressure of 0.165 MPa, ensuring secure and reliable operation.
Precise temperature control spanning 105°C to 126°C, combined with a customizable timer range of 0–60 minutes, allows clinicians to optimize sterilization cycles for different instrument types and materials. The heat distribution remains uniform within ±1°C, guaranteeing consistent sterilization results across all items in the chamber. Powered by standard AC 110V/220V, 50/60Hz supply at 2 kW, the NEUPS15 integrates seamlessly into existing clinical infrastructure without requiring specialized electrical modifications.
Key features & surgeon benefits
Dual-Size Options
- 18L chamber (280×260 mm) for smaller instrument sets
- 24L chamber (280×390 mm) for larger surgical trays
- Flexible sizing to match facility workflow and space constraints
Precise Temperature Control
- Adjustable range from 105°C to 126°C for material-specific cycles
- Programmable timer: 0–60 minutes for customized sterilization protocols
- Heat uniformity within ±1°C ensures consistent results every cycle
Compact & Efficient
- Lightweight design: 18 kg (18L) or 20 kg (24L) for easy placement
- Low power consumption at 2 kW, standard AC 110V/220V supply
- Reduced operating costs with minimal maintenance requirements
Reliable Pressure Management
- Working pressure: 0.14–0.16 MPa with maximum safety threshold of 0.165 MPa
- Built-in safety mechanisms prevent over-pressurization
- Durable stainless steel construction for long-term reliability
Technical specifications
| Sterilizing Volume | 18L (280×260 mm) or 24L (280×390 mm) |
|---|---|
| Working Pressure | 0.14–0.16 MPa |
| Working Temperature | 126°C (standard); adjustable range 105–126°C |
| Temperature Uniformity | ±1°C heat average |
| Timer Range | 0–60 minutes |
| Maximum Safety Pressure | 0.165 MPa |
| Power Supply | AC 110V/220V, 50/60Hz, 2 kW |
| Dimensions (18L) | 410×410×520 mm |
| Dimensions (24L) | 410×410×630 mm |
| Weight (18L) | 18 kg gross / 16 kg net |
| Weight (24L) | 20 kg gross / 18 kg net |
| Material | Stainless steel chamber |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Mini Autoclave Unit | Complete sterilization chamber with control panel and safety mechanisms | 1 |
| Power Cable | AC 110V/220V, 50/60Hz rated electrical cord | 1 |
| User Manual | Operating instructions and maintenance guidelines | 1 |
| Warranty Documentation | 2-year manufacturer warranty and support registration | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss capacity requirements, delivery timelines, and customization options for your facility. We provide comprehensive support and rapid deployment for all sterilization equipment.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
