Automatic Ocular Screening Vision Screener NEUYZ07
- Automatic Ocular Screening Vision Screener model NEUYZ07
- Suitable for both binocular and monocular operation
- Automatic optometry with a measurement range of -7.50D to +7.50D
- High resolution options: 0.25D and 0.01D
- Accurate pupil distance measurement from 35 mm to 80 mm
- Quick measurement time of approximately 1 second

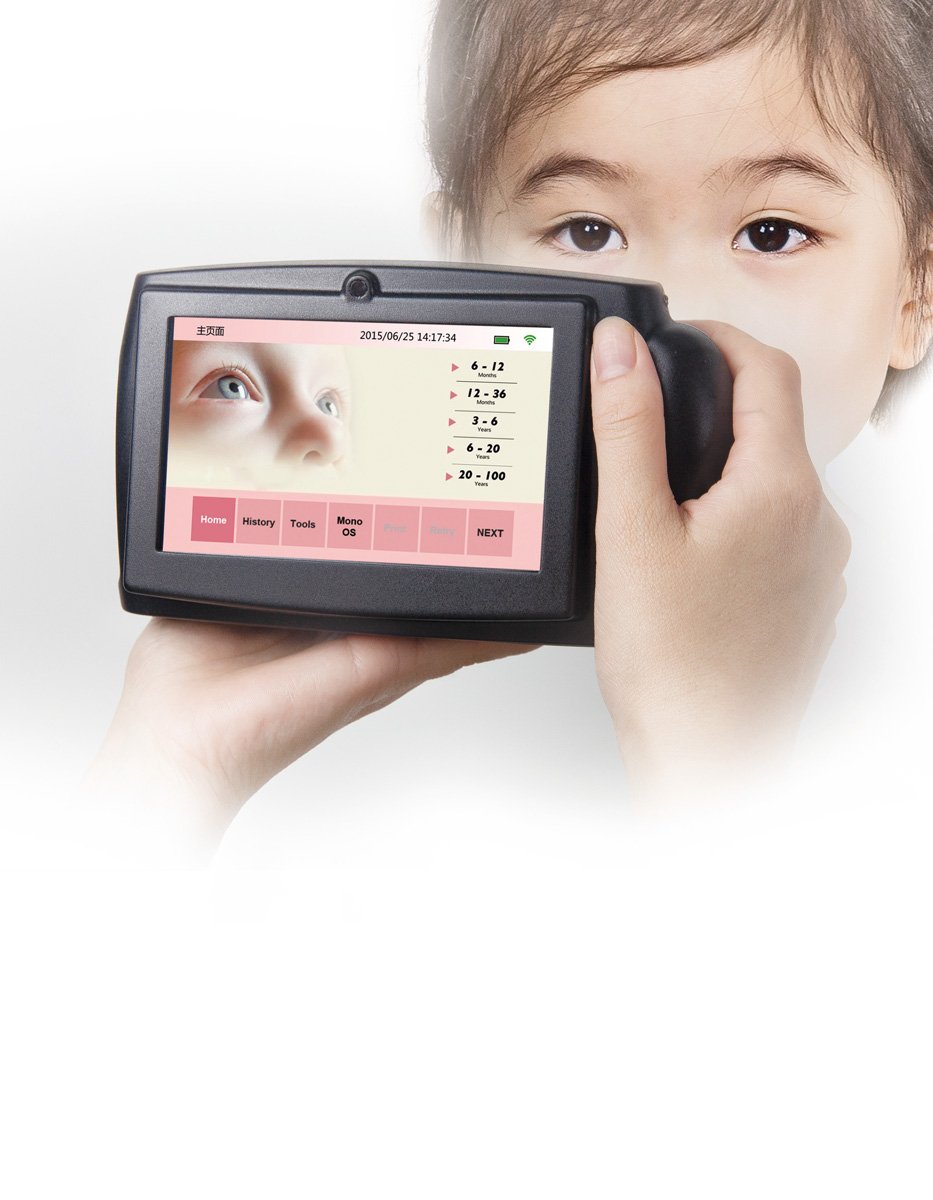

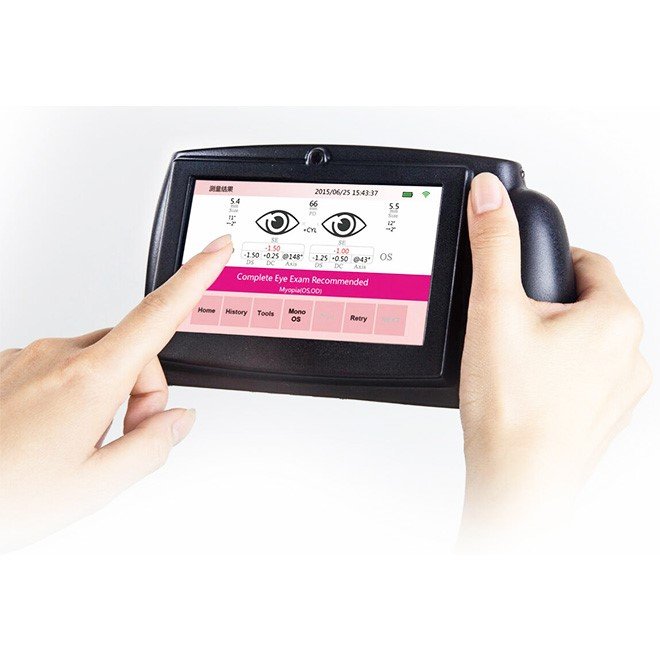

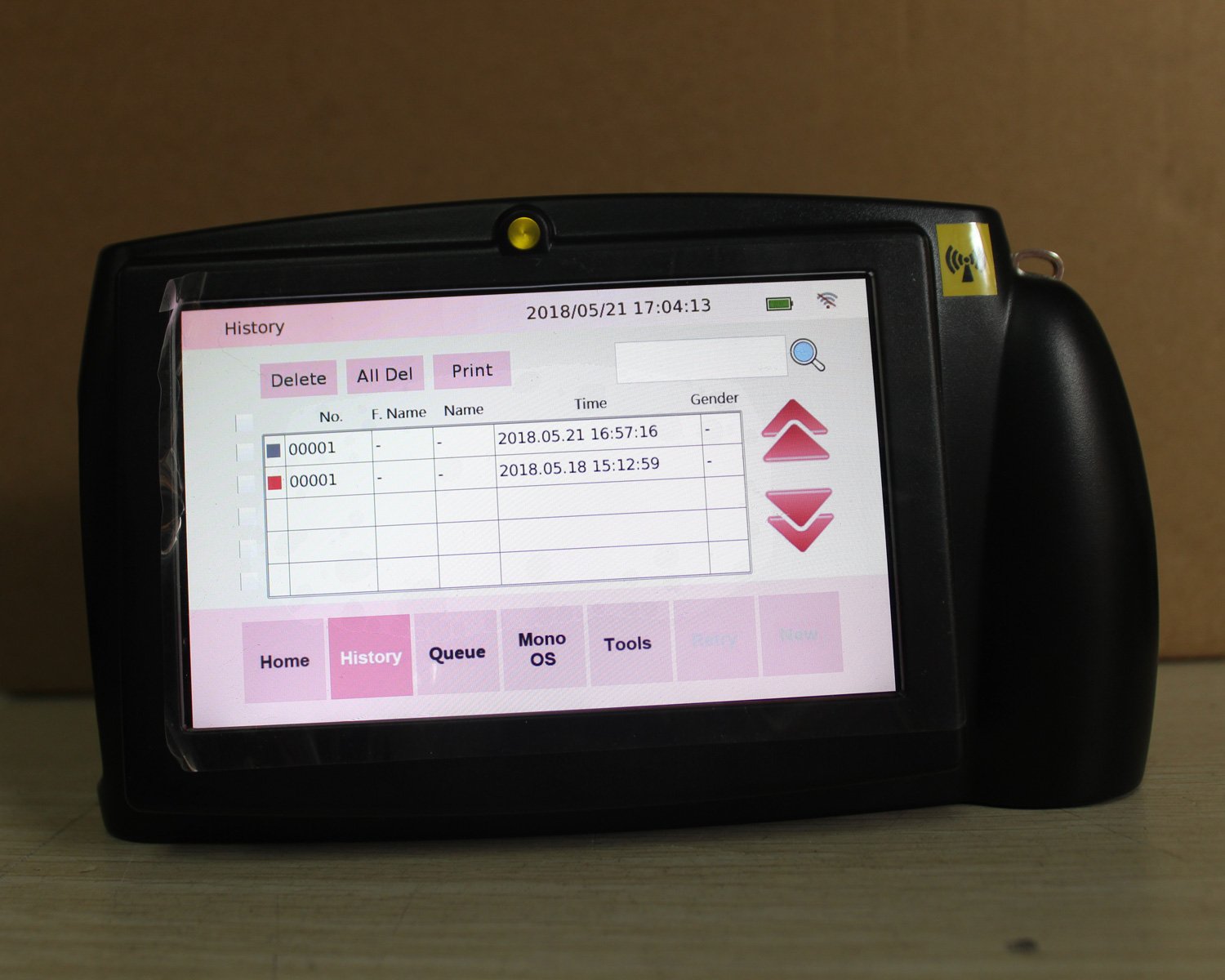

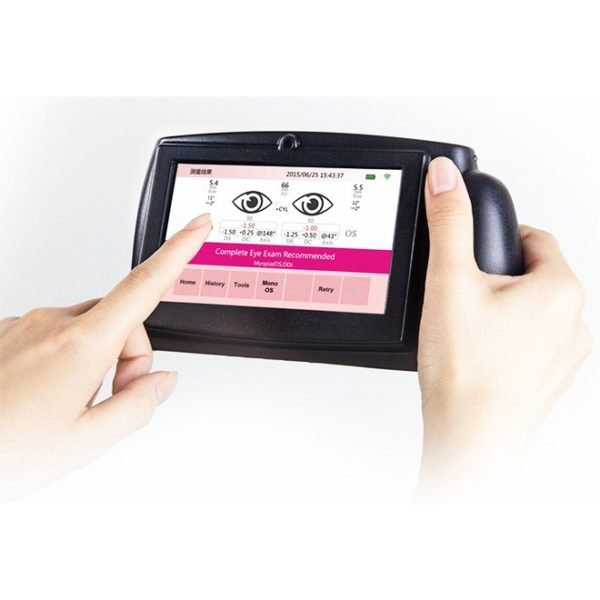

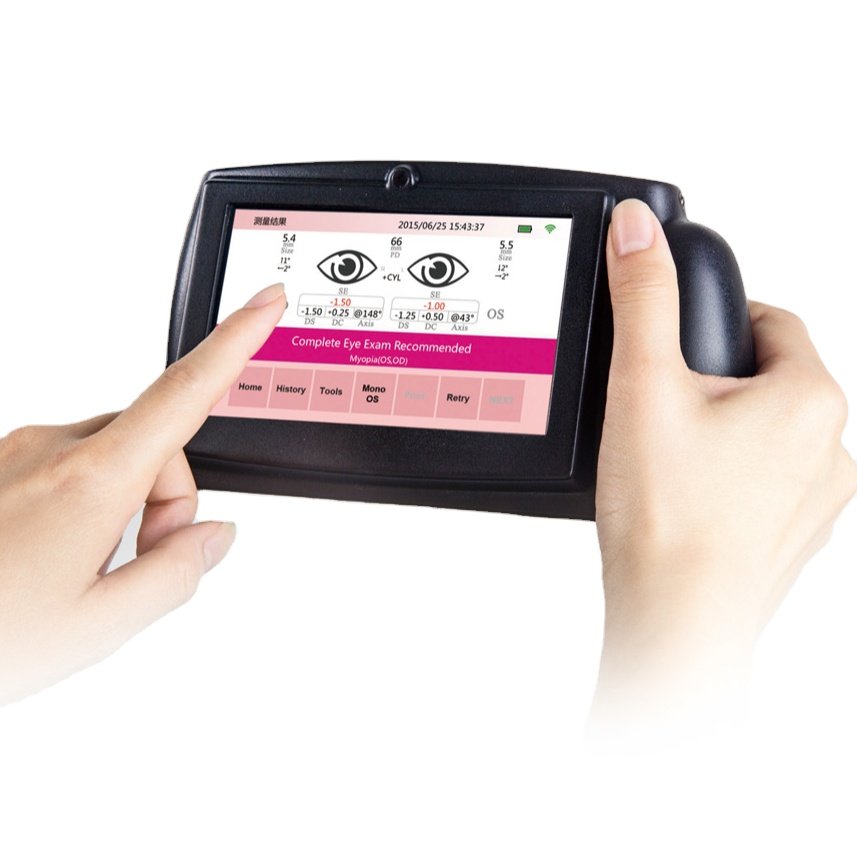

- Features a 5-inch touch screen display for easy operation
- Rechargeable lithium battery with 6 hours of usage duration
- Supports Wi-Fi and USB data interfaces

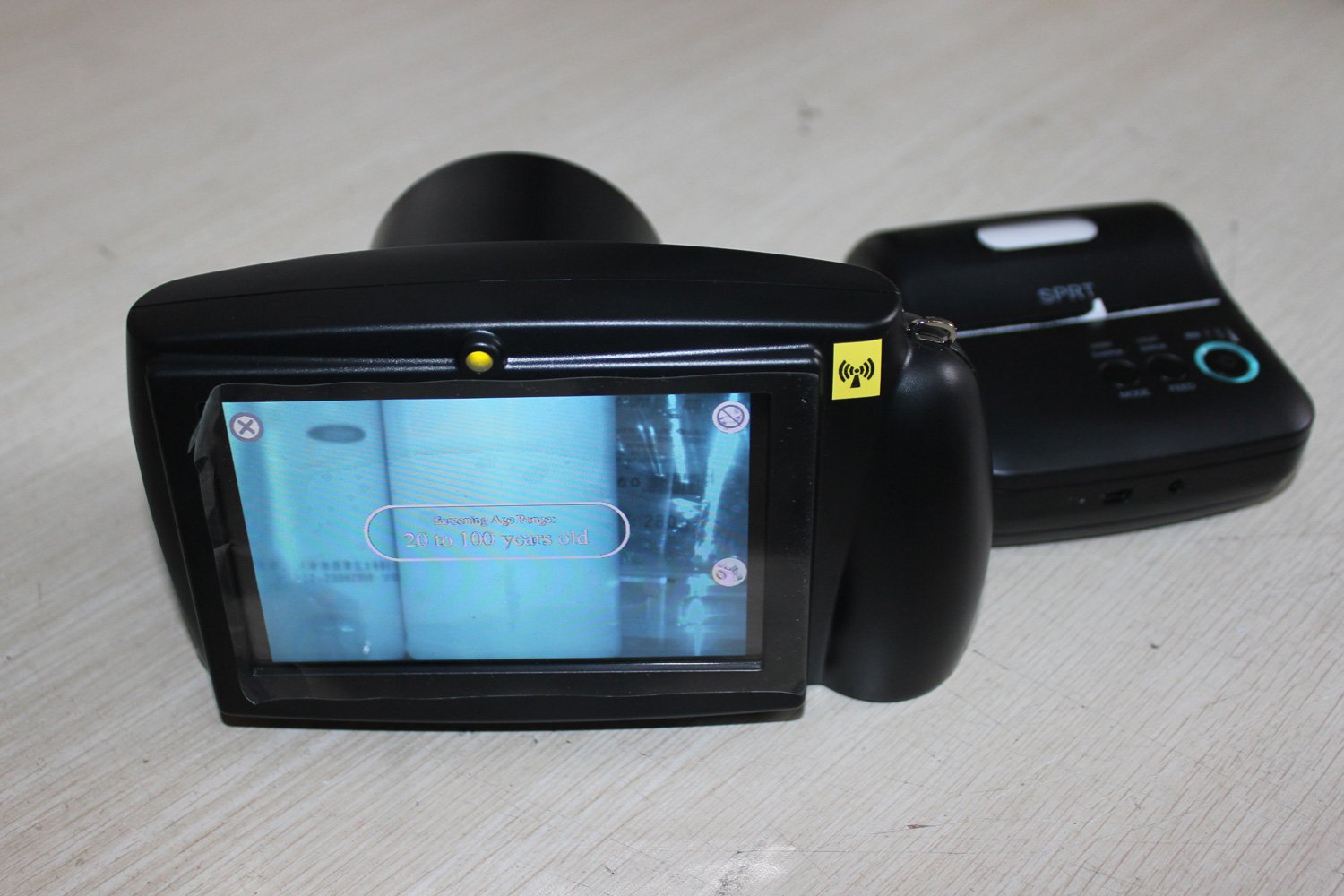

- Optional accessories include camera tripods and printers
- SKU
- NEUYZ07
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Automatic Ocular Screening Vision Screener NEUYZ07
Advanced automated refraction and pupil measurement system designed for rapid, accurate ocular screening in clinical and community settings. Delivers comprehensive binocular and monocular optometry with high-resolution measurement capabilities and intuitive touchscreen operation.
Clinical overview

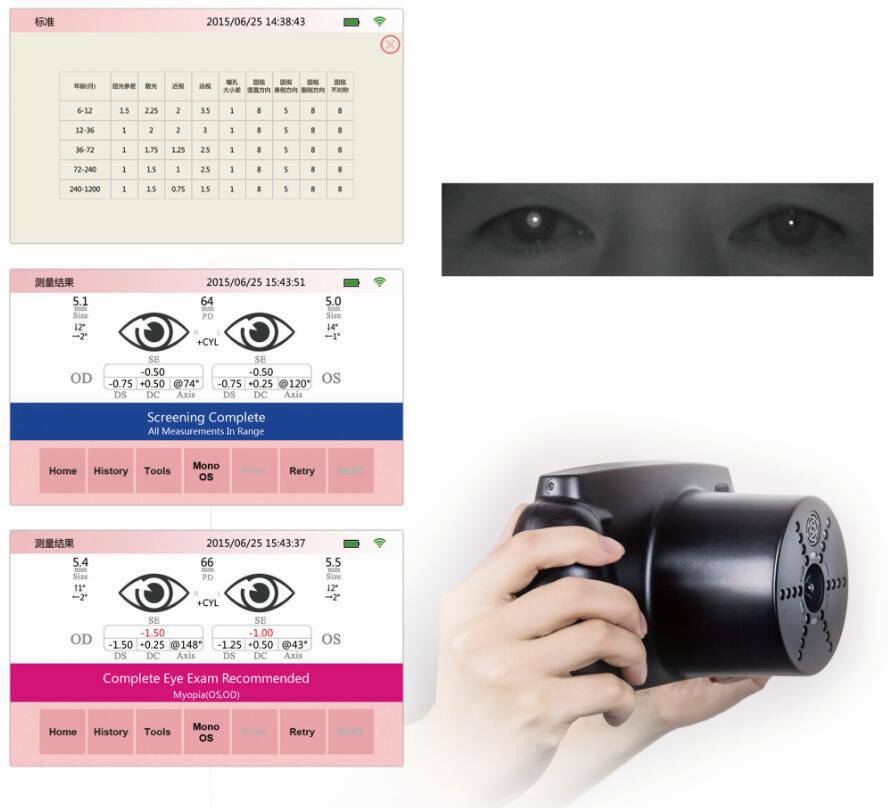

The NEUYZ07 Automatic Ocular Screening Vision Screener is a fully automated refraction system engineered for rapid, objective measurement of refractive error in diverse clinical environments. Utilising advanced optical technology, the device delivers sphere, cylinder, and axis measurements with high precision and repeatability, eliminating subjective bias inherent in manual refraction techniques. The system accommodates both binocular and monocular operation, making it suitable for comprehensive screening protocols in primary care, occupational health, community vision programmes, and specialist ophthalmology practices.

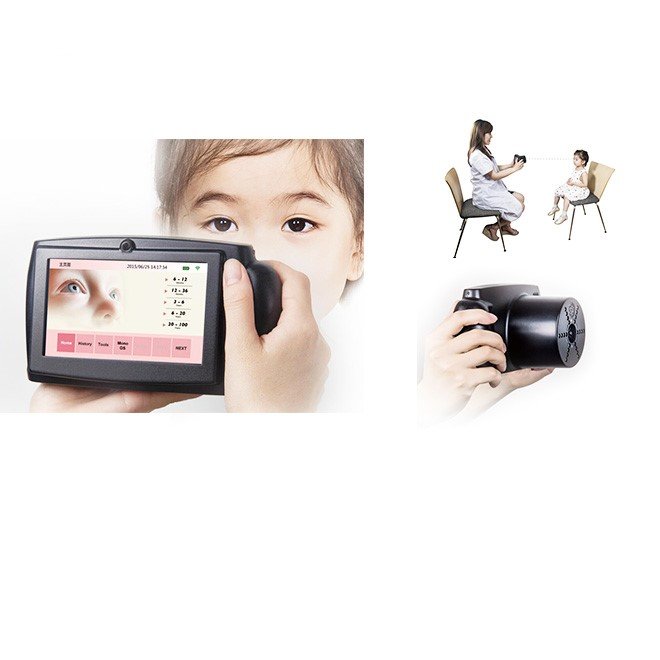

With measurement times of approximately 1 second per eye and a measurement distance of 1 metre, the NEUYZ07 enables high-throughput screening without compromising accuracy. The integrated 5-inch touchscreen display provides intuitive navigation and real-time result visualisation, whilst Wi-Fi and USB connectivity facilitate seamless data integration with electronic health records and external reporting systems. The rechargeable lithium battery provides 6 hours of continuous operation, supporting mobile screening campaigns and remote clinic deployments.
Key features & surgeon benefits
Comprehensive Refractive Coverage
- Sphere range: −7.50D to +7.50D
- Cylinder range: 0.00D to 3.00D with 1° axis resolution
- Pupil distance: 35–80 mm for accurate lens centration
Rapid, Automated Screening
- ~1 second measurement time per eye
- Automatic optometry eliminates manual refraction steps
- Binocular and monocular modes for flexible protocols
High-Resolution Precision
- Resolution options: 0.25D or 0.01D for fine-tuning
- Accuracy: ±0.50D sphere, ±0.50D cylinder, ±5° axis
- Pupil size and distance accuracy: ±0.1 mm and ±1 mm respectively
Seamless Data Integration
- Wi-Fi and USB data interfaces for EHR integration
- USB printer interface for on-site report generation
- Portable design with 6-hour rechargeable battery
Technical specifications
| Operation Mode | Binocular / Monocular |
|---|---|
| Optometry Type | Automatic |
| Sphere (DS) Range | −7.50D to +7.50D |
| Sphere Resolution | 0.25D / 0.01D |
| Sphere Accuracy | ±0.50D |
| Cylinder (DC) Range | 0.00D to 3.00D |
| Cylinder Resolution | 0.25D / 0.01D |
| Cylinder Accuracy | ±0.50D |
| Axis Range | 1° to 180° |
| Axis Resolution | 1° |
| Axis Accuracy | ±5° |
| Pupil Size Range | 4.0–9.0 mm |
| Pupil Size Resolution | 0.1 mm |
| Pupil Size Accuracy | ±0.1 mm |
| Pupil Distance Range | 35–80 mm |
| Pupil Distance Resolution | 1 mm |
| Pupil Distance Accuracy | ±1 mm |
| Gaze Range | 0° to 20° |
| Measuring Distance | 1 m ± 5 cm |
| Time per Measurement | ~1 second |
| Fixation Target | Light flash with attractive sound |
| Data Interface | Wi-Fi, USB |
| Printer Interface | USB |
| Battery | Rechargeable lithium, 6 hours duration, replaceable |

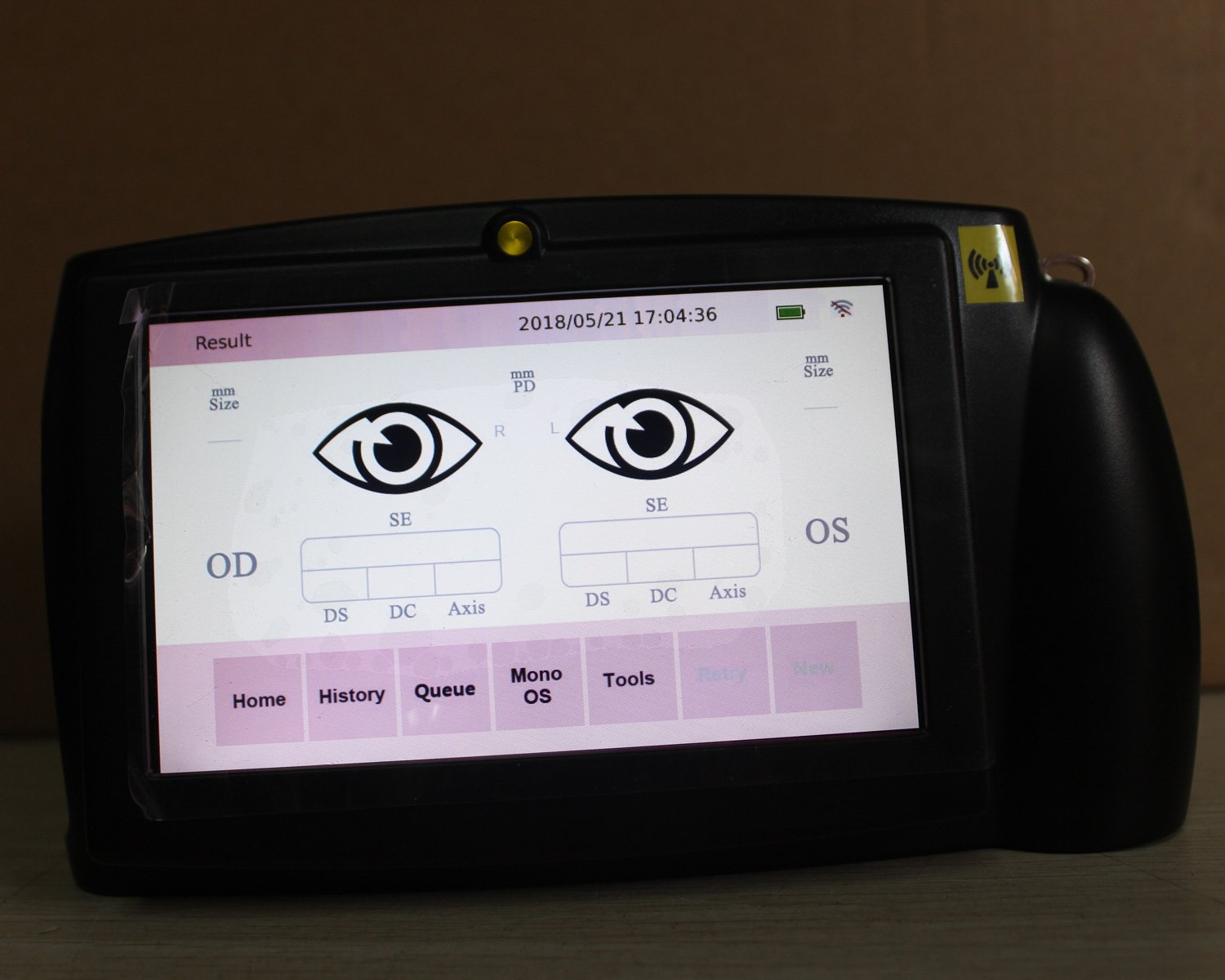

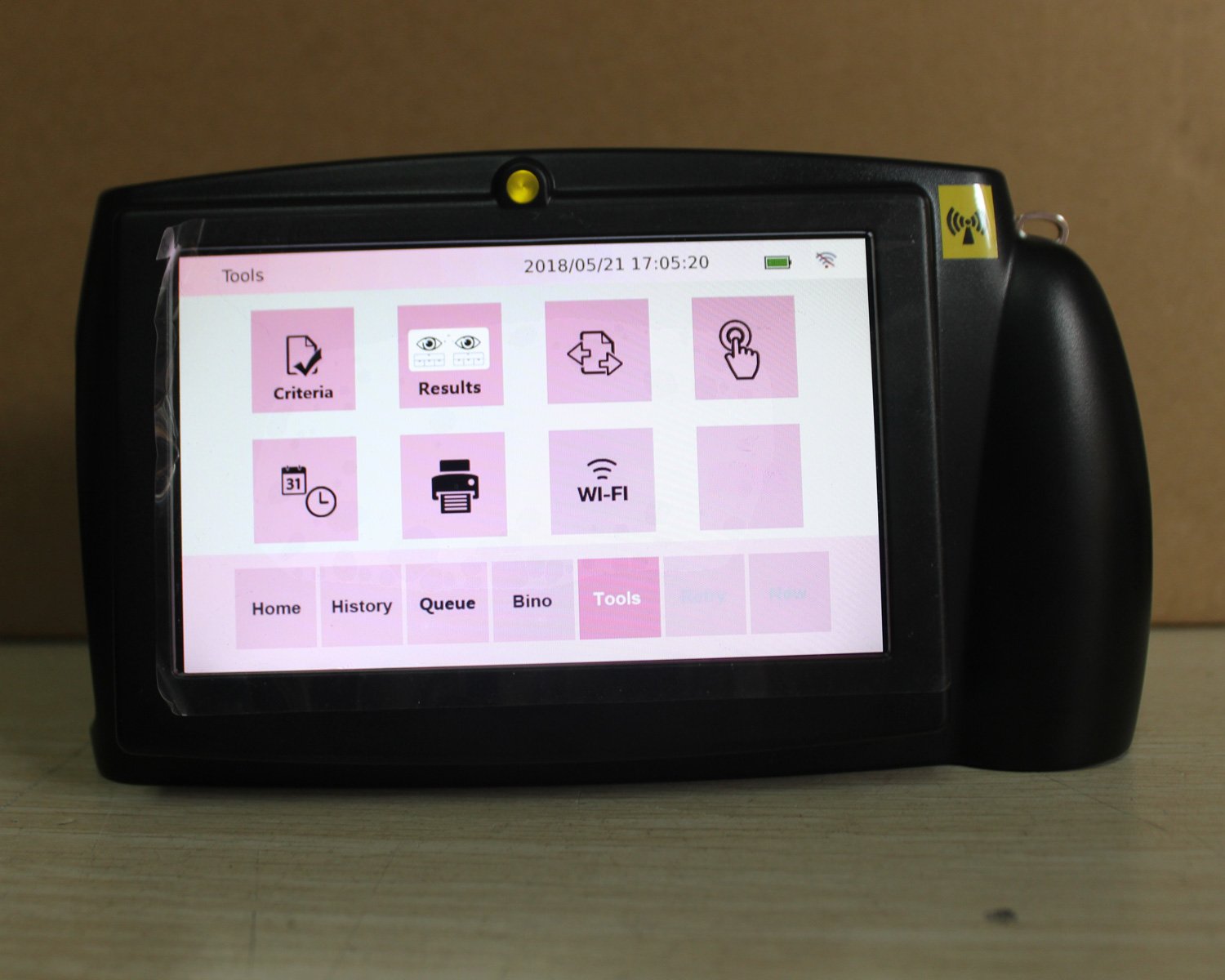

| Display | 5-inch touchscreen |
| Dimensions | 180 mm × 130 mm × 110 mm |
| Weight | 0.8 kg |
| Warranty | 2 Year Manufacturer Warranty |

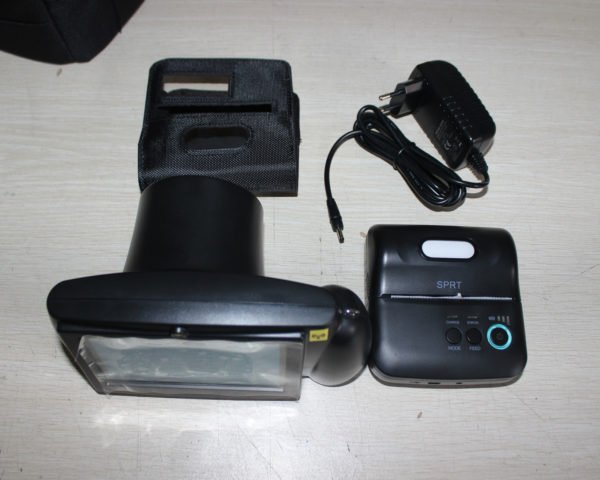

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Vision Screener Unit | NEUYZ07 automatic refraction system with 5-inch touchscreen | 1 |
| Rechargeable Lithium Battery | 6-hour duration, replaceable | 1 |
| USB Cable | Data and charging interface | 1 |
| Power Adapter | AC charging adapter | 1 |
| User Manual | Operation and maintenance guide | 1 |
| Optional: Camera Tripod | Stabilisation and positioning accessory | As applicable |
| Optional: USB Printer | Report generation and printing | As applicable |
