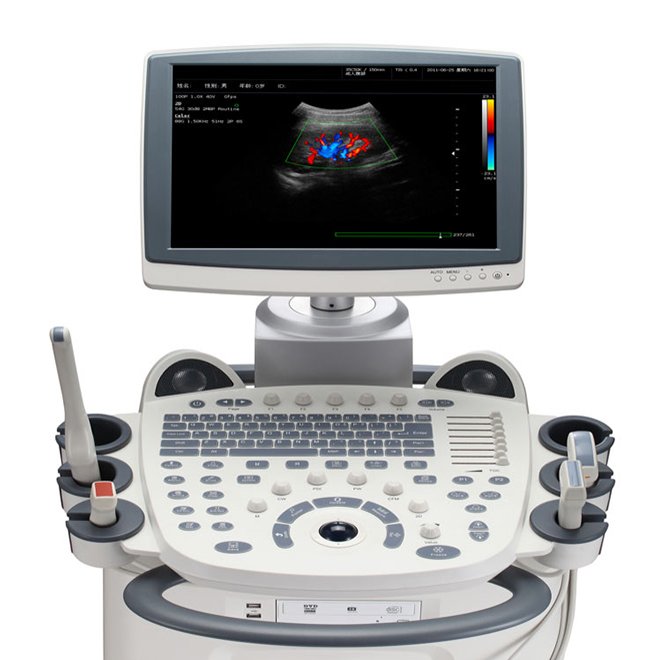

Diagnostic Color Doppler Ultrasound System NEUCU53
- Advanced Diagnostic Color Doppler Ultrasound System NEUCU53
- Features general ultrasound image scanning with measurement and calculation capabilities
- Large 15-inch LCD color monitor for enhanced viewing
- High resolution and rich grayscale for clear imaging results
- Lightweight design at 65.0 kg for easy mobility
- Continuous working time of over 8 hours
- Supports various optional probes for versatile examination types
- Adjustable contrast, brightness, and screen angle on the monitor
- Comprehensive medical records storage and printing function
- Ensures flicker-free image display for patient comfort
- SKU
- NEUCU53
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Diagnostic Color Doppler Ultrasound System NEUCU53
Advanced diagnostic color Doppler ultrasound system with general ultrasound image scanning, measurement, and calculation capabilities. Features a large 15-inch LCD color monitor with high resolution and rich grayscale imaging. Lightweight at 65.0 kg with continuous working time exceeding 8 hours, supporting versatile optional probes for comprehensive examination types.
Clinical overview
The NEUCU53 is an advanced diagnostic color Doppler ultrasound system built on proven computer and front-end ultrasound image processing technology. It combines domestic and international engineering expertise to deliver reliable, high-quality diagnostic imaging for general ultrasound applications. The system supports comprehensive scanning, measurement, calculation, display, query, body marking, annotation, printing, and medical records storage functions—enabling efficient workflow and complete documentation in clinical environments.
With its flicker-free 15-inch LCD color monitor, the NEUCU53 provides high image sensitivity, excellent resolution, and rich grayscale detail for clear diagnostic visualization. The lightweight, mobile design (65.0 kg) and extended continuous working time (>8 hours) make it ideal for busy diagnostic departments and point-of-care settings requiring portability without compromising image quality.
Key features & surgeon benefits
Superior Image Quality
- 15-inch flicker-free LCD color monitor
- High resolution with rich grayscale detail
- Adjustable contrast and brightness controls
- Angle-adjustable screen for ergonomic viewing
Comprehensive Functionality
- General ultrasound scanning with measurement and calculation
- Medical records storage and printing capabilities
- Body marking and annotation tools
- Query and display functions for efficient documentation
Mobile & Efficient
- Lightweight design at 65.0 kg
- Continuous working time exceeding 8 hours
- Compact footprint for flexible placement
- Reliable power supply (AC 100V–242V, 200 VA)
Probe Options
- Support for multiple optional probe types
- Convex, linear, transvaginal, and phased array options
- Micro convex and volume probe compatibility
- Customizable configurations for diverse applications
Technical specifications
| Indications | General ultrasound imaging, diagnostic scanning, measurement, calculation, and documentation |
|---|---|
| Display | 15-inch LCD flicker-free color monitor with adjustable contrast, brightness, and angle |
| Dimensions | Length: 990 mm; Width: 690 mm; Height: 1200 mm |
| Net Weight | 65.0 kg |
| Power Supply | Input voltage AC 100V–242V; Input power 200 VA; Frequency 50/60 Hz |
| Continuous Working Time | Greater than 8 hours |
| Control Panel | Switch, buttons, alphanumeric keys, knobs, and function keys |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | NEUCU53 Diagnostic Color Doppler Ultrasound System with 15-inch LCD display and control panel | 1 |
| Display Module | 15-inch flicker-free LCD color monitor with adjustable controls | 1 |
| Control Panel | Integrated switches, buttons, alphanumeric keys, knobs, and function keys | 1 |
| Power Cable | AC power supply cable (100V–242V compatible) | 1 |
Optional probes & accessories
| Probe Type | Model | Application |
|---|---|---|
| Convex Probe | 35C50K | General abdominal and obstetric imaging |
| Linear Probe | 75L40K | Superficial structures and vascular imaging |
| Linear Probe | 10L25J | High-frequency superficial imaging |
| Transvaginal Probe | 65C10K | Gynecological and obstetric applications |
| Micro Convex Probe | 65C15D | Pediatric and cardiac imaging |
| Micro Convex Probe | 35C20H | Focused abdominal and cardiac applications |
| Volume Probe | 35D40J | 3D/4D imaging and volumetric assessment |
| Phased Array Probe | 30P16A | Cardiac and deep tissue imaging |
Get in touch for pricing & availability
Contact our sales team to discuss system specifications, probe configurations, and pricing for the NEUCU53. We provide comprehensive support, training, and customization options to meet your diagnostic imaging requirements.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
