Digital Ultrasonic Diagnostic Imaging System Portable Color Doppler Mindray Z6
$12,770.00$16,000.00 (-20%)
– Portable Color Doppler ultrasound system
– 15-inch LCD monitor for clear imaging
– Dual transducer connectors for versatile use
– Advanced imaging technologies including iBeam and iClear
– Built-in 500GB hard disk for patient data management
– User-defined presets and auto image optimization features
– DICOM 3.0 compatible for efficient workflow integration
– Lightweight and ergonomic design for enhanced mobility
– Suitable for various clinical applications
– Ideal balance of features and affordability

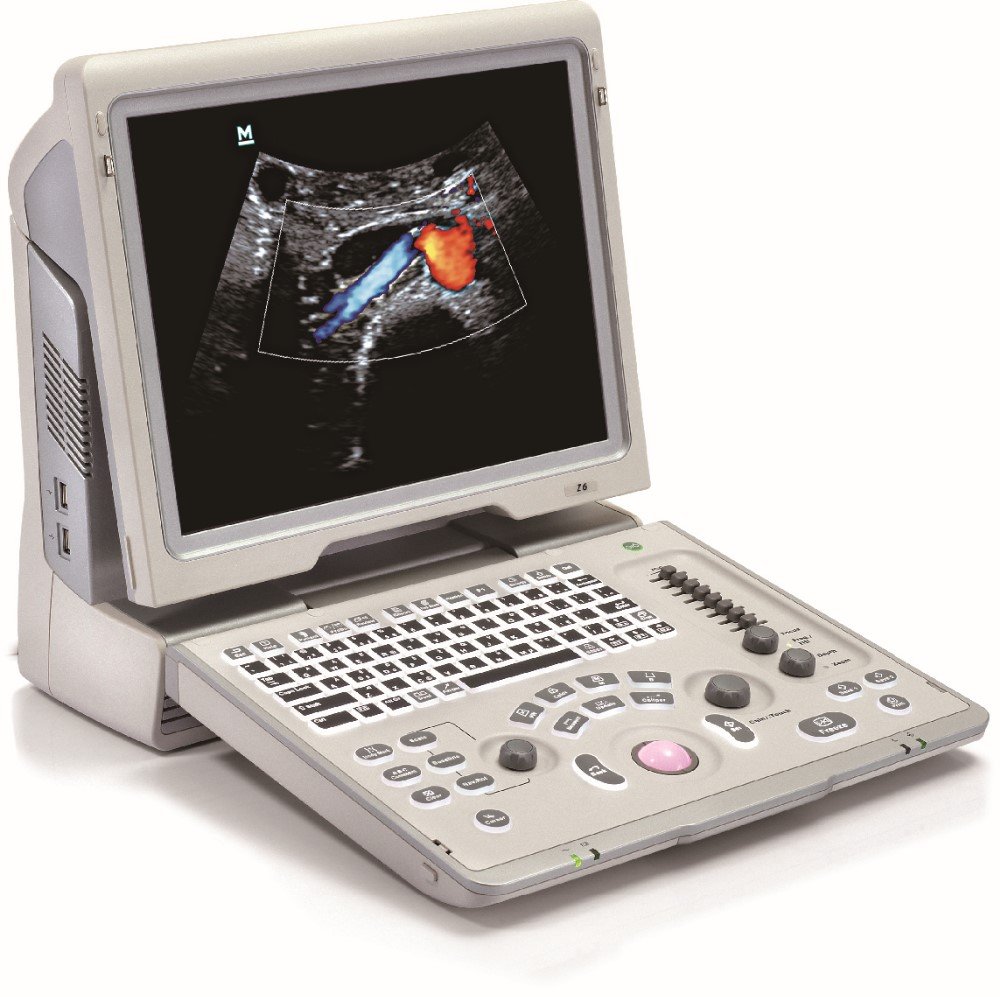

Mindray Z6 Digital Ultrasonic Diagnostic Imaging System
Portable Color Doppler Ultrasound System with Advanced Imaging Technologies
The Z6 portable Color Doppler ultrasound system delivers an ideal combination of image enhancing technologies and convenient workflow applications in a compact, budget-friendly design. With full-featured imaging capabilities including iBeam, iClear, and Phase Shift THI, the Z6 offers amazing image quality and functionality across a comprehensive range of clinical applications.
FDA Approved
Fast Delivery
Expert Support
Premium Quality
From Succeed to Exceed: The Mindray Z6 Advantage
The Mindray Z6 portable Color Doppler ultrasound system represents a well-balanced choice for healthcare facilities that require both the comprehensive features of traditional color Doppler ultrasound systems and accessibility without budget constraints. Inherited from Mindray’s remarkable design expertise and proven success in ultrasound development, the Z6 system delivers amazing image quality and functionality with a refreshing user experience designed to help you achieve more in patient care.
Designed following a careful study of the changing needs of clinical practices, the Z6 can easily meet your demands from outdoor to bedside examinations, providing not only great flexibility but also embodying the philosophy of “healthcare within reach.” With its compact design, advanced imaging technologies, and comprehensive workflow solutions, the Z6 sets a new standard for portable ultrasound systems in its class.
Comprehensive Clinical Applications
Technical Specifications
| Component | Specification |
|---|---|
| Display Monitor | 15-inch high-resolution LCD monitor with optimal viewing angles |
| Transducer Connectors | Two active transducer connectors for versatile probe options |
| Doppler Capabilities | Pulse Wave Doppler including High Pulsed Repetition Frequency (HPRF) |
| Color Flow Imaging | Color Doppler, Power Doppler, and Directional Power Doppler Flow Imaging |
| M-Mode | Color M-mode for enhanced temporal resolution |
| Storage | 500GB hard disk with iStation™ Patient Information Management System |
| Advanced Imaging | iBeam™ Spatial Compounding, iClear™ Speckle Suppression, PSH™ Phase Shift Harmonic Imaging |
| Optimization | iTouch™ Auto Image Optimization for one-button adjustment |
| Extended Imaging | Trapezoid Imaging and ExFOV (Extended Field of View) |
| TGC Controls | 8-segment Time Gain Compensation for precise image adjustment |
| Connectivity | DICOM 3.0 compatible for seamless workflow integration |
| Clinical Packages | Shared Service including Obstetrics, Pediatrics, Gynecology, Abdomen, Urology, Small Parts, Vascular, Cardiology, Nerve, and Emergency Medicine |
Key Features and Benefits
iBeam™ Spatial Compounding Imaging
Advanced spatial compounding technology that combines multiple steering angles to reduce artifacts and speckle noise, delivering improved image uniformity and enhanced border detection for more confident diagnoses.
iClear™ Speckle Suppression Imaging
Intelligent speckle reduction technology that enhances tissue contrast and improves image clarity without compromising resolution, providing clearer visualization of anatomical structures and pathological changes.
Phase Shift Harmonic Imaging (PSH™)
Advanced tissue harmonic imaging technology that significantly improves penetration and resolution, particularly beneficial for technically difficult patients and deep abdominal imaging applications.
iTouch™ Auto Image Optimization
One-button intelligent optimization automatically adjusts multiple imaging parameters simultaneously, streamlining workflow and ensuring consistent image quality across different operators and clinical applications.
iStation™ Patient Information Management
Comprehensive patient data management system with 500GB hard disk storage capacity, enabling efficient organization, retrieval, and archiving of patient examinations and clinical reports.
Trapezoid and ExFOV Imaging
Extended field of view capabilities provide wider imaging areas for better anatomical context, particularly useful for large organ visualization and musculoskeletal applications requiring extended panoramic views.
Comprehensive Doppler Analysis
Full suite of Doppler capabilities including Pulse Wave, Color Flow, Power Doppler, and Directional Power Doppler with high PRF for complete vascular assessment and hemodynamic evaluation.
DICOM 3.0 Connectivity
Complete DICOM 3.0 compatibility ensures seamless integration with hospital PACS systems, enabling efficient image transfer, storage, and retrieval within existing healthcare IT infrastructure.
Advanced TGC Control
Eight-segment Time Gain Compensation provides precise control over image brightness at different depths, allowing fine-tuning of image quality for optimal visualization across the entire scanning range.
Onboard Reporting
Integrated reporting system allows complete examination documentation directly on the system, streamlining workflow and reducing the time between examination and report completion.
Lightweight Portable Design
Compact and lightweight construction with ergonomic design ensures easy transportation between locations, making it ideal for point-of-care applications, mobile clinics, and bedside examinations.
User-Defined Presets
Powerful preset customization capabilities allow users to save preferred settings for different applications and patients, ensuring consistency and efficiency across multiple operators and clinical scenarios.
Why Choose the Mindray Z6 Ultrasound System
Full-Featured Imaging Technologies: The Z6 incorporates a comprehensive suite of advanced imaging technologies including iBeam spatial compounding, iClear speckle suppression, and Phase Shift Harmonic Imaging. These technologies work synergistically to deliver exceptional image quality across all clinical applications, providing greater diagnostic confidence and improving patient care outcomes. The combination of these advanced features ensures that you have access to premium imaging capabilities without compromise.
Optimized Workflow Solutions: With powerful user-defined presets, auto image optimization through iTouch technology, and comprehensive patient information management via iStation, the Z6 streamlines your examination workflow from start to finish. The onboard reporting system and DICOM 3.0 compatibility further enhance efficiency by enabling seamless integration with existing hospital systems and reducing the time required for documentation and image transfer.
Exceptional Value and Accessibility: The Z6 represents an ideal balance between advanced features and budget considerations, making premium ultrasound technology accessible to a wider range of healthcare facilities. Despite its competitive positioning, the Z6 delivers image quality and functionality that rivals more expensive systems, ensuring that budget constraints do not compromise diagnostic capabilities or patient care quality.
Versatile Clinical Applications: With comprehensive clinical packages covering obstetrics, gynecology, cardiology, vascular, abdominal, pediatric, small parts, nerve, and emergency medicine applications, the Z6 serves as a complete diagnostic solution for diverse clinical needs. The system’s flexibility and portability make it equally effective in hospital departments, outpatient clinics, mobile healthcare units, and emergency response situations, providing consistent performance wherever healthcare is delivered.
Frequently Asked Questions
What clinical applications is the Mindray Z6 suitable for?
The Z6 is designed for comprehensive clinical applications including obstetrics, gynecology, cardiology, abdominal imaging, vascular studies, small parts examination, pediatrics, urology, nerve imaging, and emergency medicine. The system includes specialized presets and measurement packages for each application area, making it a versatile solution for diverse diagnostic needs.
What advanced imaging technologies does the Z6 include?
The Z6 features several advanced imaging technologies: iBeam spatial compounding for artifact reduction, iClear speckle suppression for enhanced clarity, Phase Shift Harmonic Imaging (PSH) for improved penetration and resolution, iTouch auto optimization for one-button image adjustment, and both Trapezoid and ExFOV for extended field of view imaging.
How portable is the Mindray Z6 system?
The Z6 is designed with portability as a key feature, incorporating a compact footprint and lightweight construction that facilitates easy movement between locations. The ergonomic design allows the system to be readily transported for bedside examinations, mobile clinics, outdoor medical services, and point-of-care applications while maintaining full diagnostic capabilities.
What Doppler capabilities does the Z6 offer?
The Z6 provides comprehensive Doppler capabilities including Pulse Wave Doppler with High Pulsed Repetition Frequency (HPRF) for high-velocity flow detection, Color Flow Doppler for directional flow visualization, Power Doppler for enhanced flow sensitivity, Directional Power Doppler, and Color M-mode for temporal resolution of flow dynamics.
How does the Z6 integrate with existing hospital systems?
The Z6 features complete DICOM 3.0 compatibility, enabling seamless integration with hospital PACS (Picture Archiving and Communication System) and healthcare IT infrastructure. This allows efficient image transfer, storage, and retrieval within existing networks, supporting coordinated care and streamlined workflow across departments.
What storage capacity does the Z6 provide?
The Z6 includes a 500GB hard disk with the iStation Patient Information Management system, providing substantial onboard storage for patient examinations, images, and reports. This capacity supports extended periods of operation without requiring immediate image transfer while maintaining quick access to patient history and previous examinations.
Can the Z6 accommodate multiple transducers simultaneously?
Yes, the Z6 features two active transducer connectors, allowing you to keep two probes connected simultaneously. This configuration significantly improves workflow efficiency by eliminating the need to switch connectors between different examination types, reducing setup time and enabling faster transitions between clinical applications.
What support and training are available for the Mindray Z6?
Comprehensive support and training programs are available for the Z6, including initial operator training, application-specific education, ongoing technical support, and system optimization consultation. Neuvar Inc. provides expert assistance to ensure your team maximizes the system’s capabilities and maintains optimal performance throughout its operational life.
Contact Neuvar Inc. for More Information
