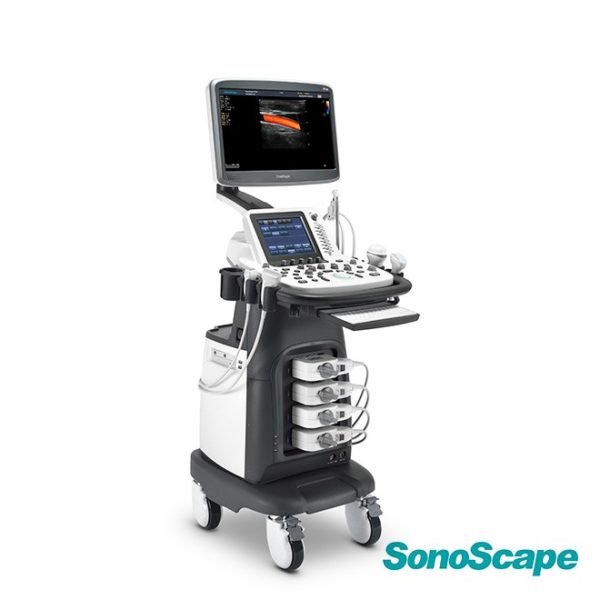

Doppler Carotidian Ultrasound SonoScape S22
- High-resolution 18.5" LED color monitor for clear imaging
- User-friendly 8" touch screen interface
- Versatile imaging modes: B, 2B, 4B, M, THI, CFM, and more
- Advanced 3D Imaging capabilities with Freehand technology
- Equipped with multiple transducer connectors for flexibility
- Includes ECG module for comprehensive diagnostics
- Enhanced DICOM 3.0 support for efficient data management
- Offers pulse inversion harmonic and lateral gain compensation
- Configurable with standard or upgraded 1T hard disk options
- Ideal for a range of applications including obstetrics and gynecology
- SKU
- S22
- Brand
- SonoScape
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Doppler Carotidian Ultrasound SonoScape S22
A versatile, high-resolution ultrasound platform delivering advanced imaging capabilities with intuitive workflow. The S22 combines a large 18.5" LED color monitor with an 8" touch screen interface, supporting comprehensive imaging modes and 3D Freehand technology for obstetrics, gynecology, abdominal, and vascular applications.
Clinical overview
The SonoScape S22 is a comprehensive ultrasound diagnostic system engineered for high-definition imaging across multiple clinical specialties. Its 18.5" high-resolution LED color monitor delivers exceptional image clarity, while the intuitive 8" touch screen interface ensures rapid workflow integration in busy clinical environments. The system supports a full spectrum of imaging modes—B, 2B, 4B, M, THI, CFM, PDI, DirPDI, PW, and HPRF—enabling clinicians to perform detailed vascular, obstetric, gynecologic, and abdominal assessments with confidence.
Advanced features including Freehand 3D imaging, pulse inversion harmonic imaging, lateral gain compensation, and μ-Scan speckle reduction technology provide superior diagnostic accuracy. The integrated ECG module supports comprehensive cardiac correlation, while DICOM 3.0 compliance ensures seamless integration with hospital information systems and enables efficient image archiving and retrieval.
Key features & surgeon benefits
Superior visualization
- 18.5" high-resolution LED color monitor for exceptional image clarity
- 8" responsive touch screen for intuitive navigation and control
- Multi-beam technology for enhanced spatial resolution
Comprehensive modalities
- 10+ imaging modes including B, 2B, 4B, M, THI, CFM, PDI, and HPRF
- Freehand 3D imaging with advanced reconstruction algorithms
- Compound imaging and trapezoidal imaging for extended field-of-view
Advanced optimization
- Pulse inversion harmonic imaging for enhanced contrast resolution
- Lateral gain compensation (LGC) for uniform image quality
- μ-Scan 2D speckle reduction for cleaner, artifact-free images
Flexible configuration
- Four transducer connectors plus dedicated CW connector for maximum flexibility
- Standard 500GB or upgraded 1T hard disk options
- DVD-RW and USB 2.0 for portable data management
Technical specifications
| Indications | Obstetrics, gynecology, abdominal, vascular, and carotid imaging |
|---|---|
| Display | 18.5" high-resolution LED color monitor with 8" touch screen interface |
| Transducer connectors | Four standard connectors + one CW connector |
| Storage options | 500GB standard or 1TB upgraded hard disk; DVD-RW and USB 2.0 |
| Imaging modes | B, 2B, 4B, M, THI, CFM, PDI, DirPDI, PW, HPRF |
| Advanced features | Freehand 3D, pulse inversion harmonic, LGC, compound imaging, μ-Scan, multi-beam, IMT measurement, VIS-Needle, M-Tuning |
| DICOM compliance | DICOM 3.0 with Store, C-Store, Worklist, MPPS, Print, Q/R |
| ECG module | Integrated for cardiac correlation and comprehensive diagnostics |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main unit | S22 ultrasound system console | 1 |
| Display monitor | 18.5" high-resolution LED color monitor | 1 |
| Touch screen | 8" responsive touch screen interface | 1 |
| Transducer connectors | Four standard connectors | 4 |
| CW connector | Continuous wave transducer connector | 1 |
| Storage | Hard disk 500GB (or 1TB upgrade) | 1 |
| Optical drive | DVD-RW | 1 |
| USB interface | USB 2.0 | 1 |
| ECG module | Integrated ECG for cardiac correlation | 1 |
| Convex transducer | 192 elements C353 (2–6.8 MHz, R55mm) for abdominal, obstetrics, gynecology | 1 |
| Endocavity transducer | 192 elements 6V3 (3–15 MHz, R10mm) for gynecology, obstetrics, urology | 1 |
