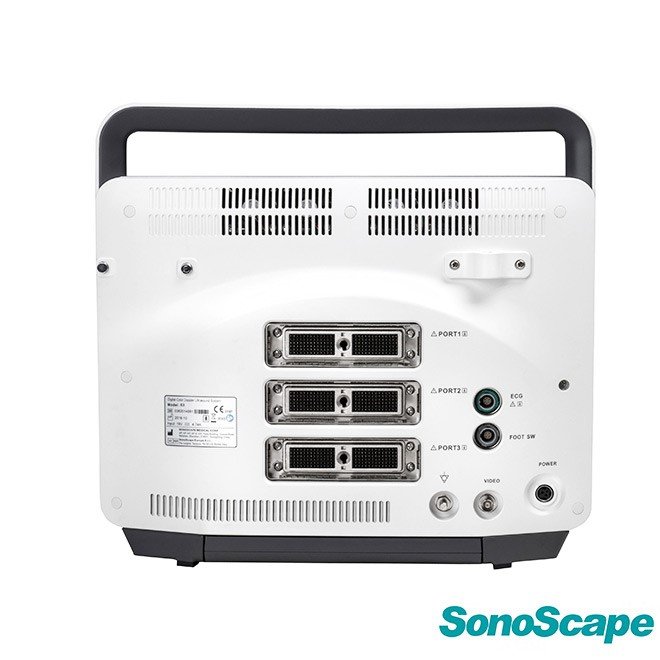

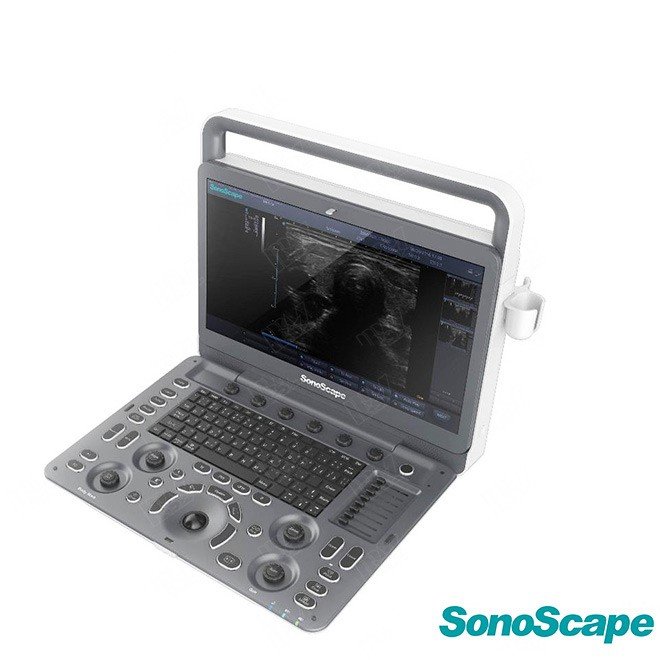

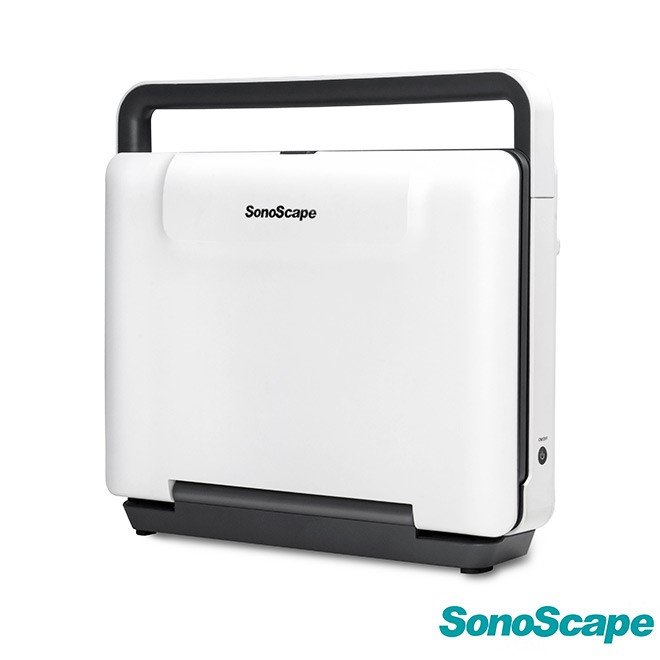

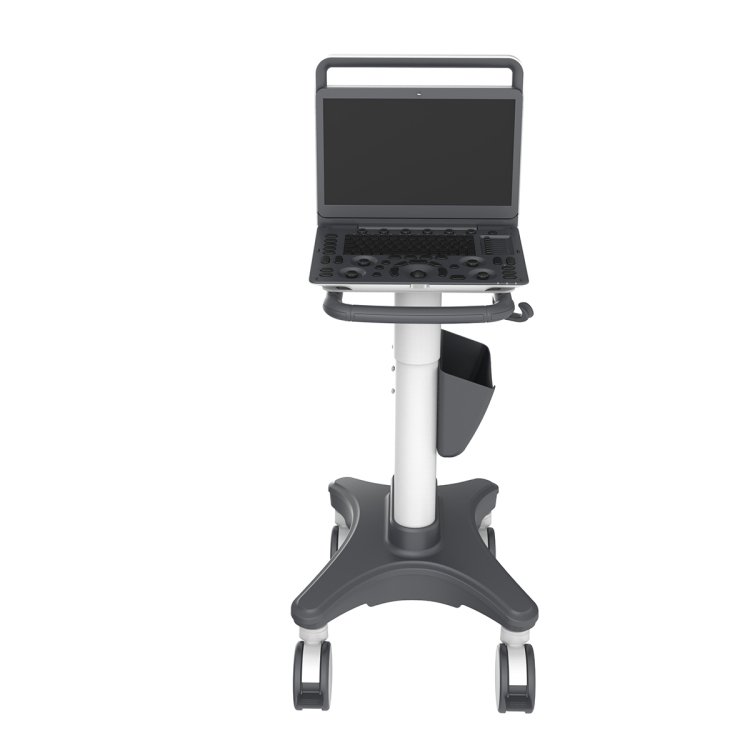

Doppler Ultrasound Scan Sonoscape E2
- Advanced Doppler ultrasound technology for high-quality imaging
- Full Digital Super-wide Band Beam Former for enhanced performance
- Compact design with dimensions of 378mm x 352mm x 114mm
- Lightweight at approximately 6.5 kg (including battery)
- 15.6" high-resolution color LCD monitor with LED backlight
- User-friendly operation with minimal training required
- Equipped with dual probe ports for versatile applications
- Supports software updates for continuous functionality enhancement
- Features advanced imaging techniques like tissue harmonic imaging
- Adjustable color Doppler settings for customized diagnostics
- SKU
- E2
- Brand
- SonoScape
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Doppler Ultrasound Scan Sonoscape E2
Advanced Doppler ultrasound system delivering high-quality imaging with full digital beam forming technology. Compact, lightweight design with dual probe ports and intuitive operation for versatile clinical applications across diagnostic imaging.
Clinical overview
The Sonoscape E2 is a portable, high-performance Doppler ultrasound system engineered for diagnostic imaging across multiple clinical specialties. Built on advanced ultrasonic Doppler technologies including Full Digital Super-wide Band Beam Former, Digital Dynamic Focusing, and Multi-Beam Parallel Processing, the E2 delivers superior image quality with minimal operator training. The system's Linux-based architecture ensures stability, flexibility, and seamless software updates to maintain technological advancement and clinical value.
Designed for clinicians who demand precision without complexity, the E2 combines compact dimensions (378 × 352 × 114 mm) with robust imaging capabilities. The 15.6" high-resolution color LCD monitor with LED backlight and rotatable design supports diverse clinical workflows. Dual probe ports enable rapid reconfiguration for vascular, cardiac, abdominal, and soft tissue applications, making the E2 an ideal choice for multi-specialty diagnostic centres and mobile imaging services.
Key features & surgeon benefits
Advanced Doppler Technology
- Full Digital Super-wide Band Beam Former for enhanced resolution
- Tissue harmonic imaging and invert harmonic modes
- Spatial compound imaging for improved diagnostic confidence
- Wide Band Dynamic Range for superior contrast discrimination
Intuitive Operation
- Minimal training required for clinical staff
- Dual probe ports for rapid application switching
- Rotatable 15.6" monitor for ergonomic positioning
- Graphic diagnosis icons for streamlined workflow
Compact & Lightweight Design
- Dimensions: 378 × 352 × 114 mm
- Weight: 6.5 kg (including battery)
- Integrated battery for mobile and point-of-care imaging
- Ideal for multi-location and emergency department deployment
Flexible & Upgradeable
- Software updates via Linux-based system architecture
- Adjustable color Doppler settings for diagnostic precision
- Configurable probe ports and transducer compatibility
- OEM customisation available for specialised applications
Technical specifications
| Indications | Diagnostic ultrasound imaging, vascular assessment, cardiac evaluation, abdominal and soft tissue imaging |
|---|---|
| System Dimensions | 378 mm (W) × 352 mm (H) × 114 mm (D) |
| Weight | 6.5 kg maximum (including battery); 6.1 kg (without battery) |
| Display | 15.6" widescreen high-resolution color LCD, LED backlight, anti-flickering, vertically and horizontally rotatable |
| Probe Ports | Two ports (one port configurable by order) |
| Operating System | Linux-based architecture |
| Sterilisation | System: non-sterile; probes subject to standard ultrasound sterilisation protocols |
| Warranty | 2 Year Manufacturer Warranty |
Advanced imaging technologies
| Technology | Description |
|---|---|
| Full Digital Super-wide Band Beam Former | Enhanced beam forming for superior image quality and penetration |
| Digital Dynamic Focusing | Adaptive focus throughout imaging depth for consistent resolution |
| Variable Aperture & Dynamic Tracing | Optimised aperture settings for improved signal-to-noise ratio |
| Multi-Beam Parallel Processing | Simultaneous processing of multiple beam lines for faster frame rates |
| Tissue Harmonic Imaging | Enhanced contrast and reduced artefacts in challenging anatomy |
| Invert Harmonic Imaging | Alternative harmonic mode for specialised diagnostic applications |
| Spatial Compound Imaging | Multiple-angle acquisition for improved diagnostic confidence |
| Color Doppler | Gain (0–255), frame rate 106 fps (probe dependent), adjustable ROI, auto focus, flow inversion, power 1–100%, frequency range (3 steps), wall filter (Min/Low/Med/High/Max), PRF 0.5–10 kHz |
| Color Doppler Settings | Line density (Min/Low/Med/High), color/direction energy (7 levels), baseline adjustment (9 levels), persistence (Off/Low/Med/High/Max), B reject (0–255) |
Standard system composition
| Component | Description | Qty |
|---|---|---|
| Main Console Unit | Portable ultrasound system with integrated battery and Linux OS | 1 |
| 15.6" LCD Monitor | High-resolution color display with LED backlight and rotation capability | 1 |
| Probe Ports | Dual connectors for transducer attachment | 2 |
| Power Supply & Battery | Integrated rechargeable battery and AC adapter | 1 |
| User Documentation | Operating manual and quick-start guide | 1 |
