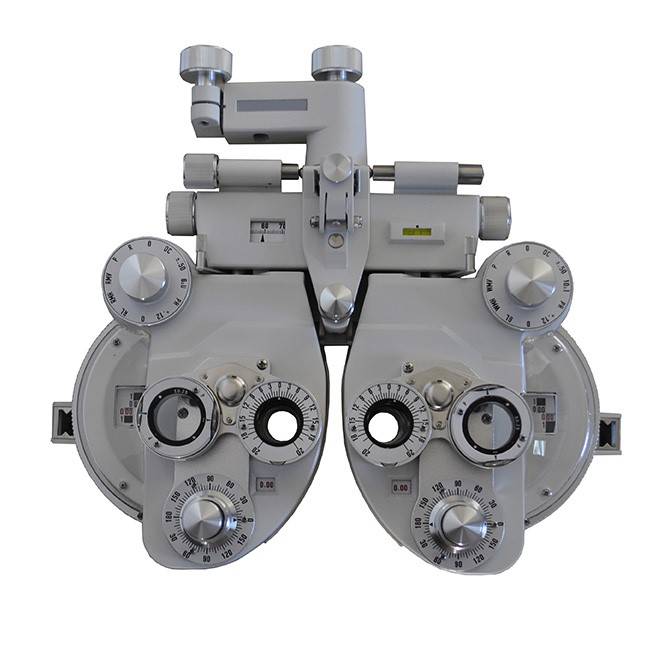

Eye Test Phoropter NEUYG100
- Eye Test Phoropter Model: NEUYG100
- Sphere power range: +16.75D to -19.00D
- Cylinder power range: 0 to -6.00D
- Minimum reading: 0.25D or 0.12D
- Astigmatic axis scale: 0 to 180° in 5° increments
- Cross cylinder: ±0.25D, reversible type
- Rotary prism: 0 to 20∆D in 1∆D steps
- Suitable for various auxiliary lens options
- Ideal for comprehensive eye examinations
- High precision and reliability in testing
- SKU
- NEUYG100
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Eye Test Phoropter NEUYG100
Professional-grade phoropter for comprehensive refractive examinations. Delivers precise sphere, cylinder, and axis measurements with reversible cross-cylinder and rotary prism capabilities. Ideal for optometry clinics and ophthalmology practices requiring high-precision refraction testing.
Clinical overview
The NEUYG100 phoropter is a precision optical instrument designed for comprehensive refractive examinations in clinical and private practice settings. It combines a wide range of sphere and cylinder powers with synchronized astigmatic axis control, enabling clinicians to perform accurate refraction testing and diagnose refractive errors with confidence. The reversible cross-cylinder and rotary prism features support advanced testing protocols for astigmatism and binocular vision assessment.
Built to exacting optical and mechanical standards, the NEUYG100 delivers consistent, reliable performance across thousands of patient examinations. Its intuitive design minimises examination time while maintaining the precision required for optimal patient outcomes.
Key features & surgeon benefits
Comprehensive Power Coverage
- Sphere range +16.75D to −19.00D with 0.25D increments
- Cylinder range 0 to −6.00D with fine 0.25D steps
- Extended range available with optional auxiliary lenses (up to ±10.00D)
Advanced Astigmatism Assessment
- Astigmatic axis scale 0–180° in 5° increments
- Reversible ±0.25D cross-cylinder synchronized with axis control
- Rotary prism 0–20∆D in 1∆D steps for binocular vision testing
Efficient Examination Protocol
- Intuitive lens dial arrangement reduces examination time
- Smooth mechanical operation ensures repeatable measurements
- Compatible with standard trial frame and auxiliary lens systems
Flexible Configuration Options
- Optional ±0.12D and ±10.00D auxiliary lenses for extended power ranges
- Adaptable to various clinical setups and examination protocols
- OEM customisation available for institutional requirements
Technical specifications
| Indications | Comprehensive eye examinations, refractive error assessment, astigmatism evaluation, binocular vision testing |
|---|---|
| Sphere power range | +16.75D to −19.00D (minimum reading 0.25D or 0.12D with auxiliary lens); extended to +26.75D to −29.00D with optional ±10.00D lens |
| Cylinder power range | 0 to −6.00D (minimum reading 0.25D or 0.12D); extended to 0 to −8.00D with −2.00D auxiliary lens |
| Astigmatic axis scale | 0 to 180° in 5° increments |
| Cross cylinder | ±0.25D, reversible type, synchronized with astigmatic axis |
| Rotary prism | 0 to 20∆D in 1∆D steps |
| Material | Precision optical glass and aluminium construction |
| Packaging | Standard protective case with carrying handle |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Phoropter Head | Complete optical and mechanical assembly with sphere, cylinder, and axis controls | 1 |
| Cross Cylinder | ±0.25D reversible lens, synchronized with astigmatic axis | 1 |
| Rotary Prism | 0–20∆D prism with 1∆D step increments | 1 |
| Protective Case | Padded carrying case with handle | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your phoropter requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery options and comprehensive after-sales support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
