Full Digital Color Doppler Ultrasonic Diagnostic System NEUCU63
- High-resolution 19-inch medical LED monitor
- 10.4-inch touch screen for user-friendly operation
- Supports four activated transducer connectors
- Integrated gel heating cup for enhanced performance
- Advanced dual/triplex synchronous imaging technology
- Multiple imaging modes including Color Flow and 3D/4D imaging
- DICOM 30 compatibility for seamless data management
- Supports various probe types for diverse applications
- High pulse repetition frequency for detailed imaging
- Multi-parameter presets to customize diagnostics
- SKU
- NEUCU63
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

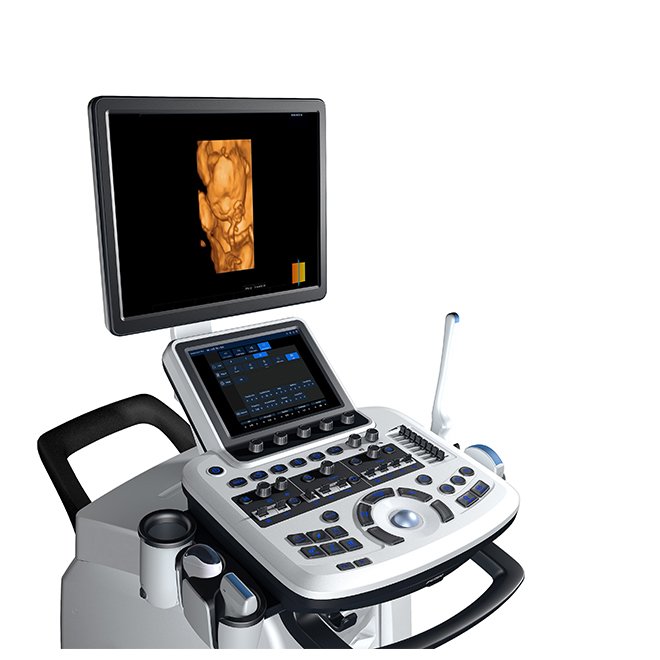

Full Digital Color Doppler Ultrasonic Diagnostic System NEUCU63
Advanced full-featured digital ultrasound platform with 19-inch high-resolution LED display, 10.4-inch touch interface, and comprehensive multi-mode imaging capabilities. Supports four activated transducer connectors with integrated gel heating for optimal diagnostic performance across abdominal, cardiac, obstetric, vascular, and musculoskeletal applications.
Clinical overview
The NEUCU63 is a comprehensive full-digital color Doppler ultrasound diagnostic system engineered for high-performance imaging across multiple clinical specialties. The 19-inch high-resolution medical LED monitor delivers exceptional image clarity, while the intuitive 10.4-inch capacitive touch screen enables rapid workflow optimization and multi-parameter preset customization. Four simultaneously activated transducer connectors allow seamless probe switching without system reconfiguration, supporting convex, linear, phased array, and trans-vaginal probes for diverse diagnostic applications.
Advanced dual/triplex synchronous imaging technology, combined with 12 distinct imaging modes including Color Flow, Pulse Wave Doppler, Power Doppler, Tissue Doppler, and optional 3D/4D reconstruction, provides clinicians with comprehensive hemodynamic and anatomic assessment capabilities. Integrated gel heating cup ensures optimal acoustic coupling and patient comfort. Full DICOM 3.0 compliance, HDMI output, and multi-protocol data transmission enable seamless integration into hospital information systems and telemedicine workflows.
Key features & surgeon benefits
Premium Visualization
- 19-inch high-resolution medical LED monitor for superior image clarity
- 10.4-inch capacitive touch screen for intuitive, responsive control
- Full-screen spectrum display for detailed Doppler analysis
Comprehensive Diagnostic Capability
- 12 imaging modes: CFM, PW, PDI, DPDI, CW, HPRF, TDI, CMM, AMM, Panoramic, Elastic, 3D/4D
- Dual/triplex synchronous technology for simultaneous multi-mode acquisition
- Carotid IMT auto-measurement for standardized vascular assessment
Multi-Specialty Support
- Four simultaneously activated transducer connectors for rapid probe switching
- Seven probe parameters: convex, linear, trans-vaginal, phased array configurations
- Frequency ranges from 1.5 to 10.0 MHz with harmonic imaging support
Seamless System Integration
- DICOM 3.0 compliance for hospital information system connectivity
- HDMI output interface and multi-protocol data transmission
- Multi-parameter presets for rapid protocol customization and standardization
Technical specifications
| Display | 19-inch high-resolution medical LED monitor; 10.4-inch capacitive touch screen |
|---|---|
| Transducer Connectors | Four simultaneously activated connectors |
| Imaging Modes | B-mode, Color Flow (CFM), Pulse Wave Doppler (PW), Power Doppler (PDI), Directional Power Doppler (DPDI), Continuous Wave (CW), High Pulse Repetition Frequency (HPRF), Tissue Doppler (TDI), Color Motion Mode (CMM), Anatomic Motion Mode (AMM), Panoramic (WFOV), Elastic Imaging, 3D/4D (optional) |
| Frequency Range | 1.5–10.0 MHz (fundamental); harmonic imaging 1.7–6.1 MHz |
| Depth Range | 20–420 mm (probe-dependent) |
| Accessories | Integrated gel heating cup; HDMI output; multi-protocol data transmission |
| Data Management | DICOM 3.0 compatible; supports multiple data transmission protocols |
| Warranty | 2 Year Manufacturer Warranty |
Standard probe parameters
| Probe Type | Applications | Elements | Basic Frequency | Harmonic Frequency | Depth Range |
|---|---|---|---|---|---|
| Convex TC50 | ABD, OB, GYN, Ped ABD, Urology | 80 | 2.5, 3.5, 5.0 MHz | 1.7, 2.0, 2.5, 3.2 MHz | 40–420 mm |
| Linear TL40 | Carotid, Thyroid, Nerve, Superficial, MSK, Ped ABD, Orthopedic, Vascular | 80 | 5.0, 7.5, 10.0 MHz | 4.0, 4.7, 5.3, 6.1 MHz | 20–280 mm |
| Trans-vaginal | OB/GYN, Prostate | 80 | 4.5, 6.5, 8.0 MHz | 3.2, 3.6, 4.0, 5.0 MHz | 20–280 mm |
| Phased Array TP16 | Adult Cardiac, Ped Cardiac, TCI | 64 | 2.0, 3.0, 4.0 MHz | 1.5, 2.0, 2.5, 3.0 MHz | 30–320 mm |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, probe selection, and integration requirements for your facility. We provide comprehensive technical support, training, and OEM customisation options.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
