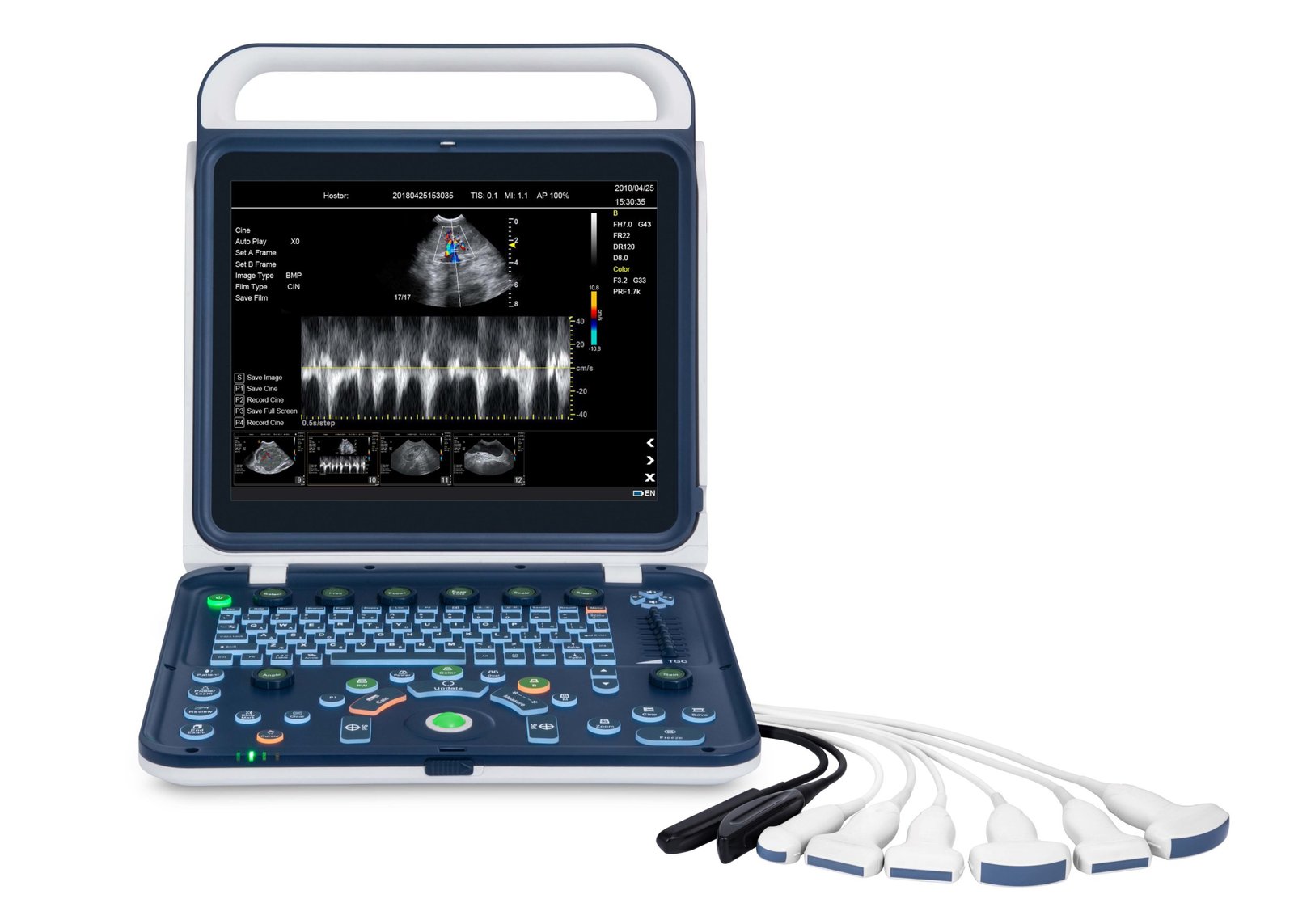

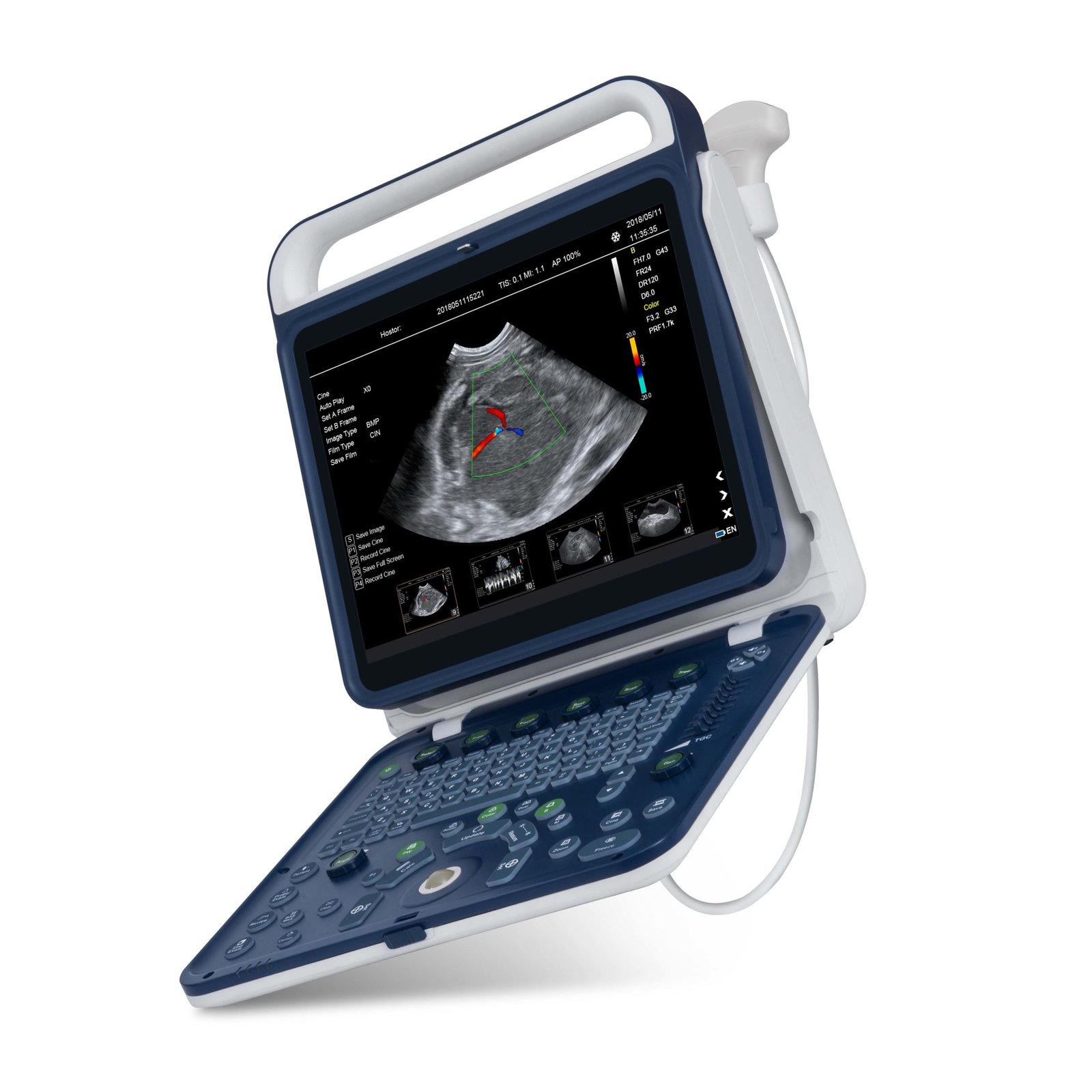

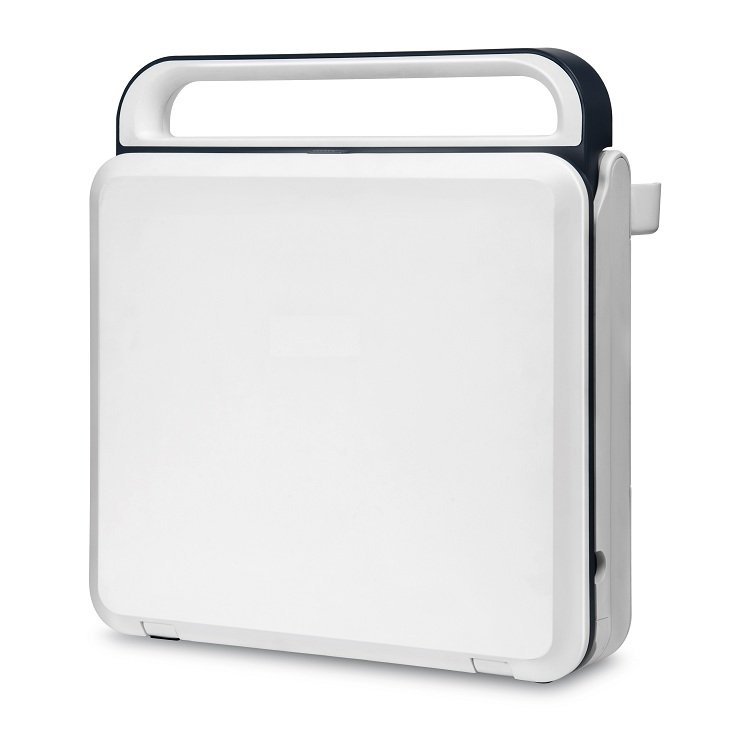

Hand Carried Color Doppler Ultrasound Machine For Vet NEUVU41
- Portable veterinary color Doppler ultrasound machine
- Superior image performance with advanced imaging technology
- Suitable for equine, large and small animals, and marine mammals
- Ergonomic design for ease of use and mobility
- 15" high-resolution LCD monitor with adjustable brightness
- Lithium-Ion battery option with 120 minutes of real-time scanning
- Lightweight at around 6.2 kg, including the battery
- Comprehensive imaging solutions for veterinary clinics and research
- Fireproof and anti-corrosion ABS material for durability
- Operating temperature range of 0 to 40 °C and humidity tolerance up to 85%
- SKU
- NEUVU41
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Hand Carried Color Doppler Ultrasound Machine For Vet NEUVU41
Portable veterinary color Doppler ultrasound system delivering superior image performance with advanced imaging technology. Designed for equine, large animal, small animal, and marine mammal applications with ergonomic mobility and comprehensive diagnostic capability.
Clinical overview
The NEUVU41 is a hand-carried color Doppler ultrasound system engineered for comprehensive veterinary diagnostic imaging across multiple species and anatomical regions. Based on advanced imaging technology and ergonomic design principles, the NEUVU41 delivers superior image quality with comprehensive functionality and high cost-effectiveness, enabling mobile diagnostic capability for veterinary clinics, research departments, livestock farms, and zoological facilities.
Applicable to equine, large animal, small animal, zoo mammal, and marine mammal medicine body scans including abdomen, reproduction, gynecology, cardiology, and small parts imaging. The system's portability and robust construction make it ideal for field work, mobile clinics, and resource-constrained environments requiring reliable diagnostic ultrasound.
Key features & surgeon benefits
Superior Diagnostic Quality
- 64 physical channels with 128 transducer elements for enhanced resolution
- 15" high-resolution LCD monitor (1024×768) with adjustable brightness and 45° tilt viewing angle
- Advanced color Doppler technology for vascular and hemodynamic assessment
Portable Field Capability
- Lightweight design at 6.2 kg including battery for true hand-carried operation
- Compact dimensions (402×385×98 mm) for easy transport and storage
- Lithium-Ion battery option providing 120 minutes of real-time scanning per charge
Rugged Construction
- Fireproof and anti-corrosion ABS material for long-term durability
- Operating temperature range 0–40 °C with humidity tolerance up to 85%
- Dual power options: AC adapter (100–110V/240VAC) and optional Lithium-Ion battery
Multi-Species Applications
- Comprehensive imaging solutions for equine, large animal, small animal, and marine mammal diagnostics
- Suitable for veterinary clinics, research departments, livestock farms, and zoological facilities
- Customisable transducer configurations available for specialised applications
Technical specifications
| Indications | Equine, large animal, small animal, zoo mammal, and marine mammal medicine body scans including abdomen, reproduction, gynecology, cardiology, and small parts imaging |
|---|---|
| System Dimensions | 402 mm (H) × 385 mm (W) × 98 mm (D) |
| Weight | Approximately 6.2 kg (including battery) |
| Physical Channels | 64 |
| Transducer Elements | 128 |
| Monitor | 15" high-resolution LCD with 1024×768 resolution, adjustable brightness, 45° max opening angle, tilting capability |
| Material | Fireproof and anti-corrosion ABS |
| Power Supply | AC adapter (100–110V/240VAC, 50/60 Hz, 5A, 15V output) and optional Lithium-Ion battery |
| Battery (Optional) | Model LY606090, Lithium-Ion 11.1V 8000mAH, 6-hour full charge, 120 minutes real-time scanning duration |
| Operating Environment | Temperature: 0–40 °C; Humidity: 30–85% (non-condensing); Pressure: 700–1060 hPa |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | NEUVU41 Hand-Carried Color Doppler Ultrasound System with 15" LCD monitor and 64-channel imaging engine | 1 |
| AC Power Adapter | Model MANGO-BMV-15AD-C5, 100–110V/240VAC input, 15V output | 1 |
| Lithium-Ion Battery (Optional) | Model LY606090, 11.1V 8000mAH, 120-minute real-time scanning capacity | 1 |
| Transducers | Multi-frequency transducers for diverse anatomical applications (equine, large animal, small animal, marine mammal) | As configured |
| Carrying Case | Protective transport case for portable field deployment | 1 |
| Documentation | User manual, technical specifications, warranty certificate, and safety guidelines | 1 set |
