Handheld Digital Black and White Veterinary Ultrasound System Machine NEUVU44
- Handheld digital black and white veterinary ultrasound system
- 5.8 inches TFT LCD monitor for clear imaging
- Multiple display modes: B, B+B, B+M, M, 4B
- Probing frequencies of 2.5/3.5/5.0 MHz for versatile use
- Supports measurements for various animals including bovine, equine, swine, sheep, goat, cat, and dog
- Image magnification options: 1.0, 1.2, 1.5, 2.0 times
- Long-lasting battery with 6 hours of continuous operation
- High-speed USB socket for easy connectivity to PC and printer
- Image storage capacity of over 150 images
- Compact and lightweight design at just 0.5 kg
- SKU
- NEUVU44
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

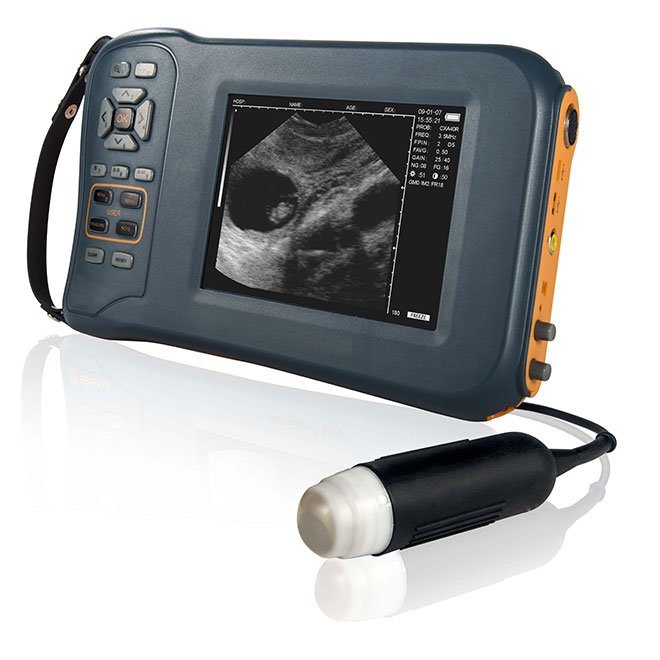

NEUVU44 Handheld Digital Black and White Veterinary Ultrasound System
Portable, high-resolution ultrasound imaging for multi-species veterinary diagnostics. The NEUVU44 combines a 5.8-inch TFT LCD display with multiple imaging modes, flexible probe frequencies, and extended battery life—ideal for field work and clinical settings across bovine, equine, swine, small animal, and exotic species.
Clinical overview
The NEUVU44 is a lightweight, handheld digital ultrasound system engineered for veterinary practitioners requiring portable, reliable imaging across multiple species. With a 5.8-inch TFT LCD monitor and 256-level grayscale resolution, it delivers clear diagnostic images in B, B+B, B+M, M, and 4B display modes. The system supports obstetric measurements and gestational age assessment for bovine, equine, swine, sheep, goat, cat, and dog, making it ideal for breeding programs, pregnancy monitoring, and general diagnostic work.
Designed for field mobility and clinical efficiency, the NEUVU44 operates continuously for 6 hours on a single charge, stores over 150 images, and connects directly to PC and printer via high-speed USB. Its compact form factor (0.5 kg) and intuitive interface reduce training time while maintaining diagnostic accuracy across diverse veterinary applications.
Key features & surgeon benefits
Comprehensive Diagnostic Range
- Supports bovine, equine, swine, sheep, goat, cat, and dog imaging
- Obstetric measurement protocols for each species
- Flexible probe frequencies (2.5, 3.5, 5.0 MHz) for varied tissue penetration
Portable Field Operation
- 6-hour continuous battery operation for extended clinic or farm visits

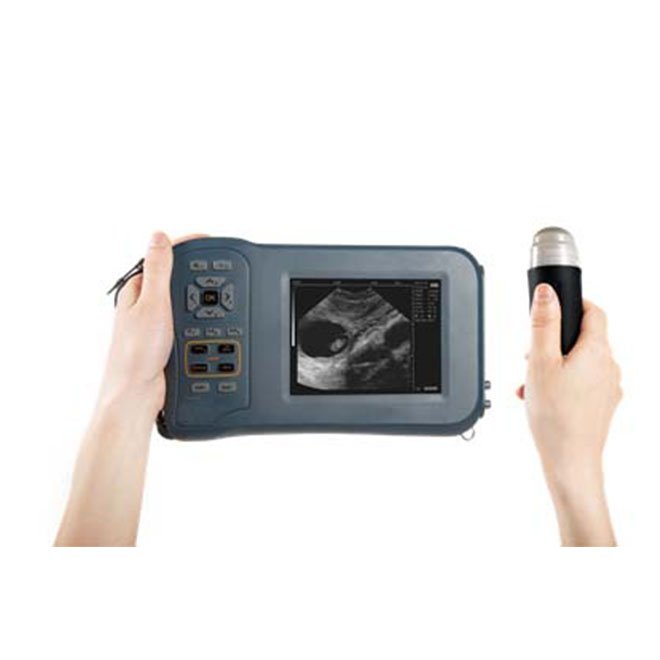

- Lightweight 0.5 kg design for easy transport and one-handed use
- Compact 40 × 250 × 120 mm footprint fits standard veterinary bags
Clear, Detailed Diagnostics
- 5.8-inch TFT LCD with 256-level grayscale for superior contrast
- Eight-level zoom and four-level magnification (1.0–2.0×) for precise assessment
- Image processing: smoothing, histogram, and pseudo-color enhancement
Seamless Integration
- Storage capacity for ≥150 images on-device
- High-speed USB connectivity for direct PC and printer download
- Obstetric report generation for clinical documentation
Technical specifications
| Monitor | 5.8 inches TFT LCD |
|---|---|
| Display Modes | B, B+B, B+M, M, 4B |
| Display Depth | ≥190 mm, multi-step adjustment |
| Probe Frequency | 2.5 MHz, 3.5 MHz, 5.0 MHz |
| Gray Scale | 256 levels |
| Image Magnification (Fixed) | ×1.0, ×1.2, ×1.5, ×2.0 |
| Image Magnification (Zoom) | 8 levels zoom in |
| Image Processing | Smoothing, histogram, pseudo-color |
| Image Control | Brightness, contrast ratio adjustment |
| Obstetric Measurements | GA for bovine (BL, SL, HL), equine, swine (HL), sheep/goat (USD), cat, dog (BD, GSD, HD) |
| Operating Time | 6 hours continuous operation |
| Image Storage | ≥150 images |
| Connectivity | High-speed USB socket (PC & printer download) |
| Net Weight | 0.5 kg |
| Dimensions | 40 mm × 250 mm × 120 mm |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NEUVU44 Ultrasound Unit | Handheld digital black and white ultrasound system with 5.8-inch TFT LCD display | 1 |

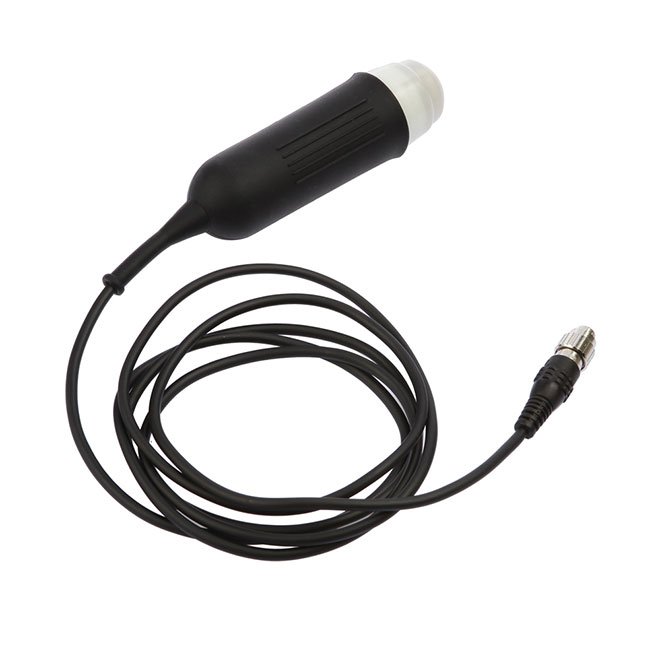

| Ultrasound Probe | Multi-frequency probe (2.5/3.5/5.0 MHz) with standard connector | 1 |
| Battery Pack | Rechargeable lithium-ion battery (6-hour operation) | 1 |
| USB Cable | High-speed USB cable for PC and printer connectivity | 1 |
| Carrying Case | Protective hard case for transport and storage | 1 |
| User Manual | Comprehensive operating and maintenance guide | 1 |
