Handheld Vascular Doppler Machine NEUPU73
- Handheld Vascular Doppler Machine NEUPU73 for vascular assessments
- Rechargeable 5200mAh battery with ≥3.5 hours working time
- High-resolution 7’’ LCD display with 1024×600 pixels
- B mode operation with automatic USB upgrade capability
- Linear probe with 80 elements and 7.5MHz acoustic frequency
- Maximum detection depth of ≥50mm with precise resolution
- Needle holder made from medical-grade material for safe use
- Available needle holder types: 18G and 21G (in/out of plane)
- User-friendly English interface for easy operation
- Compact design with continuous operation time of ≥8 hours using adapter
- SKU
- NEUPU73
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Handheld Vascular Doppler Machine NEUPU73
Advanced portable ultrasound solution for comprehensive vascular assessment. Professional-grade B-mode imaging with high-resolution 7-inch LCD display, 5200mAh rechargeable battery, and precision linear probe technology for point-of-care and clinical diagnostics.
Clinical Overview
The NEUPU73 Handheld Vascular Doppler Machine represents a breakthrough in portable ultrasound diagnostics, combining professional-grade B-mode imaging with exceptional portability for modern clinical practice. This sophisticated system integrates a high-resolution 7-inch LCD display (1024×600 pixels), powerful 5200mAh rechargeable battery, and precision linear probe technology to deliver reliable vascular assessment across emergency departments, intensive care units, operating rooms, and outpatient clinics. With over 3.5 hours of battery operation and continuous 8-hour capability via adapter, the NEUPU73 ensures uninterrupted diagnostic performance in demanding clinical environments.
Engineered for versatility and clinical excellence, the NEUPU73 features a sophisticated linear probe with 80 elements and 16 channels operating at 7.5MHz acoustic frequency, providing maximum detection depth of 50mm or greater with exceptional circumferential and axial resolution of 1.0mm or better. The comprehensive range of medical-grade needle holders—including 18G and 21G options for both in-plane and out-of-plane approaches, plus 20G radial configuration—transforms the system into a complete procedural guidance platform supporting vascular access, regional anesthesia, and guided injections. Automatic USB upgrade capability and intuitive English interface ensure the device remains current with evolving clinical standards while maintaining ease of operation.
Key Features & Surgeon Benefits
Professional-Grade Diagnostics
- High-resolution 7-inch LCD display with 1024×600 pixel clarity
- Advanced B-mode ultrasound with real-time 2D imaging
- Maximum detection depth ≥50mm with 1.0mm resolution
- Minimal 2.0mm dead zone for superficial structure visualization
- 80-element linear probe at 7.5MHz for optimal vascular imaging
True Mobile Capability
- 5200mAh rechargeable battery with ≥3.5 hours operation
- Continuous 8-hour operation via AC adapter
- Rapid 4-hour charging with 0-100% power display
- Compact handheld design for point-of-care applications
- Universal 100-240VAC compatibility for global use
Comprehensive Guidance Options
- Multiple medical-grade needle holder configurations
- 18G and 21G in-plane and out-of-plane options
- 20G radial needle holder for specialized approaches
- Single-use after sterilization for infection control
- Supports vascular access, nerve blocks, and guided injections
Seamless Clinical Integration
- Intuitive English language interface for rapid adoption
- USB connectivity for automatic system upgrades
- Image export capability for documentation and archiving
- Low power consumption ≤10VA for efficiency
- Reliable performance across diverse clinical environments
Technical Specifications
| Indications | Vascular assessment, guided vascular access, regional anesthesia, emergency medicine, ICU monitoring, interventional procedures, primary care screening |
|---|---|
| Sizes / range | Linear probe 80 elements, 16 channels; needle holders 18G in/out of plane, 21G in/out of plane, 20G radial |
| Material | Medical-grade components; needle holders medical-grade material, non-sterile for single-use after sterilization |
| Sterilisation | Needle holders supplied non-sterile; single-use after end-user sterilization |
| Packaging | As applicable |
| Warranty | 2 Year Manufacturer Warranty |

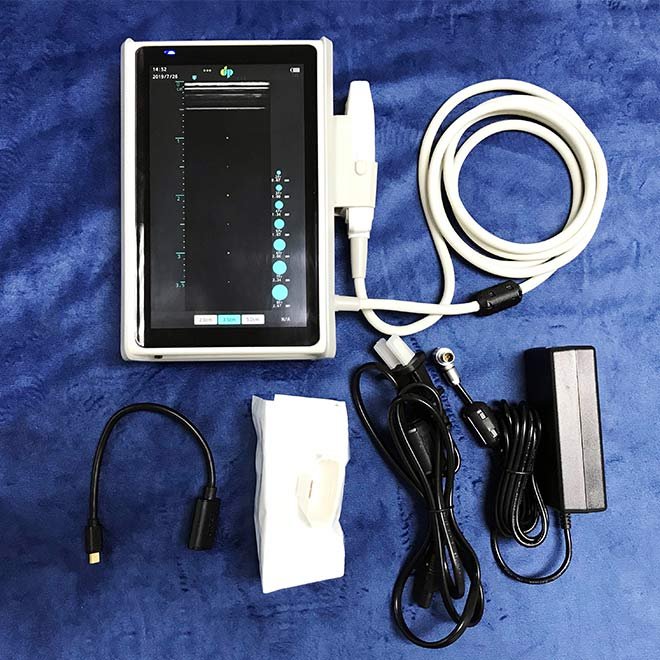

Standard Instrument Composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | NEUPU73 Handheld Vascular Doppler Machine with 7-inch LCD display and B-mode imaging | 1 |
| Linear Probe | 80-element linear probe, 16 channels, 7.5MHz acoustic frequency | 1 |
| Rechargeable Battery | 5200mAh lithium-ion battery with charging management system | 1 |
| AC Adapter | Universal input 100-240VAC, 50/60Hz; output DC12V, 4A | 1 |
| Needle Holder - 18G In-Plane | Medical-grade needle holder for 18G in-plane approach | 1 |
| Needle Holder - 18G Out-of-Plane | Medical-grade needle holder for 18G out-of-plane approach | 1 |
| Needle Holder - 21G In-Plane | Medical-grade needle holder for 21G in-plane approach | 1 |
| Needle Holder - 21G Out-of-Plane | Medical-grade needle holder for 21G out-of-plane approach | 1 |
| Needle Holder - 20G Radial | Medical-grade needle holder for 20G radial configuration | 1 |
| USB Cable | USB connectivity for system upgrades and image export | 1 |
| Documentation | User manual, quick reference guide, technical specifications | 1 set |
