Handheld Wireless Mini B Dualhead Color Doppler Ultrasound Scanner NEUPU62
- Handheld wireless design for portability and ease of use
- Dualhead probe with Microconvex and Linear options
- Versatile scanning modes: B, B/M, Color Doppler, PDI, and PW
- High-resolution imaging with 128 probe elements and 32 RF circuit channels
- Adjustable probe frequencies for varying scan depths: 3.5MHz to 10MHz
- Auto and manual cineplay with customizable frame settings
- Measures length, area, angle, heart rate, and obstetrics metrics
- Image saving options in JPG, AVI, and DICOM formats
- Long battery life of 2.5 hours with USB or wireless charging capabilities
- Compatible with Apple iOS, Android, and Windows systems
- SKU
- NEUPU62
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

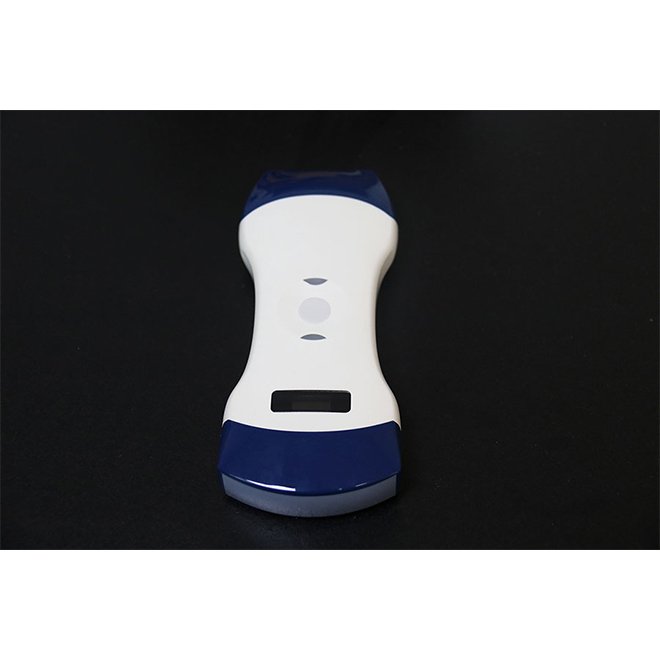

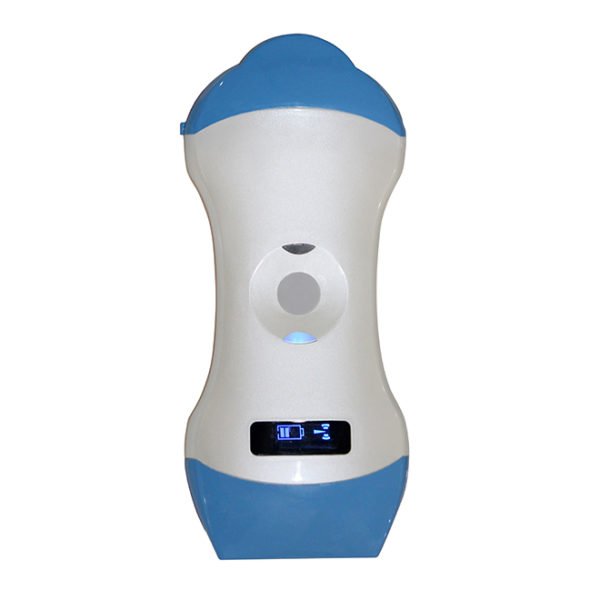

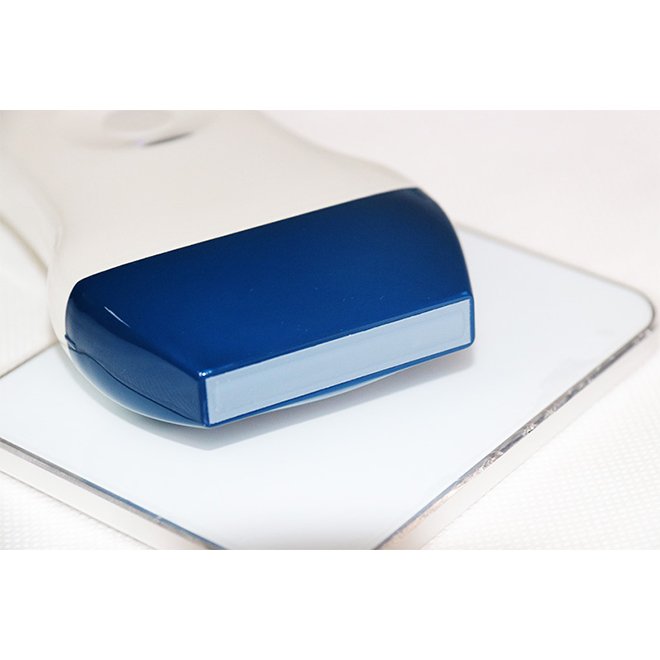

Handheld Wireless Mini B Dualhead Color Doppler Ultrasound Scanner
Advanced portable ultrasound with dual-head probe technology, real-time color Doppler imaging, and wireless connectivity. Delivers high-resolution B-mode, M-mode, and spectral Doppler scanning in a compact, battery-powered design suitable for point-of-care and clinical diagnostics across multiple specialties.
Clinical overview
The NEUPU62 is a handheld wireless ultrasound scanner engineered for clinicians requiring portable, high-fidelity diagnostic imaging. The dual-head probe system combines a linear array (7.5–10 MHz) for superficial structures and a microconvex array (3.5–5 MHz) for deeper anatomical assessment, enabling comprehensive scanning across abdominal, vascular, cardiac, and obstetric applications. With 128 probe elements and 32 RF circuit channels, the device delivers real-time B-mode, M-mode, color Doppler, power Doppler imaging (PDI), and pulsed-wave (PW) spectral analysis.
Wireless 802.11g/5G connectivity and multi-platform compatibility (iOS, Android, Windows) allow seamless integration into existing clinical workflows. The 2.5-hour battery life, combined with USB and wireless charging options, supports extended clinical sessions. Integrated measurement tools for length, area, angle, heart rate, and obstetric metrics, plus DICOM export capability, ensure compliance with clinical documentation standards and facilitate remote consultation and archival.
Key features & surgeon benefits
Dual-Head Probe Versatility
- Linear head for superficial vascular and musculoskeletal imaging
- Microconvex head with 88° sector for deep abdominal and cardiac assessment
- Adjustable frequencies (3.5–10 MHz) optimize image quality across scan depths
Portable & Wireless Operation
- Handheld design (156×60×20 mm, 250 g) fits standard clinical bags and point-of-care carts
- 2.5-hour battery with USB and wireless charging for continuous clinical use
- Real-time wireless streaming to iOS, Android, and Windows devices for bedside review
Cost-Effective Diagnostics
- Single compact device replaces multiple probe configurations
- Multi-platform software reduces infrastructure investment
- DICOM export and standardized measurement tools minimize documentation overhead
Color & Spectral Doppler
- Real-time color Doppler and power Doppler imaging for vascular flow assessment
- Pulsed-wave spectral analysis for hemodynamic evaluation
- Automatic blood vessel measurement and cardiac metrics (heart rate, obstetric parameters)
Technical specifications
| Indications | General ultrasound, vascular, cardiac, obstetric, abdominal, and musculoskeletal imaging |
|---|---|
| Probe Type | Dualhead: Microconvex & Linear electronic array |
| Probe Elements | 128 elements |
| RF Channels | 32-channel RF circuit board |
| Display Modes | B, B/M, B+Color, B+PDI, B+PW |
| Linear Head Frequency | 7.5 MHz, 10 MHz |
| Linear Head Scan Depth | 20, 40, 60, 100 mm |
| Microconvex Head Frequency | 3.5 MHz, 5 MHz |
| Microconvex Head Scan Depth | 90, 130, 160, 200 mm |
| Microconvex Scan Angle | 88° |
| Image Adjustments | B-Gain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF |
| Cineplay | Auto and manual; frame settings: 100, 200, 500, 1000 |
| Measurements | Length, Area, Angle, Heart Rate, Obstetrics; automatic blood vessel measurement |
| Image Save Formats | JPG, AVI, DICOM |
| Frame Rate | 18 frames/second |
| Battery Life | 2.5 hours (dependent on continuous scanning) |
| Charging | USB or wireless charging; 2-hour charge time |
| Dimensions | L156 × W60 × H20 mm (standard); 270 mm with transvaginal head |
| Weight | 250 g |
| Wireless Connectivity | 802.11g/20 MHz/5G; 450 Mbps |
| Compatible Systems | Apple iOS, Android, Windows |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Handheld wireless ultrasound scanner with integrated processor | 1 |
| Linear Probe Head | 7.5–10 MHz linear array, 128 elements | 1 |
| Microconvex Probe Head | 3.5–5 MHz microconvex array, 88° sector, 128 elements | 1 |
| Battery Pack | Rechargeable lithium-ion, 2.5-hour runtime | 1 |
| USB Charging Cable | Standard USB-C or proprietary connector | 1 |

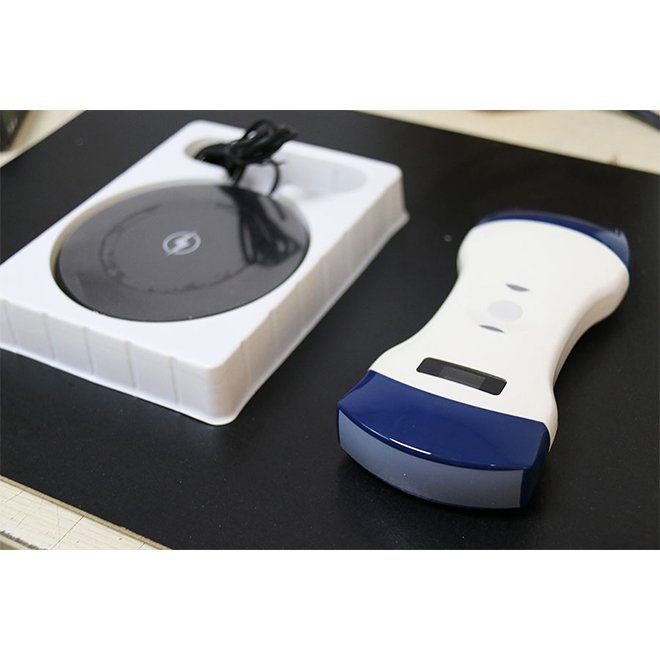

| Wireless Charging Dock | Optional wireless charging pad | 1 |
| Probe Protective Case | Carrying case for scanner and probe heads | 1 |
| Ultrasound Gel | Medical-grade coupling gel (sample) | 1 |
| Quick Start Guide | Multi-language user manual and setup instructions | 1 |
| Software License | Multi-platform app license (iOS, Android, Windows) | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, volume discounts, and customisation options for the NEUPU62. We offer flexible deployment models, training, and comprehensive technical support to ensure seamless integration into your clinical environment.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
