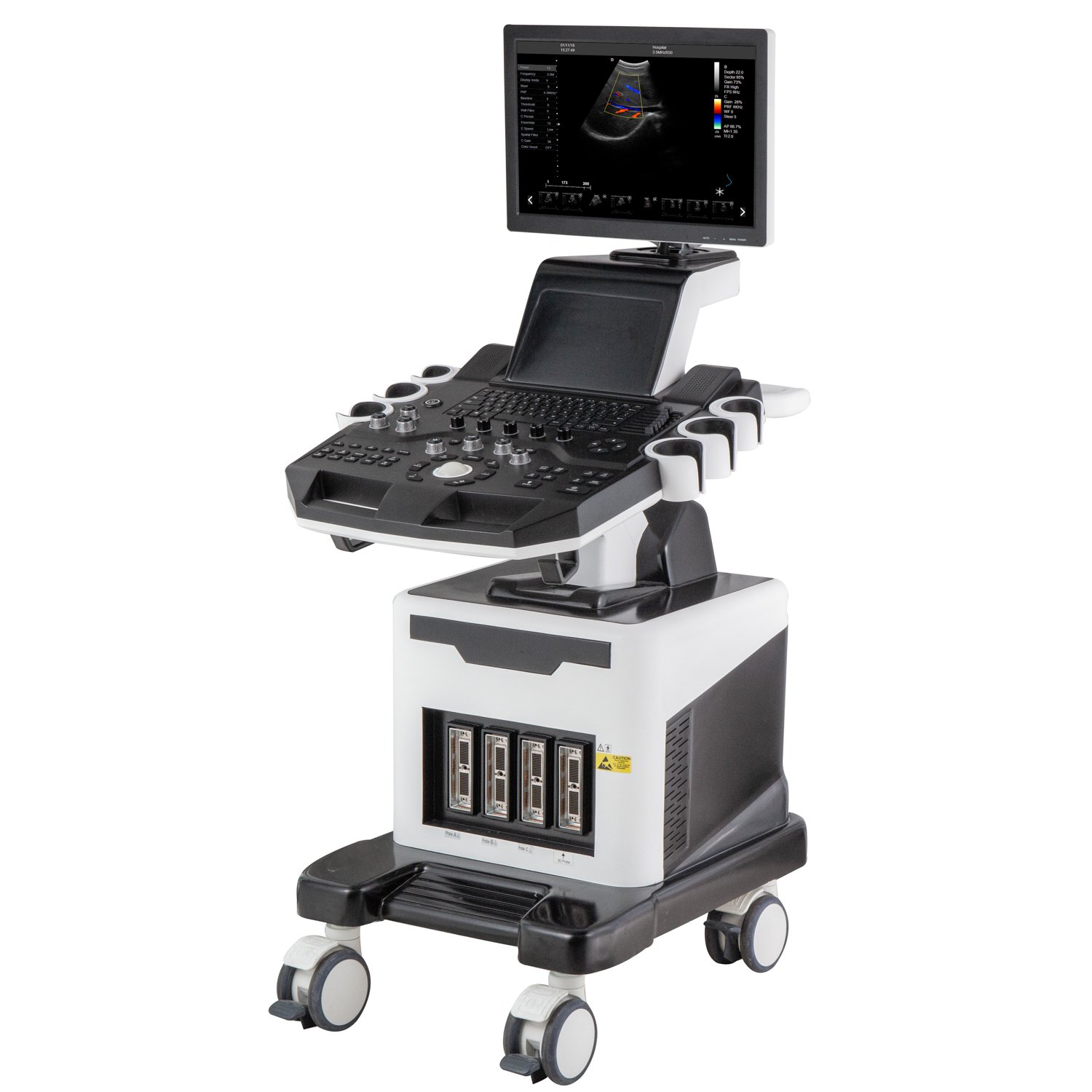

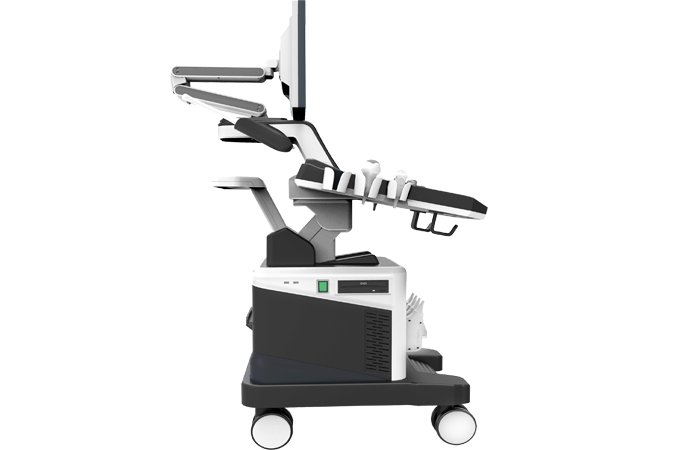

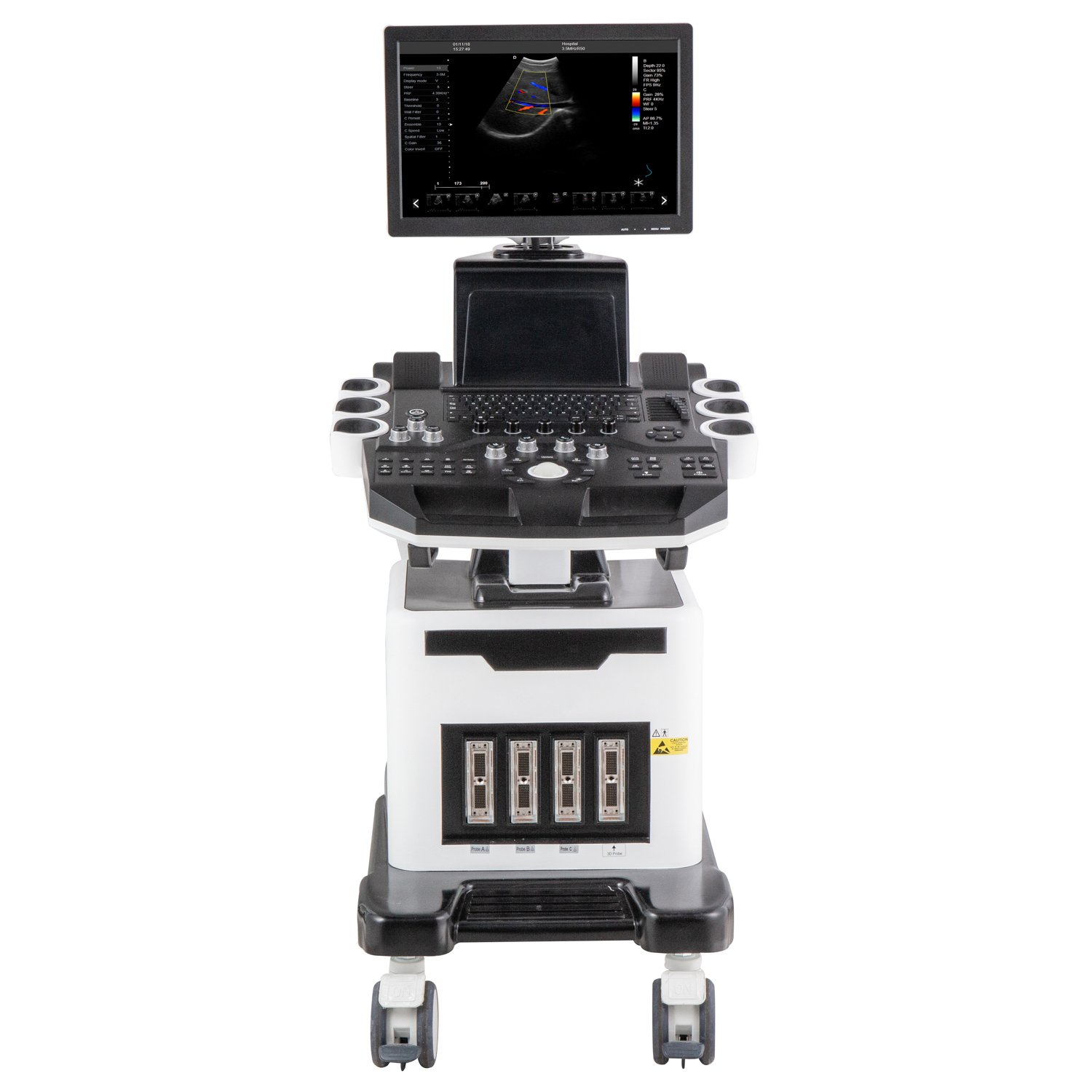

MEK-F5
- High precision digital beam forming and Doppler ultrasonic imaging technology.
- Advanced image processing features including THI and speckle reduction.
- Efficient full-digital image management system for superior image acquisition.
- Special measurement software for enhanced diagnostic accuracy.
- Wide detection depth of ≥ 300mm and multiple resolution options.
- 19-inch LCD monitor with a display offering various modes (B, M, CFM, etc.).
- Supports various applications: abdomen, OB&GYN, cardiology, and more.
- Continuous operation time of ≥ 8 hours.
- Multiple probes available for diverse imaging needs (high frequency, trans-vaginal, phased array).
- User-friendly ergonomical design for improved operator efficiency.
- SKU
- MEK-F5
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
MEK-F5
Advanced color Doppler ultrasound diagnostic system with high-precision digital beam forming and comprehensive image processing. Delivers superior diagnostic accuracy across multiple clinical specialties with a 19-inch LCD display and continuous 8+ hour operation.
Clinical overview
The MEK-F5 is a professional-grade color Doppler ultrasound diagnostic system engineered for comprehensive imaging across abdomen, obstetrics & gynecology, cardiology, vascular, and musculoskeletal applications. Featuring high-precision digital beam forming and advanced Doppler technology, the system delivers exceptional image quality with detection depths exceeding 300mm and lateral resolution of ≤1mm in the near field.
The platform integrates full-digital image management, THI (Tissue Harmonic Imaging), speckle reduction, and multi-beam parallel processing to optimize diagnostic accuracy. With a 19-inch LCD monitor supporting multiple display modes (B, M, CFM, duplex, PW, and more), clinicians gain comprehensive visualization capabilities. The ergonomical design, flexible probe options, and continuous 8+ hour operation time make the MEK-F5 suitable for high-volume clinical environments and diverse diagnostic workflows.
Key features & surgeon benefits
Advanced Beam Forming & Processing
- High-precision digital beam forming with 64-channel signal processing
- THI and speckle reduction for enhanced diagnostic clarity
- Dynamic real-time receiving focusing and RDA/DRA processing
Multi-Specialty Versatility
- Multiple display modes (B, M, CFM, duplex, PW, CPA) for diverse applications
- Three interchangeable probe types: linear, trans-vaginal, and phased array
- Full-digital architecture enables rapid mode switching and real-time analysis
Superior Diagnostic Accuracy
- Detection depth ≥300mm with ≤5mm blind zone
- Lateral & vertical resolution ≤1mm (depth ≤80mm), ≤2mm (80–130mm)
- 256 grey scale levels and precision geometric positioning ≤10%
Continuous Operation & Durability
- Continuous working time ≥8 hours for full-day clinical use
- Efficient power management (≤300VA input, DC12.8V 11.5A host)
- Robust full-digital signal processing with space-time filtering
Technical specifications
| Indications | Abdomen, OB&GYN, cardiology, vascular, small parts, urology, musculoskeletal, pediatrics |
|---|---|
| Detection depth | ≥300mm |
| Lateral resolution | ≤1mm (depth ≤80mm); ≤2mm (80–130mm) |
| Vertical resolution | ≤1mm (depth ≤80mm); ≤2mm (80–130mm) |
| Blind zone | ≤5mm |
| Geometric precision | Horizontal ≤10%; Longitudinal ≤10% |
| Signal channels | 64 channels |
| Display | 19-inch LCD monitor, 256 grey scale, PAL output interface |
| Display modes | B, 2B, 4B, B|M, B|D, PW, M, B mode zoom, B|C|D, B|C|M, B|C, duplex, CFM, CPA |
| Power input | AC110V/220V ±10%, 3A; Input power ≤300VA |
| Host power | DC12.8V, 11.5A |
| Continuous working time | ≥8 hours |
| Signal processing | Full-digital beam forming, dynamic filter, orthogonal demodulating, space-time filter, dynamic real-time receiving focusing, RDA, DRA, spectral processing, CFM processing |
| Warranty | 2 Year Manufacturer Warranty |
Standard probe composition
| Probe Type | Configuration | Frequency Range |
|---|---|---|
| High frequency linear probe | 128 elements, R40 wideband | 6.0, 6.5, 7.5, 10, 12 MHz |
| Trans-vaginal probe | 128 elements, R10 wideband | 5.0, 6.0, 6.5, 7.5, 9.0 MHz |
| Phased array probe | 64 elements, R20 wideband | 2.0, 2.1, 3.5, 4.0, 5.0 MHz |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, probe options, and delivery timelines. We provide comprehensive support and flexible financing options for clinical facilities.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
