MEK-T5
- Advanced ultrasound system with multiple probe options including convex, linear, and 4D volume probes.
- Two-dimensional imaging mode with adjustable gain, TGC, and dynamic range settings.
- High-resolution color imaging mode featuring customizable frequency and color maps.
- Spectrum Doppler mode for accurate blood flow measurements with adjustable parameters.
- Built-in solid-state hard disk (≥120G) for fast operation and patient file management.
- User-friendly interface with multiple USB, HDMI, and RJ-45 connections.
- Supports complex measurement and analysis functions for various medical specialties.
- Features advanced image optimization and enhancement capabilities for improved diagnostics.
- Compact and portable design for easy transportation and use in different medical environments.
- SKU
- MEK-T5
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

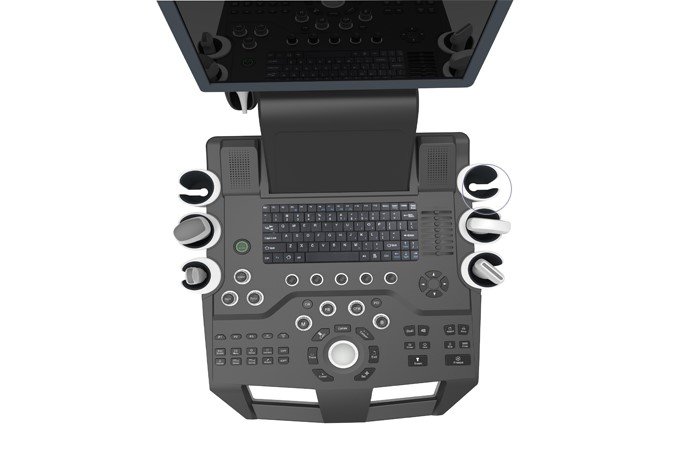

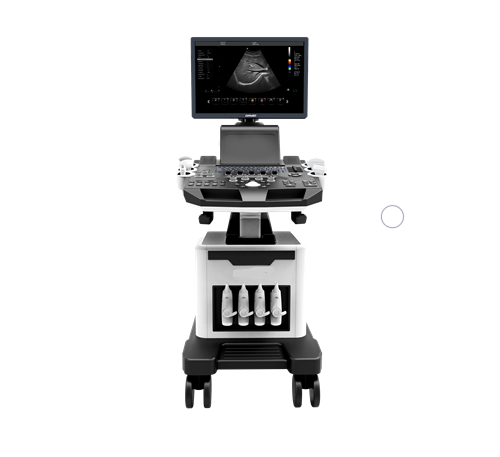

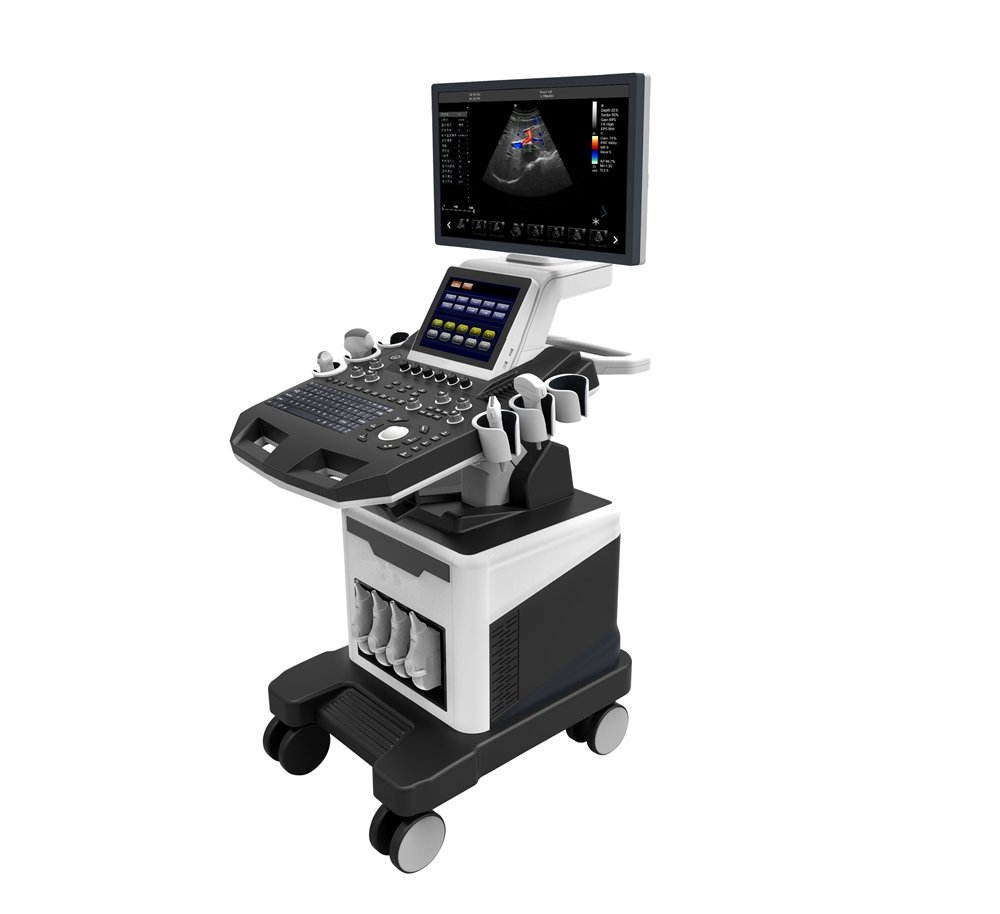

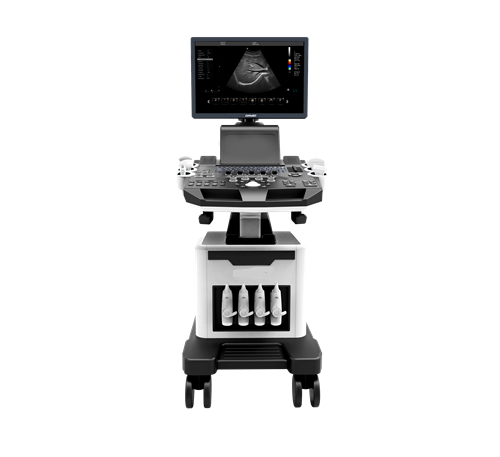

MEK-T5
Advanced ultrasound system with multiple probe options and comprehensive imaging modes. Delivers high-resolution 2D, color, and spectrum Doppler imaging with intuitive controls and extensive measurement capabilities for diverse clinical applications.
Clinical overview
The MEK-T5 is a comprehensive diagnostic ultrasound platform engineered for multi-specialty clinical environments. It combines advanced imaging modalities—2D grayscale, color Doppler, and spectrum Doppler—with an extensive library of measurement and analysis tools. The system supports seven probe types across a frequency range of 2.0–12.0 MHz, enabling detailed visualization of abdominal organs, obstetric structures, cardiac anatomy, vascular flow, and musculoskeletal tissues.
Built-in solid-state storage (≥120 GB) ensures rapid system startup and reliable patient file management. The integrated reporting system, professional software packages for nine clinical specialties, and intuitive user interface make the MEK-T5 suitable for high-volume diagnostic centers, hospitals, and specialized imaging practices.
Key features & surgeon benefits
Seven probe options
- Convex, linear, trans-vaginal, micro-convex (R11 & R15), phased array, and 4D volume probes
- Frequencies from 2.0 to 12.0 MHz for superficial and deep tissue imaging
- Seamless probe switching for comprehensive diagnostic capability
Advanced visualization
- Adjustable gain (0–100), 8-segment TGC, and 15-level dynamic range (0–270 dB)
- 6-level image optimization and 8 false color palettes for enhanced contrast
- Up to 4 focal points with real-time adjustment throughout the scan
Precise hemodynamic assessment
- Color Doppler with 7 frequency conversions and 7 customizable color maps
- Spectrum Doppler with ±80° angle correction and 0.1–25 m/s velocity range
- Resistance and pulsatility index calculations for vascular evaluation
Efficient clinical practice
- Built-in patient file management with searchable database by ID, name, or date
- 600-frame movie playback and one-key fast report generation
- Professional software for 9 specialties: abdomen, obstetrics, cardiology, vascular, and more
Technical specifications
| Indications | General ultrasound, abdominal, obstetrics & gynecology, cardiology, vascular, urology, orthopedics, small organs, carotid artery, peripheral vessels |
|---|---|
| Probe types | Convex, linear, trans-vaginal, R11 micro-convex, R15 micro-convex, phased array, 4D volume |
| Frequency range | 2.0–12.0 MHz (probe-dependent) |
| 2D imaging | Gain 0–100, 8-segment TGC, dynamic range 0–270 dB (15 levels), 6-level optimization, 256 scan lines, 4 focal points |
| Color Doppler | 7 frequency conversions, 7 color maps, 8 afterglow levels, B/C split-screen display |
| Spectrum Doppler | Angle correction ±80°, sample volume 0.5–48 mm, velocity range 0.1–25 m/s, 7 baselines, 8 smooth levels |
| Storage | ≥120 GB solid-state hard disk; 600-frame movie playback |
| Interfaces | 6× USB, 1× HDMI, 1× RJ-45, 1× VIDEO, 1× grounding wire |
| Measurement tools | Distance, area, angle, time, slope, heart rate, velocity, acceleration, spectrum tracing, RI/PI, and specialty-specific analysis |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| MEK-T5 Main Unit | Complete ultrasound system with integrated display, processor, and storage | 1 |
| Convex Probe | Multi-frequency convex probe (2.0–5.5 MHz) | 1 |
| Linear Probe | Multi-frequency linear probe (6.0–12.0 MHz) | 1 |
| Phased Array Probe | Cardiac/thoracic imaging probe (2.1–5.0 MHz) | 1 |
| 4D Volume Probe | Three-dimensional volume acquisition probe (2.0–5.5 MHz) | 1 |
| Transducer Cables | Shielded connection cables for all probes | As needed |
| Power Supply | Medical-grade power adapter and cables | 1 |
| User Documentation | Operating manual, quick-start guide, and software reference | 1 set |
