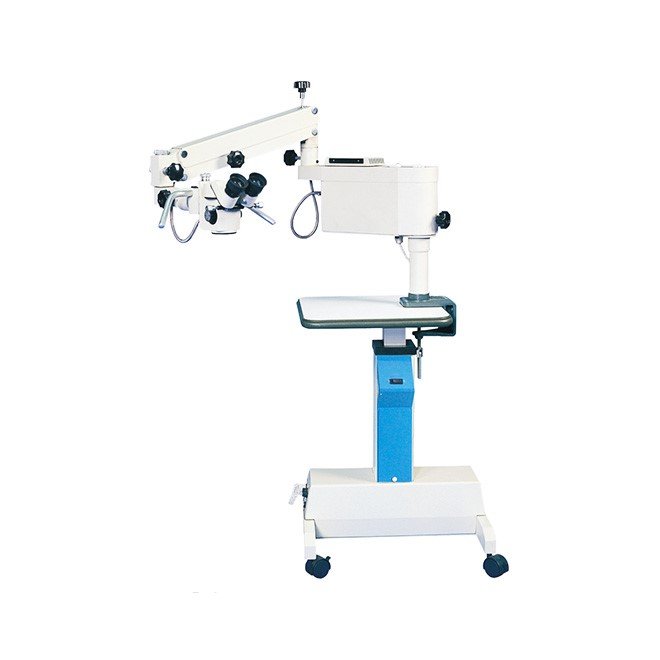

Multi-functional Operation Microscope NEU20P
- Compact and lightweight design for easy maneuverability
- Features a 3-file zoom system for versatile magnification
- Equipped with a spring balance system for smooth vertical adjustments
- Utilizes multilayer coated lenses for enhanced clarity and durability
- Adaptable for multiple applications including ENT, surgery, and gynecology
- High illumination with a 12 V / 100 W cold reflective medical halogen lamp
- Adjustable eyepiece magnification of 12.5 × with inter pupillary distance settings
- Working distance of 190 mm and multiple magnification options (6X, 10X, 16X)
- Coaxial and surface illumination providing superior light exposure
- Sturdy arm extension radius of 860 mm for extended reach during procedures
- SKU
- NEU20P
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Multi-functional Operation Microscope NEU20P
Compact, lightweight surgical microscope with 3-file zoom system and spring balance adjustment. Delivers superior illumination and optical clarity across ENT, general surgery, and gynecological procedures with multilayer coated optics and extended arm reach.
Clinical overview
The NEU20P is a versatile surgical microscope engineered for precision visualization across multiple surgical disciplines. Its compact, lightweight design enables effortless maneuverability in confined surgical spaces, while the spring balance system ensures smooth, controlled vertical adjustments without fatigue. The 3-file zoom mechanism provides rapid magnification transitions (6X, 10X, 16X), allowing surgeons to seamlessly shift between overview and detailed operative fields.
Advanced multilayer coated optics deliver exceptional clarity and light transmission, reducing glare and enhancing contrast in complex anatomical regions. With coaxial and surface illumination modes powered by a 12V/100W cold reflective halogen lamp, the microscope provides consistent, shadow-free illumination exceeding 10,000 lux. The 860 mm arm extension radius and 190 mm working distance accommodate diverse surgical approaches, making the NEU20P an ideal choice for ENT, general surgery, gynecology, and ophthalmic procedures.
Key features & surgeon benefits
Superior Clarity & Light Transmission
- Multilayer coated lenses reduce glare and enhance contrast
- Coaxial and surface illumination for shadow-free visualization
- 12.5× eyepiece magnification with ±5 D visual adjustment
Smooth, Fatigue-Free Operation
- Spring balance system enables effortless vertical adjustment
- Compact, lightweight design for easy maneuverability
- 860 mm arm extension radius for extended procedural reach
Multi-Specialty Adaptability
- 3-file zoom system (6X, 10X, 16X magnification options)
- Suitable for ENT, general surgery, gynecology, and ophthalmology
- Interchangeable objectives and optional components available
Tailored Configurations
- Optional objectives and specialized components for specific applications
- OEM customization and integration support available
- Adjustable inter-pupillary distance (50–70 mm) for operator comfort
Technical specifications
| Indications | ENT, general surgery, gynecology, ophthalmic procedures |
|---|---|
| Magnification | 6X, 10X, 16X |
| Eyepiece magnification | 12.5× |
| Visual adjustment range | ±5 D |
| Inter-pupillary distance | 50–70 mm |
| Objective focal length | 200 mm |
| Working distance | 190 mm |
| Arm extension radius | 860 mm |
| Vertical adjustment range | 850–1100 mm (ground to large objective) |
| Illumination source | 12V / 100W cold reflective medical halogen lamp |
| Illumination type | Coaxial and surface illumination |
| Illumination intensity | ≥10,000 lux |
| Light angle | 6° cold light |
| Power supply | AC 220V / 110V |
| Power consumption | 120 VA |
| Frequency | 50Hz / 60Hz |
| Fuse rating | AC 250V T1.25A, AC 125V T2.5A |
| Material | Precision metal arm with multilayer coated optics |
| Design features | Compact, lightweight; 3-file zoom system; spring balance adjustment |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main microscope body | Complete surgical microscope unit with spring balance system | 1 |
| Objective turret | 3-file zoom system with 6X, 10X, 16X magnification | 1 |
| Eyepiece assembly | 12.5× magnification with ±5 D visual adjustment | 1 |
| Illumination system | 12V / 100W cold reflective halogen lamp with coaxial and surface modes | 1 |
| Arm and stand | Precision metal arm with 860 mm extension radius and vertical adjustment | 1 |
| Power supply unit | AC 220V / 110V, 120 VA with integrated fuse protection | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the NEU20P's suitability for your surgical facility and explore customization options. We offer competitive pricing, flexible delivery schedules, and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
