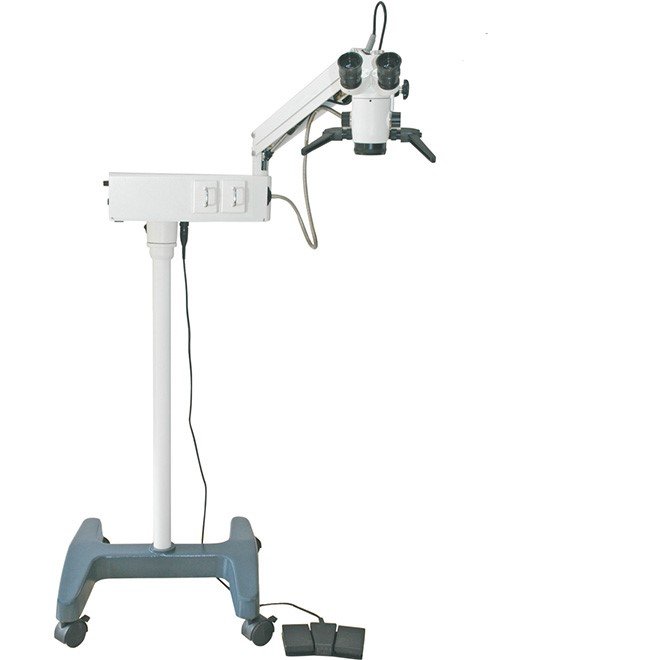

Multi-section Ophthalmic Operation Microscope NEU20P5
- High-precision Multi-section Ophthalmic Operation Microscope NEU20P5
- Eyepiece Magnification: 12.5× for enhanced visibility
- Multiple magnifications: 5.3×, 8×, and 12× for various applications
- Adjustable pupil distance (50mm - 80mm) for user comfort
- Coaxial cold light source illumination with ≥30000lx brightness
- Fine focusing range of 30mm for accurate adjustments
- Maximal resolution of 100LP/mm for detailed imaging
- Versatile working distance of 190mm for flexibility in procedures
- Optional accessories include video devices and various eyepieces
- Total gross weight: 41kg, ensuring stability and durability in operation
- SKU
- NEU20P5
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Multi-section Ophthalmic Operation Microscope NEU20P5
High-precision surgical microscope engineered for ophthalmic procedures with exceptional optical clarity and ergonomic design. Features 12.5× eyepiece magnification, multiple objective magnifications, and coaxial cold light illumination exceeding 30,000 lux for superior visualization during delicate eye surgery.
Clinical overview
The NEU20P5 is a precision ophthalmic surgical microscope designed to deliver exceptional optical performance and ergonomic comfort during complex eye procedures. With a 12.5× eyepiece magnification and selectable objective magnifications of 5.3×, 8×, and 12×, surgeons gain flexible magnification control for procedures ranging from anterior segment work to detailed posterior segment visualization. The microscope's 190mm working distance provides ample space for instrument manipulation while maintaining optimal visualization.
Advanced coaxial cold light illumination with brightness exceeding 30,000 lux ensures superior tissue visualization without thermal stress. The adjustable pupil distance range of 50–80mm accommodates diverse user anatomies, while the fine focusing range of 30mm enables precise depth control. With maximal optical resolution of 100 LP/mm and a robust 41kg construction, the NEU20P5 delivers stability and durability essential for demanding surgical environments.
Key features & surgeon benefits
Superior Magnification & Resolution
- 12.5× eyepiece with 5.3×, 8×, 12× objective magnifications
- 100 LP/mm maximal resolution for detailed tissue visualization
- Multiple field diameters (37mm, 25mm, 16.7mm) for procedural flexibility
Coaxial Cold Light Excellence
- ≥30,000 lux brightness for superior visualization
- 6°+0° coaxial cold light source eliminates thermal stress
- 12V/100W medical-grade halogen lamp for consistent performance
Surgeon Comfort & Control
- Adjustable pupil distance: 50–80mm for personalized fit
- Fine focusing range of 30mm for precise depth control
- 190mm working distance accommodates diverse surgical approaches
Modular & Expandable Design
- Optional 10× eyepiece for enhanced magnification
- Video integration: 1/2″ or 1/4″ CCD camera compatibility
- Specialized adapters for ENT and multi-specialty use
Technical specifications
| Eyepiece Magnification | 12.5× |
|---|---|
| Objective Lens | f=200 |
| Magnifications (Main) | 5.3×, 8×, 12× |
| Field Diameters | F37mm, F25mm, F16.7mm |
| Working Distance | 190mm |
| Adjustable Diopter | ±7D |
| Pupil Distance Range | 50–80mm |
| Maximal Resolution | 100 LP/mm |
| Illumination Source | 12V/100W medical cold reflection halogen lamp |
| Illumination Type | 6°+0° Coaxial cold light source |
| Coaxial Illumination Brightness | ≥30,000 lux |
| Arm Reaching Radius | 870mm |
| Vertical Adjustment Range | 700–1100mm |
| Fine Focusing Range | 30mm |
| Voltage | AC 220V±22V / 50Hz±1Hz or AC 110V±11V / 60Hz±1Hz |
| Power Consumption | 120VA |
| Fuse | AC 250V T1.25A or AC 125V T2.5A |
| Electrical Safety Standard | GB9706.1-2007, Type I |
| Packing Volume | 0.2 m³ (1 carton) |
| Total Gross Weight | 41 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Microscope Unit | Multi-section ophthalmic operation microscope with integrated illumination | 1 |
| Eyepieces | 12.5× magnification binocular eyepieces | 1 pair |
| Objective Turret | Multi-magnification objective lens assembly (5.3×, 8×, 12×) | 1 |
| Illumination System | 12V/100W halogen lamp with coaxial cold light delivery | 1 |
| Arm & Support | Precision articulated arm with 870mm reach radius | 1 |
| Focusing Mechanism | Fine focus control with 30mm adjustment range | 1 |
| Power Supply | AC mains adapter (dual voltage: 110V/220V) | 1 |
