Ophthalmic A/B Scan NEUYZ09
- Dual functionality: A/B scanning for comprehensive eye evaluations
- High-frequency B scan at 10MHz with noiseless magnetic drive
- Real-time magnification with multi-continuous options
- High resolution: Lateral ≤0.3mm and Vertical ≤0.2mm
- A scan depth capability up to 40mm with ±0.05 mm precision
- Multiple IOL formula compatibility including SRK-II and HOFFER-Q
- Storage for up to 10 scanning results per eye
- User-friendly interface with customizable report templates
- Image output in AVI and JPG formats for easy review
- Compatible with Windows XP, VISTA, and Windows 7 systems
- SKU
- NEUYZ09
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Ophthalmic A/B Scan NEUYZ09
Comprehensive dual-mode ultrasound scanning system for precise anterior and posterior segment evaluation. High-frequency 10MHz B-scan with noiseless magnetic drive and advanced A-scan biometry for IOL calculations and comprehensive eye measurements.
Clinical overview
The NEUYZ09 is a dual-mode ophthalmic ultrasound scanner combining high-resolution B-scan imaging with precise A-scan biometry in a single integrated platform. The 10MHz B-scan delivers exceptional lateral (≤0.3mm) and vertical (≤0.2mm) resolution with real-time magnification, enabling detailed visualization of vitreous body, retina, and posterior segment pathology. The noiseless magnetic drive ensures stable, artifact-free imaging for reliable clinical assessment.
The A-scan module provides accurate biometric measurements with ±0.05mm precision across a 40mm depth range, supporting multiple IOL calculation formulas (SRK-II, SRK-T, HOFFER-Q, HOLLADAY, BINKHORST-II, HAIGIS) for comprehensive cataract and refractive surgery planning. Storage capacity for up to 10 scanning results per eye, combined with customizable report templates and multi-format image export (AVI, JPG), streamlines clinical workflow and documentation.
Key features & surgeon benefits
High-Resolution B-Scan
- 10MHz frequency with noiseless magnetic drive
- Lateral ≤0.3mm and vertical ≤0.2mm resolution
- 53° sector scanning angle for comprehensive coverage
- 256 gray scale with multi-color false color and OCT modes
- Real-time multi-continuous magnification
Precision A-Scan Measurements
- ±0.05mm precision across 40mm depth
- Anterior chamber depth, lens thickness, vitreous length
- Six IOL formula compatibility for accurate power calculations
- Phakic, aphakic, and dense cataract modes
- Statistical analysis with average and standard deviation
Integrated Clinical Platform
- Dual display modes: B, B+B, B+A, A for flexible viewing
- Storage for 10 scanning results per eye
- Multi-keyword case search and preset keywords
- User-defined report templates for standardized documentation
- 100-image movie review capability
Advanced Image Processing
- Multiple curve processing and pseudo-color processing
- Multigroup distance, perimeter, and area measurements
- AVI and JPG format export for easy sharing and archiving
- Windows XP, VISTA, and Windows 7 compatible
- Probe gain adjustment 30dB–105dB
Technical specifications
| B-Scan Frequency | 10MHz, magnetic driven, noiseless |
|---|---|
| B-Scan Resolution | Lateral ≤0.3mm; Vertical ≤0.2mm |
| B-Scan Depth | 60mm |
| B-Scan Angle | 53° |
| B-Scan Magnification | Multi-continuous real-time magnification |
| A-Scan Frequency | 10MHz with LED |
| A-Scan Depth | 40mm |
| A-Scan Precision | ±0.05mm |
| IOL Formulas | SRK-II, SRK-T, HOFFER-Q, HOLLADAY, BINKHORST-II, HAIGIS |
| Gray Scale | 256 levels |
| Display Modes | B, B+B, B+A, A |
| Image Storage | 10 scanning results per eye |
| Image Export | AVI, JPG formats |
| Movie Review | 100 images |
| Operating System | Windows XP, VISTA, Windows 7 |
| Warranty | 2 Year Manufacturer Warranty |

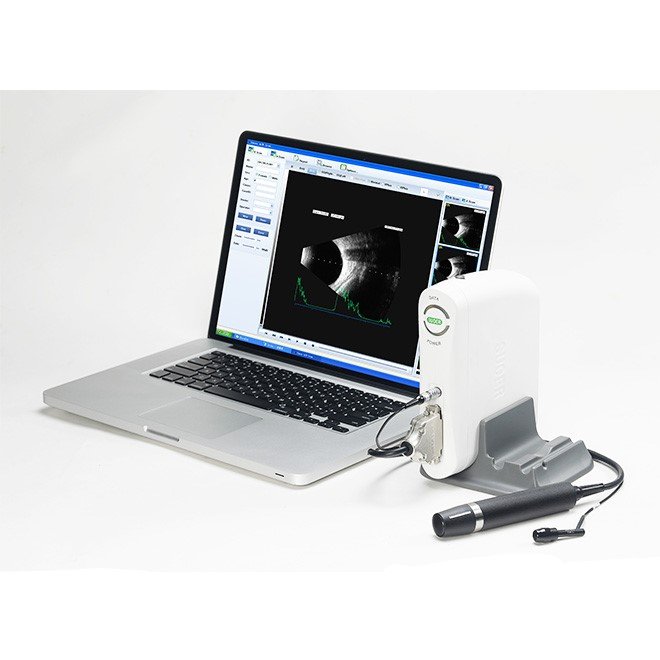

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Ophthalmic A/B Scan Console with integrated display and controls | 1 |
| B-Scan Probe | 10MHz sector scanning probe with magnetic drive | 1 |
| A-Scan Probe | 10MHz A-scan biometry probe with LED | 1 |
| Software | Windows-compatible imaging and analysis software with customizable templates | 1 |
| Power Supply | Medical-grade power adapter and cable | 1 |
| Documentation | User manual, quick reference guide, and technical specifications | 1 |
