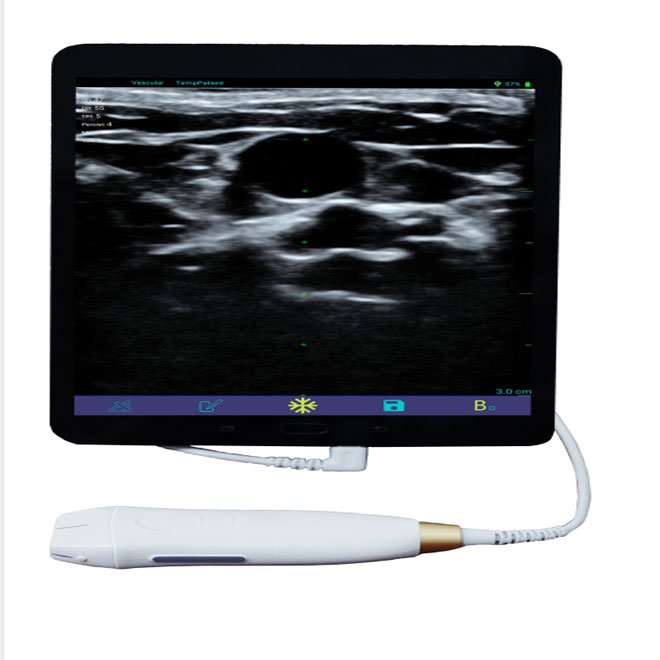

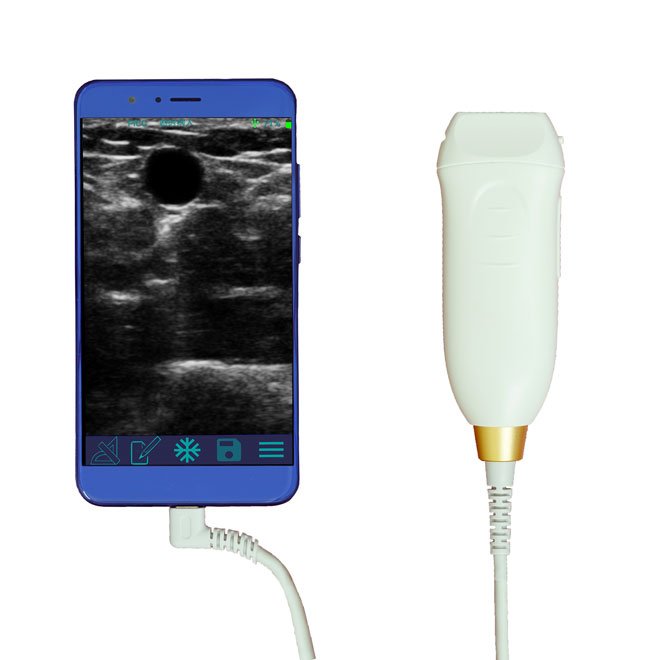

Portable Mini Ultrasound Machine NEUMU09
- Portable Mini Ultrasound Machine NEUMU09
- Features a linear probe for B/W scanning
- 128-element electronic linear array
- Display modes: B, B/B, PW
- Frequency options: 6MHz, 10MHz, 14MHz
- Depth range: 20-70mm
- Measurement capabilities: Distance, Area, Volume, Velocity, Heart Rate, and more
- Compatible with Android and Windows systems
- Applications in vascular, small parts, and musculoskeletal imaging
- Lightweight design at only 130g for enhanced portability
- SKU
- NEUMU09
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Portable Mini Ultrasound Machine NEUMU09
A lightweight, clinically capable portable ultrasound system featuring a 128-element linear probe with multi-frequency imaging. Designed for vascular, small parts, and musculoskeletal applications, the NEUMU09 delivers real-time B-mode and Doppler imaging in a compact 130g form factor compatible with Android and Windows platforms.
Clinical overview
The NEUMU09 is engineered to empower clinical efficiency through state-of-the-art performance and an intuitive user interface. This portable system is optimised for space-constrained environments and designed to provide safe, effective patient care while maximising practice productivity. The 128-element electronic linear array delivers consistent image quality across vascular, small parts, and musculoskeletal applications.
With synchronised TX/RX synthetic beamforming, smart speckle reduction imaging, and ultra-low power consumption design, the NEUMU09 combines innovation with ergonomic functionality. Clinicians benefit from comprehensive measurement capabilities including distance, area, volume, velocity, heart rate, and advanced Doppler indices (S/D, RI, PI), all accessible through a streamlined interface supporting both vertical and horizontal display orientations.
Key features & surgeon benefits
Multi-Frequency Capability
- Three frequency options: 6MHz, 10MHz, 14MHz
- Depth range 20–70mm for precise tissue visualisation
- B-mode, B/B dual-screen, and PW Doppler display modes
Intuitive Operation
- Biopsy midline and gridding guidance
- OB measurement package with quick measurements
- Convenient annotations and massive image/video storage
Portable & Efficient
- Ultra-lightweight at only 130g for enhanced portability
- Ultra-low power consumption design
- Ideal for point-of-care and mobile clinical settings
Platform Flexibility
- Compatible with Android and Windows systems
- DICOM 3.0 support for seamless integration
- Patient management and data storage capabilities
Technical specifications
| Indications | Vascular, small parts, musculoskeletal imaging; human and veterinary applications |
|---|---|
| Probe Type | Linear array, B/W scanning |
| Array Elements | 128-element electronic linear array |
| Display Modes | B, B/B, PW (Pulsed Wave Doppler) |
| Frequency Options | 6MHz, 10MHz, 14MHz |
| Depth Range | 20–70mm |
| Frame Rate | 13–20 FPS |
| Measurements | Distance, Area, Volume, Ratio, Velocity (PW), Heart Rate (PW), S/D, RI, PI (PW) |
| Operating Systems | Android, Windows |
| Weight | 130g |
| Packing Dimensions | 230mm × 110mm × 65mm |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NEUMU09 Ultrasound System | Portable mini ultrasound machine with 128-element linear probe | 1 |

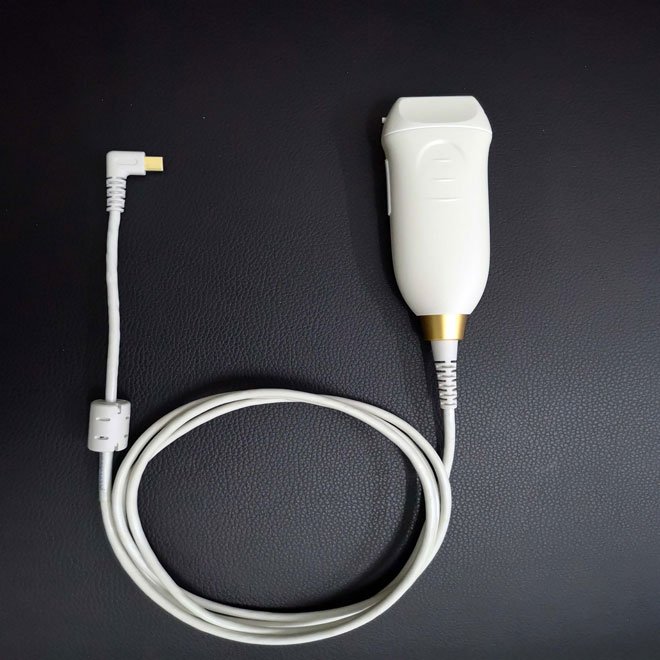

| Linear Probe | 128-element electronic linear array, multi-frequency (6/10/14MHz) | 1 |
| USB Cable | Connection cable for Android/Windows compatibility | 1 |
| Carrying Case | Protective transport case | 1 |
