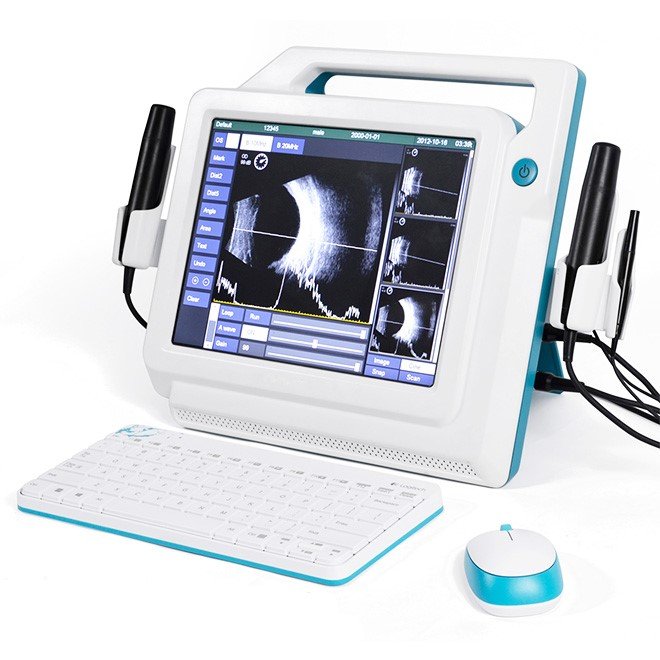

Portable Ultrasonic A/B Scanner for Ophthalmology NEUMD23S
- Portable ultrasonic A/B scanner designed for ophthalmology
- B-mode and A-mode scanning capabilities
- Adjustable display depth range (10MHz: 28mm~60mm; 20MHz: 19mm~40mm)
- High-quality imaging with 256 grey scale levels
- Records and saves up to 100 images for easy review
- Accurate biometric measuring with ±0.05mm precision
- Supports multiple IOL calculation formulas including SRK-T and Hoffer-Q
- Compliance with IEC60601 electrical safety standards
- Dynamic loop playback feature for enhanced image analysis
- User-friendly interface with adjustable gain and measurement modes
- SKU
- NEUMD23S
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Portable Ultrasonic A/B Scanner for Ophthalmology NEUMD23S
Advanced portable ultrasonic scanner combining B-mode and A-mode capabilities for comprehensive ocular biometry and imaging. Delivers high-resolution imaging with 256 grey scale levels, precise axial length measurement to ±0.05mm, and integrated IOL calculation formulas for cataract and refractive surgery planning.
Clinical overview
The NEUMD23S is a portable ultrasonic A/B scanner engineered for comprehensive ophthalmic diagnostics and biometric measurement. The dual-mode architecture enables both B-mode sector scanning for anatomical imaging and A-mode for precise axial length quantification. Mechanical sector scanning at 53° provides detailed cross-sectional views of anterior and posterior segment structures, while adjustable display depth ranges accommodate both standard and post-surgical eyes.
With measurement accuracy of ±0.05mm and support for six IOL calculation formulas (SRK-T, SRK-II, BINK-II, Holladay, Hoffer-Q, and Haigis), the scanner delivers clinically reliable data for cataract surgery planning and post-refractive surgery assessment. The integrated dynamic loop playback and frame-averaging technology enhance diagnostic confidence, while the 100-image storage capacity supports efficient workflow and patient record documentation.
Key features & surgeon benefits
High-Resolution Dual-Mode Scanning
- 256 grey scale levels for superior image contrast
- Axial resolution: 0.1mm (10MHz), 0.08mm (20MHz)
- Lateral resolution: 0.2mm (10MHz), 0.15mm (20MHz)
- 10 fps frame rate with dynamic loop playback
Precision Biometry & IOL Calculation
- ±0.05mm axial length measurement accuracy
- Six integrated IOL calculation formulas
- Automatic 10-group averaging with standard deviation
- Support for post-refractive surgery calculations
User-Centric Design & Controls
- 100-image storage for rapid review and comparison
- Five measuring modes (Normal, Aphakic, Special, Cataract, Manual)
- Adjustable gain (1–105dB) and TGC with 6-section control
- Immersion and contact measurement methods
Comprehensive Diagnostic Capability
- Dual probe frequencies (10MHz and 20MHz)
- Variable delayed depth for precise focal zone positioning
- Frame-averaging, pseudo-color, and gamma correction processing
- Up to 8 IOL constant storage for multi-vendor lens libraries
Technical specifications
| Indications | Ocular biometry, axial length measurement, IOL power calculation, cataract evaluation, post-refractive surgery assessment |
|---|---|
| Scanning Method | Mechanical sector scan, 53° angle |
| Display Modes | B-mode, B+A combined |
| Display Depth Range | 10MHz: 28–60mm; 20MHz: 19–40mm |
| Axial Length Range | 15–40mm |
| Measurement Accuracy | ±0.05mm |
| Axial Resolution | 10MHz: ≤0.1mm; 20MHz: ≤0.08mm |
| Lateral Resolution | 10MHz: ≤0.2mm; 20MHz: ≤0.15mm |
| Grey Scale Levels | 256 |
| Frame Rate | 10 fps |
| Gain Control | 1–105dB; user adjustable 1–60dB |
| TGC Range | −20dB to +20dB, 6-section adjustable |
| Image Storage | 100 images |
| Dynamic Loop | 10 seconds / 100 images, loop or frame-by-frame playback |
| IOL Calculation Formulas | SRK-T, SRK-II, BINK-II, Holladay, Hoffer-Q, Haigis |
| IOL Constants Storage | Up to 8 groups |
| Measuring Modes | Normal, Aphakic, Special, Cataract, Manual |
| Measurement Methods | Immersion and contact |
| Image Processing | Frame-averaging, pseudo-color codes, gamma correction |
| Safety Compliance | IEC60601-1, IEC60601-1-2, IEC60601-2-37 |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Portable ultrasonic A/B scanner with integrated display and controls | 1 |
| 10MHz Probe | Mechanical sector scanning probe for standard biometry | 1 |
| 20MHz Probe | High-frequency probe for enhanced resolution imaging | 1 |
| Power Supply | Medical-grade AC adapter with international voltage support | 1 |
| Coupling Gel | Sterile ultrasonic coupling medium | 1 bottle |
| Probe Covers | Sterile probe sheaths for contact measurement | 10 |
| User Manual | Comprehensive operating and maintenance guide | 1 |
| Carrying Case | Protective transport case with foam insert | 1 |
