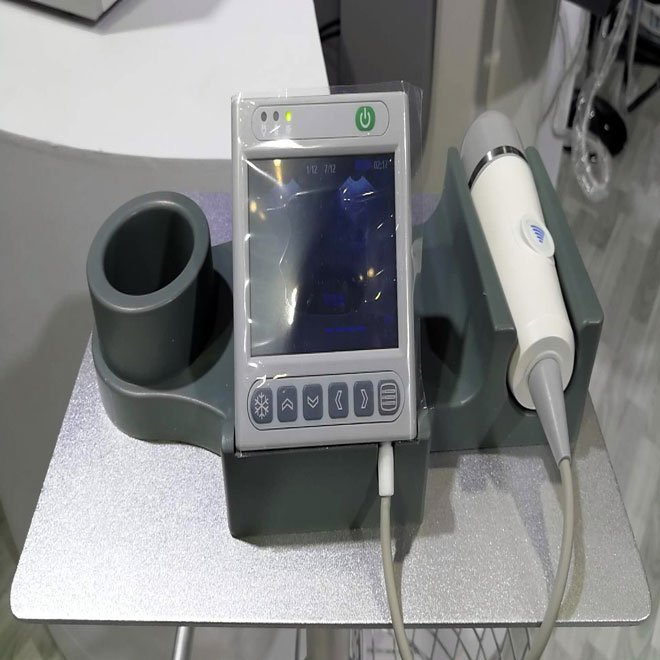

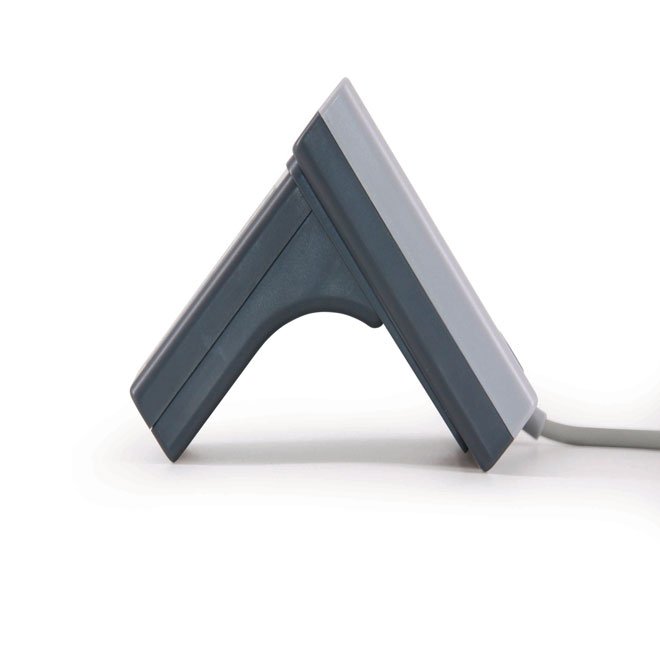

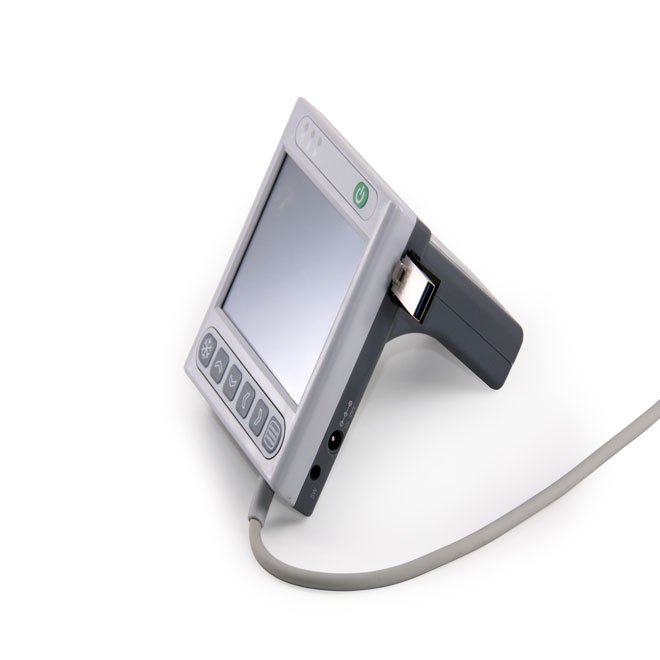

Portable Ultrasound Bladder Scanner NEUPU43
- Portable Ultrasound Bladder Scanner NEUPU43 with a compact design.
- 3.5” LCD monitor for clear image display.
- Equipped with a 5MHZ 3D probe for accurate bladder imaging.
- Supports dual language function: English and Chinese.
- Battery-powered for mobility and convenience (approx. 750g weight).
- Features urine volume measurement and patient type selection.
- Energy-saving mode and adjustable image contrast.
- Alarm volume prompt for user notifications.
- Includes OTG U disk for data storage and transfer.
- Standard accessories include power supply adapter and internal battery.
- SKU
- NEUPU43
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Portable Ultrasound Bladder Scanner NEUPU43
Compact, battery-powered portable ultrasound bladder scanner with 3.5" LCD display and 5MHz 3D probe for accurate urine volume measurement. Dual-language interface (English/Chinese), energy-saving mode, and OTG data storage for point-of-care urinary assessment in clinical and home settings.
Clinical overview
The NEUPU43 is a portable ultrasound bladder scanner designed for rapid, non-invasive assessment of urinary bladder volume in clinical and community settings. The device employs a 5MHz 3D probe to deliver high-resolution imaging on a 3.5" LCD monitor, enabling accurate measurement of post-void residual (PVR) urine and detection of urinary retention. Weighing approximately 750g and powered by an internal rechargeable battery, the NEUPU43 offers clinicians and caregivers a lightweight, mobile solution for point-of-care urological assessment without the need for stationary ultrasound infrastructure.
Dual-language functionality (English and Chinese), adjustable image contrast, and patient type selection enhance usability across diverse clinical environments. The integrated energy-saving mode extends battery life during extended clinical shifts, while the OTG U disk interface facilitates secure data storage and transfer for patient records and quality assurance audits.
Key features & surgeon benefits
Lightweight, Battery-Powered Design
- Compact 750g unit with internal rechargeable battery
- No mains power required; ideal for ward rounds and home visits
- Rapid deployment in emergency and acute care settings
High-Resolution 5MHz 3D Probe
- Accurate bladder volume measurement and morphology assessment
- 3.5" LCD display with adjustable contrast for optimal visualisation
- Real-time imaging with minimal training curve
Intuitive Interface & Multi-Language Support
- Dual-language operation (English and Chinese)
- Patient type selection and automated measurement protocols
- Alarm volume prompt and system date/time display for workflow integration
OTG Storage & Energy Efficiency
- OTG U disk interface for secure patient data archiving
- Energy-saving mode extends operational battery life
- Probe protection function and system diagnostics
Technical specifications
| Indications | Bladder volume assessment, post-void residual measurement, urinary retention monitoring, point-of-care urological screening |
|---|---|
| Display | 3.5" LCD monitor |
| Probe | 5MHz 3D ultrasound probe |
| Main unit dimensions | 90 × 98 × 25 mm (L × W × H) |
| Weight | Approximately 750g (including battery and probe) |
| Power supply | Internal rechargeable battery; AC adapter 100–110V/240V~, 1.2–0.6A, 50–60Hz (output: DC 12.8V, 3.0A) |
| Main device rating | DC 12V, 3.0A |
| Languages | English and Chinese |

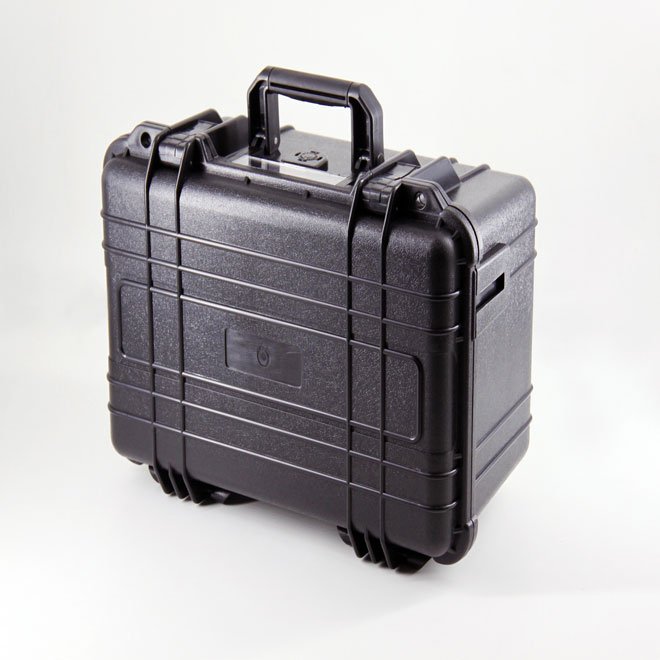

| Packaging | Protective carrying case with accessories |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main unit | Portable ultrasound bladder scanner with 3.5" LCD display | 1 |
| 5MHz 3D probe | Ultrasound transducer for bladder imaging | 1 |
| Power supply adapter | AC adapter 100–110V/240V~, output DC 12.8V 3.0A | 1 |
| Internal battery | Rechargeable lithium-ion battery | 1 |
| OTG U disk | USB storage for patient data and system records | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, OEM customisation, and delivery timelines for the NEUPU43 portable ultrasound bladder scanner.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
