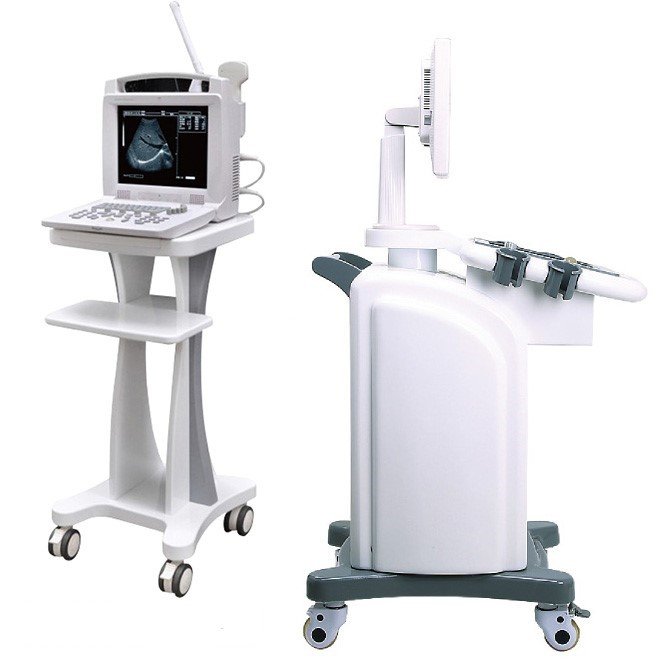

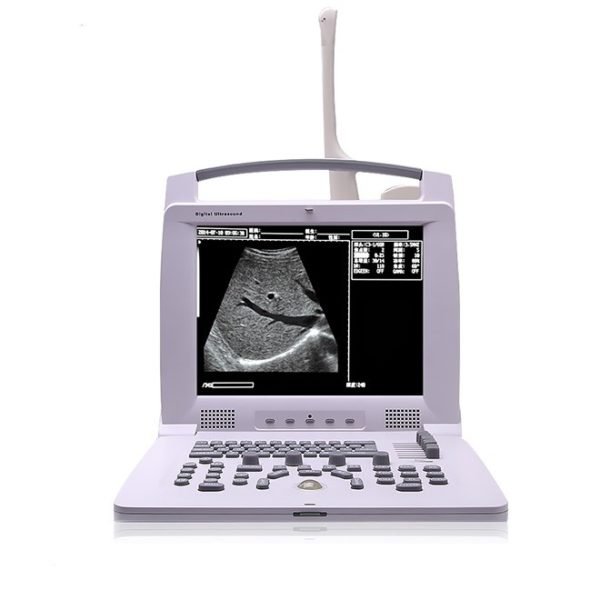

Portable Ultrasound Scanner NEUPU49
- High-resolution portable ultrasound scanner
- Real-time dynamic image processing technologies
- 12" imported LCD monitor for clear display
- Supports multiple probe types: convex, linear, trans-vaginal
- Adjustable scan depth from 40mm to 240mm
- Image storage capacity of up to 32 frames
- 256 levels of grayscale for enhanced image quality
- Variety of measurement functions including distance and volume
- Compact and lightweight design for easy portability
- Standard includes charger, gel, and user manual
- SKU
- NEUPU49
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Portable Ultrasound Scanner NEUPU49
Advanced High-Resolution Diagnostic Imaging System
Experience professional-grade ultrasound imaging with the NEUPU49, featuring advanced digital beam-forming, real-time dynamic processing, and a 12-inch LCD monitor. This versatile diagnostic system supports multiple probe configurations and delivers exceptional image clarity with 256 grayscale levels for comprehensive clinical applications.
Clinical Overview
The NEUPU49 Portable Ultrasound Scanner represents a breakthrough in mobile diagnostic imaging technology, combining professional-grade performance with exceptional portability. This convex linear ultrasound scanning diagnostic system delivers high-resolution imaging through advanced micro-computer control and cutting-edge digital signal processing technologies including digital scan converter (DSC), digital beam-forming (DBF), and real-time dynamic aperture (RDA) capabilities.
Designed for clinical versatility, the NEUPU49 integrates sophisticated imaging technologies such as real-time dynamic receiving apodization, real-time dynamic receiving focusing (DRF), digital frequency scan (DFS), and 8-segment digital TGC with frame correlation processing. These advanced features work in concert to ensure exceptional image clarity, stability, and high resolution across all clinical applications, making it an indispensable tool for modern diagnostic facilities, mobile clinics, emergency departments, and point-of-care imaging scenarios.
Key Features & Surgeon Benefits
Advanced Digital Signal Processing
- Digital beam-forming (DBF) for superior image reconstruction
- 256 grayscale levels for enhanced contrast and detail
- Real-time dynamic aperture and frame correlation processing
Multi-Probe Flexibility
- Dual probe connectors for rapid transducer switching
- Support for convex, linear, and trans-vaginal probes
- Frequency range 2.5MHz–8.5MHz for diverse applications
Professional Performance at Accessible Cost
- Console-grade imaging in portable form factor
- Comprehensive measurement package included
- Minimal maintenance and long-term reliability
True Mobile Capability
- Lightweight, compact design for bedside and field use
- Extensive cine loop (809 frames) for dynamic review
- Real-time PC connectivity for EMR integration
Technical Specifications
| Indications | Obstetrics, gynecology, cardiology, abdominal imaging, emergency medicine, musculoskeletal, vascular studies, interventional guidance, primary care |
|---|---|
| Probe Frequencies | 2.5MHz, 3.5MHz, 5.0MHz (convex); 6.5MHz, 7.5MHz, 8.5MHz (linear); 5.5MHz–7.5MHz (trans-vaginal) |
| Scan Depth Range | 40mm–240mm (16 adjustable levels) |
| Display Depth | 240mm maximum |
| Detection Depth | ≥160mm (3.5MHz convex), ≥80mm (7.5MHz linear), ≥60mm (6.5MHz trans-vaginal) |
| Lateral Resolution | ≤2mm (depth ≤80mm), ≤3mm (80–130mm) for convex; ≤1mm (depth ≤60mm) for linear |
| Axial Resolution | ≤2mm (depth ≤80mm), ≤3mm (80–130mm) for convex; ≤1mm (depth ≤60mm) for linear |
| Blind Zone | ≤5mm (convex), ≤3mm (linear), ≤7mm (trans-vaginal) |
| Monitor | 12-inch imported LCD display |
| Display Modes | B, B+B, B+M, M, 4B |
| Grayscale Levels | 256 levels |
| Cine Loop Capacity | 809 frames maximum |
| Image Storage | 32 frames permanent storage |
| Probe Elements | 96 elements |
| Probe Connectors | 2 connectors |
| Dynamic Range | 100dB–130dB |
| Focus Positions | 5 adjustable levels |
| Video Output | PAL-D, VGA |
| Power Supply | AC 110V/220V ± 22V, 50MHz ± 1MHz |
| Measurement Functions | Distance, circumference, area, volume, heart rate; obstetric calculations (GA, FW, EDD) |
| Sterilisation | Probes: standard disinfection; main unit: non-sterile |
| Warranty | 2 Year Manufacturer Warranty |
Standard Instrument Composition
| Item | Description | Qty |
|---|---|---|
| Scanner Body | NEUPU49 main unit with 12-inch LCD display and control panel | 1 |
| Convex Probe | 3.5MHz convex transducer for abdominal and obstetric imaging | 1 |
| Charger with Wire Set | Complete AC power adapter and connection cables | 1 set |
| Ultrasound Gel | Standard medical-grade coupling gel bottle | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
Get in Touch for Pricing & Availability
Contact our sales team to discuss pricing, optional probe configurations, and delivery timelines. We offer flexible purchasing options and comprehensive technical support for all NEUPU49 systems.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
