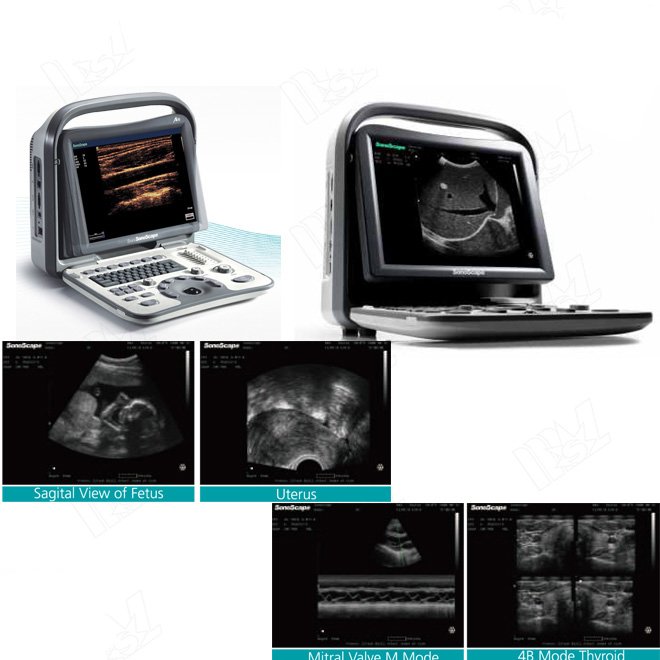

Portable Ultrasound SonoScape A5
- Portable and compact design for easy transport
- Open size: 336×385×345 mm; closed size: 336×150×345 mm
- 12" high-resolution LCD color monitor with a 30° adjustable angle
- Equipped with two transducer connectors for versatility
- 4 GB storage capacity for efficient data management
- Multiple imaging modes: B, 2B, M, B+M
- Full digital beam former for enhanced image quality
- Includes a standard configured transducer: 96 elements convex array C352
- Ideal for abdominal, obstetrics, and gynecology applications
- Connectivity options: USB 2.0, VGA, and S-Video
- SKU
- A5
- Brand
- SonoScape
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
SonoScape A5 Portable Ultrasound
Professional-grade portable ultrasound system featuring a 12-inch high-resolution LCD display and full digital beam former technology. Designed for comprehensive diagnostic imaging in abdominal, obstetric, and gynecological applications with true portability and dual transducer support.
Clinical overview
The SonoScape A5 is a professional portable ultrasound system engineered for clinicians who require diagnostic-quality imaging without the constraints of cart-based equipment. Its innovative foldable design delivers a full-featured workstation that opens to 336×385×345 mm for comprehensive examinations, yet collapses to just 336×150×345 mm for transport between clinical settings, patient bedsides, and remote locations.
Equipped with a 12-inch high-resolution LCD color monitor featuring a 30° adjustable viewing angle, the A5 provides exceptional image clarity and ergonomic flexibility. The full digital beam former technology—identical to that found in premium cart-based systems—ensures diagnostic-quality images across all examination depths. Dual transducer connectors eliminate probe-swapping delays, allowing seamless switching between the standard 96-element convex array C352 (3–8 MHz, R60mm) and additional compatible probes. With 4 GB internal storage, USB 2.0, VGA, and S-Video connectivity, the A5 integrates seamlessly into hospital workflows and PACS systems while maintaining true point-of-care portability.
Key features & surgeon benefits
Multiple Imaging Modes
- B-mode for standard 2D anatomical imaging
- 2B mode for simultaneous dual-probe comparison
- M-mode for motion and cardiac assessment
- B+M combined mode for comprehensive evaluation
Dual Transducer Efficiency
- Two simultaneous transducer connections eliminate probe swapping
- Instant switching between different probe types
- Reduced examination time and improved patient comfort
- Supports convex, linear, and endocavity probes
Cost-Effective Portability
- Single portable unit replaces multiple cart-based systems
- Reduces capital expenditure for multi-location practices
- Enables home healthcare and mobile clinic deployment
- Lower operational costs with integrated storage and connectivity
Premium Visualization
- 12-inch high-resolution LCD color monitor with anti-glare coating
- 30° adjustable viewing angle for ergonomic positioning
- Full digital beam former for superior image resolution
- Consistent diagnostic-quality images across all depths
Technical specifications
| Indications | Abdominal imaging, obstetrics, gynecology, urological studies, emergency medicine, general practice diagnostics |
|---|---|
| Sizes / range | Open: 336×385×345 mm; Closed: 336×150×345 mm; Compact foldable portable design |
| Display | 12-inch high-resolution LCD color monitor with 30° adjustable viewing angle |
| Imaging modes | B, 2B, M, B+M |
| Beam former | Full digital beam former |
| Standard transducer | 96-element convex array C352 (3–8 MHz, R60mm) |
| Transducer connectors | Dual connectors for simultaneous multi-probe support |
| Storage capacity | 4 GB internal memory |
| Connectivity | USB 2.0, VGA, S-Video; DICOM-compatible (optional) |
| Power supply | AC/DC with battery backup option |
| Certifications | FDA, CE, ISO 13485 |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main unit | SonoScape A5 portable ultrasound system with 12-inch LCD display and full digital beam former | 1 |
| Transducer | 96-element convex array C352 (3–8 MHz, R60mm) | 1 |
| Power cable & adapter | AC/DC power supply with international voltage support | 1 |
| Ultrasound gel | Standard acoustic coupling gel | 1 bottle |
| Protective carrying case | Durable transport case with foam insert | 1 |
| User manual | Comprehensive operator and maintenance documentation | 1 |
| Training materials | Video tutorials and quick-start guides | 1 set |
