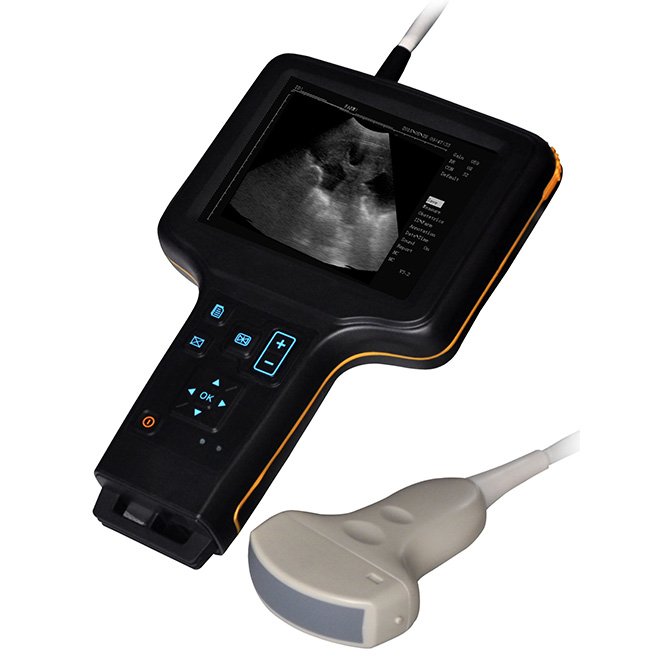

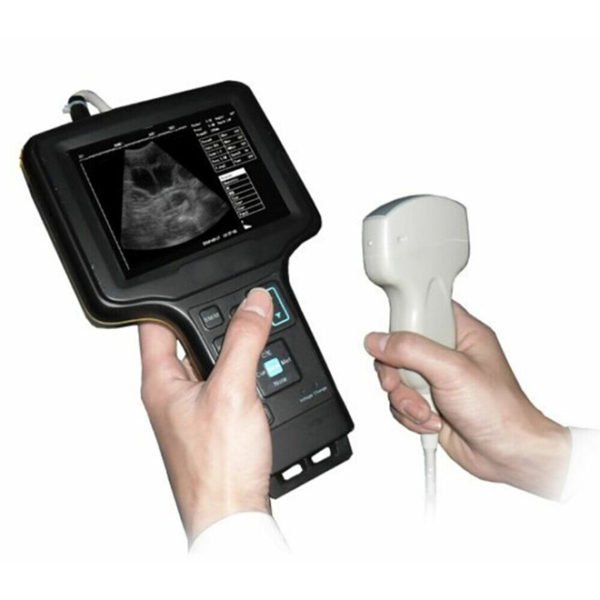

Portable Veterinary Ultrasound Scanner Machine Waterproof NEUVU31
- Portable veterinary ultrasound scanner designed for easy use
- Waterproof design for durability in various environments
- Features a 3.5MHz convex probe for accurate imaging
- 5-inch TFT LCD screen with adjustable brightness
- Scanning modes include B and B+B for versatile imaging options
- Maximum depth of 190mm for thorough examinations
- Lightweight at 850g, including the battery
- Long continuous working time of up to 22 hours
- Image storage capability with a 28 G U-Disk
- Ideal for use with sow, sheep, goat, and other agricultural animals
- SKU
- NEUVU31
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Portable Veterinary Ultrasound Scanner Machine Waterproof NEUVU31
Compact, waterproof portable ultrasound scanner engineered for field and farm use. Features a 3.5MHz convex probe, 5-inch TFT LCD display, and up to 22 hours of continuous operation. Ideal for rapid assessment of livestock including sows, sheep, goats, and other agricultural animals.
Clinical overview

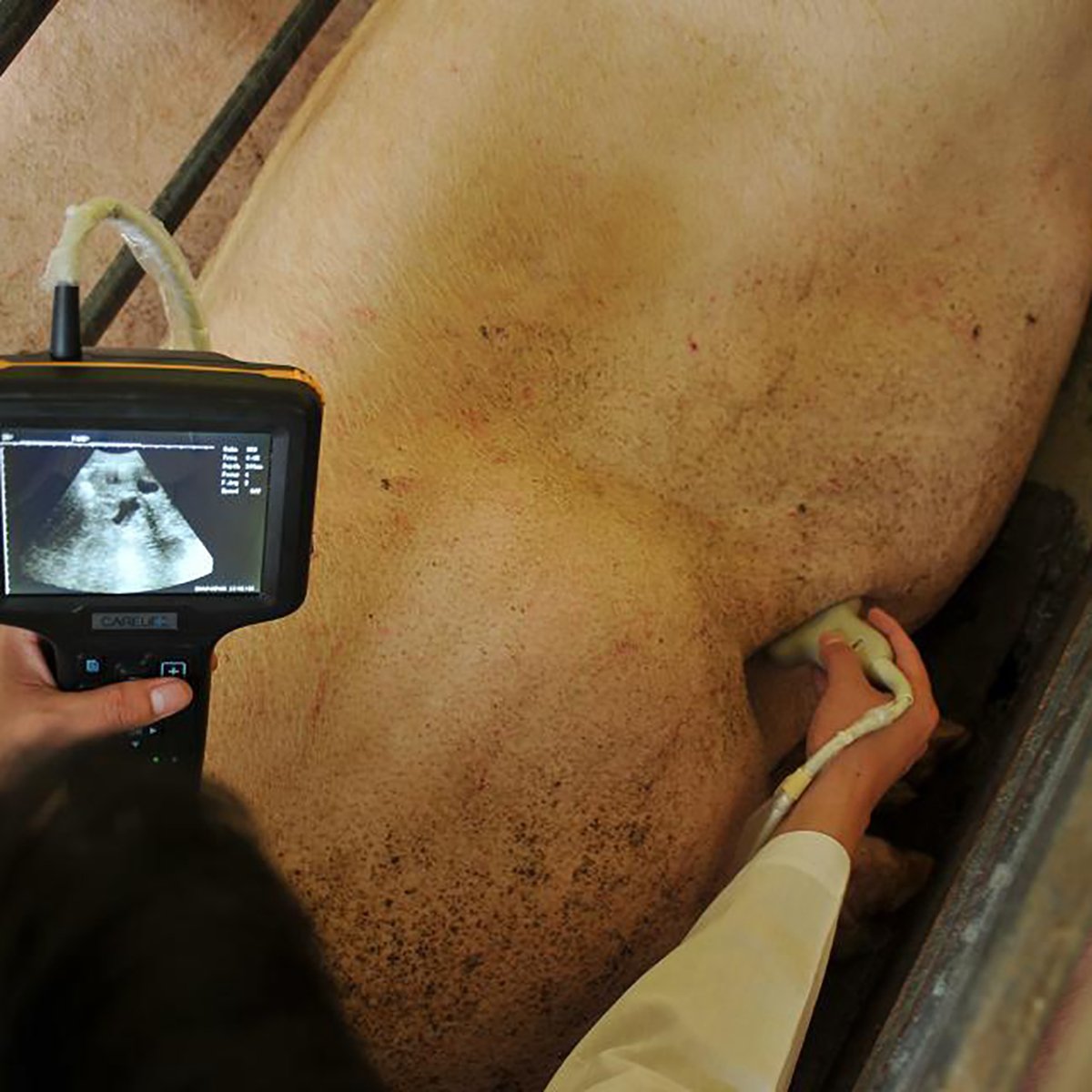

The NEUVU31 is a purpose-built portable ultrasound scanner for veterinary field diagnostics. Its waterproof construction and lightweight design (850g including battery) make it ideal for on-farm use, enabling rapid assessment of pregnancy status, organ pathology, and tissue integrity in livestock. The 5-inch TFT LCD screen with adjustable brightness ensures clear imaging in variable lighting conditions, while dual scanning modes (B and B+B) provide flexibility for different diagnostic scenarios.
With a maximum imaging depth of 190mm and selectable frequencies (2.5MHz, 3.5MHz, 5.0MHz), the NEUVU31 accommodates diverse animal sizes and tissue types. Extended battery life of up to 22 hours supports extended field campaigns, and integrated 28GB storage enables on-site image archiving and review. The system is optimised for use with sows, sheep, goats, and other agricultural species, making it an essential tool for veterinary practitioners in rural and remote settings.
Key features & surgeon benefits
Lightweight Field-Ready Design
- Only 850g including battery — easily carried to remote locations

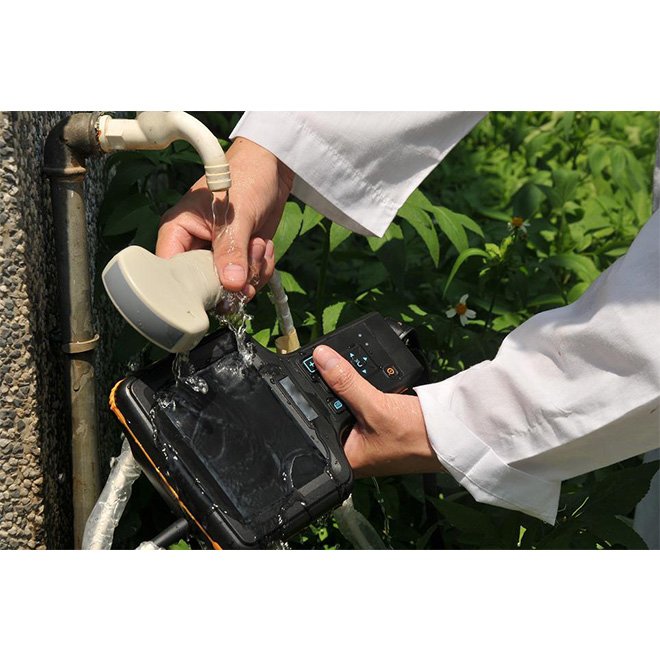

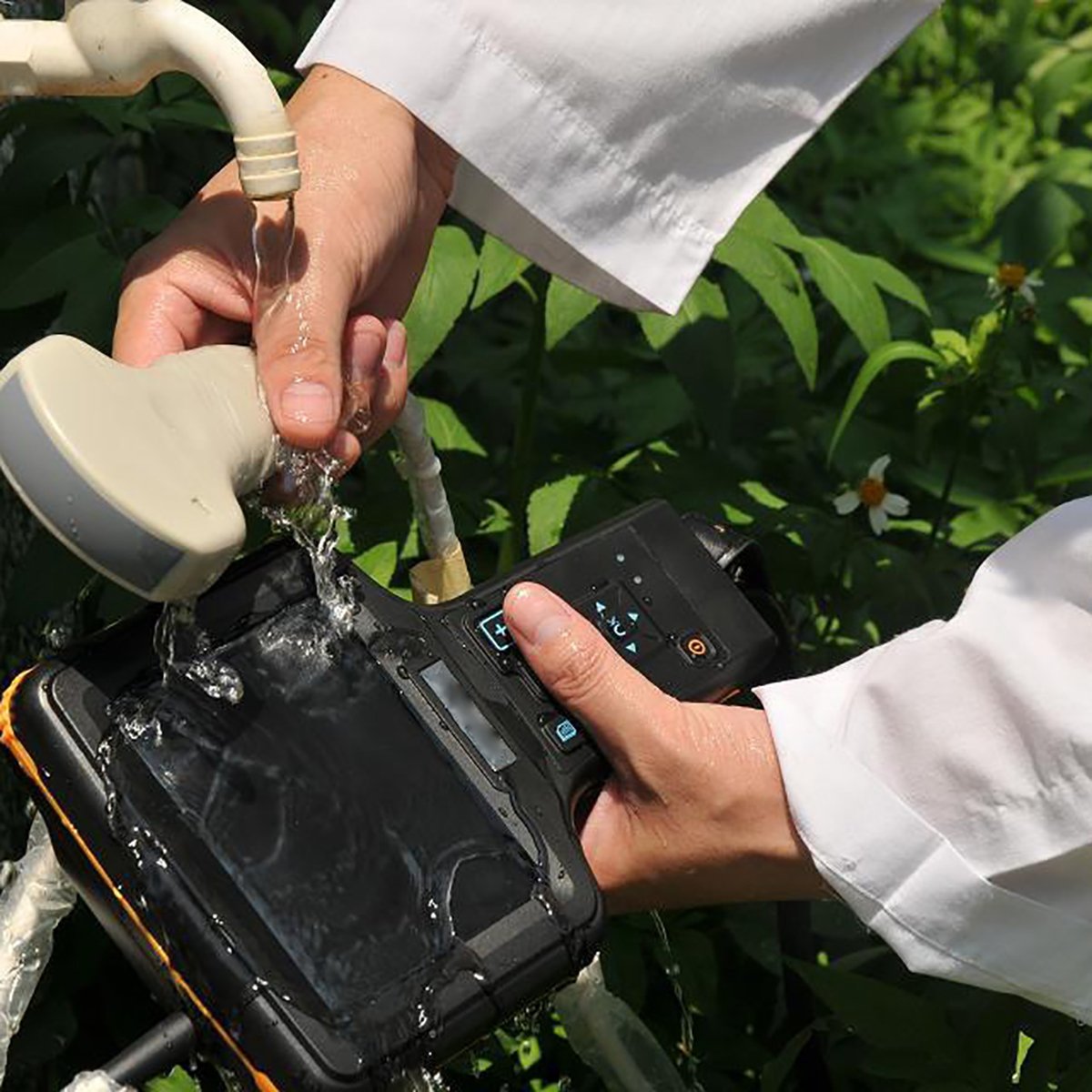

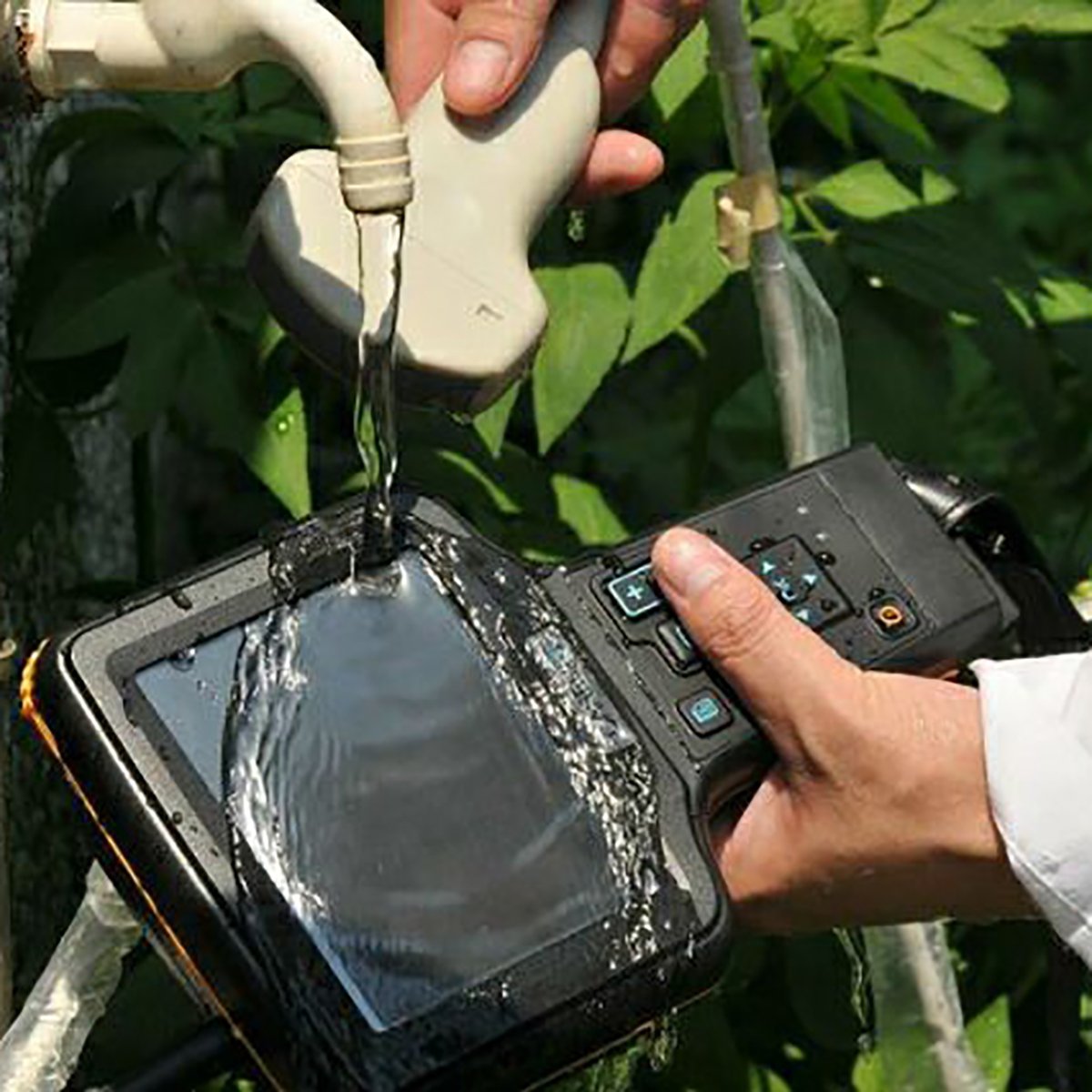

- Waterproof housing withstands farm and outdoor environments
- Compact form factor fits into standard veterinary field kits
Clear, Adjustable Display
- 5-inch TFT LCD screen with brightness adjustment for variable lighting
- B and B+B scanning modes for comprehensive tissue assessment
- 190mm maximum depth suitable for most livestock applications
Extended Operating Time
- Up to 22 hours continuous operation on single charge
- 3000mAH/7.4V battery supports full-day field campaigns
- Rapid charging minimises downtime between uses
Integrated Storage & Connectivity
- 28GB U-Disk storage for on-site image archiving
- USB 2.0 and video ports for data transfer and external display
- Distance, perimeter, area, and volume measurement tools
Technical specifications
| Scanning Mode | Electronic Convex |
|---|---|
| Standard Probe | 3.5MHz Convex |
| Frequency Options | 2.5MHz, 3.5MHz, 5.0MHz |
| Display | 5-inch TFT LCD |
| Display Modes | B, B+B |
| Maximum Depth | 190mm |
| Weight | 850g (battery included) |
| Battery Capacity | 3000mAH / 7.4V |
| Continuous Operating Time | Up to 22 hours |
| Image Storage | 28GB U-Disk |
| Connectivity | USB 2.0, Video output |
| Brightness Control | Adjustable |
| Gain Adjustment | Adjustable (Near, Middle, Far) |
| Measurement Functions | Distance, Perimeter, Area, Volume |
| Applications | Sow, Sheep, Goat, and other livestock |
| Warranty | Main unit 18 months; Probes 12 months |

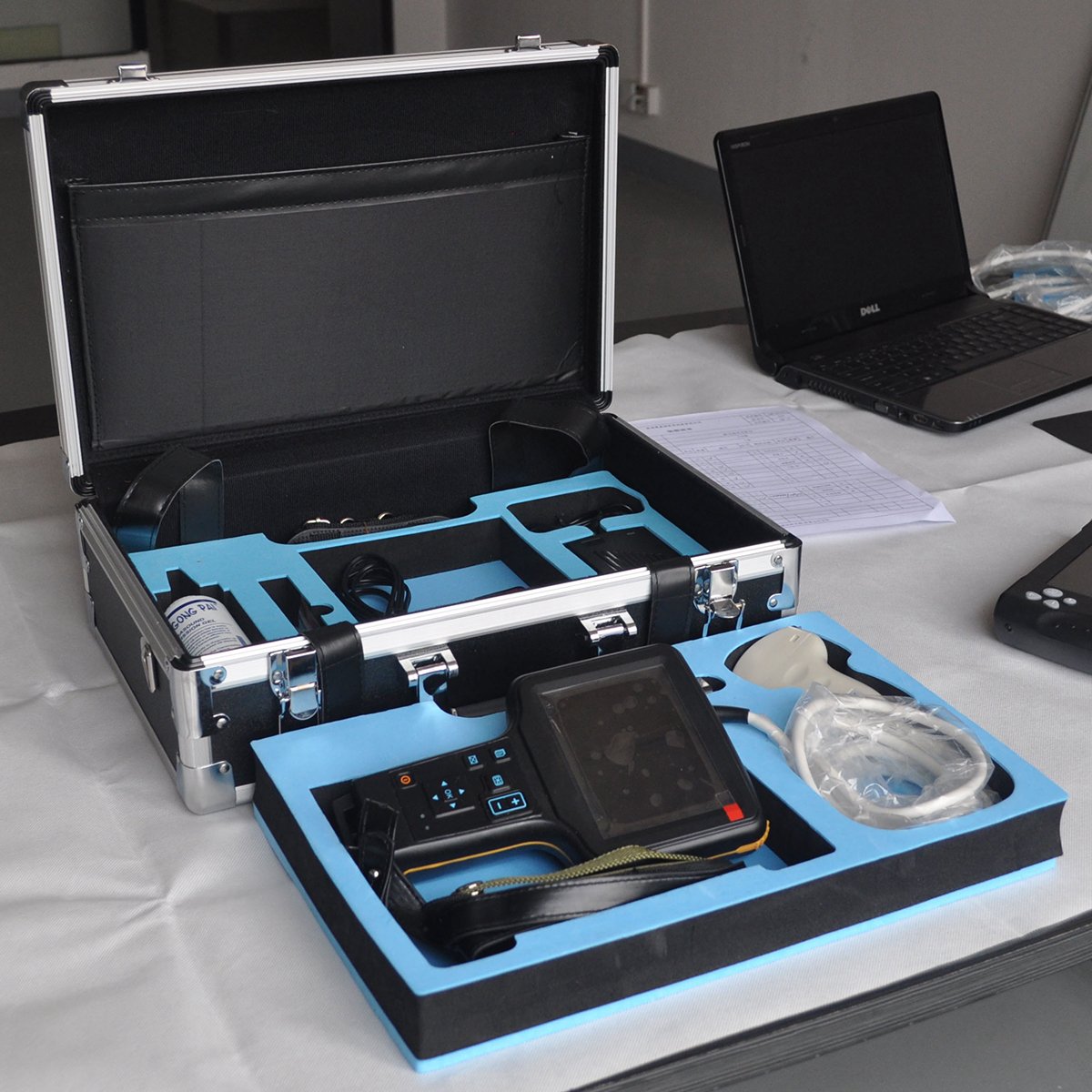

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | NEUVU31 Portable Ultrasound Scanner with integrated 3000mAH battery | 1 |
| Convex Probe | 3.5MHz electronic convex probe with cable assembly | 1 |
| TFT LCD Screen | 5-inch display with adjustable brightness | 1 |
| Storage Device | 28GB U-Disk for image archiving | 1 |
| Power Cable | USB charging cable for battery recharge | 1 |
| Carrying Case | Protective case for field transport | 1 |
| User Manual | Multilingual operation and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the NEUVU31 portable ultrasound scanner, customisation options, and multi-frequency probe configurations. We offer competitive pricing, fast delivery, and comprehensive post-sale support for veterinary practices and livestock operations worldwide.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
