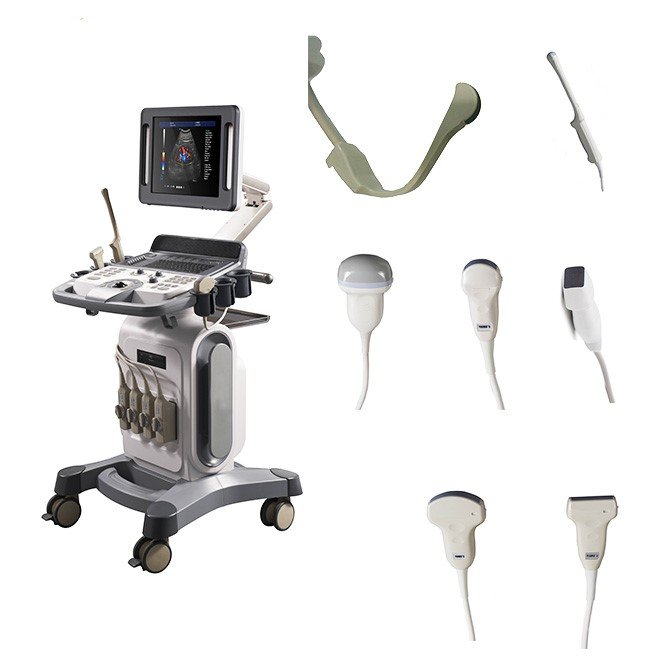

Transvaginal ultrasound NEUCU30PLUS
- Smart and compact design with a 15-inch LED monitor
- Flexible free arm for easy positioning
- Rotatable operation panel for user convenience
- Backlit keyboard with 8TGC for enhanced usability
- Multiple transducer types: 3.5MHz convex, 7.5MHz linear, and more
- Applications in Obstetrics, Gynecology, Pediatrics, and Vascular imaging
- Advanced imaging features including Tissue Harmonic imaging and Doppler Flow Imaging
- Real-time zoom capabilities with up to 10x magnification
- Large 500GB hard disk for extensive memory storage
- Optional DICOM 3.0 support for seamless integration with other systems.
- SKU
- NEUCU30PLUS
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Transvaginal Ultrasound NEUCU30PLUS
A smart, compact diagnostic ultrasound platform featuring a 15-inch LED monitor, flexible positioning arm, and multi-frequency transducer support. Designed for obstetrics, gynecology, pediatrics, and vascular imaging with advanced tissue harmonic imaging and real-time zoom capabilities up to 10x magnification.
Clinical overview
The NEUCU30PLUS is a versatile, compact diagnostic ultrasound system engineered for multi-specialty clinical environments. Its intelligent design combines a 15-inch LED monitor with a flexible free arm and rotatable operation panel, enabling rapid patient positioning and ergonomic workflow optimization. The system supports six distinct transducer types spanning 2.0–12.0 MHz, making it suitable for obstetric, gynecological, pediatric, vascular, and general abdominal imaging.
Advanced imaging features including tissue harmonic imaging, dynamic apodization, directional Doppler flow imaging, and real-time zoom (up to 10x magnification) deliver high-quality diagnostic images. With 500GB onboard storage, extensive cine-memory capability, and optional DICOM 3.0 integration, the system supports seamless data management and institutional connectivity.
Key features & surgeon benefits
Smart Compact Architecture
- 15-inch LED monitor for clear visualization
- Flexible free arm for intuitive positioning
- Rotatable operation panel for user convenience
- Backlit keyboard with 8TGC controls
- Four active probe connectors and six probe holders
Multi-Frequency Probe Support
- 3.5 MHz convex probe (2.0–5.5 MHz range)
- 7.5 MHz linear probe (6.0–12.0 MHz range)
- 6.5 MHz transvaginal probe (5.0–9.0 MHz range)
- 3.5 MHz micro-convex and phased array options
- 4D volume probe for advanced volumetric imaging
Advanced Imaging Capabilities
- Tissue harmonic imaging for enhanced contrast resolution
- Dynamic apodization and dynamic aperture optimization
- Real-time zoom with 10 magnification steps (×1.0 to ×10.0)
- Continuous dynamic focus with 1–16 selectable transmit focus points
- Speckle reduction and image optimization algorithms
Efficiency & Data Management
- 500GB hard disk for extensive cine-memory storage
- B-mode and M-mode recording capabilities
- Optional DICOM 3.0 for seamless system integration
- Panoramic and trapezoid imaging options
- User-defined exam types and saved protocols
Technical specifications
| Indications | Obstetrics, Gynecology, Pediatrics, Abdominal, Vascular, Small Parts, Superficial Organs, Orthopedics, Musculoskeletal |
|---|---|
| Transducer Types | 3.5 MHz convex, 7.5 MHz linear, 3.5 MHz micro-convex, 6.5 MHz transvaginal, 3.5 MHz phased array, 4D volume probe |
| Frequency Range | 2.0–12.0 MHz (probe-dependent) |
| Display | 15-inch LED monitor |
| Display Modes | B, B|B, 4B, B|M, M, B|C|D, B|D, PW, B|PW, CF, CW, 4D, Triplex |
| Zoom | Real-time zoom, 10 steps (×1.0 to ×10.0), selectable position |
| Focus | Continuous dynamic focus, 1–16 selectable transmit focus, acoustic lens focus (1, 2, 3, 4 focus) |
| Memory | 500GB hard disk; B-mode and M-mode cine-memory |
| Advanced Features | Tissue harmonic imaging, dynamic apodization, dynamic aperture, directional Doppler flow imaging, pulse wave Doppler, TSF, HPRF, optional continuous wave Doppler, optional panoramic and trapezoid imaging |
| Connectivity | DICOM 3.0 (optional) |
| Probe Connectors | Four active connectors; six probe holders |
| Mobility | Four casters with brake |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Console | NEUCU30PLUS ultrasound system with 15-inch LED monitor, flexible free arm, rotatable operation panel, backlit keyboard (8TGC) | 1 |
| 3.5 MHz Convex Probe | Multi-frequency convex transducer (2.0, 3.0, 3.5, 4.0, 5.5 MHz) | 1 |
| 7.5 MHz Linear Probe | Multi-frequency linear transducer (6.0, 6.5, 7.5, 10.0, 12.0 MHz) | 1 |
| 3.5 MHz Micro-Convex Probe | Multi-frequency micro-convex transducer (2.0, 2.5, 3.5, 4.5, 5.0 MHz) | 1 |
| 6.5 MHz Transvaginal Probe | Multi-frequency transvaginal transducer (5.0, 6.0, 6.5, 7.5, 9.0 MHz) | 1 |
| 3.5 MHz Phased Array Probe | Multi-frequency phased array transducer (2.1, 3.0, 3.5, 4.0, 5.0 MHz) | 1 |
| 4D Volume Probe | Multi-frequency 4D volume transducer (2.0, 3.0, 3.5, 4.0, 5.5 MHz) | 1 |
| Probe Holders | Dedicated holders for transducer storage and organization | 6 |
| Casters with Brake | Mobile base for system mobility and stability | 4 |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, probe options, DICOM integration, and delivery timelines. We provide comprehensive support and customisation to meet your facility's diagnostic imaging requirements.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
