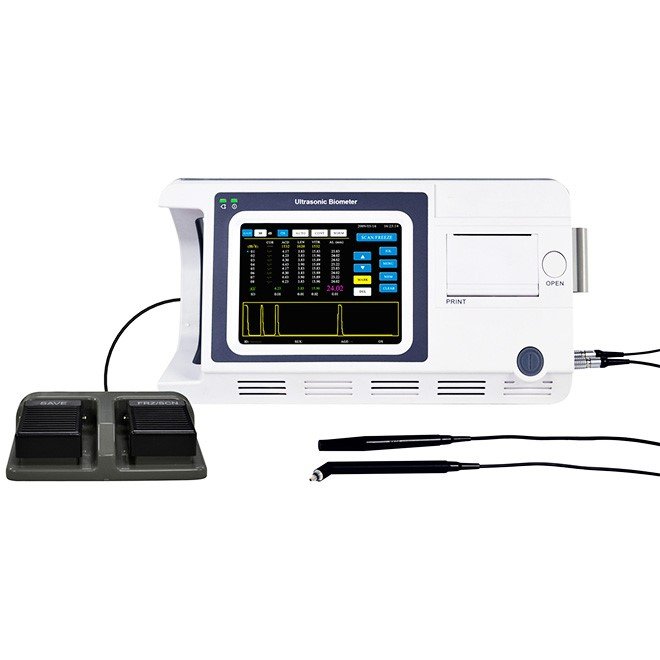

Ultrasonic Biometer for Ophthalmology NEU1000AP
- High-precision ultrasonic biometer for ophthalmology.
- Ultrasonic frequency of 10MHz for accurate measurements.
- Display resolution of 0.01mm ensures exact readings.
- Measuring accuracy of ≤±0.05mm for reliable results.
- Multiple measuring parameters: ACD, LENS, VITR, and AL.
- Selectable measuring modes: automatic and manual.
- Contact and immersion measuring methods available.
- Extensive IOL calculation formulas including SRK/T and HOLLADAY.
- Operating temperature range: 5℃ to 40℃.
- Compact design with power supply input of AC100~240V.
- SKU
- NEU1000AP
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Ultrasonic Biometer for Ophthalmology NEU1000AP
High-precision ultrasonic biometer delivering 0.01 mm display resolution and ≤±0.05 mm measuring accuracy. Combines biometry and pachymetry in one compact platform with 10 MHz biometer and 15–20 MHz pachymeter frequencies for comprehensive anterior segment assessment.
Clinical overview
The NEU1000AP is a dual-function ultrasonic biometer and pachymeter designed for comprehensive anterior segment evaluation in cataract and refractive surgery planning. Operating at 10 MHz for biometry and 15–20 MHz for pachymetry, the device delivers submillimetre accuracy (≤±0.05 mm biometry; ≤±5 µm pachymetry) with 0.01 mm display resolution. Clinicians can select between automatic modes (Normal, Cataract, Aphakic) and manual measurement for maximum flexibility across diverse patient presentations.
The integrated IOL calculation engine supports seven major formulas—including SRK/T, HOLLADAY, HAIGIS, and post-refractive surgery algorithms (DOUBLE-K/SRK-T, HISTORY DERIVED, SHAMMAS)—enabling confident lens selection for all surgical scenarios. Dual measurement methods (contact and immersion) accommodate patient comfort and clinical preference, while the compact AC 100–110V/240V design fits seamlessly into any ophthalmic suite.
Key features & surgeon benefits
Submillimetre Accuracy
- Biometry accuracy ≤±0.05 mm; pachymetry ≤±5 µm
- 0.01 mm display resolution for exact readings
- ≥100 dB receiver gain with 0–50 dB adjustable scope
Flexible Measurement Modes
- Automatic (Normal, Cataract, Aphakic) and manual modes
- Contact and immersion measurement methods
- Four biometric parameters: ACD, LENS, VITR, AL
Comprehensive Formula Library
- Seven standard formulas: SRK/T, SRK-II, BINK-II, HOLLADAY, HOFFER-Q, HAIGIS
- Post-refractive surgery algorithms: HISTORY DERIVED, DOUBLE-K/SRK-T, ROSA, SHAMMAS
- Rapid, evidence-based lens selection
Compact, Portable Platform
- Dual-function biometer and pachymeter in one device
- AC 100–110V/240V universal power input (50/60 Hz)
- Operating range 5–40 °C; ≤80% relative humidity
Technical specifications
| Biometer Frequency | 10 MHz |
|---|---|
| Pachymeter Frequency | 15–20 MHz |
| Display Resolution (Biometry) | 0.01 mm |
| Display Resolution (Pachymetry) | 1 µm |
| Biometry Measuring Scope (AL) | 15–40 mm |
| Pachymetry Measuring Scope | 0.23–1.2 mm |
| Biometry Accuracy | ≤±0.05 mm |
| Pachymetry Accuracy | ≤±5 µm |
| Receiver Gain | ≥100 dB total; 0–50 dB adjustable |
| Measurement Parameters | ACD, LENS, VITR, AL |
| Measurement Modes | Automatic (Normal, Cataract, Aphakic) and Manual |
| Measurement Methods | Contact and Immersion |
| IOL Calculation Formulas | SRK/T, SRK-II, BINK-II, HOLLADAY, HOFFER-Q, HAIGIS, HISTORY DERIVED, DOUBLE-K/SRK-T, REFRACTION DERIVED, ROSA, SHAMMAS |
| Operating Temperature | 5–40 °C |
| Relative Humidity | ≤80% |
| Atmospheric Pressure | 70–106 kPa |
| Power Supply Input | AC 100–110V/240V, 50/60 Hz |
| Power Supply Output | DC 12 V, 4 A |
| Rated Power | 50 VA |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Ultrasonic Biometer NEU1000AP with integrated pachymeter | 1 |
| Biometer Probe | 10 MHz contact/immersion probe with cable | 1 |
| Pachymeter Probe | 15–20 MHz pachymeter probe with cable | 1 |
| Power Supply | AC 100–110V/240V adapter (DC 12 V, 4 A output) | 1 |
| Calibration Block | Ultrasonic calibration standard | 1 |
| User Manual | Multilingual operation and maintenance guide | 1 |
| Carrying Case | Protective transport case | 1 |
