Ultrasound Q9
- High-resolution 15-inch LCD display with 1024x768 resolution
- Compact dimensions: 370mm x 185mm x 395mm, weighing only 10.5kg
- Versatile applications including obstetrics, gynecology, and cardiac imaging
- Multiple scanning methods: electronic convex, linear, micro convex, phased array, and volume convex
- Features Pulse Wave, Color, and Power Doppler Flow Imaging
- User-friendly operation panel with interactive backlit keys and alphanumeric keyboard
- USB and Ethernet ports for easy connectivity and data transfer
- Integrated patient information management and reporting systems
- Equipped with AIO (Automatic Image Optimization) and i-ImageTM software package
- Supports clinical and general measurement packages for accurate diagnostics
- SKU
- Q9
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

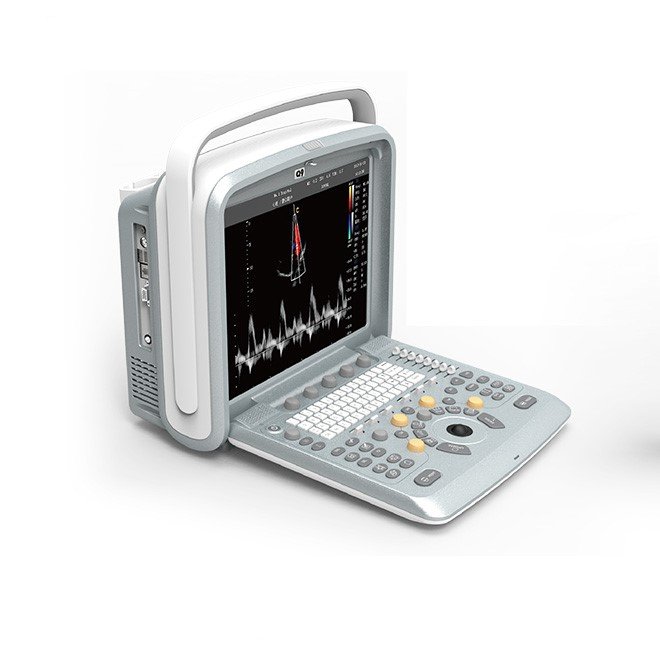

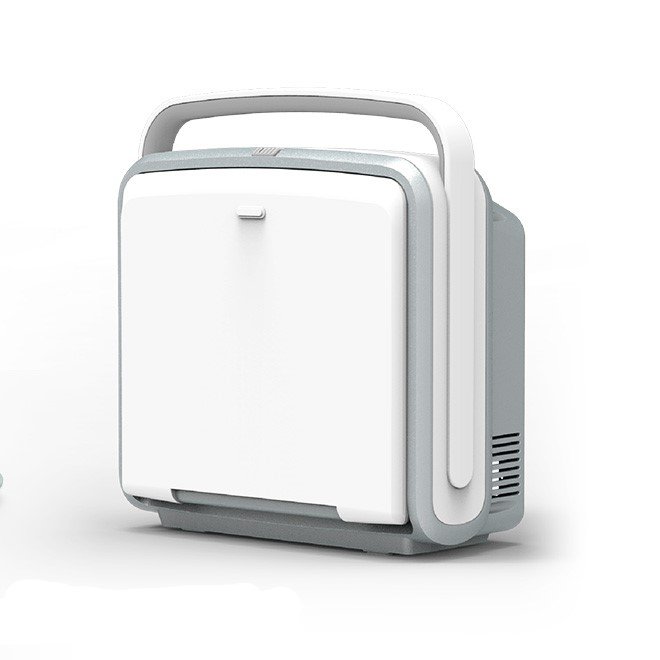

Ultrasound Q9
A compact, high-resolution diagnostic ultrasound system designed for versatile clinical applications. The Q9 combines advanced imaging technology with user-friendly operation, delivering exceptional image quality across obstetrics, gynecology, cardiac, and general abdominal scanning.
Clinical overview
The Ultrasound Q9 is a portable, high-performance diagnostic ultrasound system engineered for comprehensive clinical imaging across multiple specialties. With its 15-inch high-resolution LCD display and advanced scanning capabilities, the Q9 delivers superior image quality while maintaining a compact footprint suitable for diverse clinical environments—from hospital departments to mobile imaging units.
Equipped with multiple scanning modalities including electronic convex, linear, micro convex, phased array, and volume convex probes, the Q9 supports Pulse Wave, Color, and Power Doppler Flow Imaging. The integrated patient information management, reporting systems, and advanced software packages (AIO, i-Imageâ„¢) enable efficient workflow and accurate diagnostic measurements across general, obstetric, cardiac, and vascular applications.
Key features & surgeon benefits
High-Resolution Visualization
- 15-inch LCD display with 1024×768 resolution
- Brightness adjustment for optimal viewing in varied lighting
- Intelligent Zoom and Speckle Reduction Algorithm (SRA) for enhanced clarity
Intuitive Operation & Connectivity
- Interactive backlit control panel with alphanumeric keyboard
- 8 TGC (Time Gain Compensation) slides for precise image optimization
- USB (×2), Ethernet, S-video, and VGA ports for seamless data transfer and integration
Multi-Specialty Scanning Capability
- Five scanning methods: electronic convex, linear, micro convex, phased array, volume convex
- Supports 9 clinical applications: abdomen, gynecology, obstetrics, urology, small parts, pediatrics, vascular, musculoskeletal, cardiac
- Doppler imaging: Pulse Wave, Color, Power, and Directional Power Doppler Flow
Advanced Software & Management
- Automatic Image Optimization (AIO) and i-Imageâ„¢ software for rapid image enhancement
- Integrated patient information management and building reporting system
- Auto Doppler spectrum trace and auto-calculate for streamlined measurements
Technical specifications
| Indications | Abdomen, gynecology, obstetrics, urology, small parts, pediatrics, vascular, musculoskeletal, cardiac |
|---|---|
| Dimensions | 370mm (L) × 185mm (W) × 395mm (H) |
| Weight | 10.5 kg (main unit, no probe) |
| Display | 15-inch high-resolution LCD, 1024×768 resolution, adjustable brightness |
| Power Supply | Auto-adaptable AC 100–110V/240V, 50–60 Hz, 300 VA consumption |
| Scanning Methods | Electronic convex, linear, micro convex, phased array, volume convex |
| Doppler Modes | Pulse Wave, Color, Power, Directional Power Doppler Flow Imaging |
| Storage | ≥250 GB integrated hard disk |
| Connectivity | USB (×2), Ethernet (×1), S-video (×1), VGA (×1) |
| Transducer Ports | 2 active ports |
| Software Features | AIO (Automatic Image Optimization), i-Imageâ„¢, Intelligent Zoom, Speckle Reduction Algorithm (SRA), auto Doppler spectrum trace and calculation |
| Measurement Packages | General measurement package, clinical measurement package |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Ultrasound Q9 system with 15-inch LCD display and control panel | 1 |
| Power Supply | Auto-adaptable AC 100–110V/240V power adapter with cable | 1 |
| Transducer Ports | 2 active transducer connection ports (probes sold separately) | 2 |
| Connectivity Cables | USB, Ethernet, S-video, and VGA cables for data transfer and display output | 1 set |
| Software Package | EASYVIEWâ„¢ image archive system, patient information management, reporting system, AIO, i-Imageâ„¢ | 1 |
| Measurement Packages | General measurement package and clinical measurement package | 1 set |
| Documentation | User manual, quick reference guide, warranty certificate | 1 set |
