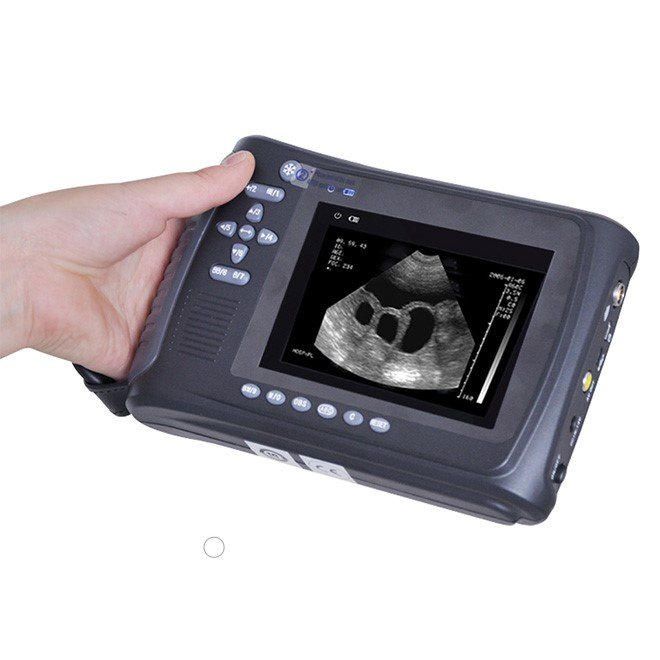

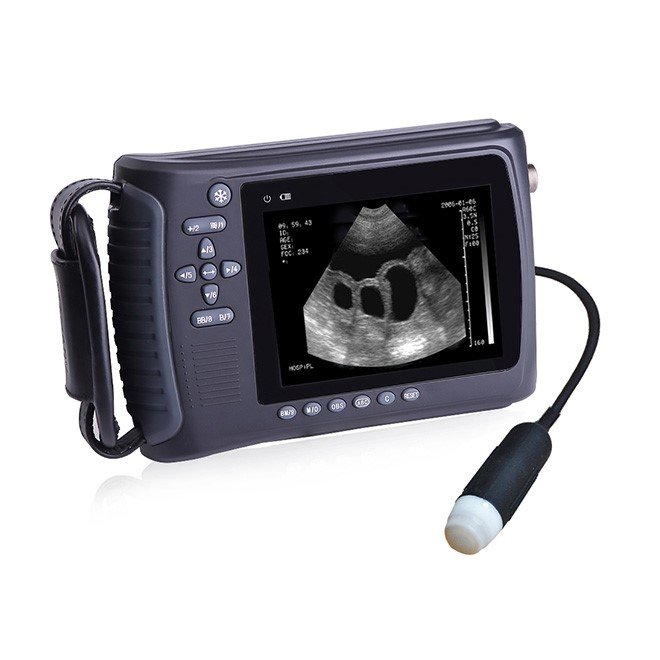

Veterinary Handheld Ultrasound Scanner NEUVU21
- Handheld design for easy portability and convenience
- 5" TFT-LCD display with high brightness and clarity
- Capable of detecting multiple animal species including swine, ovine, goats, and canines
- Automatically calculates back-fat and lean percentage in swine
- Offers multiple display modes: B, B+B, B+M, M, 4B
- Long-lasting lithium battery with continuous operation of over 3 hours
- Easy output connectivity: USB 2.0 and video (PAL-D, NTSC)
- Standard configuration includes scanner body, battery, probe, charger, and USG gel
- Optional accessories available, including a waterproof probe and video printer
- Image processing features for enhanced imaging quality and measurement capabilities
- SKU
- NEUVU21
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
NEUVU21 Handheld Ultrasound Scanner
Portable, high-resolution ultrasound imaging for livestock and companion animal diagnostics. The NEUVU21 delivers real-time B-mode imaging with automated body composition analysis, ideal for field and clinical use across swine, ovine, caprine, and canine applications.
Clinical overview
The NEUVU21 is a compact, handheld ultrasound scanner engineered for rapid, portable diagnostics in veterinary practice. Its lightweight design and integrated lithium battery enable extended field work—ideal for livestock assessment, breeding evaluation, and clinical imaging in remote or on-farm settings. The 5" high-brightness TFT-LCD display ensures clear image quality in variable lighting conditions.
Unique to the NEUVU21 is its automated back-fat and lean percentage calculation for swine, streamlining production management and carcass quality assessment. Multiple display modes (B, B+B, B+M, M, 4B) and comprehensive measurement tools support diverse diagnostic workflows across species.
Key features & surgeon benefits
Field-Ready Design
- Lightweight handheld form factor (800 g)
- Integrated 2600 mAh lithium battery; 3+ hours continuous operation
- AC/DC charging flexibility; optional car charger available
High-Resolution Diagnostics
- 5" TFT-LCD display with high brightness and contrast
- 256 gray-scale imaging; lateral resolution ≤4 mm (depth ≤80 mm)
- Scan depth 120–190 mm; blind zone ≤8 mm
Swine Production Analytics
- Automatic back-fat and lean percentage calculation
- Integrated measurement tools: distance, area, volume, heart rate, gestation age
- Image processing: histogram, colour encode, gamma, smoothing
Data Management & Output
- USB 2.0 and video (PAL-D, NTSC) output for workstation integration
- Full-screen annotation: date, time, animal name, sex, age
- Optional video printer for on-site image documentation
Technical specifications
| Indications | Swine, ovine, goat, canine, and other species |
|---|---|
| Display | 5.0" TFT-LCD; 256 gray scale |
| Display modes | B, B+B, B+M, M, 4B |
| Scan depth | 120–190 mm (displayed depth 192 mm) |
| Maximum detection depth | ≥140 mm |
| Lateral resolution | ≤4 mm (depth ≤80 mm); ≤5 mm (80 < depth ≤130 mm) |
| Axial resolution | ≤2 mm (depth ≤80 mm) |
| Blind zone | ≤8 mm |
| Geometric precision | Horizontal ≤20 mm; Vertical ≤10 mm |
| Standard probe | 3.5 MHz sector probe |
| Image processing | Histogram, colour encode, gamma, image smoothing |
| Measurements | Distance, circumference, area, volume, heart rate, gestation age |
| Connectivity | USB 2.0; Video output (PAL-D, NTSC) |
| Battery | 2600 mAh lithium-ion; continuous operation ≥3 hours |
| Power supply | AC adapter: 100–110V/240V~, 50–60 Hz, 70 VA |
| Dimensions | 230 mm (L) × 120 mm (W) × 38 mm (H) |
| Weight | 800 g (net) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Scanner Body | NEUVU21 main unit with integrated controls | 1 |
| Li-ion Battery | 2600 mAh rechargeable battery | 1 |
| 3.5 MHz Sector Probe | Standard ultrasound transducer | 1 |
| Charger with Wires | AC adapter and charging cable set | 1 |
| Wrap Bag | Protective carrying bag | 1 |
| USG Gel | Ultrasound coupling gel bottle | 1 |
| Transportation Case | Hard-shell protective case | 1 |
| User Manual | Instruction and operation guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the NEUVU21 handheld ultrasound scanner, optional accessories, and customisation options. We offer competitive pricing, fast delivery, and comprehensive post-sale support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
